Semi Dump Trailers are big trailer that usually lifts when dumping its hall in a chosen location. End Dump Trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.
Semi Dump Trailers for Sale are become such a wonderful solution especially in handling big jobs. Safety in operations is well taken care of through a well-designed mechanism of offloading your goods.
With Semi Dump Trailers for Sale, they are applicable in the construction, agriculture and recycling industries among many other areas. They come in different shapes and types. Therefore, you will have variety based on your specific needs and requirements.

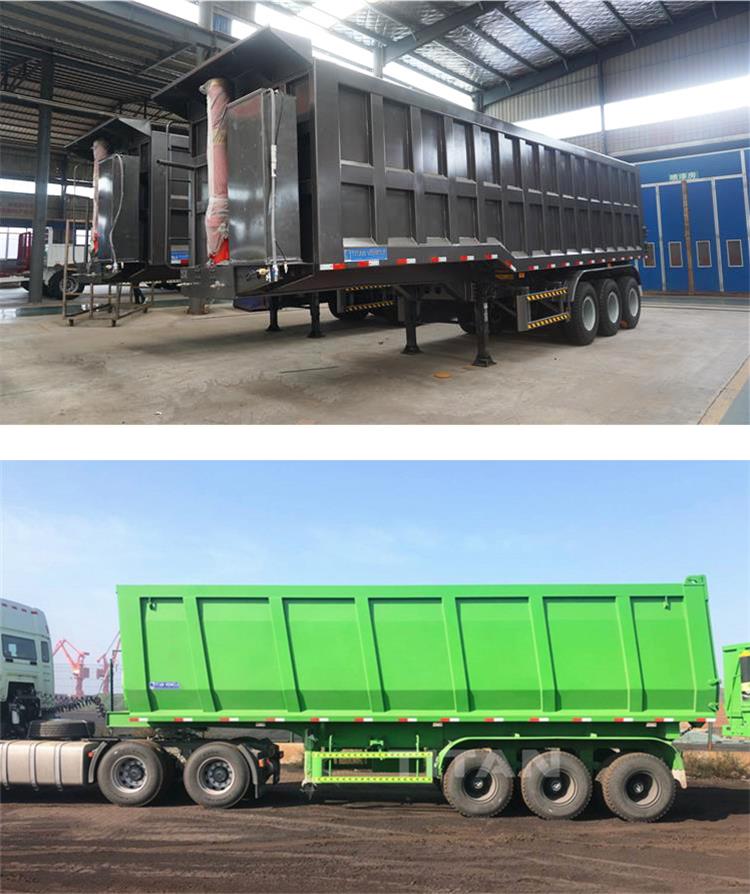

New & Used End Dump Trailer
Dimension: 11280mmx2495mm x3970mm ( inside dimension )
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Tare Weight (semi trailer): About 15600kg
Total volume(m³): 30-40m³ or less than 100tons
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

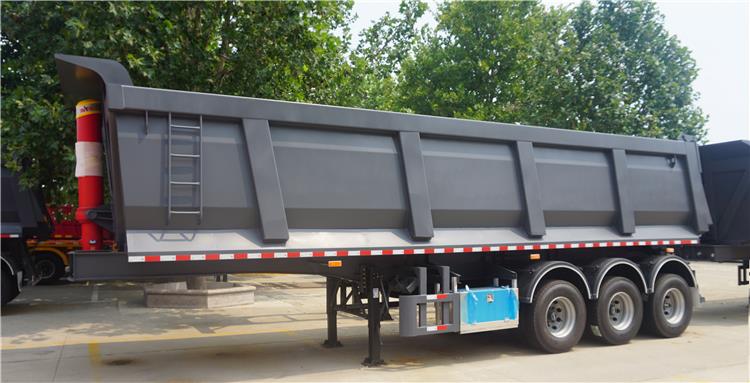

Semi Dump Trailers for Sale dimension
End Dump Trailer is also known as a rear tipper trailer works by offloading cargo towards the back area.
Ideally, you can use it for loading industrial raw materials or any other solid material used in construction. Once the back of your End Dump Trailer is locked, you can load your cargo in that position. On arriving at your destination, the front side of the dump trailer gets raised causing your cargo to drop off from the back.
The body of your Semi Dump Trailers for Sale has been built with a thicker steel plate to sustain the weight of the cargo that is usually of hard materials. This way, the tough steel plate prevents the cargo from damaging your trailer.
The end dump trailer is suitable for cargo with a large rest angle. It is important to note that the end dump trailers cannot be more than 12m long.

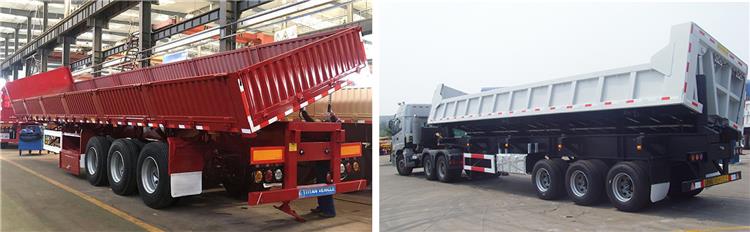

3 axle End Dump Trailer for Sale
A side tipper is an alternative to the end dump trailers. This type of Semi Dump Trailers for Sale allows you to offload your goods from the side. you can use it for transporting solid building materials such as sand and stones among others.
The side tipper makes use of hydraulic pumps and hydraulic motors and a dump-bucket to one side. The remaining side gives you the option of opening and locking it during your job operations.
You may be forced to do side dumping in areas where there isn’t sufficient space. In such a situation, lateral offloading can be done using this side tipper. It helps in saving space. Thick steel plates are also put in place to prevent damages that may occur on the trailer with weak plates.
Unlike with the rear tipper, the side tipper is suitable for cargo with a small rest angle. However, the side tipper can load more than the end dump trailer.
Side tipper trailer for sale
The need for safer and efficient load carrying Semi Dump Trailers for Sale has prompted the use of this technology to build the Semi Dump Trailers for Sale. While some cargo would require manual loading and offloading, such products as building materials wouldn’t require specialized care during offloading. You can now choose between having end dump trailers and side tipper according to your need.
