Chapter 1: How Do You Load a 40ft Container Side Loader Trailer?
Chapter 2: Notes on Loading and Unloading Container Side Loader
Chapter 3: Side Loader Trailer For Sale Delivery
Chapter 4: Side Loader Trailer For Sale Precautions
Chapter 5: Container Side Loader MQH37A Stress Calculation
Chapter 6: How To Ensure The Quality Of 40ft Container Side Loader Ropes, and Slings.
There is a self-loading and unloading equipment used in container transport vehicles, which is the TITAN VEHICLE 40ft container side loader for sale In Guyana. It can independently complete the self-loading and unloading of 20-foot and 40-foot containers, as well as vehicle-to-vehicle transfer and other operations without the assistance of front loaders, gantry cranes, forklifts and other handling equipment. TITAN VEHICLE side loader trailer for sale is mainly used in container-intensive yards such as seaports, inland river ports and free trade zones.

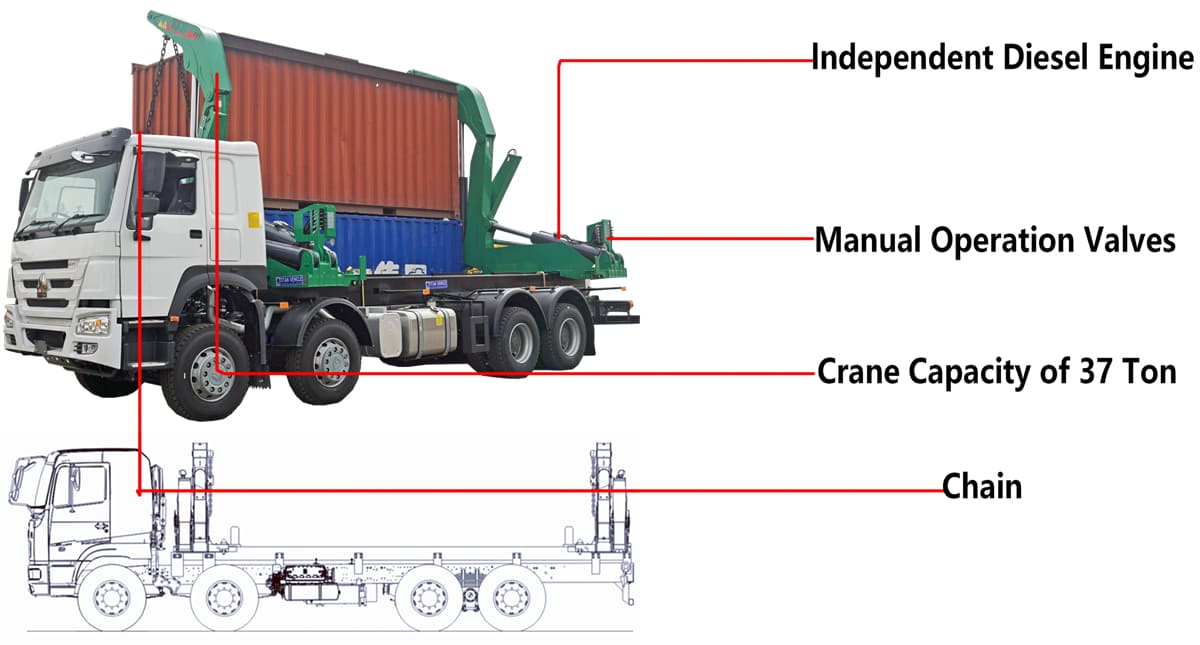

The maximum lifting weight of the TITAN VEHICLE 40ft container side loader for sale In Guyana is 37 tons, and the maximum operating range is 4 meters. In order to meet the working conditions of customers, many new structures and technologies are adopted. TITAN VEHICLE side loader trailer for sale adopts patented technology of sliding container self-loading and unloading transport vehicle, upper and lower double lifting chain technology, two-way guiding structure of base, parallel staggered layout of sliding oil cylinder, and interlocking technology of boom and outrigger, which realizes the advanced, leading and reliable product technology.
The application of multi-camera image monitoring technology provides strong support for safe driving and accurate positioning and parking. The two-way traction technology of the bottom vehicle makes the U-turn operation of TITAN VEHICLE 40ft container side loader for sale In Guyana more flexible in narrow space.
TITAN VEHICLE 40ft container side loader for sale In Guyana is equipped with a wireless remote control system. During the operation of the whole machine, there is an intelligent anti-rollover protection system on one side of the outrigger to monitor the stability of the whole machine in real time.
If there is a risk of tilting, it can automatically alarm and effectively lock; the other side of the outrigger is protected by a baffle to prevent the container from entering the dangerous area. The application of high-strength steel plates ensures safety and reliability through advanced software analysis and rigorous testing; at the same time, high-quality hydraulic seals, high-level electrical protection, safe and reliable locking mechanisms, and practical and safe emergency stop functions also increase safety.
Preparation:
Check whether all equipment of the 40ft container side loader for sale is operating normally, including the lifting device, hydraulic system, etc.
Ensure the loading site is flat, solid, and has enough space for operation.
Positioning:
Park the side loader trailer for sale accurately where the container will be loaded, ensuring that the body is aligned with the center line of the container. Pull up the handbrake to prevent the trailer from moving during loading.
Operating The Side Loader Trailer:
Start the 40ft container side loader for sale and extend the boom to the appropriate length and angle. Operate the hook on the boom so that it is accurately hung in the lifting holes on the four corners of the container.
Lifting The Container:
Slowly operate the lifting device of the side loader to lift the container smoothly from the ground. During the lifting process, always pay attention to the balance of the container to avoid tilting.
Moving and Placing:
Move the lifted container horizontally to the top of the side loader trailer for sale. Slowly lower the container so that it is accurately placed on the load platform of the 40ft container side loader for sale.
Fix the Container:
Use the fixing devices equipped with the 40ft container side loader for sale, such as twist locks, tie straps, etc., to firmly fix the container on the trailer. Check whether the fixing devices are firmly installed to ensure that the container will not move during transportation.
How Do You Load a 40ft Container Side Loader Trailer?
1. Check the equipment status: Before loading and unloading, make sure the TITAN VEHICLE 40ft container side loader for sale In Guyana is closed and locked, and each operating lever is in the neutral position to prevent accidental start. Check whether the key components of the TITAN VEHICLE side loader trailer for sale, such as the boom, outriggers, hydraulic system, etc., are damaged or abnormal. If there is a problem, it needs to be repaired first.
2. Choose a suitable site: A flat, solid and spacious site is required for loading and unloading operations. The ground should be able to withstand the weight of the crane and its transport vehicle to avoid collapse. There should be no obstacles and dangerous factors such as high-voltage lines around the site.
3. Use appropriate tools: Equipped with professional lifting equipment such as cranes, forklifts, etc., and the carrying capacity of these equipment must meet the weight requirements of XCMG side cranes. At the same time, prepare suitable ropes, slings, etc. to ensure that they are of reliable quality and free of wear.
3. Personnel operation specifications: Loading and unloading operators must undergo professional training, be familiar with the structure and loading and unloading process of TITAN VEHICLE 40ft container side loader for sale In Guyana, and operate in strict accordance with the operating procedures. During the loading and unloading process, maintain good communication and cooperation and obey the instructions of the commander.
4. Fixation and protection: After the TITAN VEHICLE side loader trailer for sale is loaded onto the transport vehicle, it must be firmly fixed to prevent movement or overturning during transportation. Ropes, chains, etc. can be used to firmly connect the TITAN VEHICLE 40ft container side loader for sale In Guyana to the fixed points of the transport vehicle, and add buffer materials at key locations to prevent collision damage.
5. Safety protection measures: Operators must wear necessary safety protection equipment, such as safety helmets, safety shoes, gloves, etc. Set up warning signs at the loading and unloading site to prohibit unrelated personnel from entering the operating area.

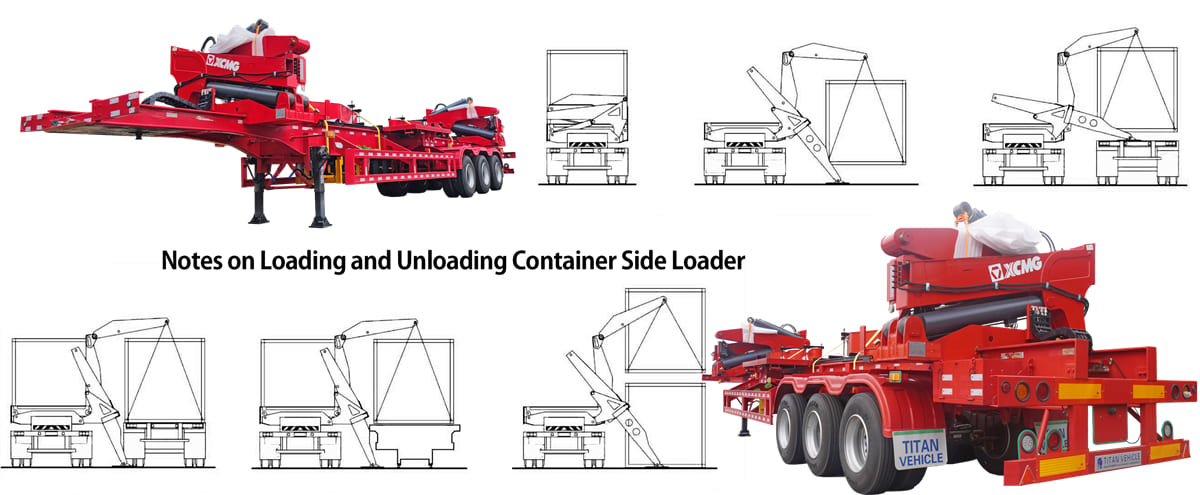

Notes on Loading and Unloading Container Side Loader
40ft Container Side Loader For Sale Operation Introduction
TITAN VEHICLE side loader trailer for sale In Guyana adopts an advanced wireless remote control system with a simple electronic remote control. When you need to use the TITAN VEHICLE 40ft container side loader for sale In Guyana, you only need to remotely control the TITAN VEHICLE side loader trailer for sale from nearby instead of operating it directly.
The welded structure of the TITAN VEHICLE 40ft container side loader for sale In Guyana is made of ultra-high-strength steel to ensure the highest possible strength while still being able to lighten the load to increase the load. Each crane includes the main boom, which has a 2-stage telescopic boom operated by a double-acting telescopic cylinder integrated in the boom.
To give you a better reference, TITAN VEHICLE has prepared a detailed trailer operation video for you. The following is the operation process display.

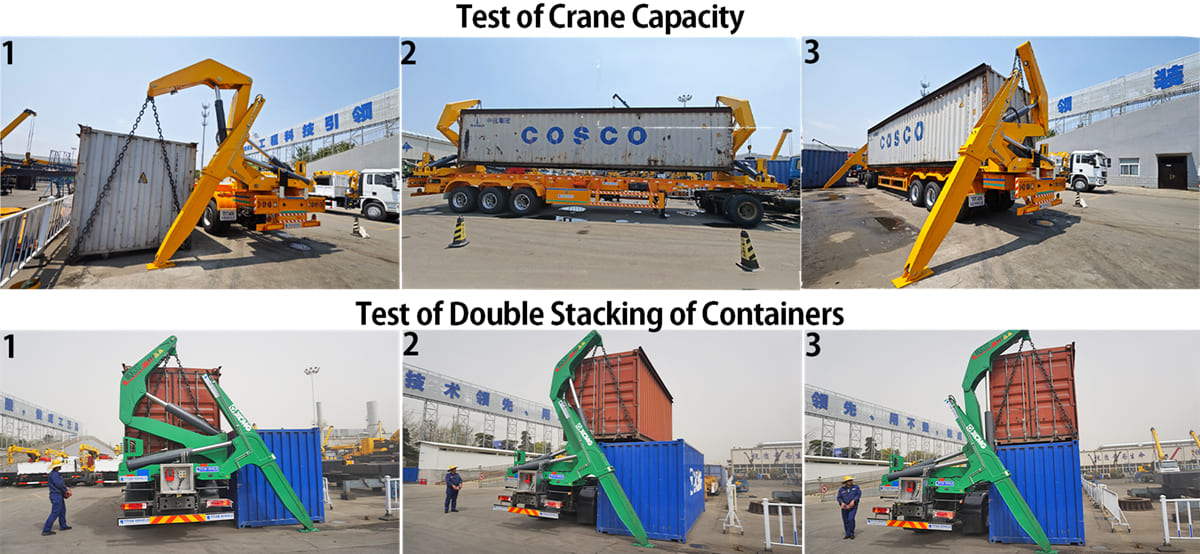

Side Loader Trailer For Sale Test
TITAN VEHICLE's goal is to provide our customers with the highest quality side loader trailer for sale. In addition to the highest quality side loader trailer, TITAN VEHICLE also provides customers with the most professional service. We covered the TITAN VEHICLE 40ft container side loader for sale In Guyana with a tarp to protect it, which provides our customers with the best transportation experience.
TITAN has been engaged in trailer production and export for more than 18 years. With the most advanced trailer production technology and 18 years of trailer export experience, Titan will provide you with the best trailers and services.
To promise to provide customers with the best trailers, all of TITAN's 40ft container side loader for saleIn Guyana are required to undergo loading capacity testing before leaving the factory.
For your reference, the following is a test video of our side lift. Many other test videos of TITAN VEHICLE 40ft container side loader for sale In Guyana are also attached in the attachment, please check.
Side Loader Trailer For Sale Test
After strict quality testing, we guarantee that TITAN VEHICLE 40ft container side loader for sale in Guyana can be used for more than 10 years. Hope we can have a good cooperation.
TITAN VEHICLE side loader trailer for sale is one of our most advantageous products. We have exported hundreds of units to all over the world.

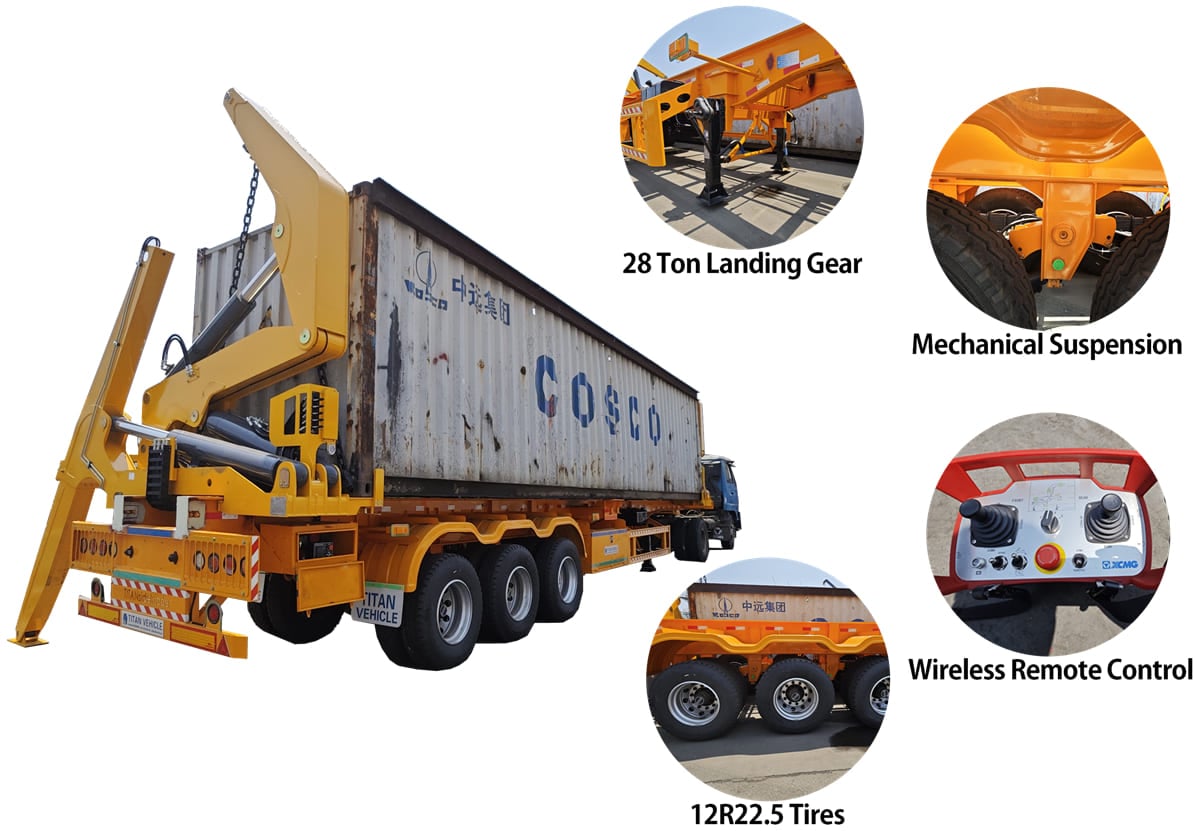

TITAN VEHICLE side loader trailer for sale is our most popular, here are its specifications:
Overall: 14100*2500*4100mm
Axle: 3 Axles
Tire: 12r22.5
Frame: High Strength Steel
Main Beam: 500mm
Loading Capacity: 37-45ton
King Pin: 2/3.5 Inch Bolted Type
Suspension: Heavy Duty Spring Suspension
Light: Led Light
Tool Box: 1 Set Tool Box
Spare Tire Carriers: 1 Units
Ramp: Reinforced Spring/Hydraulic Loading Ramp
Color: Optional
Brand Jost Landing Gear
Heavy duty type suspension: Ensure the driving safety and handle the bad road condition
Skeleton trailer of side loader trailer: Save repair costs & long-time service.
Landing gear: Optional jost landing gear, is the world famous recognized brand accessories. Better bearing capacity, long service life
Kin pin: 2/3.5 inch bolted type
Led light: The whole trailer is equipped with led lamps and will be shipped with a set of taillights and side lights
Multi axles: For the trailer could have better loading capacity.
Safe Driving Notice
1. For driving safety, we specifically tell you that the beam of TITAN VEHICLE 40ft container side loader for sale In Guyana is a disconnected structure, which is fixed by multiple screws. The technical department recommends driving within 40 kilometers.
2. It is recommended to drive at a low speed and with a large torque force to prevent the screws from breaking when driving on a curve.
3. After driving for a distance, check the tightness of the screws to see if they are loose. Eliminate safety hazards.
4. Check the tightness of the screws before delivering the TITAN VEHICLE side loader trailer for sale.
5. Before installing the TITAN VEHICLE 40ft container side loader for sale In Guyana, check the beam connection and whether the screws are tightened completely. After installation, check whether the disconnection is complete.

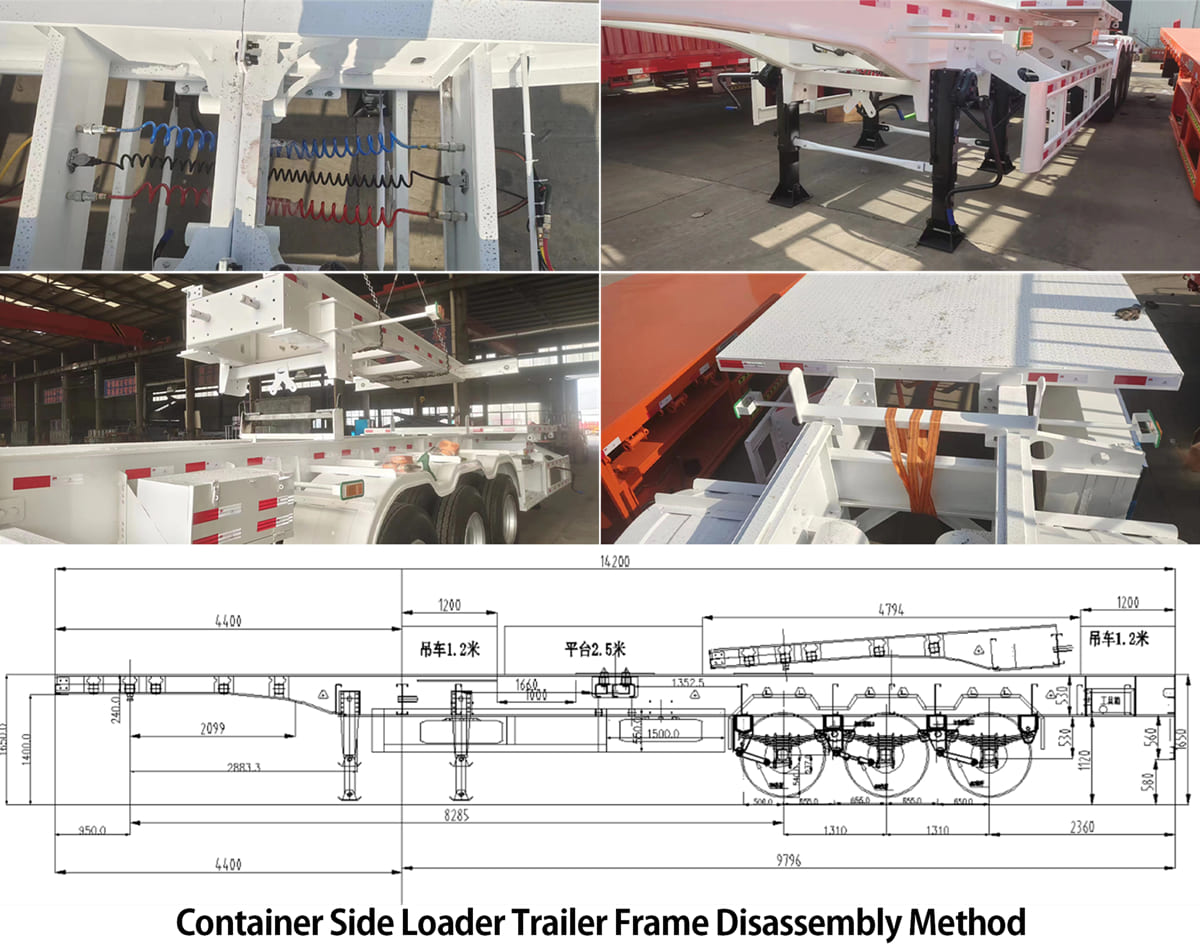

Frame Disassembly Method
1. First, remove the lower circuit, gas circuit, and quick connector.
2. Remove the legs of the TITAN VEHICLE 40ft container side loader for sale In Guyana.
3. Remove the screws on the inside of the TITAN VEHICLE side loader trailer for sale beam.
4. Remove the screws and just pull them out.
5. Loading position and fixed rack.
6. Loading diagram
Side Loader Trailer For Sale Precautions
Side Loader Trailer Load and Working Conditions
Main plate material Q690;
Load combination A: allowable stress is 690/(1.48*1.05)=444Mpa;
Load combination C: allowable stress is 690/(1.22*1.25)=452Mpa; (1.25 times static load test)
Load combination C: allowable stress is 690/(1.22*1.1*1.05)=490Mpa; (1.1 times dynamic load test)
From the above, according to the rated load, the stress is less than 444MPa to meet the requirements.

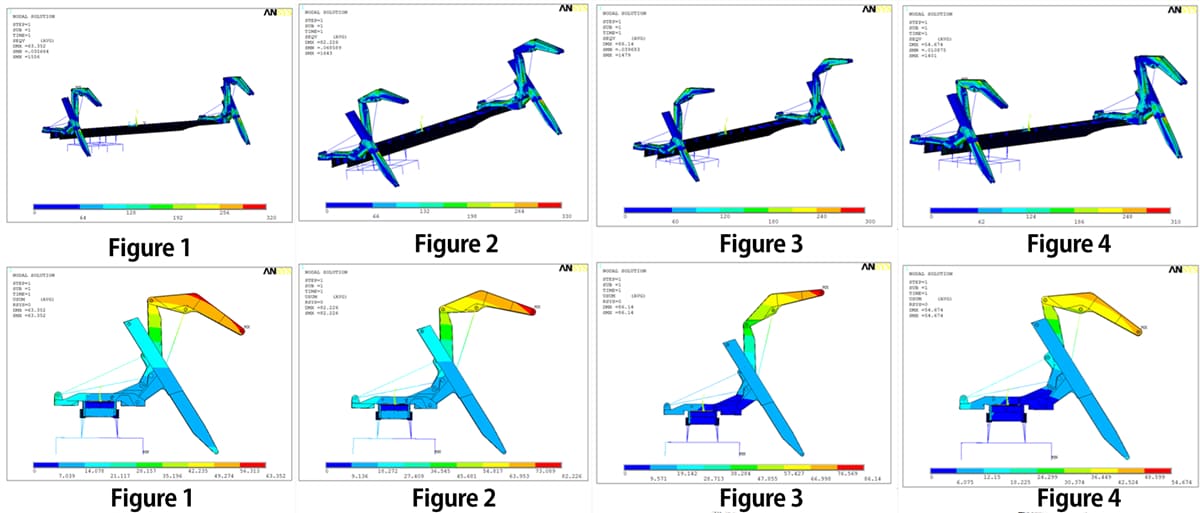

Figure 1: Lower arm luffing cylinder fully extended, upper arm at initial lifting point, 31t load
Figure 2: Lower arm luffing cylinder fully extended, upper arm horizontal, 31t load
Figure 3: Lower arm luffing cylinder fully extended, upper arm luffing cylinder fully extended, 31t load
Figure 4: Lifting point 3.5m from the chassis centerline, upper arm at initial lifting point, 35t load
Container Side Loader MQH37A Stress Calculation

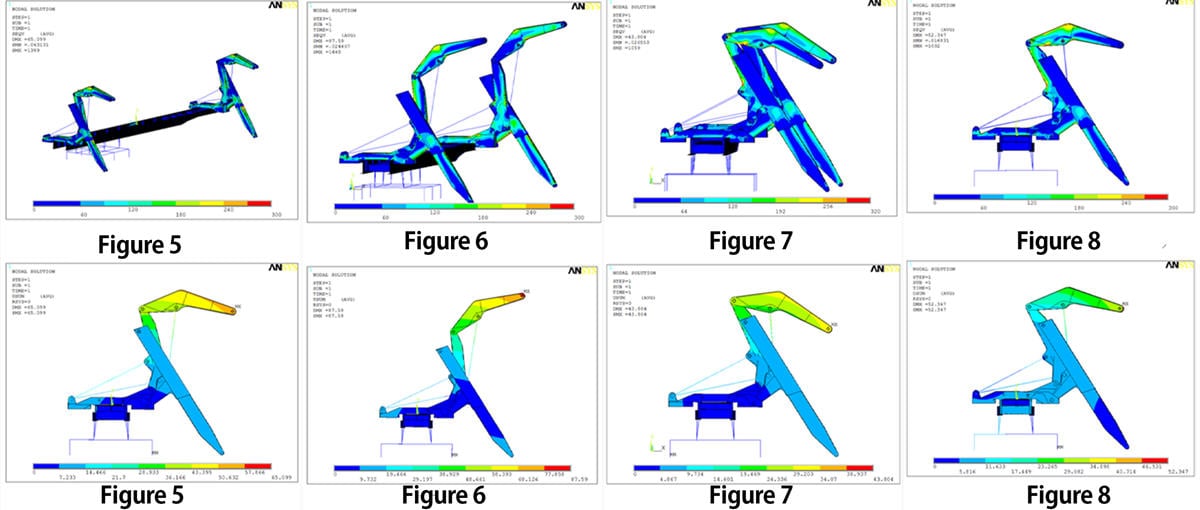

Figure 5: Lifting point 3.5m from the chassis centerline, upper arm horizontal, 35t load
Figure 6: Lifting point 3.5m from the chassis centerline, upper arm luffing cylinder fully extended, 35t load
Figure 7: Lifting point 3m from the chassis centerline, upper arm at initial lifting point Initial lifting point, 37t load
Figure 8: Lifting point 3m from the chassis centerline, upper arm horizontal, 37t load
Container Side Loader MQH37A Stress Calculation

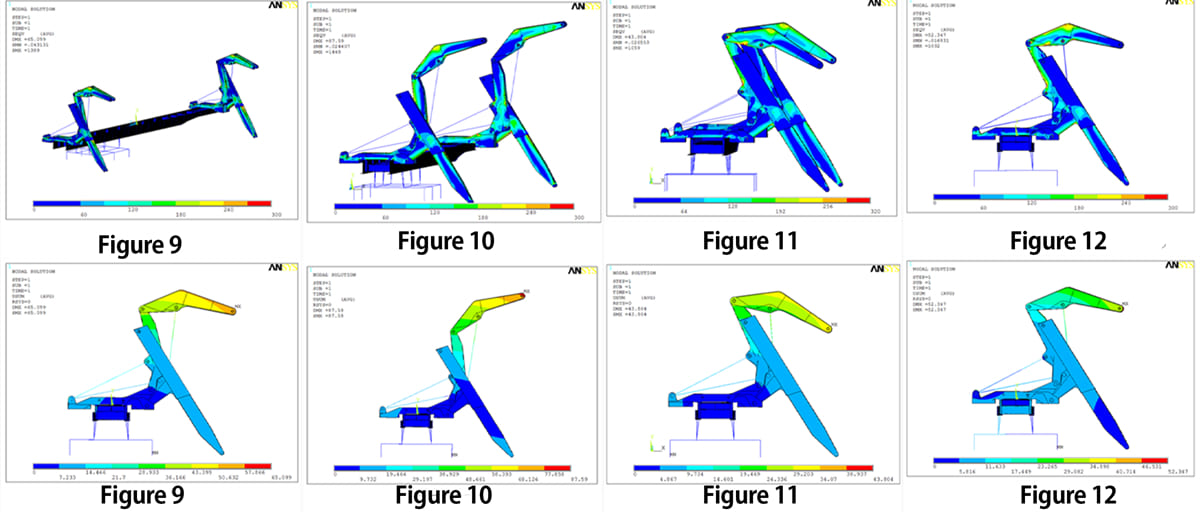

Figure 9: Lifting point 3m from the chassis centerline, upper arm boom cylinder fully extended, 37t load
Figure 10: Lifting point 2.47m from the chassis centerline, upper arm at initial lifting point, 37t load
Figure 11: Lifting point 2.47m from the chassis centerline, upper arm horizontal, 37t load
Figure 12: Lifting point 2.47m from the chassis centerline, upper arm boom cylinder fully extended, 37t load
Figure 13: Lifting point located on chassis centerline, upper arm located at initial lifting point, 37t load
Container Side Loader MQH37A Stress Calculation
1. Regular inspection:
Establish a strict inspection plan, such as a weekly appearance inspection and a comprehensive and detailed inspection every month.
Check the surface of the rope for broken wires, wear, deformation, etc., focusing on the parts that often contact the TITAN VEHICLE 40ft container side loader for sale In Guyana and the connection ends of the rope. Check whether the key connection parts of the sling, such as hooks and rings, are cracked, deformed or loose.
2. Correct use:
Strictly use the ropes and slings according to their carrying capacity and do not overload them. Understand the weight of the TITAN VEHICLE 40ft container side loader for sale In Guyana used and the rated load of the ropes and slings. Avoid direct contact between the rope and sharp objects, and install protective pads at possible contact points.
TITAN VEHICLE side loader trailer for sale should maintain the correct posture during use to avoid twisting or abnormal external force.
3. Proper storage:
Store ropes and slings in a dry and ventilated place, avoid direct sunlight and rain, and prevent aging and corrosion. TITAN VEHICLE 40ft container side loader for sale In GuyanaRopes should be coiled neatly to avoid knots or tangles, and slings should be placed in special shelves or tool boxes to prevent squeezing and collision.
4. Timely replacement:
When it is found that the broken wires of the rope reach a certain proportion (such as 6×19+1 alternately twisted wire rope, the number of broken wires in one pitch reaches 12 wires) or the wear exceeds the specified limit (such as the diameter of the wire rope is reduced by more than 7%), it must be replaced immediately. When the key parts of the sling have serious wear, cracks and other irreparable defects, they should be eliminated and updated in time.
5. Purchase qualified products:
Purchase ropes and slings from regular suppliers to ensure that they have qualified quality certification documents and test reports.
Choose products that meet national standards and industry specifications, and select appropriate models and specifications according to the actual needs of TITAN VEHICLE 40ft container side loader for sale In Guyana.
How To Ensure The Quality Of 40ft Container Side Loader Ropes, and Slings.
TITAN VEHICLE 40ft container side loader for sale In Guyana
TITAN VEHICLE side loader trailer for sale Precautions
