Chapter 1: TITAN sidewall semi trailer
Chapter 2: About side wall cargo trailer
The sidewall cargo semi trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The high side 3 axle cargo trailer can be added with a container turn lock to transport the container.
What are the types of TITAN high side trailer?
2 axle sidewall trailer, 3 axle dropside trailer, 4 axle high side trailer, grain trailer and the sidewall drawbar trailer. And load capacity has 30/40 ton bulk cargo trailer, 60/80 side board trailer, 100 tons wallside semi trailer for your choice. Customizable side wall height.
Through the video below, you can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axle high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 alxe side wall semi trailer with bogie suspension, dropside drawbar trailer)
And the process, testing, packaging and customer feedback, etc.

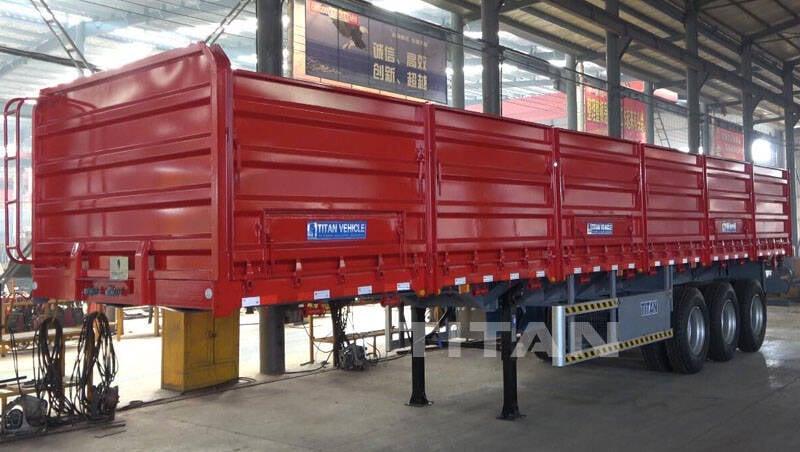

TITAN 3 axle grain trailer with side wall

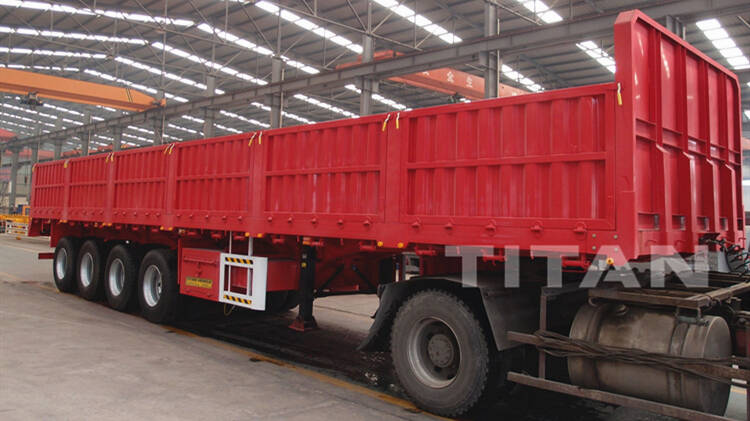

TITAN 4 axle high side wall cargo trailer for sale
1. Sidewall semi trailer frame. Frame is the main and important part of load-bearing. It is composed of main beams, side beams, cross beams and tilted supports.
2. High side board. The side wall is divided into a flat plate and a vertical corrugated board. Can be detached or welded to death.
3. Side wall trailer protection device. Dry goods carrier trailer protection rotect pedestrians and other general cargo trailers from getting under the sidewall semi-trailer. It can also reduce wind resistance and save fuel.
4. Traction king pin of dropdeck trailer. The traction pin is an important component that connects the high side trailer to the tractor and withstands traction, and is connected to the traction seat.
5. Support leg. In order to make the dry goods carrier trailer reliably parked after leaving the truck head, the front end of the frame is equipped with two support legs that are linked left and right or left and right.
6. Axles and tires. Dry cargo trailer three axle assemblies of the same structure are installed under the suspension system.
7. Suspension system. The suspension system is a three-axis leaf spring suspension suspension, which is used to support the load and has the function of absorbing driving vibration and so on.
8. Brake and operating device. The sidewall semi trailer uses a dual-line pneumatic braking system and is equipped with an anti-lock braking system (ABS).
9. Electrical system. The high side semi trailer is equipped with an international electrical system that is compatible with the tractor.
10. Trailer attachment. Other accessories on the semi-trailer include tool box, spare tire frame, stakes and so on. There are also some small accessories, such as tight-fitting ropes and rope hooks.

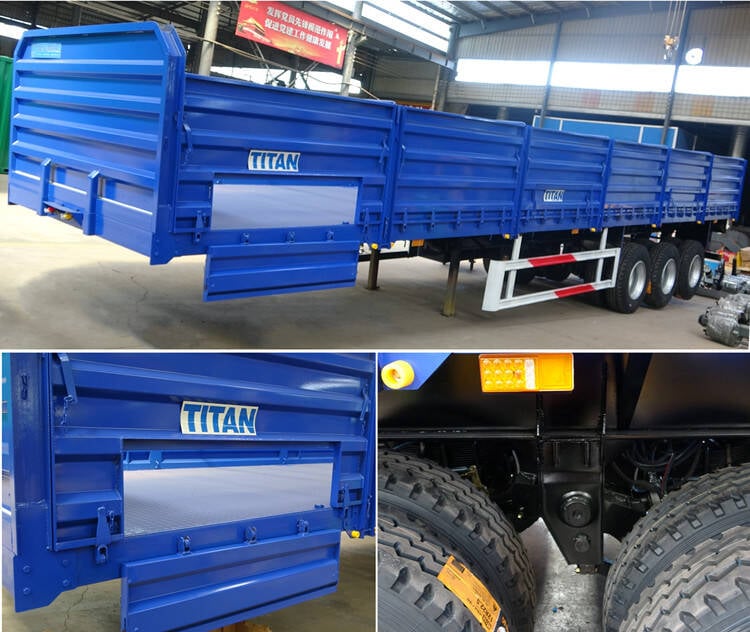

TITAN flatbed trailer with long side wall details
TITAN Side Wall Trailer is your ideal partner for multipurpose solution catering to vast range of applications including Cement Bags, Agri bags, Tiles, Jumbo bags, steel coils, pet coke, etc.
Its higher payload carrying capacity, better mileage and availability of different product variants catering to varying customer's needs. The vehicle provides you with longer tyre life, high fuel efficiency and less maintenance cost which gives you higher revenue and lower operating cost, substantially increasing your overall profit.
With ability to carry heavy loads with utmost ease and OEM assured body warranty, TITAN Side wall trailer is an ideal choice for your business.
High Strength Light Weight 1-2% more payload
Can be utilized for multiple applications
High strength steel, submerged arc welding and 2 coat paint Longer Life
Best in class axle and braking system provides better tyre life
More payload gives more revenue generation capacity
Optional ABS for additional safety
Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the side wall semi trailer for container or cargo needs to be composed.
Some customers are bulk freighter or ro-ro ships. TITAN sideboard trailer will spray wax and cover the tarpaulin when the side wall trailer use bulk freighter.
TITAN bulk cargo semi trailer package and shipping

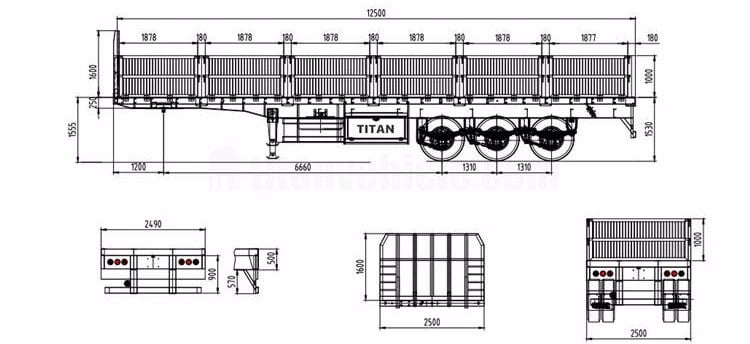

TITAN 3 axle bulk cargo semi trailer with side wall drawing

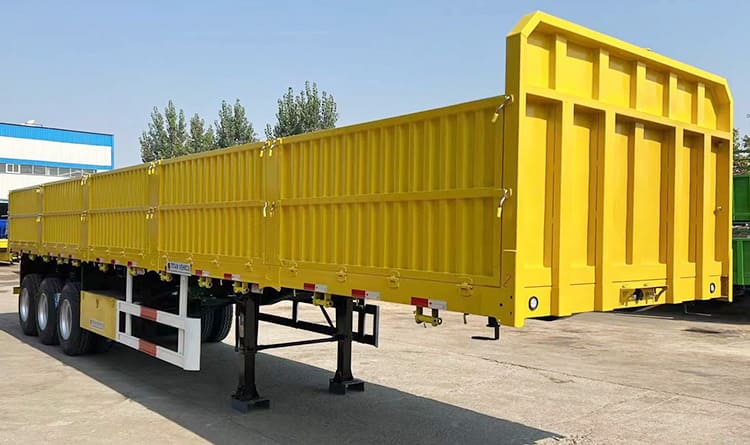

Most popular 3 axle 60 ton high side trailer
Overall dimension: 12500mm*2500mm*3200mm(1000mm sidewall)
Loading capacity : 50-60ton semi trailer with side wall
Material: Q345B Steel
Suspension：Heavy duty mechanical spring suspension
Bottom Platform: 3mm-thick checkered plate
Brake system : WABCO
Electical system : 24V , LED lights
More Technical Parameter Drawings

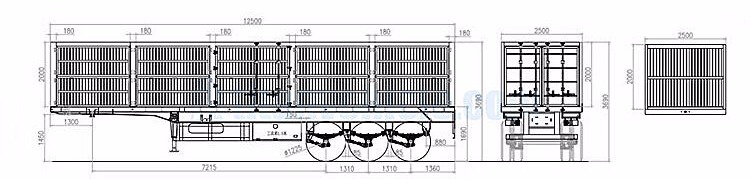

3 axle drop side trailer technical department drawing
2 axle bogie suspension sidewall trailer drawing
3 axle high side wall cargo trailer technical specification
As a professional semi-trailer manufacturer, Titan Auto has won the favor of domestic and foreign customers for its excellent product quality and perfect after-sales service.
The following is feedback from Zimbabwe customers who received drop side trailers. The customer told us immediately after receiving the semi-trailer, and told us that the trailer reached the destination very smoothly, the packaging was completed and there was no damage. They also hope that the flatbed trailer will be put into use as soon as possible and create greater value for them.
1. Modular design, intelligent manufacturing
TITAN tailgate semi trailer adopts advanced intelligent manufacturing equipment such as finite element analysis, modular design, laser cutting machine, robot welding, etc., from the design source to the product processing and manufacturing, the entire process is strictly required to ensure that every side wall trailer delivered to the customer. They are all high-quality and qualified products.
2. Pay more attention to safety and energy saving
The specific advantages are as follows:
1. The bracket adopts a high-strength material upper end closed design structure, which can meet the direct connection of the lower wing plate of a side wall semi trailer for container or cargo.
2. The platform semi trailer with side wall suspension adopts an internationally renowned brand, which has a long life and is more reliable in durability.
3. The guide arm can choose double leaf spring and single leaf spring. The optimized single-leaf guide arm structure, lightweight design, three bridges reduce the weight of more than 200 kg, and has good guidance and super reliability and stability.

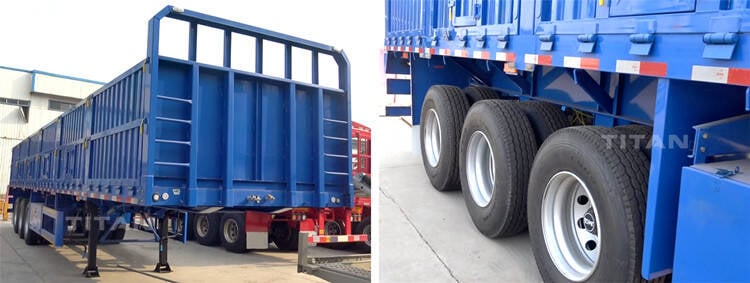

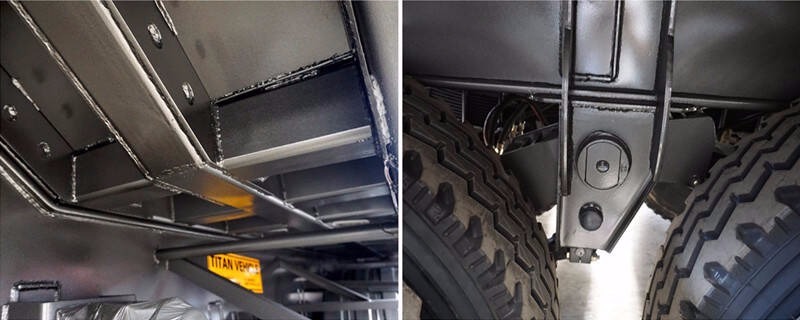

TITAN side panel cargo semi trailer details
4. The guide arm bushing is made of inner and outer steel, and the middle vulcanized rubber design structure has stronger load resistance and more stable vehicles.
5. Reduce tire wear and fuel consumption. Under the same road conditions and load capacity, fuel consumption per 100 kilometers can be reduced by more than 1.2 liters.
6. Imported brake pads and implanted wear alarm device. Effectively guarantee the braking performance of the bulk cargo semi trailer during operation.
7. Brake discs containing alloy elements, anti-cracking, anti-wear and high temperature resistance. Super long warranty of 200,000 kilometers, maintenance-free, brake life up to 10 years and 1.5 million kilometers.
8. High-precision load bearing, long life and low temperature.
3. Green and environmental protection, anti-rust and more durable
There are no dead corners in the overall coating, the coating is more uniform in automated production, the inner side of the box and the warehouse sideboard are covered with coating, rust-proof and durable, and fully respond to the country's requirements for winning the blue sky defense war, and achieve green environmental protection.

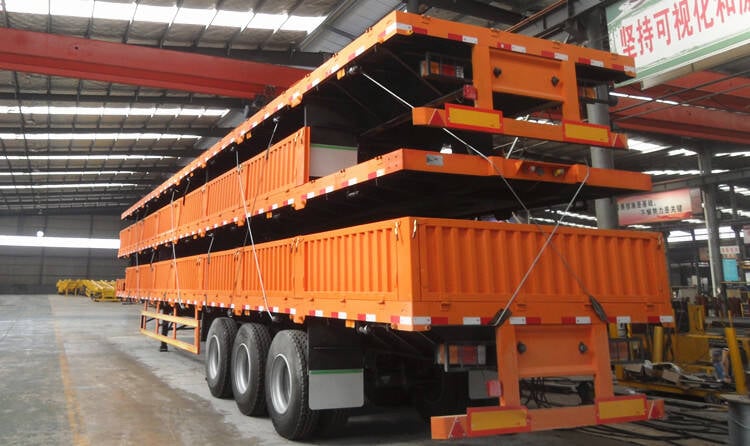

3 units flatbed trailer with long side wall for sale in TITAN factory
The sideboard trailer driver's mentality and driving skill level have a more direct impact on fuel consumption. According to measurements, Drivers with different technical proficiency can save fuel by 8% to 10%.
1. Please close the windows
In order to save fuel, it is not advisable to turn off the air conditioner at high speed and open the windows to ventilate. This is not desirable. When the speed is higher than 85 kilometers per hour, the wind resistance after opening the window consumes more fuel than the air conditioning system consumes. Let the fuel economy index drop by 10%.
2. Appropriate tire pressure
Check the general cargo trailer tire pressure regularly to ensure that the tire pressure is normal. Underinflating a tire can have a very negative effect on tire performance and durability. Too high or low tire pressure will shorten tire life and increase fuel consumption.
The quality of the tire has a great impact on fuel consumption. Compared with products of the same specifications, high-quality brand fuel-saving tires can reduce fuel consumption by an average of 2%.
3. Frequently replace wearing drop side semi trailer parts
Vehicle consumables, such as air filters, gasoline filters, and oil filters, should be replaced in a timely manner, and every 5,000 kilometers or more, because the blockage of the air filter will reduce the amount of gas, resulting in insufficient gasoline combustion And reduce fuel efficiency.
TITAN ship nearly 150 units side wall trailers and fence semi trailers to Sudan every year. Our dry cargo trailer is very popular in Sudan.
This customer has been working with us in 2018, and it has been almost three years. In 2018, he visited China, looking for suppliers for his own business. Customers visited 6 factories including us. After a series of comparisons and discussions with customers. Finally, TITAN was chosen as a long-term partner.
The latest batch of 12 units 40 ton bulk cargo trailer will be sent to Sudan.

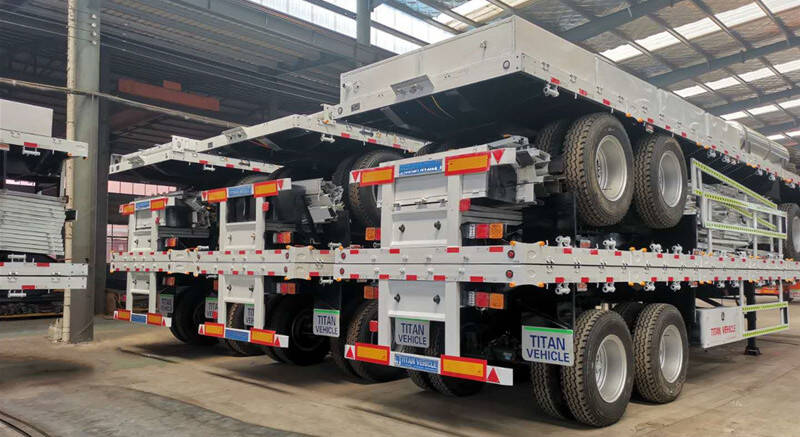

Side wall semi trailer for container or cargo is packed and ready for shipment
Hopper bottom trailers are used throughout the grain and harvesting industry to load and transport grains across the country. However, there are several styles of hopper trailers that you may want to use. These hopper trailers can be used for several different things, and you may want to use one of these trailers even if you do not work in the agricultural industry.
1. Grain Transport
A grain hopper trailer may have one or two hoppers on the bottom. When you fill the trailer with grain, it can deliver that grain through the hopper in the base. The grain can be poured in from a large spigot, and the trailer has a cover that will prevent damage to the product on the inside.
When you deliver your product to the client, you can open the hoppers to pour out the grain. You can carry any grain in the trailer, and it will fall through the hopper easily. You can close the hopper at any time if you are only supposed to deliver a certain amount, and you can lock the hatch in place.
2. Pebble And Rock Delivery
Pebble and rock delivery may be simpler if you are using a grain hopper trailer. The trailer allows you to pour out pebbles or rocks in a certain spot. You may create a long line of pebbles or rocks, and you can dump the pebbles and rocks in a hole that you have driven over.
3. Fertilizer Delivery
You can deliver fertilizer to the appropriate location using the hoppers on the bottom of the trailer. Again, you can pour fertilizer into the top of the trailer with no trouble. You can open the hoppers at any time, and you can measure how much has been released. Your client may ask you to drive over the area where the fertilizer is supposed to go, or you can dispense the fertilizer into a grate or container that is situated below the truck.
4. Dirt/Soil Delivery
Dirt and soil delivery may be easier if you are using a side wall trailer. The side wall trailer can be used to pour out the dirt or soul while it is driving over the area where you want the dirt. You may position the trailer over a hole that needs to be filled, or you can create a tract of soil that can be used for planting, leveling, or grading.

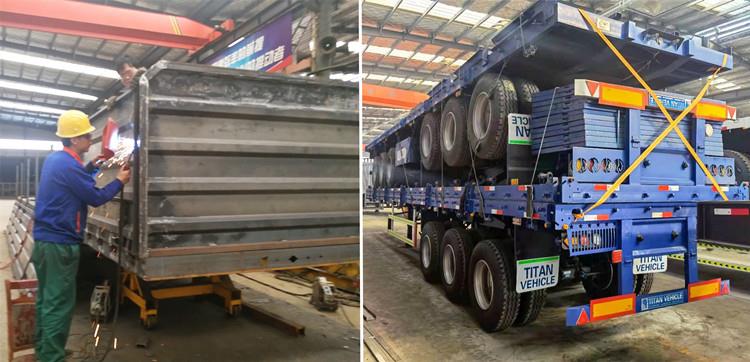

Do you still remember the triaxle trailer with boards sent to Zimbabwe in November 2020? The customer ordered a 3 axle flatbed trailer with sidewall in 2020. The customer gave us feedback after using it for a few months. The customer was very satisfied and praised the sales manager Alice's business ability and professionalism.
TITAN is selling more and more semi-trailers to Africa. Zimbabwe customers learn about us from local customers. The customer saw TITAN triaxle trailer with boards locally and learned a lot about the sidewall semi trailer and TITAN with local customers, including the time of use and the effect of use. Of course, it also includes details such as the configuration and loading of the grain transport trailer, the local customers are also very cooperative and are happy to inform customers about the customer is very satisfied with the information about the trailer. Here is the production and package picture of triaxle trailer with boards.
Dropside trailer developed on the basis of a container flatbed trailer, the drop side trailer has a side wall structure design and wide range of uses. It is mainly suitable for medium and long-distance transportation of medium and heavy and bulk cargo.
How much weight can you put on a sideboard trailer? 40 ton bulk cargo trailer, 50 ton wallside semi trailer, 60 ton side board trailer.
It has become the first choice for medium and long distance freight trailers. The cargo semi-trailer can be added with a container turn lock to transport the container.
TITAN flatbed trailer with long side wall for sale
The common structure of the grain hopper is divided into four types according to the axle: 2 axles 40ft grain trailer, 3 axles drop sided trailer, 4 axles platform semi trailer, and the multi-purpose high side trailer.
Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the side wall semi trailer needs to be composed.
Some customers are bulk freighter or ro-ro ships. Titan sideboards trailer will spray wax and cover the tarpaulin when the side wall trailer use bulk freighter.
How to know the quality of a wallside semi trailer? The easiest way is to look at the weight of the cargo semi trailer. The heavier the weight of 3 axle cargo trailer, the better the quality. The 3 axle cargo trailer purchased by African customers self weighs is 7.8 tons. If the weight is only 6.7 tons, the cost of this general cargo trailers can save more than 1,000 dollars.
Here are a few more important points
1. Working platform of dropside trailer
The work platfrom is the main load-bearing part, which is composed of the main beam, side beam, cross beam, bottom floor, suspension and so on.
(1)The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of aSide Panel Cargo Semi Trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm. Many unreliable suppliers will use 6mm main beam to save costs. But the carrying capacity was reduced by 26%.
The international standard thickness of the middle part of the beam must be 8mm.
(2)Bottom Floor, many Platform semi trailer are also used to transport bulk cargo and other items. The bottom plate of the TITAN Drop Side Body Trailers passes the international standard 3mm thick checkered plate. If it is replaced with a 2mm thick pattern plate or a 2.5mm bottom plate. Cost can be reduced by $ 700.
(3) Side door. The common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure.
The door frame is a 40x60mm rectangular steel tube.
TITAN side panel cargo semi trailer packed and ready to ship
2. Axles and Tires of general cargo trailers
The axles of dry cargo trailer for sale are divided into three types: 13-ton axles, 13-ton axles + 16-ton brake system axles, 16-ton axles,
The axle of the Titan drop side trailer is a 13-ton axle + 16-ton brake system axle, which has better braking performance and shortens the braking distance by more than 5 meters.
The 3 axle sidewall trailer uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.
TITAN dry goods carrier trailer uses custom made tires in a tire factory., wear-resistant tires. On Chinese highways, TITAN tires can reach more than 300,000 kilometers.
3. Suspension of high side trailer
Suspension. TITAN multi-function trailer suspension adopts special high-strength steel. 6mm thickness. Center pin diameter is 70mm.
Stronger than suspensions in many factories.Stronger than suspensions in many factories.
