Wind Blade Adapter Trailer for Sale

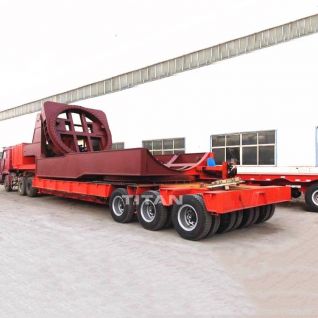

Price: 110000 USD   4 line 8 axle wind turbine blade transport trailer, during transportation in mountain roads, the adaptor can avoid the cliff, woods, and electric wire via operations of the incline the blade to extent degrees, or rotate and swing the blade.

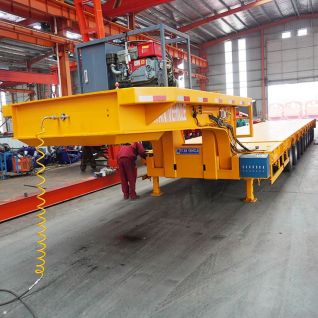

Price: 70000 USD   TITAN produces 10 axles windmill blades trailer for Carrying 30 meters to 35 meter wind tower.TITAN 10 axles windmill blades trailer have proven to be the most efficient, lightest-weight option for customers.

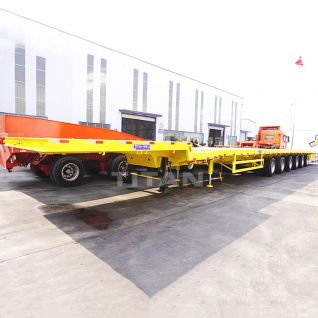

Price: 65000 USD   6 Axle 62m extendable wind blade trailer from China TITAN VEHICLE are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine.
Price: 105000 USD   Wind blades are an important part of the entire fan of the wind blade trailer. With the completion of the project's infrastructure work, the hoisting and installation of fans, main transformers, box transformers and other equipment has entered a countdown.

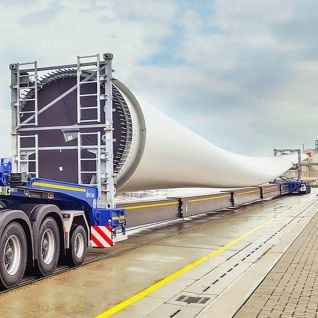

Price: 65000 USD   56m blade lifter transport adaptor telescopic trailer mainly used to transport wind turbine blades, TITAN can customize different types of wind blade trailers.
  • 1/1

Table of Contents

Chapter 1. Wind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for Sale

   Chapter 1.1 The Price of Wind Blade Adapter Trailer for Sale

   Chapter 1.2 Windmill Blade Trailer for Sale Specification

   Chapter 1.3 Wind Turbine Trailers for Sale Advantage

Chapter 2. Types of Windmill Blade Trailer for Sale

Chapter 3. Wind Blade Adapter Trailer for Sale Principle of Operation

Chapter 4. How To Use Windmill Blade Trailer for Sale Transport Windmill Blades


Chapter 1. Wind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for Sale

Chapter 1.1 The Price of Wind Blade Adapter Trailer for Sale

4 Line 8 Axle Wind Blade Adapter Trailer Price: 185000USD

3 Axle Wind Turbine Trailer Price: 150000USD

Chapter 1.2 Windmill Blade Trailer for Sale Specification

Brand: TITAN Wind Blade Adapter Trailer for Sale for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles/4 lines 8 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Brand: Extendable wind blade trailer

Dimension: 12500mm →25000mm-44000mm→55000mm (Size can be tailored to suit individual needs.)

Loading capacity: 60-80 T

Axles: 3/4/6 axles

Suspension: Heavy duty mechanical suspension

Tire: 12/16/24 units

Kingpin: 90#

Landing gear: JOST

Brake system: WABCO

Wind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for SaleWind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for Sale

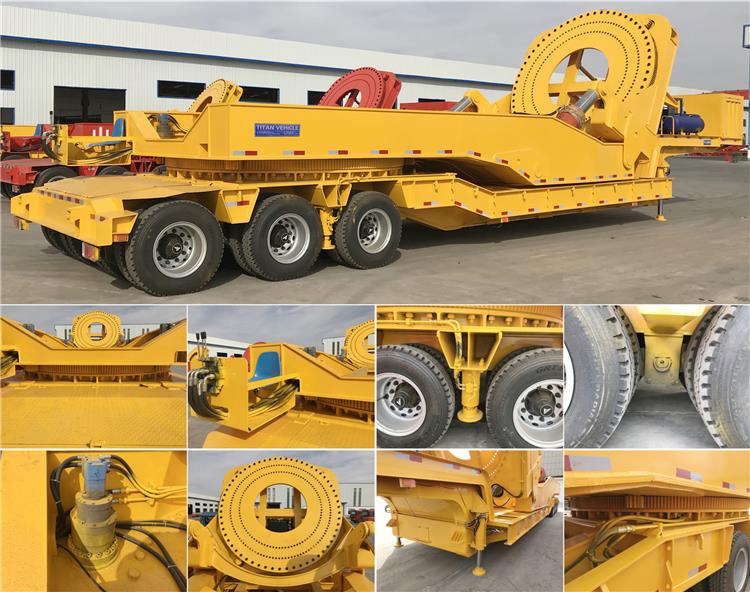

Chapter 1.3 Wind Turbine Trailers for Sale Advantage

Self-balancing counterweight system

With the adjustable angle feature of the blade, the Wind turbine trailer for sale operator can change the angular position to accommodate the space constraints of mountain roads.

The weight balance is automatically adjustable to ensure stability.

The self-balancing counterweight system ensures that the loaded wind turbine trailer for sale remains balanced during transportation, even in strong winds. This system can guarantee the overall balance of wind turbine trailer for sale. Very useful when transporting different types of blades.

Additionally, the sliding adapter may change its position when the angle at which the blade is loaded changes to ensure that the wind turbine trailer for sale and the blade's center of gravity are within a safe range. With this design, there is no need to place weights on the adapter.

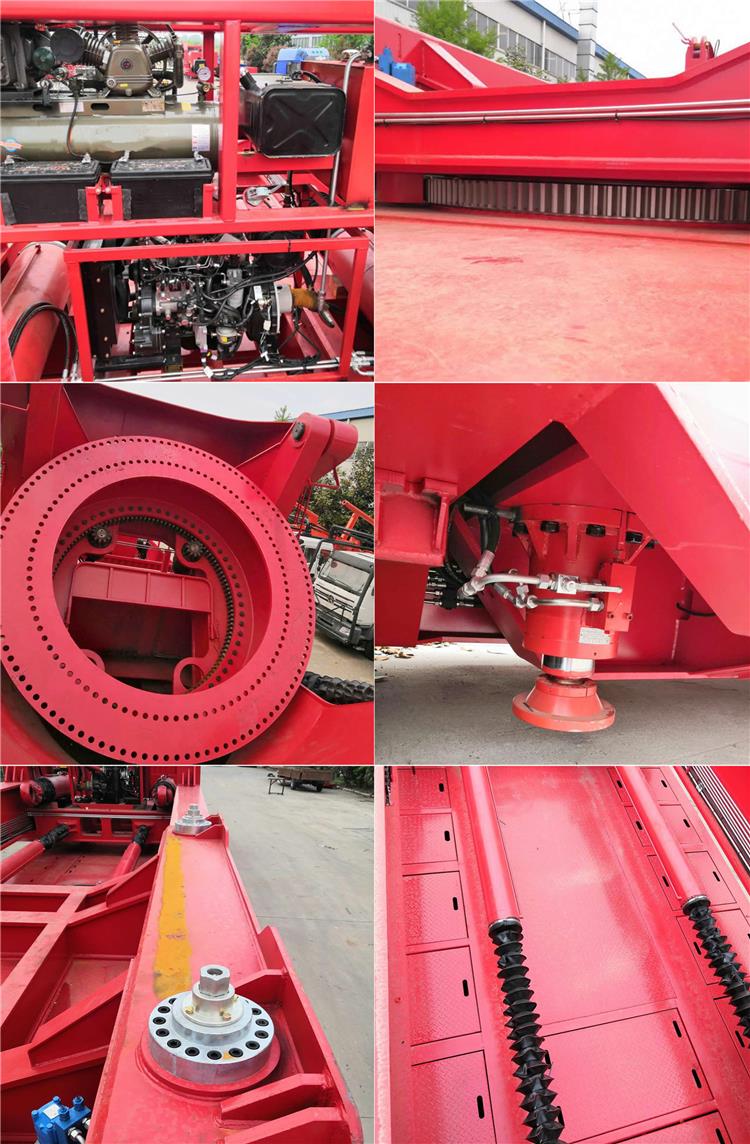

Power unit

Diesel engines and hydraulic pumps in the power pack provide power for the wind turbine trailer for sale. In addition to this, the package has an air compressor, battery, hydraulic tank and fuel tank. Wind turbine trailer for sale can be used with your trailer. One-stop package, including the most suitable lowbed trailer, with the shortest overall length (small turning radius) to suit the road conditions in remote areas.

Wind turbine trailer for sale is compatible with low loader trailers, heavy duty modular trailers and SPMT modules. Since the blade is too long, a counterweight is a must to keep the entire wind turbine trailer for sale balanced. The slide rails help move the counterweight quickly.

Wind Turbine Trailer for Sale Connecting Flange

The connecting flange can be replaced with other types of windmill blades. Fix the fan blade on the flange base with bolts, so that the blade and the base are firmly combined. During transportation, the blade can easily move up, down, left and right to avoid obstacles.

Weighing System

The newly designed weighing system, there are four weighing points at each corner of the adapter, showing how much weight and pressure these four points will bear, to ensure that the center of gravity of the blade is in a safe position, and to ensure safety when climbing the mountain.

Slewing Bearing

An internal hydraulic motor drives a large gear to turn the entire adapter.

Hydraulic Lift Legs

Stay safe as the wind turbine trailer for sale traverses rough road conditions

Wind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for SaleWind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for Sale

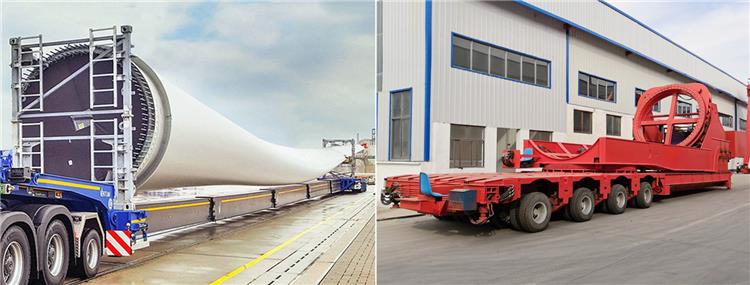

Chapter 2. Types of Windmill Blade Trailer for Sale

There are generally two types of Windmill blade trailers for sale, extendable semi trailers for blade transport and windmill blade adapter trailers for transported wind blades.

Extendable Semi Trailer

This is a special type of trailer because it is expandable. The total length of the retractable flatbed trailer can be up to 55 meters or more, depending on the blades that need to be transported. The extendable wind blade trailer can be extended 3-4 times according to transportation needs.

The extendable semi trailers for wind turbine blade transport trailer could have three and four telescoping beams, and it could reach Max.62m in length. the maximum can transport windmill blades within 80 meters.

The front is retractable 3 times and the rear is retractable 1 times, making this wind turbine blade trailer more popular for blade transportation on ordinary roads. For this type of trailer, the commonly used axle is a self-steering axle, which facilitates steering during transportation.

Hydraulic lift extendable semi trailers hydraulic steering large windmill blade transport, 58 meters, transport blades within 80 meters on land (long-distance transport).

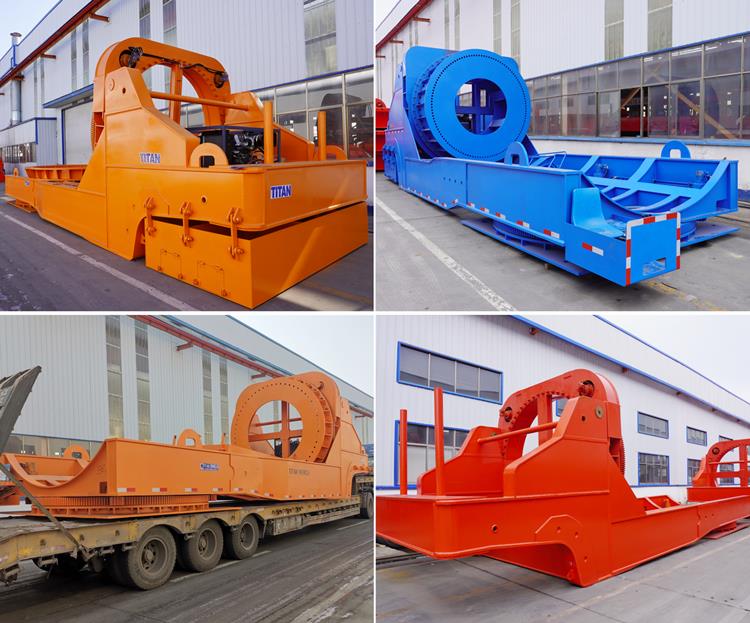

Wind Blade Adapter Trailer

This is a semi-trailer specially designed for transport. The Wind blade adapter trailer comes with two main components. The chassis is a two-lane short-axle low-bed trailer, usually from 3 dual-lane to 4 dual-lane axles, which means there are 6-8 axles for the low-bed trailer. On top is an adapter for wind turbine blades.

Offshore wind turbine blade transport trailer, suitable for long-distance transportation of offshore wind turbine blades between 76-90 meters, blade tonnage 25-45 tons, offshore blades are relatively high and heavier, requiring hydraulic axis structure, single beam drawing, rear flap structure.

The designed blade adapter can lift the blade up to 38°, and the rotor plate of the blade adapter trailer is 360° rotated, which means the blade can be rotated to any angle according to road conditions. Of course, this type of Wind blade adapter trailer can't run fast because of its cab weight and the blades being transported.

The wind turbine blade transport trailer needs to turn and lift, features large turning angle, strong bearing capacity of the rear pivot, low cargo platform height.

Wind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for SaleWind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for Sale

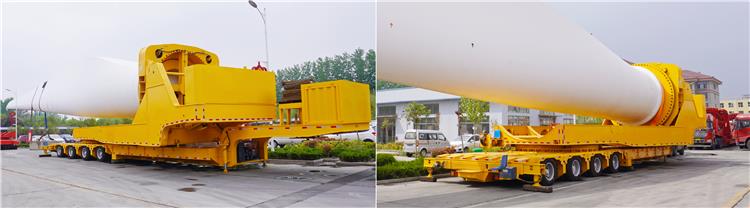

Chapter 3. Wind Blade Adapter Trailer for Sale Principle of Operation

The TITAN windmill blade transport adaptor can tilt the rotor blades up to 70°. Using hydraulic cylinder control and slewing bearing, the maximum rotation angle of the fan blade can reach ±110°. During mountain transportation, the windmill blade transport adaptor can be operated to tilt the blade at an angle or rotate and swing the blade to avoid cliffs, woods and wires. Using the windmill blade transport adaptor will save you the cost of clearing obstacles.

The Wind blade adapter trailer has two parts: an excellently designed lowbed trailer and a uniquely designed adapter. It is an enhanced version of the traditional lowbed trailer.

Because the adapter has a lifting function, we also call this kind of trailer blade lifting trailer. The Wind blade adapter trailer is suitable for mountain transportation, and the cost of purchasing this Wind blade adapter trailer is much lower than the cost of road reconstruction. Wind blade adapter trailer is designed as a steering axle trailer

Lifting movement: When the oil cylinder is compressed, the fan blades are lifted, the lifting frame shrinks to the center of the rotating shaft, and the movement trajectory of the lifting center of gravity is always near the rotating shaft, which effectively avoids instability during transportation, and the lifting angle is within the range of 0 to 60 degrees.

Rotational movement: The rotating oil cylinder drives the blades on the rotating bracket to deflect left and right along the center of the windmill blade transport adaptor. The design deflection angle is ±45°.

The blade lifts and rotates, and cooperates with the hydraulic steering of the rear wheel of the carboard to drive the rotating device to move horizontally. The blade can avoid obstacles to the greatest extent during transportation, reduce road reconstruction work, shorten the construction period and reduce investment. The blade lift trailer has a small turning radius, occupies a small road width, and is convenient for reversing. It is especially suitable for transporting wind turbine blades of various specifications.

Wind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for SaleWind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for Sale


Chapter 4. How To Use Windmill Blade Trailer for Sale Transport Windmill Blades

The wind turbines are getting bigger, so the blades are becoming longer as well. So far the wind blades can reach up to 70 meters.

After the windmill blade trailer for sale is transported to the site, the transportation and protection vehicles must be required to investigate the road conditions in advance to determine the safe traffic direction to enter the wind power site. At the same time, each vehicle is equipped with a particular vehicle commander responsible for the windmill blade trailer for sale and safe operation on-site.

Natural disasters affect the progress of transportation operations, causing great difficulties in transportation units. The traffic police should guard transportation in advance to avoid possible accidents during transportation.

Besides nacelle, wind tower section, and other windmill parts, the wind blade is long and lightweight, also fragile and tender. How to make a safe and efficient transport for those blades is TITAN windmill blade trailer for sale purpose.

The transportation of windmill blade trailer for sale belongs to super long and indecomposable large objects. It is technically difficult to protect safety protection equipment without damage and injury. To prevent rear running vehicles from back end collision is a safety difficulty in transportation.

If you want to transport the wind blade to mountain areas or pass narrow roads with U-turns, you may need a windmill blade trailer for sale to solve the problem.

The purpose of the rear extension beam is to increase the total length of the blade trailer. This is the most cost-effective modification method to increase length.

Wind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for SaleWind Blade Adapter Trailer for Sale | Wind Turbine Trailers for Sale | Windmill Blade Trailer for Sale
