Different types of detachable gooseneck trailer for sale
Table of Contents
Chapter 1: TITAN hydraulic detachable gooseneck lowboy trailer
Chapter 2: RGN trailer( removable gooseneck trailer )
TITAN -removable detach trailer gooseneck manufacturers can make the 2/3/4 axles hydraulic detachable gooseneck lowboy trailers and 3 lines 6 axles heavy duty rgn lowboy trailer, the capacity of 60/80/100/120/150 ton removable gooseneck trailer.
To meet your transport needs and your local regulations, we can customize different configuration removable gooseneck lowboy trailer for you.
Through the video below, you can learn about different types of lowboy semi-trailers (like 3 axle detachable gooseneck lowboy trailers, 4 axle lowboy trailer, 3 line 6 axle heavy duty lowboy trailer, folding gooseneck lowboy trailers, 35 ton detach lowboy for sale)
And the process, testing, packaging and customer feedback, etc.

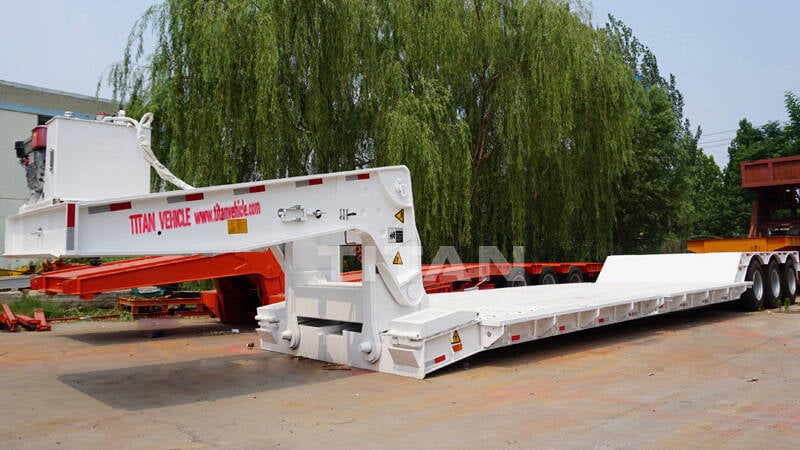

TITAN 3 axle detachable gooseneck 80 ton lowboy trailer for sale

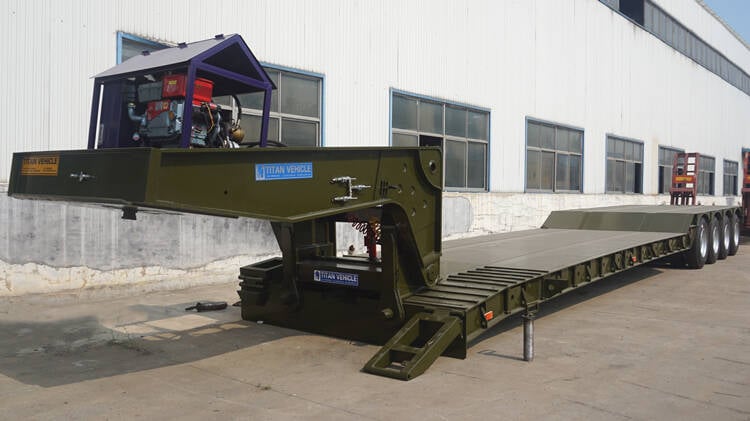

TITAN 4 axle 100 ton removable gooseneck trailer for sale
Features of removable gooseneck lowboy semi trailer:
1. Strong carrying capacity
TITAN 4 axle lowboy trailer main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN mechanical detach lowboy gooseneck trailer for sale adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability
Due to the low ground clearance and low longitudinal beam height of rgn trailer for sale, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable gooseneck trailer for sale, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
TITAN detach lowboy gooseneck trailer for sale bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN mechanical detach lowboy equipment trailers adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
3. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
4. Easy operation
The lifting operation handle of the bearing surface mostly adopts the centralized electric control device, rather than the traditional handle to control the operation, so that the operation interface is more convenient.
TITAN hydraulic system has undergone five major system upgrades in the ten-year production process, and now the hydraulic system has very good stability and stability The customer only needs regular maintenance. It can be used for ten years.
Because 80 ton lowboy trailer has a low center of gravity and a long cargo table, it can transport a lot of goods. Such as some large machinery and equipment, such as pile drivers, large rotary drills, large excavators, and large bulldozers, have very high centers of gravity due to their very high height.
As you can see, the heavy duty lowboy trailer can transport ultra-high and medium sized equipment and machine.

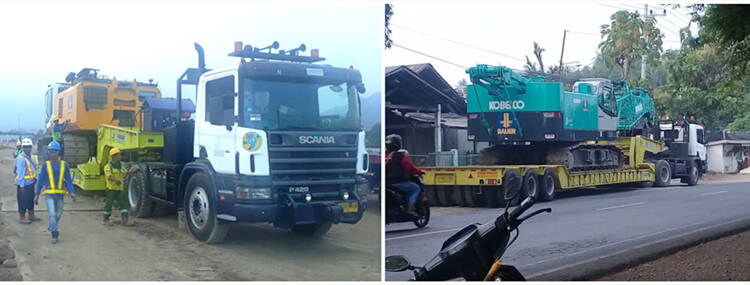

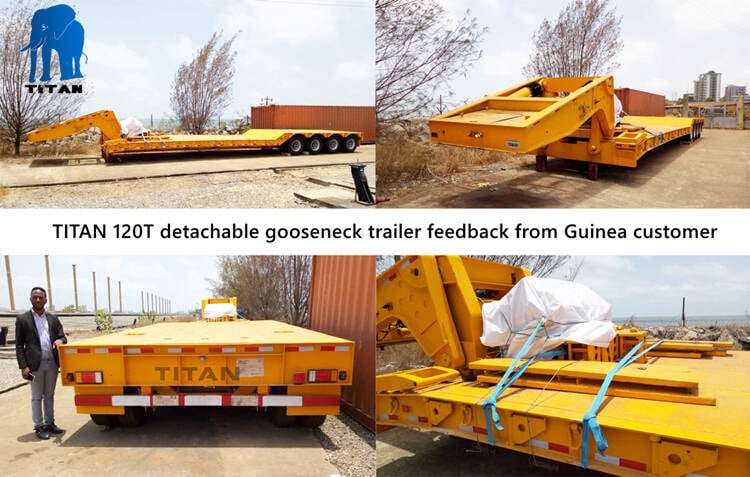

The picture below is feedback from customer who bought TITAN 150T lowboy detach trailer for sale:
150 ton hydraulic detachable gooseneck lowboy trailer - used detach lowboy trailers for sale

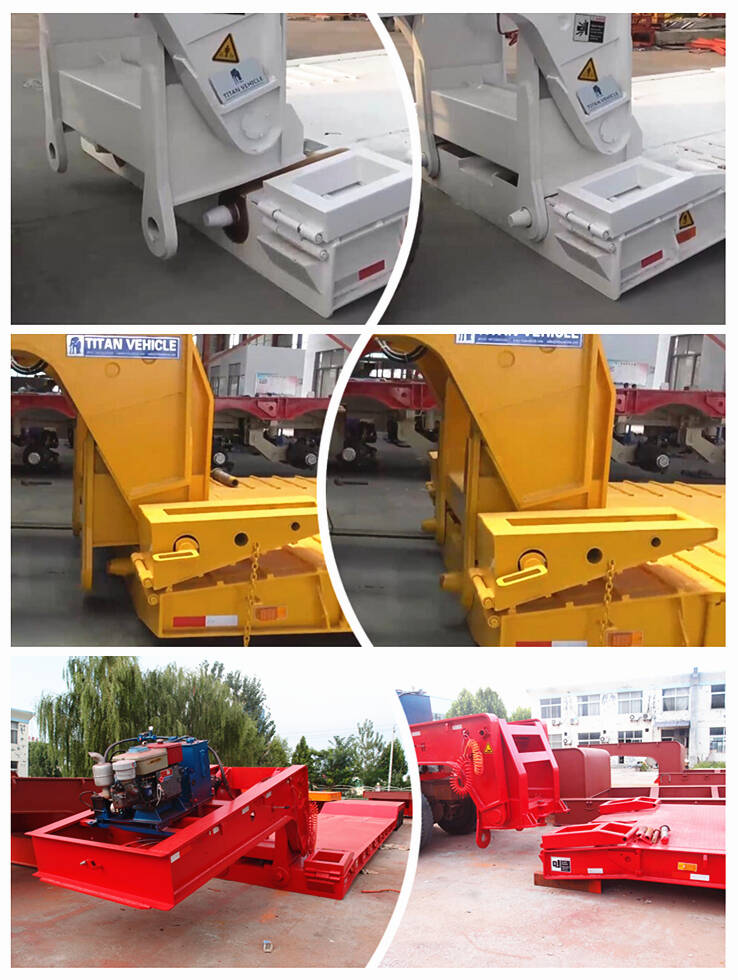

After the production of all hydraulic detachable goosenecks, pressure tests will be performed.
How do you remove a detachable lowboy trailer?
And we have made a video of the specific operation steps of the detach trailer for sale for you, such as how to separate the gooseneck from the body, how to adjust the gooseneck height, etc.
Most popular 3 axle detachable gooseneck 60 ton lowboy trailers for sale

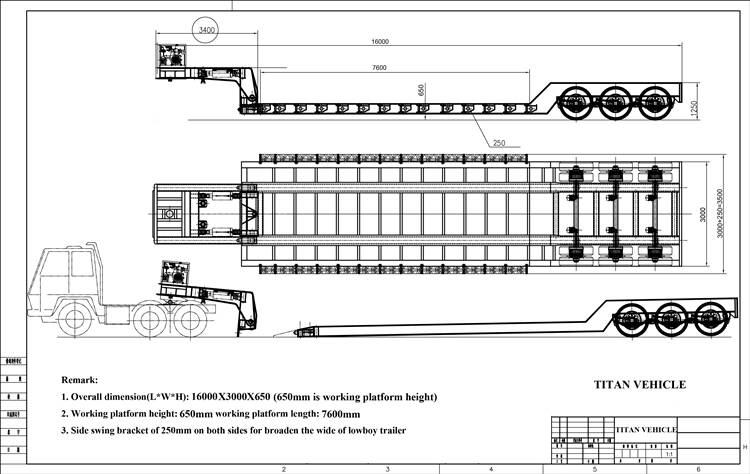

TITAN 3 axle detachable gooseneck lowboy trailer for sale drawing
Overall dimension：16000mm * 3000mm *2500mm
Loading capacity: 60 ton lowboy trailer for sale
Suspension：Heavy duty mechanical suspension
King pin：50#, 90#
Goose neck: Hydraulic removable gooseneck
Brake system: WABCO valve
Hydraulic power station: 12KW Diesel engine
Electrical system: 24V, LED lights
More Technical Parameter Drawings

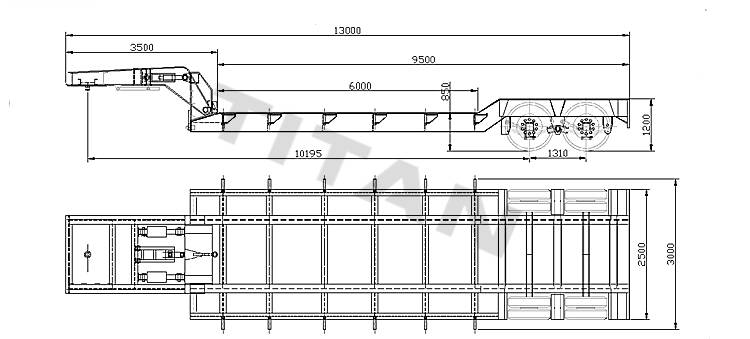

2 axle detachable gooseneck lowbody trailer drawing

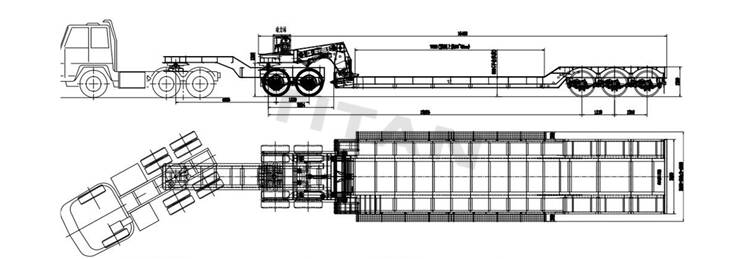

3 axle lowboy trailer with 2 axle dolly technical specification

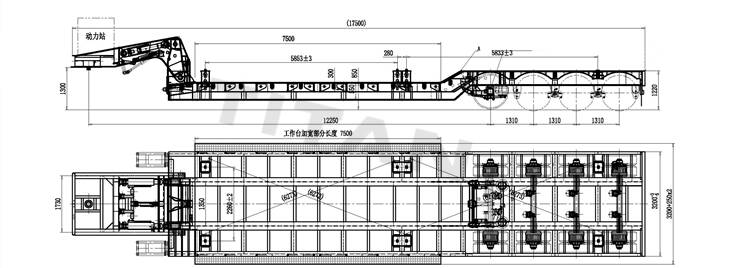

4 axle lowboy trailer front loading technical parameter drawing

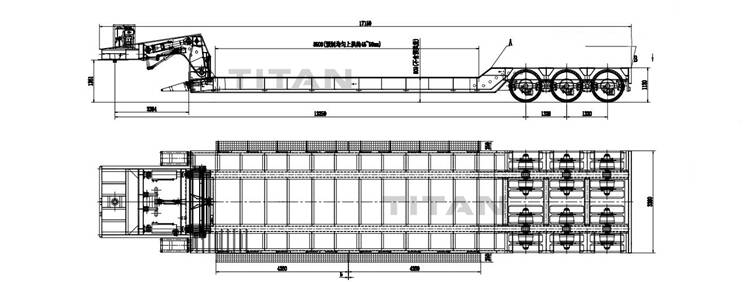

3 line 6 axle removable gooseneck lowboy trailer for sale drawing

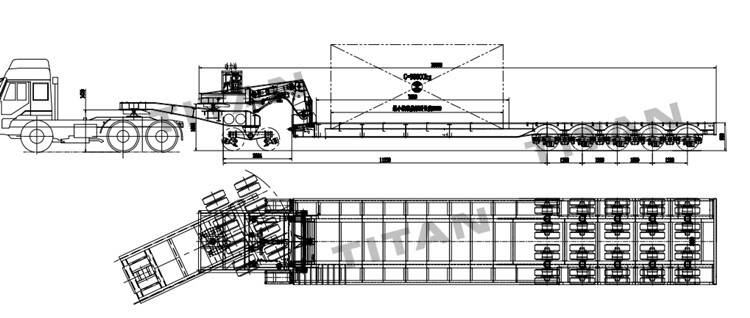

5 line 10 axle lowboy detachable trailer for sale drawing

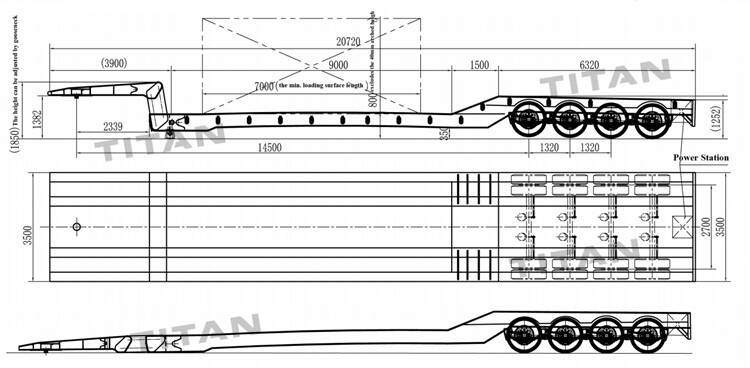

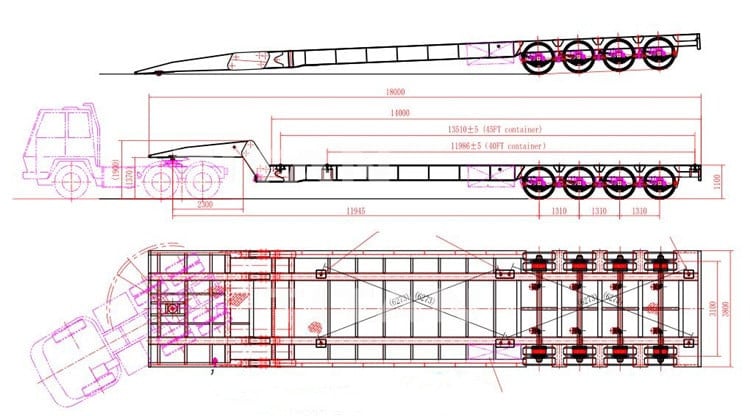

4 axle folding gooseneck lowboy trailers drawing
To prevent the extendable gooseneck trailer paint from being corroded by seawater, we spray a layer of wax on the surface of the 3 axle lowboy trailer before shipping, and then seal it with a waterproof rain cloth.
Loading with lowbed trailers, you cannot lower it any further. That means you can’t work without auxiliary equipment for lifting cargo and loading it onto the trailer. For that matter, it will limit you to the type of cargo that you can carry on lowbed trailers.
With RGN trailers, you don’t have to be worried about this since you can almost carry all types of cargo. Characteristics of hydraulic detachable gooseneck lowboy trailer for sale are that it can be detached from the front unlike with a lowbed semi trailer, so it is also called front loading low bed trailer. This feature has been provided in an RGN trailer for sale to enhance loading and offloading of cargo. The user has an easy time during such occasions. This is unlike for a lowbed semi trailer that load the cargo from rear. It is possible to carry heavy motorized machinery since the trailer can be lowered to its ramp. The appropriate trailer to choose depends on the cargo type that you want to handle.
Owing to these notable characteristics, the RGN trailer for sale is easy to load. This capability enhances the efficiency of the detachable gooseneck lowboy trailer for sale over that of the lowbed trailer.

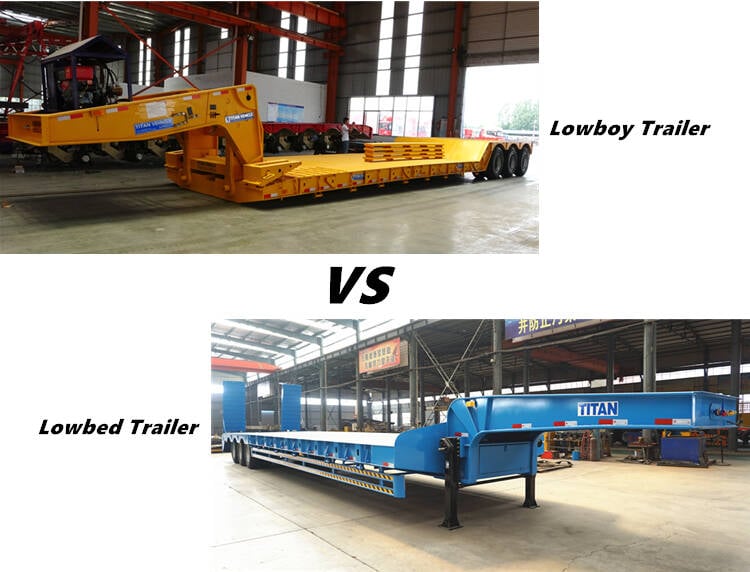

Detachable gooseneck trailers for sale - front loading low bed trailer VS common lowbed trailer
Passed all aspects of weight test and connection test. We packed the 3 axle detachable lowboy trailer with rain cloth to prevent moisture. We also provide some spare parts to our customers.
Recently, we received feedback from our customers and there is no doubt that the customer is satisfied with our semi trailer. Most importantly, he is willing to introduce his good friends to order and buy semi trailer from us.
Pay attention to something of the lowboy gooseneck trailer for sale:
Cargo weight: Please select the correct model to transport your cargo. If you plan to transport more than 60 tons of cargo, please consider buying a lowboy equipment trailers.
The 100 ton lowboy trailer has a high load capacity and can transport heavy objects. In addition, the lower deck ensures that heavy objects remain stable during transportation.
Cargo dimension: It is important to consider the dimensions of your cargo when choosing a detachable trailer model. Consider the width and height, especially if your country has height limitations for transportation vehicles.
Loading process: Although mechanical detach lowboy equipment trailers are very suitable for loading heavy goods, if you use lifting equipment, ordinary trailers may be the best choice. Most low-bed trailers are loaded from the front or rear.
When you need to remove the gooseneck from the tractor so that the gooseneck remains attached to the mechanical detach lowboy semi trailer frame. Secure the safety hook with a pin to fix the gooseneck in place and prevent the gooseneck from tipping forward.

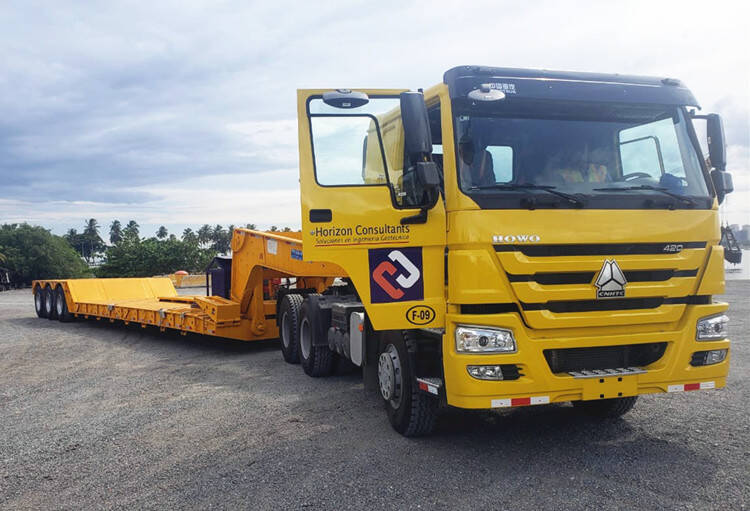

TITAN 50 ton gooseneck lowboy trailer for sale customer feedback
When preparing to remove the gooseneck, you must first link the towing pin with the towing saddle. There are many types of removable gooseneck lowboy trailer for sale. Most split gooseneck operating principles are the same.
1. Remove the positioning pin and the air pipe and wire connection.
2. As the gooseneck height decreases, the bottom angle of the front end of the 100 ton lowboy trailer lowers to the ground and rests on the ground. Once all the linkages have been safely removed, lower the cargo platform.
3. Drive the gooseneck with the truck and drive the tractor far enough away.
4. After driving off the truck, you can now load comfortably from the front of the detachable lowboy trailer platform.

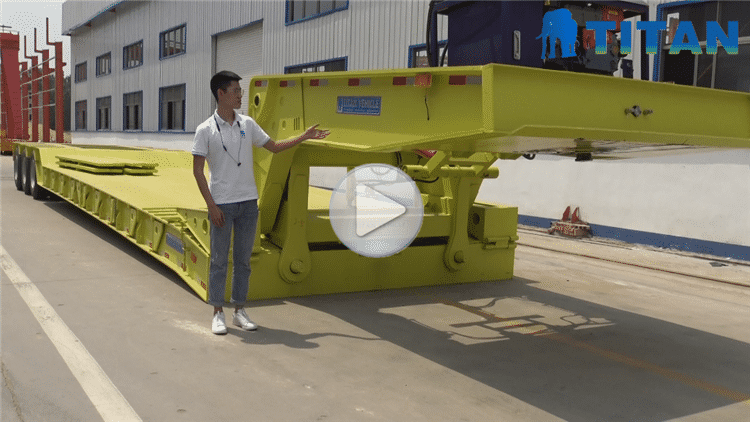

How to detach the lowboy gooseneck trailer? Click the picture below to watch our operation explanation
This increased stability also means gooseneck trailers can accommodate more weight and be larger than lowbed trailer. Goosenecks have more room for living quarters if you want them, as well as more room for any cargo you haul.
A lowboy detach trailer has two drops in the deck, the first drop is right behind the gooseneck and the second drop is right before the wheels, this allows the trailer to sit extremely low to the ground. The drop in the detach lowboy trailer is designed to allow the ability to ship oversized items or equipment that exceeds normal height restrictions for transportation.
The maximum weight for a 35 ton mechanical detach trailer for sale is 40 tons, and load depending on the number of axles required. Titan can design detachable lowboy trailer of 40-200 tons according to your needs.
Hydraulic detachable gooseneck lowboy trailer - 150 ton detach trailer for sale testing
Customers from Kenya read the article about 10 units removable goosenecks trailer by accident on our website from Google, and they have been looking for suitable semi-trailers for their business. Customers read our website and products, and they also asked us for the price. Our sales manager said that the customer compared several other suppliers with us, he received some quotations from different semi trailer suppliers. And he said that our price is not the lowest. But he also knew that the price is not the only absolute condition for the customers to choose the supplier.
He is a new customer for us. So compared with old customers, new customers are more cautious. Our sales manager sent the customer more detailed pictures, drawings and other professional technical processes videos about the removable gooseneck trailer. In addition, we have a lot of customers in Africa who have bought 80ton removable gooseneck trailers. The customer also read some cases on titan website.
We show the customer some other customers' feedback. After a month of discussions, the customer finally decided to buy a 3 axle removable gooseneck trailers from TITAN.

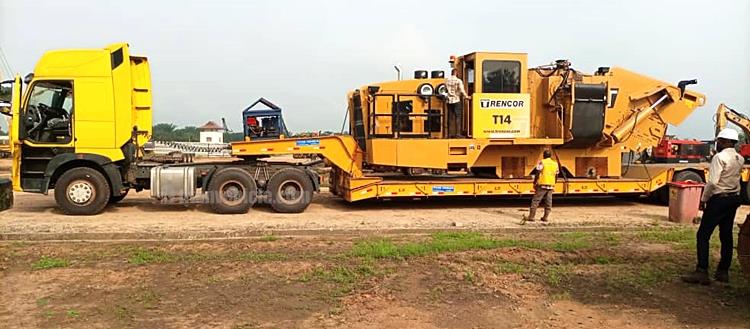

This 80Ton Removable Gooseneck Trailer has be sent to Kenya Mombasa recently
The 60ton Removable Gooseneck Trailer has been sent to Senegal Dakar. A customer from Senegal saw the 4 axle detachable gooseneck trailer from a Philippine customer who has bought the detachable gooseneck trailer from TITAN. Then the customer searched TITAN website and contacted us. The customer told us that he wanted a semi-trailer similar to the 60ton detachable gooseneck trailer of the Philippine customer. According to his needs, our salesman sent more pics, videos and the drawing about the 60ton detacahble gooseneck trailer to the customer. The customer finally paid for the 60ton detacahble gooseneck trailer. And he often sends feedback pics to our salesman.
60ton detachable gooseneck trailer feedback from the customer
Lowboy trailer for sale has many different names in different countries around the world, such as RGN trailer, detachable gooseneck trailer, folding gooseneck lowboy trailers, hydraulic low bed trailer, removable gooseneck trailer for sale, front loading rgn lowboy trailer, military lowboy trailer for sale and kaufman detachable trailers.
The hydraulic detachable gooseneck trailer uses a concave beam type. Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the RGN trailer is restored to the original transportation state in time for transportation.
Common low bed semi trailer, should use the ramp behind the trailer for cargo loading. Yet, some large machinery and equipment, such as pile drivers, large rotary drills, large excavators, and large bulldozers, have very high centers of gravity due to their very high height. There is a great risk of later loading.
Loading method for gooseneck trailer: cargo is loaded from the front. Detachable gooseneck cargo table is very low, so the stability and security are very good. As you can see, the 60 ton lowboy trailers for sale can transport ultra-high and medium sized equipment and machine.
TITAN removable gooseneck lowboy trailer dimensions can be customized according to your requirements.
Common detachable gooseneck trailer. It is mainly designed to transport 35 ton detach lowboy for sale, 50 ton lowboy trailer for sale, 60 ton lowboy trailers for sale, 80 ton lowboy trailer, 100 ton lowboy trailer, 120 tons of heavy equipment or machinery. And the main styles are 2 axles 35 ton detach lowboy for sale, 3 axles kaufman detachable trailers, and 4 axles detachable lowboy trailer. Kaufman detachable trailers and used detach lowboy trailers for sale.
Heavy duty rgn lowboy trailer manufacturers. It is mainly designed to transport 100 tons, 120 tons, 150 tons of heavy equipment or machinery. The main use is the line axle structure. 2 lines 4 axles, 3 lines 6 axles, and 4 lines 8 axles.

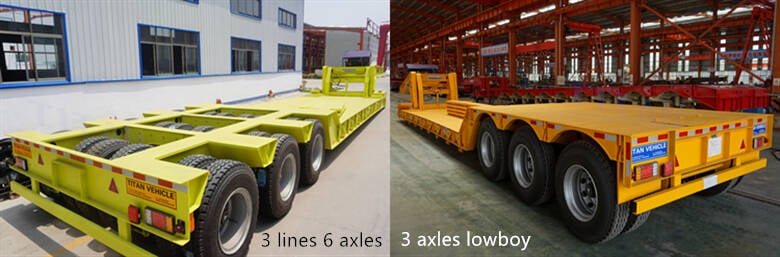

3 linee 6 axles detachable lowboy trailer and 3 axles detachable gooseneck trailers for sale
After the production of all hydraulic detachable goosenecks, pressure tests will be performed.

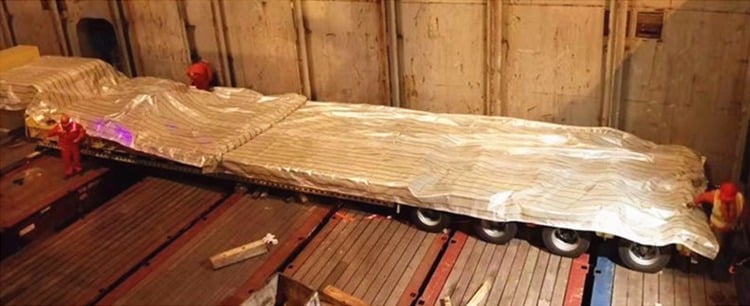

To prevent the extendable gooseneck trailer paint from being corroded by seawater, we spray a layer of wax on the surface of the detach trailer for sale before shipping, and then seal it with a waterproof rain cloth.

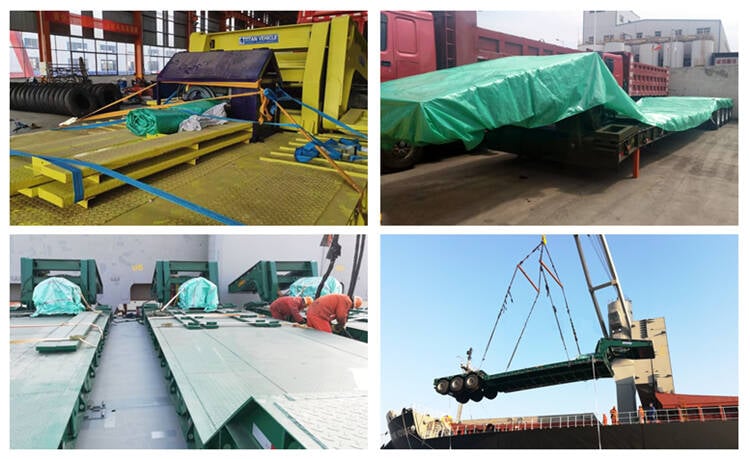

Detachable trailer for sale package in port
There are a variety of different transport semi trailers in the Chinese transport market, as many of them are locally transported and so common low bed trailers are more. Every city in China is under construction and is basically equipped with construction machinery and equipment, so long-distance transportation of large machines such as heavy excavators is not required.
But, the hydraulic gooseneck trailers produced by TITAN rgn lowboy trailer manufacturers are mainly exported to Central and West African countries such as Nigeria and Tanzania, and more than 200 units have been produced. Technology is mature.
1. What is the difference between the steel used for the detachable goose neck trailer?
Currently, the main steel type used for gooseneck lowboy trailers is HG60. HG60 is high-strength structural steel with high toughness, good fatigue resistance, welding performance and corrosion resistance.
HG60 high strength steel: C≤0.18 Si0.15 ~ 0.40 Mn1.00 ~ 1.70 P≤0.030 S≤0.025 Mo-Cr-Nb0.02 ~ 0.06 V0.03 ~ 0.08 Ni- HG60
Tensile test: Ret≥450MPa Rm570 ~ 720MPa A50≥19 used detach lowboy trailers for sale
Common lowbed trailers use Q345 manganese steel. Q345 steel cannot be used to transport heavy equipment.
2. Frame of gooseneck hydraulic low bed trailer
The effective load surface length of the frame is generally 5500mm to 9000mm, the width is 3000mm to 36000mm, and the widest can be 4 meters wide.
3. What is the load of the detach trailer for sale?
TITAN can be customized heavy duty lowboy trailer according to actual load requirements. Common design load tonnages are 60 tons, 80 tons, 100 tons, 120 tons, 150 tons, fixed rgn equipment trailer max weight reaches 200 tons.
4. How high off the ground is a lowboy trailer?
The height of the 60 ton lowboy trailer for sale plate can be customized. The common design of the height of the working surface is 850mm, and 800mm and 900mm. The height of the working surface can be controlled by the hydraulic system during actual transportation.
TITAN 3 axle 50 ton lowboy trailer for sale drawing
Mechanically detachable gooseneck operation: In the process of removing the gooseneck, the front gooseneck of the detachable gooseneck trailers for sale must be separated from the saddle of the truck. After the disassembly is completed, the equipment can be loaded.
Removable gooseneck trailer for sale features: Because front loading low bed trailer has a low center of gravity and a long cargo table, it can transport a lot of goods. The maintenance cost is also very low, the structure is easy to assemble, and the weight is light. Thus, the rgn trailer for sale near me is the preferred type that many transportation companies sell.
Folding gooseneck trailer is a kind of front-loading trailer, different from the RGN trailer, you can load the trailer from the front of the lowbed trailer(could be flatbed trailer) but no need to dismantle the gooseneck from the trailer body. It is widely used for transporting construction machines no matter they are with tires of crawlers.
Lowbed trailer with a foldable neck makes you move construction machines easily even without crane’s lifting. When unhooking from the prime mover, the semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on. It is one of the popular front-loading trailers, another one is detachable gooseneck trailer.
Conventional lowboy trailer normally equipped with hydraulic ramps at the rear side of the trailer, which can help with the loading of the cargo machines. Because of the height of the trailer, the ramps are steep. If the cargo is too heavy, it would increase risks during loading by the hydraulic ramps.
To resolve above problems happened with rear loading method, we have two types of front-loading trailer to handle them.
The gooseneck is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the trailer with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, it’s shallow and stable, could effective solutions for cargo loading.
4 Axle Hydraulic Folding Gooseneck Trailer
Hydraulic Folding Gooseneck Trailer Drawing
Folding gooseneck trailer designs
One end of the connecting rods hinged with a traction gooseneck(front part of the gooseneck), another end hinged with the lowbed trailer.
The hydraulic cylinder is articulated with a cylinder base and a support base. The cylinder base is welded with the front part of the gooseneck.
There is a rubber anti-skid cushion under a supporting base to stable the folding gooseneck trailer during transportation.
Two cylinders are designed in the gooseneck to increase safety, balance, and stability
The function of folding is realized by hydraulic cylinders and connecting bars which deployed inside the gooseneck. Connecting bars connect parts of the gooseneck and trailer body in an articulated (hinged) way.

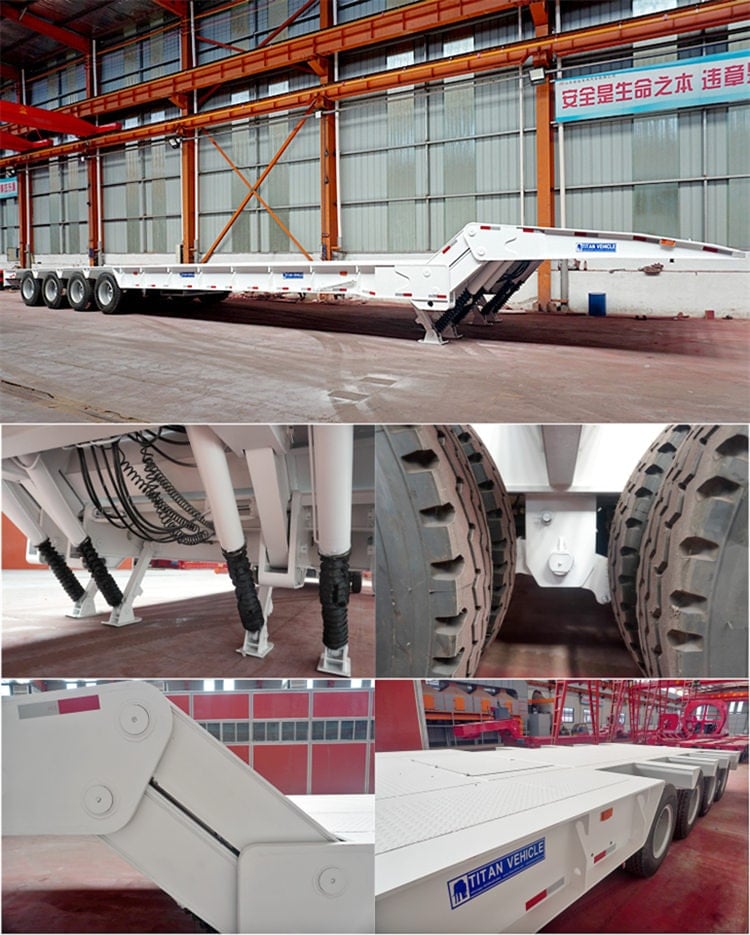

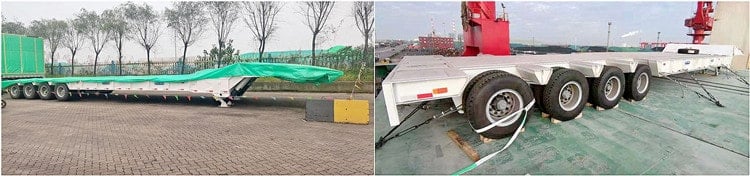

Hydraulic Folding Gooseneck Trailer Ready for Shipment
Hydraulic folding gooseneck trailer
Hydraulic folding gooseneck trailer has hydraulic cylinders connecting trailer chassis and connecting rods in the neck. The number of cylinders can be 2 or 4 units. After the neck folded or unfolded, we can use limited block(stop block) to lock the neck.
Hydraulic folding gooseneck trailer operations
When the neck is erected, using locking pins to lock the front part of the gooseneck and the trailer chassis. The semi-trailer is connected with the tractor. Lowering the cargo platform to touch the ground
Unhook the traction base with traction pin. Drive the tractor off the trailer. Control the hydraulic cylinders and take off the locking pins to unfold the neck on the ground. The unfolding gooseneck become a shallow slope for cargo loading. After the loading process, just reverse the above steps to fold the neck and connect the prime mover.
Both the folding gooseneck trailer and the removable gooseneck trailer refer to a connection method of the trailer, and the difference between them is the design of the connection part.
The removable gooseneck means that the gooseneck of the trailer is separated from the body chassis, and other tools are required to install the gooseneck to the body chassis before it can be used. Generally, the removable gooseneck for sale has a stronger structure and can withstand greater loads.
Folding gooseneck trailer means that the gooseneck of the trailer can be folded, so that the gooseneck can be stowed away when the trailer is not needed. The advantage of this connection method is that it saves storage space and makes the trailer more portable. However, compared with the removable gooseneck, the structure of the folding gooseneck may be slightly weaker and cannot bear excessive load.
In general, the choice of removable gooseneck trailer or folding gooseneck should be determined according to the specific use requirements and the load of the trailer.
We will meet the acme of perfection to serve and provide more details, price, catalog, drawing, videos for you!
