Lowboy Gooseneck Trailer for Sale

The ease of loading and unloading offered by folding gooseneck lowboy trailers can lead to cost savings by reducing the need for additional equipment or services to assist in the loading and unloading process.
Price: 27000USD   TITAN 3 axle 60 ton lowboy gooseneck trailer for sale can be used for loading and transporting heavy machinery and equipment. The 60 ton lowboy trailer for sale has a detachable front that allows the trailer to drop off to the ground and form its own ramp.
Price: 30000USD   3 lines 6 axles lowboy trailer for sale with the capacity of 150 tons. TITAN can customize different configuration detach trailer for sale for you.
Price: 29000USD    TITAN 120 ton detachable gooseneck trailers for sale are a form of double drop lowboy trailer that are designed to haul all types of heavy equipment. Ease and safety of loading are the primary features.
Price: 28000USD   TITAN can make the 2/3/4/6 axles detachable lowboy trailers for sale, with the capacity of 40/50/60/80/100/120 ton. We also can provide optional solutions for your transport requirements.
Price: 28500USD   TITAN 4 Axle Detachable Gooseneck Lowboy Trailer is hydraulically driven, with automatic lifting and automatic alignment functions.
Price: 27500USD   TITAN 50 Ton Detachable Neck Lowboy Trailer. Our line up of detachable lowboy trailers ranges from 50 to 150 ton capacities in two and three axle models with both spring ride and air ride.
Price: 27800USD   TITAN tri axle lowboy trailers for sale can be used for loading and transporting heavy machinery and equipment.
Price: 28900USD   Compare to rear ramps, folding gooseneck trailer for sale is shallow and stable, could effective solutions for cargo loading.
With front loader trailer, you don’t have to be worried about this since you can almost carry all types of cargo.
The 120 ton hydraulic detachable neck lowboy trailer for sale is mainly separated or hooked by manually operating the hydraulic device mounted on the goose head, so as to reach the construction machinery from the front of the detach gooseneck trailer.
TITAN lowboy gooseneck detach trailer is especially for the transport of high and voluminous loads, where every millimeter loading height counts, but also for high construction machines.
  • 1/1

Chapter 1: What is a removable gooseneck trailer?

Chapter 2: How much does a gooseneck lowboy trailer price?

Chapter 3: How does a detachable gooseneck trailer work?

Chapter 4: Folding neck lowboy trailers for sale

Chapter 5: What is the difference between lowbed trailer and gooseneck lowboy trailer?

Chapter 6: How do you detach a removable gooseneck trailer?



Chapter 1: What is a removable gooseneck trailer?

A removable gooseneck trailer for sale is commonly used to haul heavy equipment and machinery, such as excavators, bulldozers, and other large construction equipment. The lowboy gooseneck trailer for sale is perfect for hauling large equipment like this because they are usually tall and wide and would exceed standard legal height and weight restrictions. The detach trailer for sale uses a concave beam type. Removable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the lowboy trailer for sale is restored to the original transportation state in time for transportation.

Common low bed trailer, should use the ramp behind the trailer for cargo loading. Yet, some large machinery and equipment, such as pile drivers, large rotary drills, large excavators, and large bulldozers, have very high centers of gravity due to their very high height. There is a great risk of later loading. Loading method for removable gooseneck trailer for sale: cargo is loaded from the front. Detachable gooseneck lowboy trailer price cargo table is very low, so the stability and security are very good.



Detachable/Removable/Folding Lowboy Gooseneck Trailer for Sale Near Me

4 Axle Detachable Lowboy Gooseneck Trailer for Sale Near Me



Chapter 2: How much does a gooseneck lowboy trailer price?

The standard tri axle lowboy trailers for sale price is 29600USD, configuration and load capacity can be customized for you, welcome to contact us.

Features of lowboy trailers for sale near me:

1. Strong carrying capacity

TITAN detachable lowboy trailer for sale main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN used detach trailer for sale adopts reinforced the gooseneck and upper and lower plate by double layer.



2. Low center of gravity and good stability

Due to the low ground clearance and low longitudinal beam height of detachable gooseneck trailers for sale, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable gooseneck trailer for sale, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.

TITAN lowboy gooseneck trailer for sale near me bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN 50 ton detachable lowboy trailers for sale adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.



3. The effective length of the cargo bed is long

Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.

Detachable/Removable/Folding Lowboy Gooseneck Trailer for Sale Near Me

Chapter 3: How does a detachable gooseneck trailer work?

Uncoupling for Loading

During coupling and uncoupling, the trailer assembly is let to a lowered position. During uncoupling, the safety pin handle gets puled and locked open to let the safety pin detach the T-bar yoke free from the yoke pocket. The control lever for the hydraulic ram feature on the other hand is maneuvered to provide hydraulic pressure fluid inside the dram in order to lift the thrust blocks somewhat clear off their sitting positions on the main beam.

After achieving this, the lock finger gets retracted and the crank handle then is swung in an upward manner to anchor the safety hooks and the thrust blocks upwardly. Once this is attained, the lever is then locked in position through the lock finger that is fit in an upper coupling hole for the same.

Next, the hydraulic ram feature gets extended further to facilitate a further gooseneck rotation with respect to the trailer bed. This is done to facilitate the withdrawing of the two lock pins that are engaged with the hooks.

The pins get swung in an upward manner through the use of the crank handle. On achieving this, the hydraulic pressure in the ram gets reversed hence allowing the pressure to go down in the cylinders’ bottom chamber. This action slowly lowers the gooseneck and the trailer bed to the ground. You can choose to place a removable support block in between the trailer frame and the gooseneck beam in order to keep the gooseneck slightly off the ground surface. It is at this point when you can move the tractor away in order to give room for loading.



Detachable/Removable/Folding Lowboy Gooseneck Trailer for Sale Near Me

Removable Gooseneck Trailer for Sale in TITAN Factory



Coupling for Transportation

Once your cargo has been safely loaded on the lowboy trailer bed, it is time to reconnect the gooseneck and the trailer bed ready for transit. Basically, this is a reverse procedure of the uncoupling operation.

First, the operator needs to reverse back to the trailer bed location. Ensure that the coupling hooks are set in position to facilitate easy engagement.

The forward section of the trailer bed has a forwardly swerving entryway to make the hooks align with their attaching positions. When the T-bar yoke is perfectly aligned with the yoke pocket, fluid pressure can now be supplied to the hydraulic cylinders’ top chambers.

This forces the piston rods downwards hence driving the T-bar yoke directly into the pocket.  The safety pin is then inserted to ensure a positive link between the pocket and the T-bar yoke. More hydraulic pressure is supplied into the cylinders to move the trailer bed and the gooseneck in an upward direction.

The trailer bed should be moved to reach a position higher than its horizontal operating level to facilitate the moving of the lock pins into their perfect locking position. Once this is achieved, the hydraulic rams are then retracted back to allow the trailer bed and the gooseneck to descend.

The next thing is to move the safety hooks and the thrust blocks downward into an engaging position to lock them in place. After that, the fluid pressure in the rams is then reversed moderately. This provides a hydraulic interlock that holds the thrust blocks tightly in place. Once this is done, the lowboy trailers for sale near me assembly is now ready for over the road transportation.



Detachable/Removable/Folding Lowboy Gooseneck Trailer for Sale Near Me

Detachable Neck Lowboy Trailer for Sale Near Me



Chapter 4: Folding neck lowboy trailers for sale

Folding gooseneck trailer for sale makes you move construction machines easily even without crane’s lifting. When unhooking from the prime mover, the semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.

The gooseneck is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the trailer with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, it’s shallow and stable, could effective solutions for cargo loading.



Detachable/Removable/Folding Lowboy Gooseneck Trailer for Sale Near Me

TITAN Folding Gooseneck Trailer for Sale Near Me



Advantages of folding gooseneck trailer for sale over detachable lowboy trailer for sale

1. Efficiency

The folding neck lowboy for sale is superior in terms of efficiency. The ground engaging pads can be adjusted independently hence making your loading and offloading operations on a flat level achievable without any challenges. Therefore, there are no worries should you be required to load and offload your equipment on an uneven terrain. The ability to make independent adjustments makes this trailer manipulatable and efficient to use more than the detachable neck lowboy trailer for sale.

2. Cost

The used detachable lowboy trailer for sale is cheaper compared to the folding neck lowboy trailers for sale. Therefore, if you don’t have a big budget for these types of trailers, a folding neck lowboy trailers for sale may not be your choice.  Despite the high cost however, the folding gooseneck trailer has multiple features that make it more stable and useful than the removable lowboy trailer price. The many features are the reason for increased costs.

3. Operation

Compared to the folding gooseneck trailer for sale, the removable gooseneck trailer is complicated to operate.  This is especially when working on a rugged terrain where achieving the best loading and offloading positions may prove to be a challenge. The ability to make adjustments on the ground engaging pads independently on the folding gooseneck makes it a lot easier to operate and to work with more than the removable lowboy gooseneck trailer for sale near me regardless of the ground topography.



Detachable/Removable/Folding Lowboy Gooseneck Trailer for Sale Near Me

Details of Folding Neck Lowboy Trailer for Sale



Folding neck lowboy trailers for sale operations

When the neck is erected, using locking pins to lock the front part of the gooseneck and the trailer chassis. The folding neck lowboy trailers for sale is connected with the tractor. Lowering the cargo platform to touch the ground.

Unhook the traction base with traction pin. Drive the tractor off the folding neck lowboy for sale. Control the hydraulic cylinders and take off the locking pins to unfold the neck on the ground. The unfolding gooseneck become a shallow slope for cargo loading. After the loading process, just reverse the above steps to fold the neck and connect the prime mover.



Chapter 5: What is the difference between lowbed trailer and gooseneck lowboy trailer?

Loading with lowbed trailers, you cannot lower it any further. That means you can’t work without auxiliary equipment for lifting cargo and loading it onto the trailer. For that matter, it will limit you to the type of cargo that you can carry on lowbed trailers.

With used gooseneck lowboy trailer for sale, you don’t have to be worried about this since you can almost carry all types of cargo. Characteristics of used detachable lowboy trailer for sale are that it can be detached from the front unlike with a lowbed semi trailer, so it is also called front loading lowboy trailer price. This feature has been provided in a 60 ton lowboy trailer for sale to enhance loading and offloading of cargo. The user has an easy time during such occasions. This is unlike for a lowbed semi trailer that load the cargo from rear. It is possible to carry heavy motorized machinery since the trailer can be lowered to its ramp. The appropriate trailer to choose depends on the cargo type that you want to handle.

Why choose a removable gooseneck trailer over other low bed trailers?

One benefit is that it is safer to load heavy loads from the front than from the rear or sides.

Loading from the back is not safe, especially when carrying heavy equipment. The rear has a ramp structure. Therefore, long ramps are required to load heavy equipment. Heavy objects may fall from the ramp or from the rear onto the cargo platform. Such a drop can damage the equipment or cargo even before shipping.



Detachable/Removable/Folding Lowboy Gooseneck Trailer for Sale Near Me

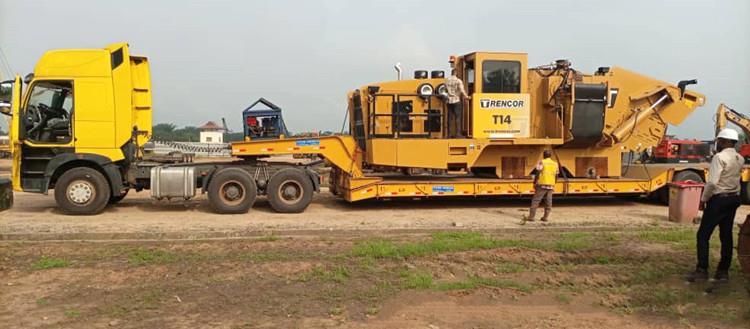

Detachable Lowboy Gooseneck Trailer Feedback from TITAN Customer



Chapter 6: How do you detach a removable gooseneck trailer?

When preparing to remove the gooseneck, you must first link the towing pin with the towing saddle. There are many types of detachable gooseneck trailers for sale. Most split gooseneck operating principles are the same.

1. Remove the positioning pin and the air pipe and wire connection.

2. As the gooseneck height decreases, the bottom angle of the front end of the detachable neck lowboy trailer for sale lowers to the ground and rests on the ground. Once all the linkages have been safely removed, lower the cargo platform.

3. Drive the gooseneck with the truck and drive the tractor far enough away.

4. After driving off the truck, you can now load comfortably from the front of the 80 ton lowboy trailers for sale platform.



Review

Stephen from Kenya - 2022-05-18T11:05:25+0800
I have done a ton of research, prior to buying the lowboy gooseneck trailer for sale. Works as expected. Works very well on transport so far. I would recommend this model if you need a trailer.
Ibra from Nigeria - 2022-05-12T16:05:53+0800
I bought my first detacahble lowboy gooseneck trailer from TITAN over a year and a half ago, and it is still in use. Nice product, the detachable lowboy gooseneck trailer for sale is really easy to use.
