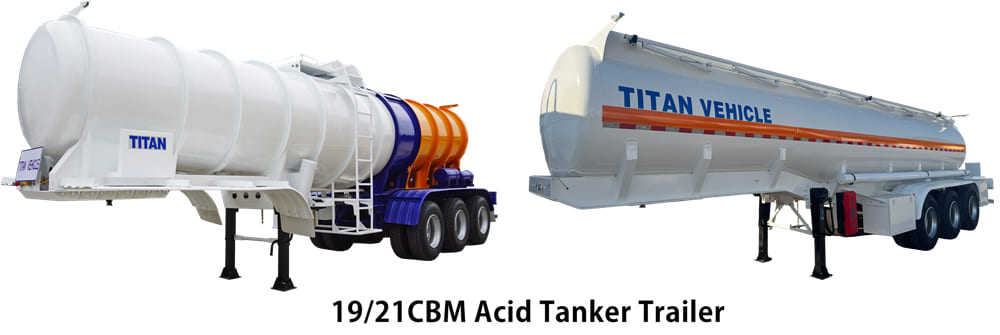

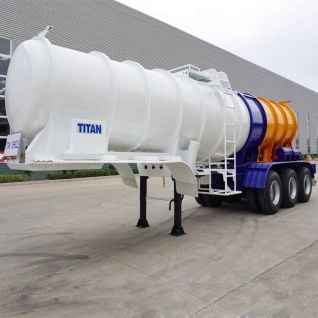

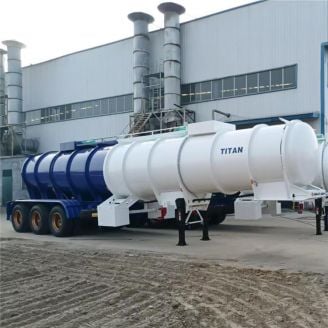

The acid tanker semi trailer is used for transporting different kinds of acids such as: sulfuric acid, hydrochloric acid, hydrofluoric acid, Nitric acid and Acetic acid among others as used for different industrial applications.
Acid Tanker Trailer produced to transport the chemical liquid with a single compartment, 5,000-gallon sulfate transportation solution.
Chemical liquid transport semi trailer has different requirements for tank material depending on the characteristics of the medium being transported. Common sulfuric acid tank materials are stainless steel, carbon steel, aluminum, etc.
The inside and outside of the tank are treated with fine anticorrosive paint. With no joints, no leakage, corrosion resistance, aging resistance, impact resistance, long life and other characteristics, it is suitable for storage and transportation of most acids and hydrochloric acid. Operating temperature: -20 ℃ ～ 60 ℃.

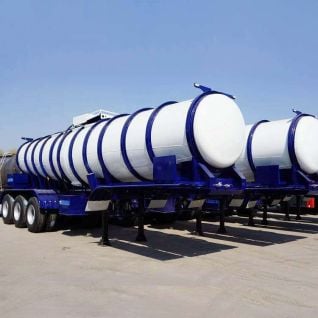

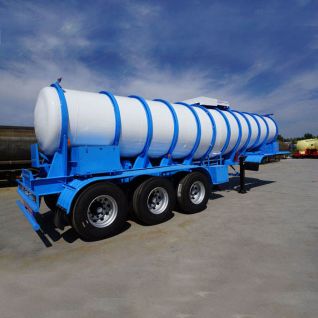

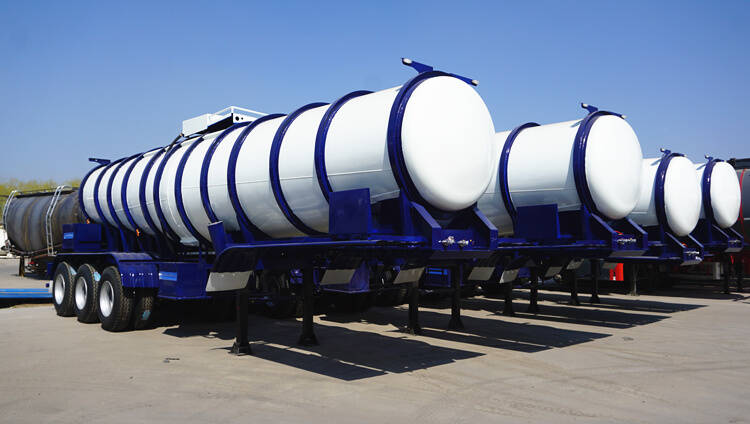

For the sulphuric acid tanker, TITAN produce the most strong acid tank body to make sure the safety. We adop 5mm thick steel to weld the tankers, also use special design, like the 10 pcs strengthened steel ring to reinforce the Dilute Sulfuric Acid tanker trailer.
To keep the Acid tanker trailer safety, we use the stainless steel emergency bottom valve also the discharge valves, this type is anti-corrosion, so it can make the chemical tanker trailers to have long service life.
TITAN Vehicle has strong technical force, and can design and manufacture products that satisfy customers.

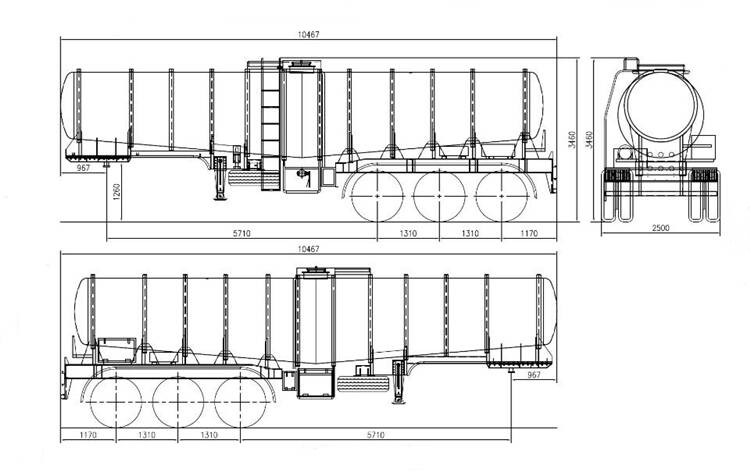

Dimension: 10458mmx2500mm x3450mm (the exact size depends on the final design)
Total volume(m³): 19m³ , Optional 19-42 m³
Tank Body Material: Carbon steel or Stainless steel
Discharging Valve: Diameter is 3 or 4 inch Stainless steel
Axle: 3 axles
Suspension: Mechanical suspension/Air Suspension
Pneumatic Braking System: WABCO
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
The long-term corrosion effect in steel chemical storage tank is the continued thinning of the tank wall section, especially at lower levels. This leads to imperfections of the shell.
The service life of these storage tanks is normally estimated to be in the range of about 20-40 years. To guarantee the safe operation of storage tank, the thickness of the tank should be tested once at least every two years, and every five years for an internal inspection at least.
There are quite a number of damage mechanisms that can cause the deterioration and failure of a storage tank. The integrity of a tank structure should therefore be check against, corrosion, chemical attack, erosion, creep, fatigue, mechanical damage and brittle fracture.
