Table of Contents
Chapter 1: What is low bed trailer meaning?
Chapter 2: Low bed trailer types
Chapter 3: High bed trailer vs low bed trailer
Chapter 4: Low bed trailer specification
4.1: How high is a low bed trailer?
4.2: How long is a lowbed trailer?
4.3: Low bed trailer dimensions
Low bed trailer are usually used to transport a variety of machinery and equipment, heavy equipment, highway construction equipment, large tank body, power station equipment, and various excavators, and are used to transport heavy vehicles (such as tractors, coaches, Subway truck head, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-duty cargo.
The low bed trailer price structure usually adopts a concave beam frame. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high cargo. The front section of the frame is a gooseneck (the traction pin in the front section of the gooseneck is connected to the traction saddle on the tractor, and the rear end of the gooseneck is connected to the low bed semi trailer frame) Cargo platform (the lowest part of the frame), the rear end is the wheel frame (including wheels).
The lower the platform height of the low bed trailers, the better the stability and safety. Our low bed trailer for sale has a large carrying capacity when transporting extra high and medium cargo. TITAN semi low bed trailer height from ground is usually 1300mm. If you have special needs, we can also customize it for you.

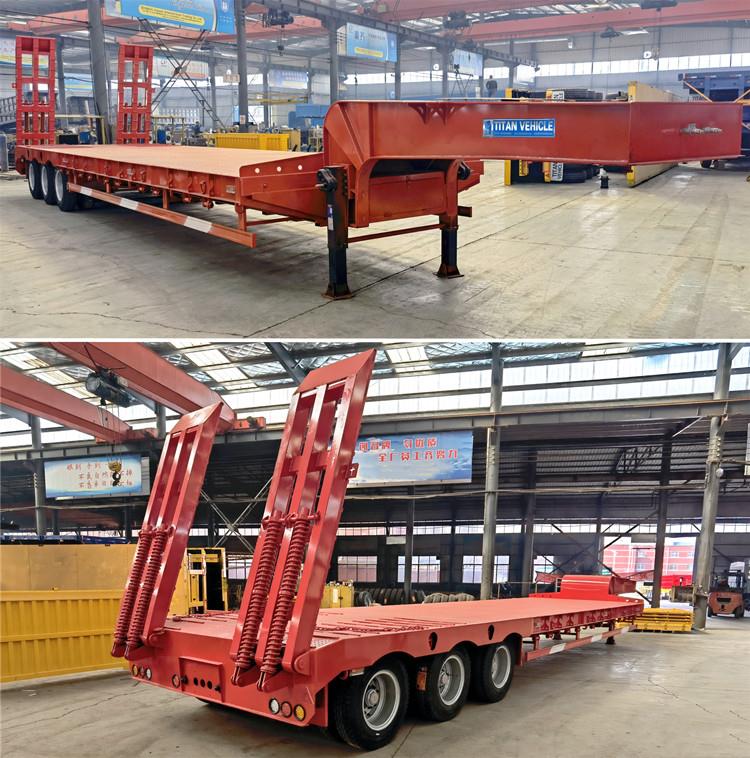

3 Axle Semi Low Bed Trailer Price in TITAN Factory
1. Common low bed trailer:
This normal-type low bed trailer is the most popular type low bed trailer with a loading capacity from 40 - 80 tons, like 3 axle low bed trailer, 4 axle lowbed trailer, 2 axle low bed trailer, model for 13-20 ton axles. Usually equipped with the spring ladders for the machines such as the wheel loaders, excavators, or some different types of wheeled machines transportation. The high of the working platform is various from 1000mm to 1200mm.
2. Heavy load semi low bed trailer:
Heavy load low bed trailer is almost the same as the common low bed trailers, only comes with a higher loading capacity normally from 80 tons to 120 tons. This type of low bed trailer is a cost-effective type, usually used for those countries which don't have the special requirements on the axles load and the off-road working environment.

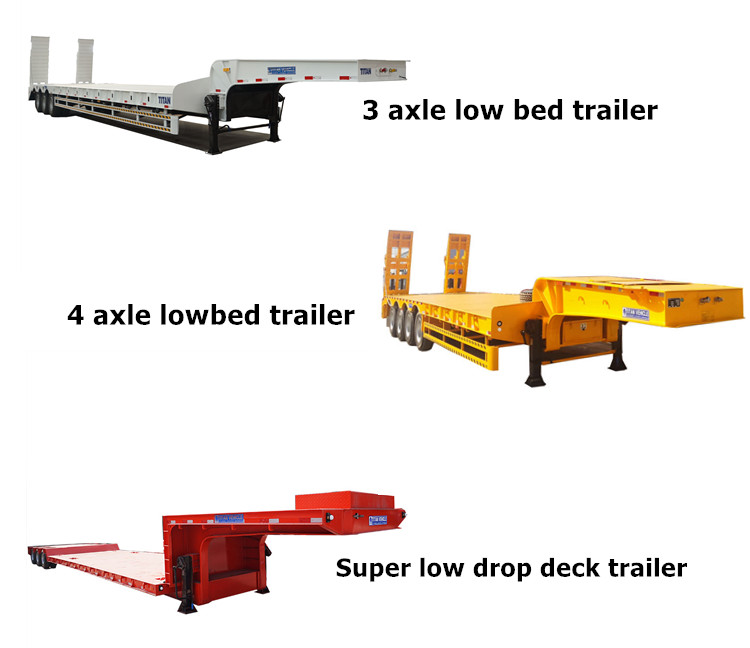

Different Types of TITAN Low Bed Trailer Low Bed Trailer for Sale
3. Dual lane axles low bed trailers:
The main specification for the dual-lane low bed trailer price is its axles. The dual-lane axle low bed trailer equipped with the short axles, each line has two short axles with 8 sets of tires and rims. This type of low bed trailer is usually used for super heavy equipment transportation.
The working platform length will be designed according to the machines that will be transported, tire covered, or exposed types. The entire cargo platform is straight and above the wheels. The upper space of the overlapping part of the tractor and the excavator trailer is fully utilized so that it has a large cargo platform area.
4. Detachable gooseneck low bed trailer:
The detachable gooseneck low bed trailer uses a concave beam type. Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the gooseneck low bed trailer is restored to the original transportation state in time for transportation.
Loading method for gooseneck low bed trailer: cargo is loaded from the front. Detachable gooseneck cargo table is very low, so the stability and security are very good. As you can see, the gooseneck low bed trailer can transport ultra-high and medium sized equipment and machine.
5. Extendable low bed trailer:
The extendable low bed trailer is a kind of special low bed trailer which is designed for the oversized cargo delivery. This type of low bed trailer usually doesn't have the ladder, because it's special used for the heavy equipment transportation such as the wind tower transport. Extendable low bed trailer usually has two types, it's width-extendable and length-extendable, two types. The side extending type low bed trailer is usually used for the width oversized cargo delivery, the width of the extending low bed trailer is different from 3000mm to 5000mm. Length extending type low bed trailer is used for the length of oversized cargo delivery. The length after extended can be up to 25000mm.

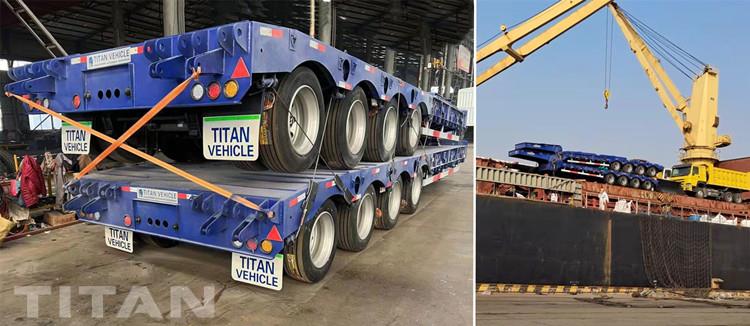

2 Units Semi Low Bed Trailer for Sale will be sent to Africa

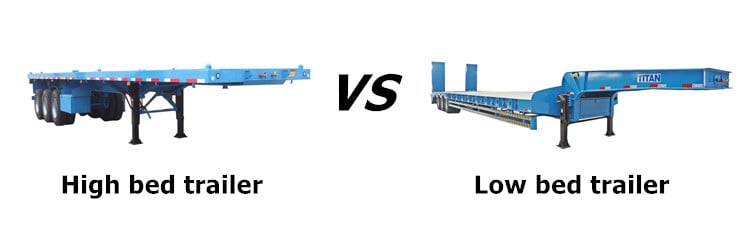

What's the difference between a high bed trailer and a low bed trailer?
The difference between the high bed trailer and low bed trailer is mainly on the working platform and the usage. The low bed trailer is a kind of machinery transport use trailer with a much lower working platform, with a high range of 400mm to 1200 mm which is also called the lowbed trailer, lowboy trailer, machinery transport trailer, equipment transport trailer, etc.
The high bed trailer that we usually said is a type of flatbed trailer. Flatbed trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals. The flatbed trailer has several types too, including the 20 ft flatbed trailer, 40 ft flatbed trailer, and the extendable flatbed trailer for multi-usage.
What's the difference between a high bed trailer and a low bed trailer?

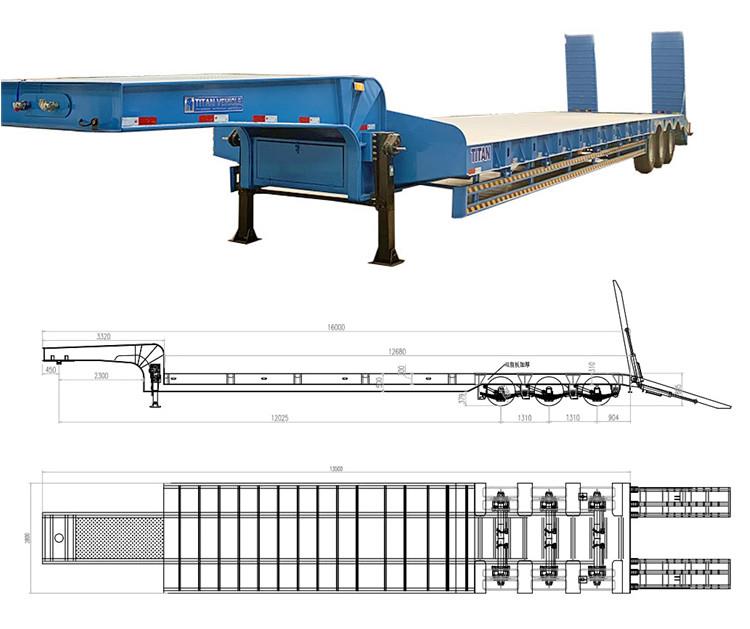

TITAN most popular 3 axle low bed trailer specification
Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 60-80T
Axle: 3 axles, 13T/16T, FUWA / BPW / TITAN Brand
Tire: 12 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
low bed trailer height from ground: 850-1250 mm
low bed trailer max-height: 1750 mm
The 2 axle low bed trailer length: 11500mm
The 3 axle low bed trailer for sale length: 13000mm
The 4 axle low bed trailer price length: 15800mm
2 axle low bed trailer price dimensions: 11500*2500*2900mm
3 axle low bed semi trailer dimensions: 13000*3000*3400mm
4 axle lowbed trailer for sale dimensions: 15800*3000*3400mm
2 axle low bed trailer capacity: 30-40 ton
3 axle low bed trailer price capacity: 50-80 ton
4 axle lowbed trailer loading capacity: 90-120 ton
