3 Axle Dump Trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

Product description:

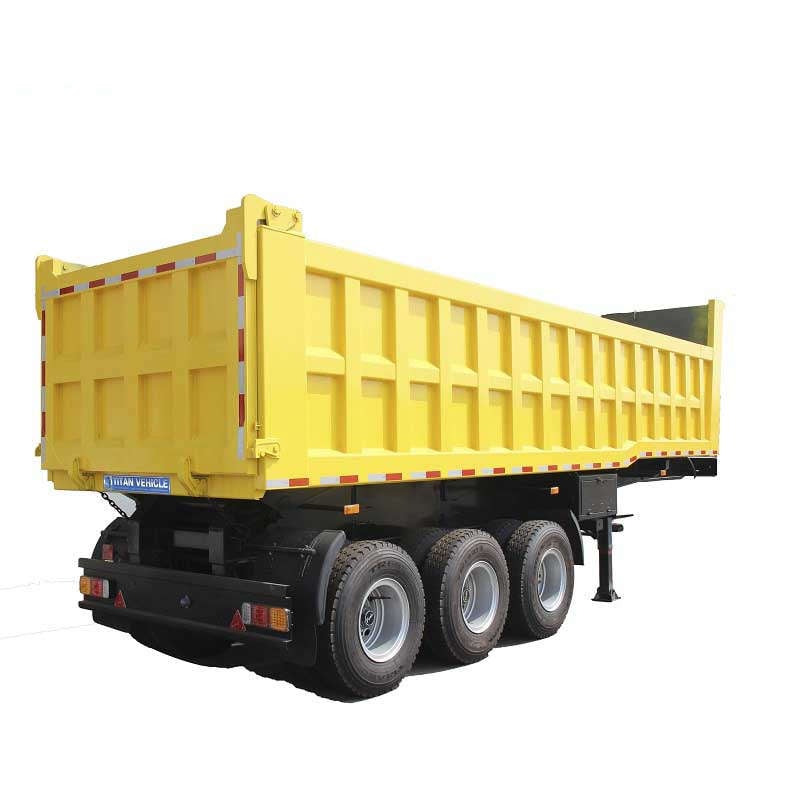

3 Axle Dump Trailer for Sale is a big trailer that usually lifts when dumping its hall in a chosen location. 3 Axle Dump Trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

3 Axle Dump Trailer adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

3 Axle Dump Trailer Prices in Ghana Takoradi

3 Axle Dump Trailer Prices in Ghana Takoradi

3 Axle Dump Trailer Prices in Ghana Takoradi

80 Ton Dump Trailer Prices

3 Axle Dump Trailer Prices in Ghana Takoradi



Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 40m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
