Chapter 1. What is a 40Ft Side Lifter Trailer?
Chapter 1.1 What are The Different Types of Side Lifter Trailers?
Chapter 1.2 The Dimensions of Side Lifter Trailer for Sale
Chapter 1.3 The Specs of Sidelifter Truck Trailer for Sale
Chapter 1.4 The Advantage of Side Lifter Trailer for Sale
Chapter 2. How Much Weight Can a Side Lifter Trailer?
Chapter 3. How does a Side Lifters Trailer Work?
Chapter 4. How to Operate a 37 Ton Side Lifter Trailer?
Side lifter trailer is mainly used to load 20ft and 40ft containers, especially in the port of shipment, using side lifter, the work efficiency will be very fast. Side lifter trailer is a special container loading and unloading vehicle used in container terminals and transfer yards. The role of the side-loading container trailer is to realize the loading and unloading of containers, such as the loading and unloading of container flatbed trailers.
Side lifter trailers, also known as sidelifter trailers, container side lifter trailers or side loader trailers, provide a versatile and cost-effective way to load, transport and unload containers and other cargo. This makes it possible for you to gain new business, customers and revenue in an ever-increasing market for container handling.
20/40ft side lifter trailer with wireless remote and manual operation. The rear boom can be adjusted to fit 20ft and 40ft containers for container handling. At the same time, the power of the rear arm is provided by the tractor head, and a power take-off can be installed at the front of the head to provide power for the loading and unloading of the rear arm. The Side lifter trailer for sale makes work flexible, saving time and increasing productivity for satisfied customers around the world.
Its main structure is the chassis and the rear cantilever, the rear cantilever is the most important and complex. And the chassis and rear arm can be separated. As for its shipping, we separate it for you to ship. This delivery method requires the customer to have a certain assembly ability.
The side lifter trailer integrates the functions of container lifting, container unloading, and container transportation.
According to the type of transportation container, it is divided into side lifter truck and side lifter trailer.

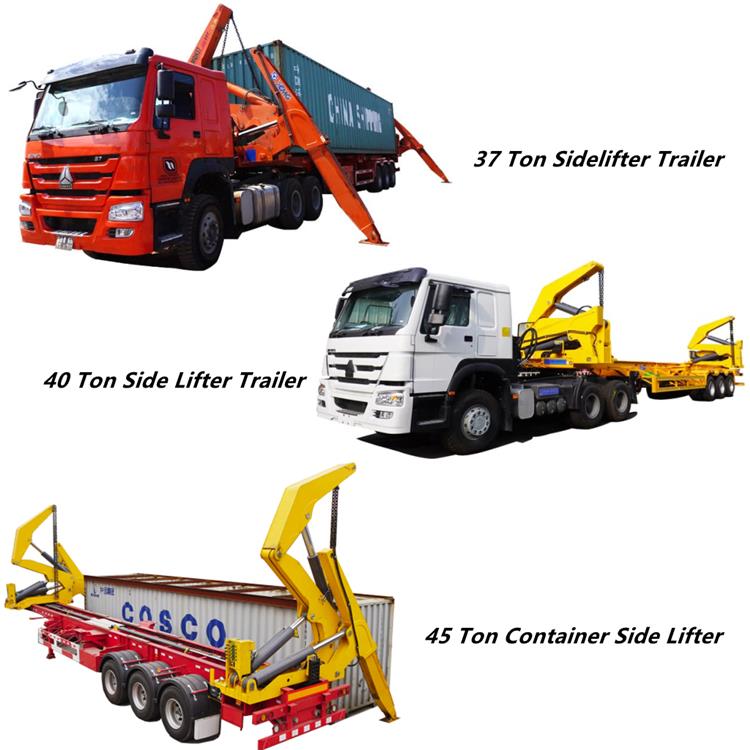

According to the different tonnage of lifting, it can be divided into 16 tons, 25 tons, 37 tons, 40 ton, 45 tons of side lifter trailer, of which 37 tons and 45 tons are the best sales.
According to different transport chassis, it can be divided into 20ft side lifter truck, 20ft side lifter trailer and 40ft side lifter trailer.
Side Lifter Trailer | 20Ft 40Ft Sidelifter Truck Trailer for Sale Price

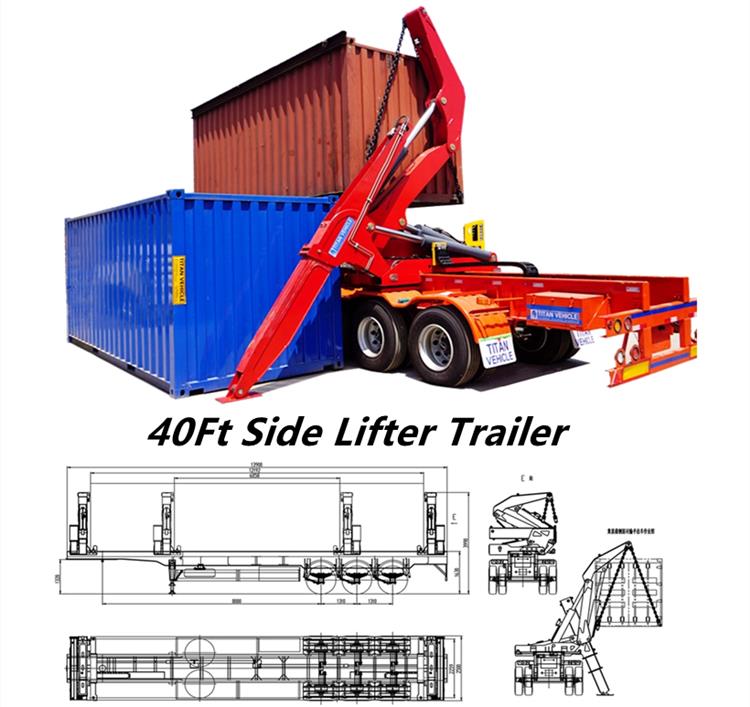

37 Ton 40ft Side Lifter Trailer Dimensions: 14100*2500*4100mm

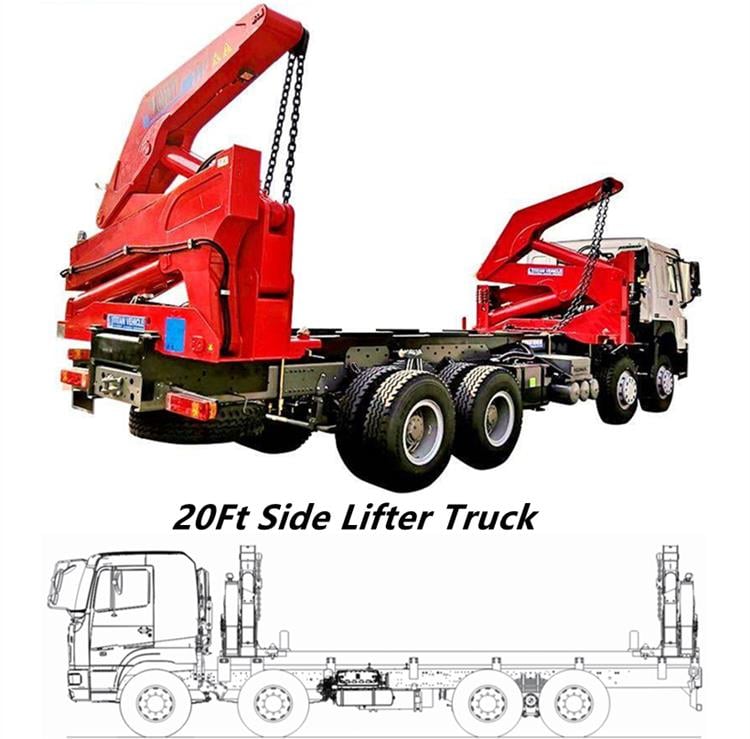

37 Ton 20ft Side Lifter Truck Dimensions: 12000x2500x4000mm

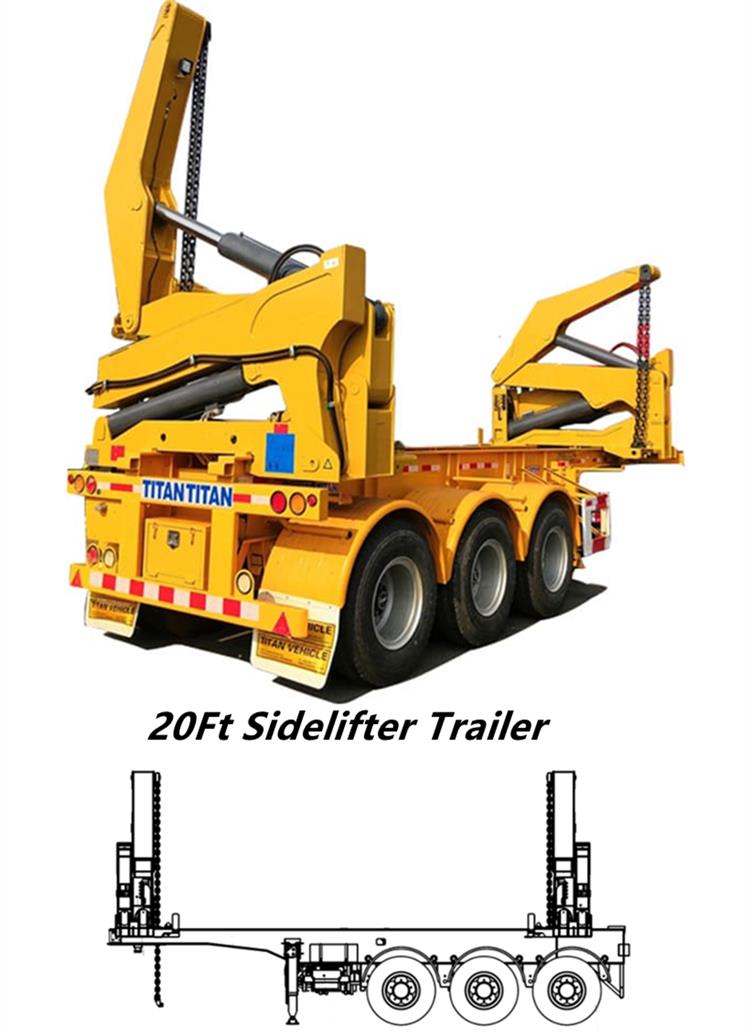

37 Ton 20ft Side Lifter Trailer Dimensions: 8500*2500*4100mm
Maximum lifting capacity 37000 kg
Maximum working range 4000 mm
Maximum stabilizer outreach 3200 mm
Max. lifting capacity: 37/40/45Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm/7500*2500*4200mm
Axle: 3/2axle* 13 ton (220mm brake pads)
Tire: 12/8pcs, 12R22.5
Suspension: Heavy duty type mechanical spring suspension
Kingpin: 3.5 inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
Side Lifter Trailer | 20Ft 40Ft Sidelifter Truck Trailer for Sale Price
Save time and improve efficiency: TITAN side lifter trailer can work efficiently throughout the day, and can easily load and unload and transport containers by itself. Flexible solution: With TITAN side lifter trailer, you can get closer and lift between trailers safely and with high precision.
The famous WABCO brake valve, JOST landing gear for the main chassis container skeleton trailer. The famous NBB German remote control, is easy to operate. TITAN 40ft container side lift trailer adopts wireless remote control technology, it only takes 10 minutes to load the container.
1. Application Diversity
37 tons lifting capacity, tested to 45 tons. According to the type of shipping container, it is divided into sidelifter truck trailer for sale. According to different transport chassis, it can be divided into self-loading truck and side-loading semi-trailer. Mainly used for loading containers, but also for loading container tanks, equipment, wood, etc.

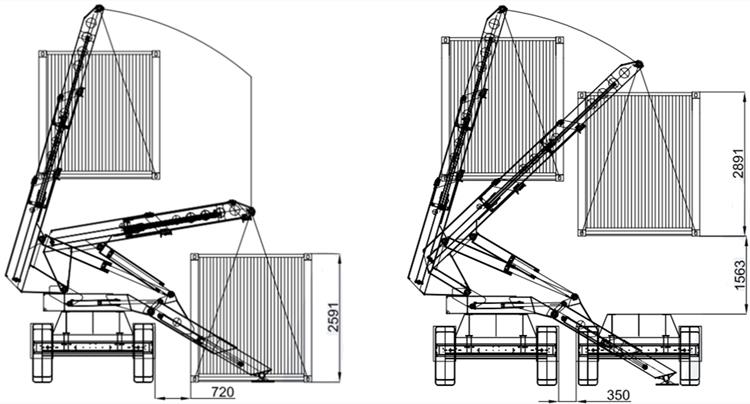

2. Double stacking of containers
The TITAN side lifter trailer can double stack two tall cube containers on the ground without the use of chain shorteners. It avoids investment in specific equipment.
3. Transfer from/to other trailers
When multiple containers must be delivered in the same yard, the side lifter trailer can pick up the container on the companion trailer to ground it. Wait times for trucks and trailers are greatly reduced, increasing the efficiency and profitability of each trip.
4. Grounding and lifting of containers
Grounding and lifting represent 90% of the side lifter trailer's tasks. Once on the ground, the side lifter trailer can do another job, and the containers can be more easily filled or unloaded without the need for specific infrastructures like platforms or loading ramps. So the forklift can enter the container. Handling containers even on rough ground.
Side Lifter Trailer | 20Ft 40Ft Sidelifter Truck Trailer for Sale Price

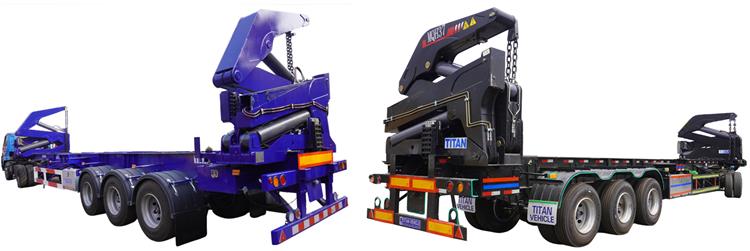

The TITAN side lifter trailer is the most popular model in the world. It has been designed with versatility in mind, with lifting capacities of 25, 37 or 40 or 45 tons. The capacity is 20ft-40ft. The support legs extend and recline, making it very flexible in positioning.
The support legs run from a high position relative to the chassis, which means you can more easily place the support legs on top of a higher mating chassis or rail wagon. The Sidelifter truck trailer is an all-rounder, ideal for ground lifts and transfers to and from another chassis. It's the best choice when you need high versatility and maximum payload on the road.
Equipped with the necessary hydraulic outriggers, the TITAN can lift loads of up to 45 tonnes without tipping the vehicle.
These can be adjusted to help maneuver in less terrain and facilitate greater safety margins and load limits when stacking containers. There is an overload alarm device on the control system. When the lifting capacity exceeds 90% of the lifting capacity, the yellow light will be on; when it reaches 100%, the red light will be on and an alarm will sound.
Since the side lifter trailer is equipped with a rear steering axle, it can get on and off in tight spaces. Therefore, we can use the side lifter trailer as a highly flexible logistics solution even under difficult conditions.
With its up to 45 ton lifting capacity, the sidelifter truck trailer for sale can not only load 20/40 foot containers independently on its own chassis, but also directly to other container chassis or rail wagons, so when flexibility is required , the sidelifter truck trailer for sale is the perfect solution.
Integrating lifting, loading and unloading, and transportation into one, making the self-loading and unloading of containers or other goods faster and more convenient. Through the middle hanger, independent sliding, with front and rear hangers, it can load and unload empty containers of 20 or 40 feet or other specifications or self-loading. Full of boxes or other goods, it has a wide range of uses and high equipment utilization.
Advanced electric proportional control technology
The device is controlled by a pressure-compensated electric proportional valve, which realizes the function of step-less speed regulation and ensures the smooth operation of the whole machine, good fretting performance and precise control.
Remote wireless control technology
The Side lifter trailer is equipped with Sany's self-made wireless encounter control device, which can realize remote wireless control of the movement of outriggers and hangers within 30m. Equipped with a wireless throttle potentiometer, it can realize remote wireless control of the engine throttle size within 30m, realize the adjustment of engine speed, stable signal transmission and fast response speed.
Intelligent security protection system
Equipped with a tilt sensor, it can detect the state of the vehicle in real time, automatically alarm when the vehicle has a tendency to tilt, and intelligently lock relevant dangerous operations to ensure the safe operation of the vehicle.
Side Lifter Trailer | 20Ft 40Ft Sidelifter Truck Trailer for Sale Price
Two cranes in the front and rear of the 20ft 40ft sidelifter truck trailer for sale are installed on the floor of the semi-trailer. The hydraulic power is transmitted through the tractor, and it can slide forward and backward along the chassis. It can be operated wirelessly by remote control, and manual operation is reserved, which can realize self-loading and unloading container transportation. It is compact in structure, reliable in operation, simple in operation and high in operation efficiency.
1. To ensure safety, check whether the 20ft sidelifter truck trailer for sale works normally and meets the requirements of the lifted goods before operation. Make sure the side lifter trailer is not overloaded. Referring to the working range of the side lifter trailer, ensure that the front and rear unbalanced loads do not exceed 10% of the corresponding working range, and try to keep the container and the chassis at an appropriate distance of 300mm~500mm.
2. Open the engine control box, start the engine, let the engine idle for about 10s, and then adjust it to 1600 rpm~2600 rpm through the adjustment handle. Power on the remote control and the electrical system control box.
3. Extend the tilted stabilizer legs. Two hydraulic arms that can load or unload standard containers from maximum weight. The process is carried out by a radio-controlled system located in the side lifter trailer.
4. Lock the four locks on the chain at the bottom of the container, and turn the rotary lock to unlock the container. When the load just leaves the ground, make sure that there are no obstacles in the direction of travel of the load.
Do not center the container beyond the limit of the stabilizer, otherwise it may cause a tripping accident. When extending the stabilizer, make sure all wheels are in contact with the ground. During operation, do not retract the stabilizer.
5. Use the 40ft sidelifter truck trailer for sale remote control to control the boom to unload the container from the semi-trailer without interference. It is best to keep the distance between the side lifter trailer and the container between 300mm and 500mm.
6. Remove the chain, retract the boom and then the stabilizer.
7. Adjust engine speed to idle, shut off the engine and turn off all power sources.
Side Lifter Trailer | 20Ft 40Ft Sidelifter Truck Trailer for Sale Price
Precautions During the Use of Side Lifter Trailer
1. The working range of the front lifting equipment and the rear lifting equipment should be roughly the same. When a discrepancy occurs, stop one hoist and run the other, adjust them so that the front hoist and rear hoist have the same working range, and then operate simultaneously again.
2. During the lifting process, it should be ensured that the crane moves smoothly and smoothly. If the container is being lifted due to a sudden movement, stop the operation immediately, and restart the operation after quiet.
3. During inspection and maintenance work, be sure to avoid a collision, do not knock the parts hard to prevent deformation, prevent dust from entering when working on these parts, and add grease to prolong the service life. Their lives.
4. All moving parts of the Side lifter trailer are driven by hydraulics. If any abnormal response is found during the operation, the operation will be stopped immediately, and the operation will be restarted after troubleshooting.
1. Side lifter trailers do not need to turn like a standard forklift, so they can travel along with a rack or truck and be easily loaded and unloaded from the side
2. Side-mounted machines are designed to work in narrow aisles and doorways
3. Long loads such as wood, steel, or pipes are easier to handle because the load faces the direction of travel, reducing the overall width of the equipment and load
4. The tablet can stabilize the load and ensure safer movement
5. Since the load is carried on the side, the operator is clearly visible to the front and rear
Sidelifter truck trailer for sale is a special-purpose machine. While they're great for long or awkward loads, consider what else you're trying to move, and whether you'll need it to handle different types of loads, or if a combination of different equipment will work best.
The sidelifter truck trailer for sale has two cranes front and rear, installed on the semi-trailer floor, transmits hydraulic power through the tractor, can slide along the chassis front and rear, remote control wireless operation, and retains manual operation, which can realize the side lifter trailer loading and unloading of container transportation.
With compact structure, reliable operation, simple operation, and high operational efficiency, the use of the location is mainly in the port, car show, yard and other occasions of container loading and transportation.
