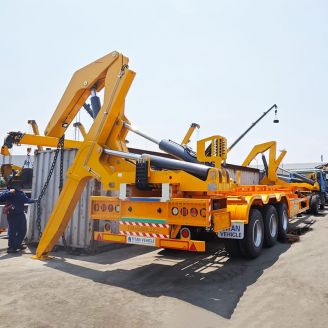

Container Side Loader

Side lifter container can provide many other famous brand parts for our customer,such FUHUA axles and JOST landing gear to meet all the need of our customer.

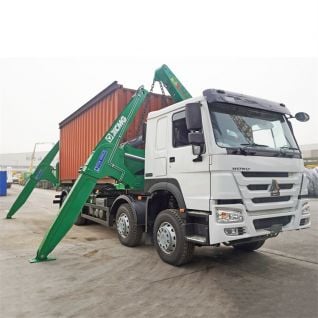

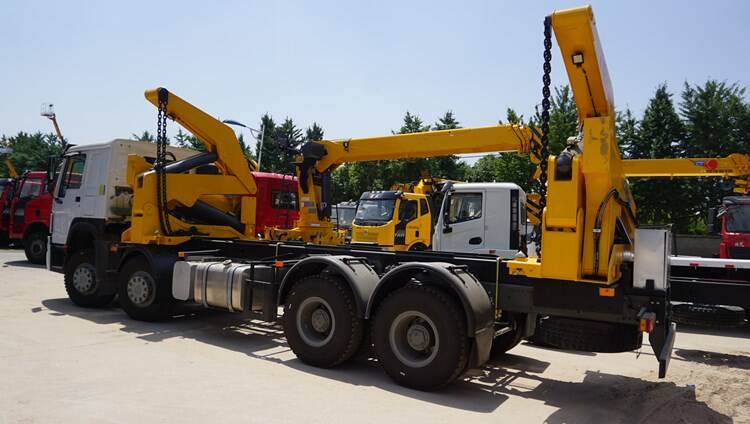

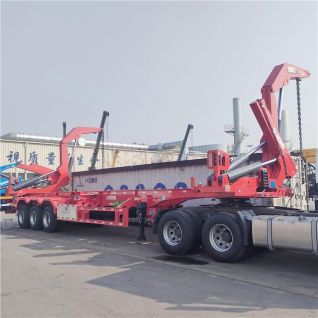

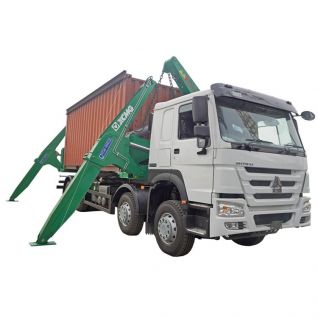

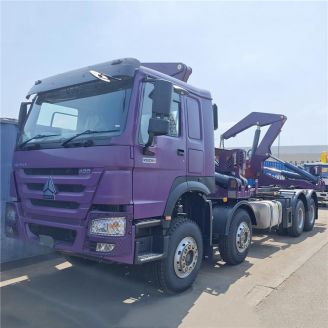

TITAN 20ft container side loader truck for sale is used for loading and unloading 20ft container.
The 20 ft Side loader truck trailer has a longer boom length, which can cover a larger operating range, and can operate in various environments such as indoors, outdoors, underground, and high altitude.

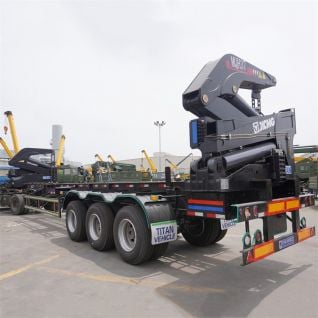

TITAN side lift container transport is used for loading and unloading 40ft container or 20ft container.
Container loader trailer integrates container lifting, container unloading and container transportation functions.

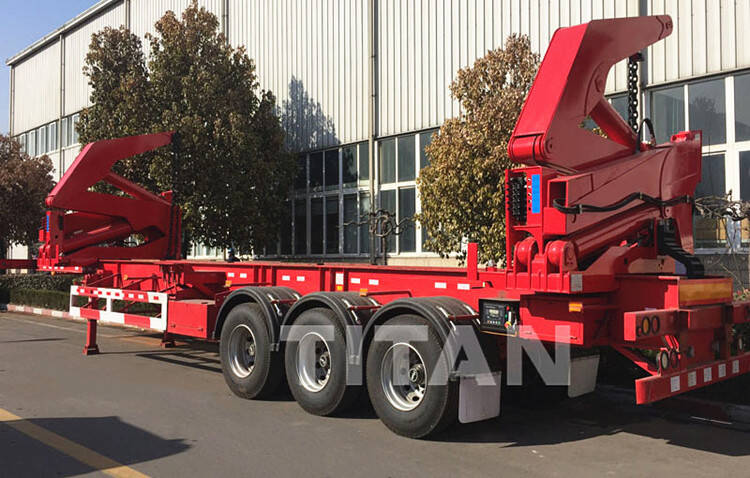

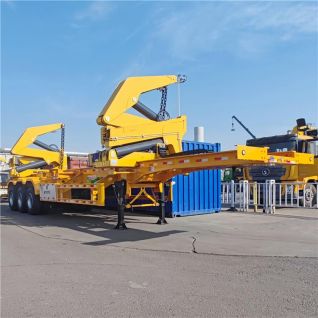

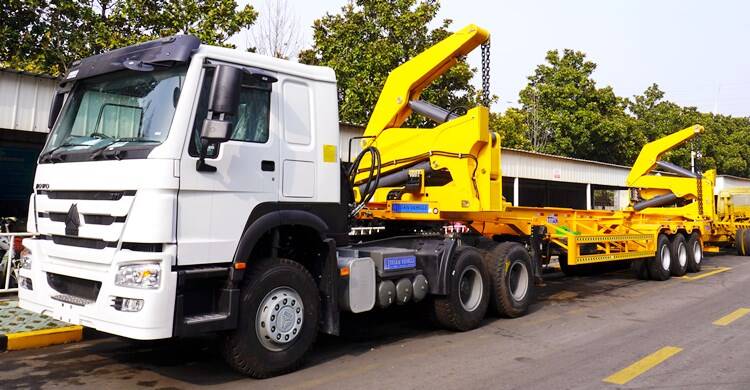

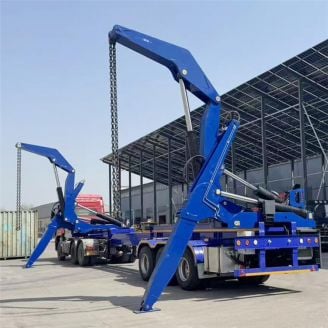

40 ft side lifters for sale usually have a higher load capacity. The boom is designed to provide additional support and stability, allowing the vehicle to carry heavier loads.

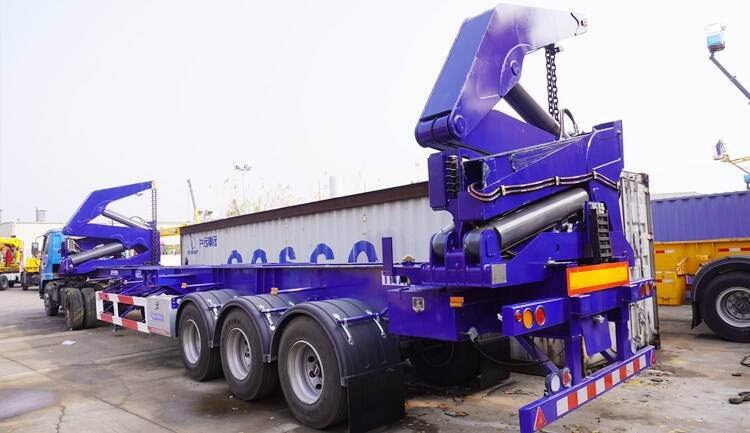

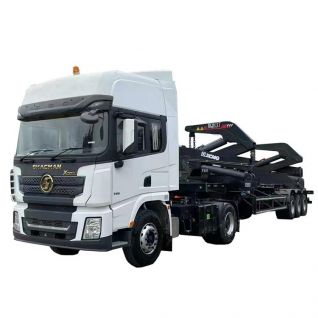

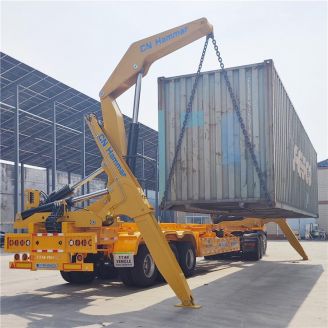

The TITAN 40ft container side loader trailer for sale easily adapts to your operation and is safe and reliable even in rough handling.

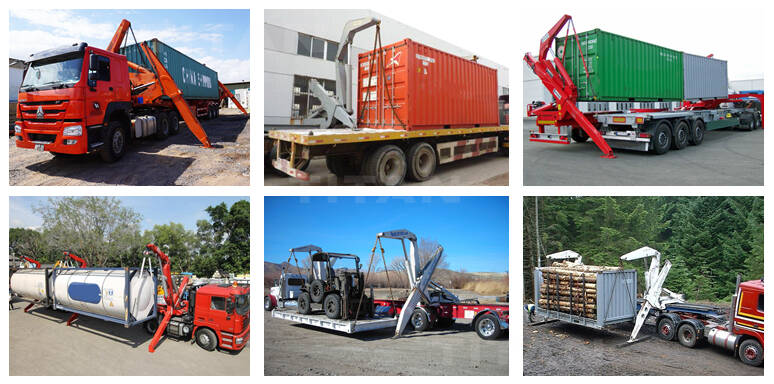

Side loader trailers are widely used in the connection of railway, waterway and empty container transportation. In addition to the basic use of loading and unloading containers, they can also use pallets to load and unload and transport various equipment and materials, perform container stacking operations, and cooperate with railway flat cars to deliver containers.

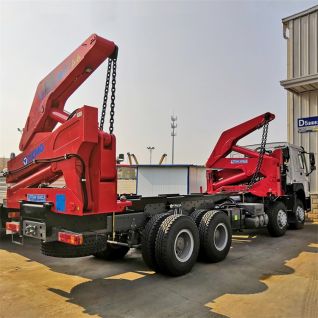

Side loader truck is equipped with an advanced hydraulic system, which is easy to operate and can be loaded and unloaded by remote control equipment.
  • 1/1



Chapter 1: What are the Dimensions of a Side Loader Trailer?

Generally speaking, side loader trailers are designed to transport containers and have specialized equipment to load and unload containers from the side.

Side loader trailer dimensions may vary depending on the specific model and manufacturer. However, here are some common approximate dimensions:

Length: The length of a side loader trailer is usually approximately 40 to 53 feet (12 to 16 meters). The most common length is 40 feet (12.2 meters), which is the standard size for shipping containers.

Width: The width of a side loader trailer is usually about 8.5 feet (2.6 meters), which is the standard width of most trailers.

Height: The height of a side loader trailer is usually about 13.5 to 14.5 feet (4.1 to 4.4 meters) to accommodate the height of a standard container. However, there may be variations depending on the specific trailer design. These dimensions may vary depending on the specific manufacturer's design and the trailer's intended use.

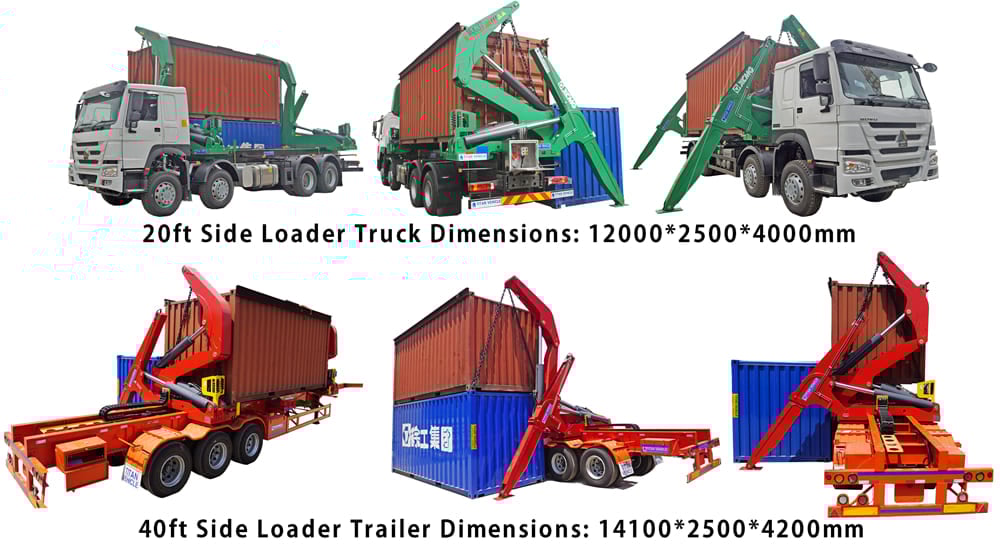

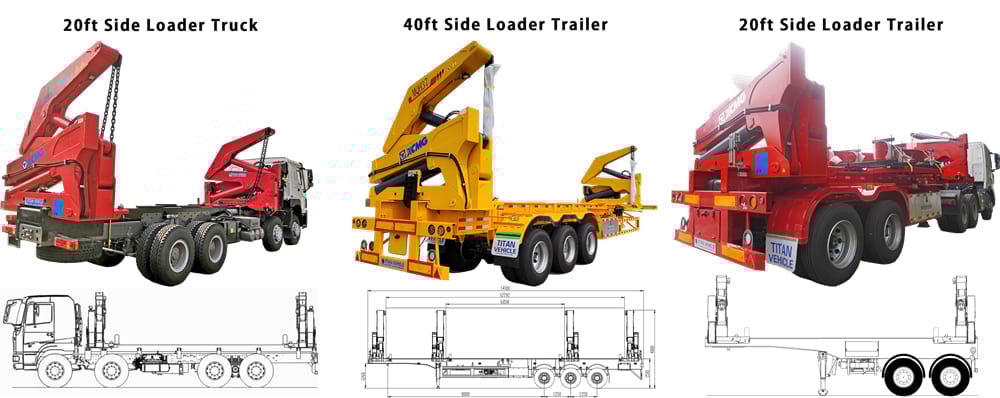

Of course, according to the standard vehicle size of TITAN side loader trailer, it can be divided into two types.

20ft Side Loader Truck: 12000*2500*4000mm

40ft Side Loader Trailer: 14100*2500*4200mm

The load capacity of a side loader trailer depends on its design and manufacture. Generally, they can carry cargo weighing 30 to 40 tons. However, specific load limits may be subject to local regulations.

Side loader trailers are primarily used for shipping containers, usually for standard 20-foot (6.1-meter) and 40-foot (12.2-meter) containers. Some side-loading trailers can also accommodate other types of containers, such as 45-foot (13.7 meters) and 53-foot (16.2 meters) oversized containers.

Side loader trailers are equipped with specialized equipment that allows them to load and unload containers from the side. These devices typically include lateral telescopic arms, hydraulic systems and control panels to enable the safe movement of containers.

Side loader trailers require relatively flat ground and sufficient operating space for loading and unloading containers. In some cases, additional equipment or support personnel may be required to assist operations.

Side loader trailers are mainly used in the logistics and freight industries, especially in scenarios where frequent loading and unloading of containers is required. They are commonly used in ports, freight terminals, logistics centers and warehouses.

side loader | 40ft sidelifter | sideloader | 20 ft 40 foot container side loader for sale | side loader container | side loader trailer for sale-TITAN SIDELIFTERWhat are the Dimensions of a Side Loader Trailer?


Chapter 2: What is the Difference Between a Side Loader Trailer and a Rear Loader?

Side loader trailer and rear loader are two different types of trailers commonly used in transportation and logistics. The main difference between them is how they are loaded and unloaded.

Side loader trailer:

Side loader trailers, also known as side lifts or side loaders, are designed to load and unload containers from the side of the trailer. Side loader trailers typically have a hydraulic crane or hoisting mechanism mounted on the side that can lift containers onto or off the trailer without the need for additional equipment such as forklifts or cranes. Side loader trailers are often used to transport containers, especially when maneuvering space is limited or loading and unloading from the rear is not possible.

Advantages of side loader trailer:

Independent loading and unloading: Side loader trailers can load and unload containers without relying on external equipment, making them more versatile in terms of accessibility and reducing reliance on additional machinery.

Flexibility: Side loader trailers can move containers in confined spaces or tight areas where rear loaders may have difficulty maneuvering.

Save time: Side loaders save time by requiring no additional equipment and simplifying the loading and unloading process.

Rear loader:

Rear loader refers to a trailer or truck designed to load and unload cargo from the rear end. This type of trailer usually requires additional equipment, such as a forklift or crane, to load and unload the cargo. Rear loaders are typically used for general freight, using available equipment to load cargo from the rear onto a trailer.

Advantages of Rear loader:

Rear loaders can handle various types of cargo, not just standardized containers.

Greater cargo capacity: Due to their design and loading configuration, rear loaders typically have greater cargo capacity compared to side loader trailers.

Rear loaders are generally less expensive to manufacture and maintain because they do not require a built-in lifting mechanism.

The main difference between side loader trailer and rear loader is the loading and unloading method. Side loader trailers use a built-in lifting mechanism to load and unload containers from the side, while rear loaders usually load and unload cargo from the rear with the help of external equipment.

 What is the Difference Between a Side Loader Trailer and a Rear Loader?What is the Difference Between a Side Loader Trailer and a Rear Loader?


TITAN Sidelifter Container side loader Trailer Buying Guide – What is a sidelifter?



Table of Contents

Chapter 1:Best Container Side Loader Trailer from TITAN VEHICLE

1-1. Container side loader Trailer Buying Guide – What is a sidelifter?

1-2. Types of TITAN Container Side Lifters

1-3. Application of Titan side loading trailer

1-4. How to operate and use self loading trailer?

1-5. Container Sidelifter Design Features

1-6. Titan side loader chassis of package and shipping

1-7. Container side loader feedback from Nigeria customers

1-8. How do you quickly unload a shipping container?

1-9. How do you use a side loader?

1-10. Technical characteristics of Container Side Loader

1-11. Container Side Loader for Sale Manufacturers and Suppliers

1-12. What is a side loader truck for a container?

1-13. 20Ft side loader truck development characteristics and trends

1-14. Container Handling Applications - STEELBRO Sidelifter



Chapter 2:What is a Container Side Loader Trailer  (sidelifter / sideloader/self loader truck for sale/side lfter truck ) ?

2-1. What is side loader?

2-2. What are the different types of side loader?

2-3. Parameters of side loader crane:

2-4. Sidelifter package and shipping

2-5. What are the important parts of a self loading container trailer?

2-6. What are the technical characteristics of the container side loader trailer?

2-7. How to operate and use self loading trailer?




1.TITAN Container side loader Trailer Buying Guide – What is a sidelifter?

TITAN container side lifter for sale is a type of specialized sidelifter container trailer for sale that is used to hoist and transport standard containers over long distances. Also known as a container side loader, sidelifter container trailer for sale is basically used for container transfer. It comprises of lift modules or cranes that are installed to the sidelifter container trailer for sale chassis. These lifting components can also be fitted onto a sub-frame usually mounted on a truck.

Through self loading container trailer for sale videos, you can learn about different types of sidelifter trailers, including 20ft self loader truck, 20ft sidelifter and 40ft container side loader trailer, as well as the process, testing, packaging and customer feedback, etc.

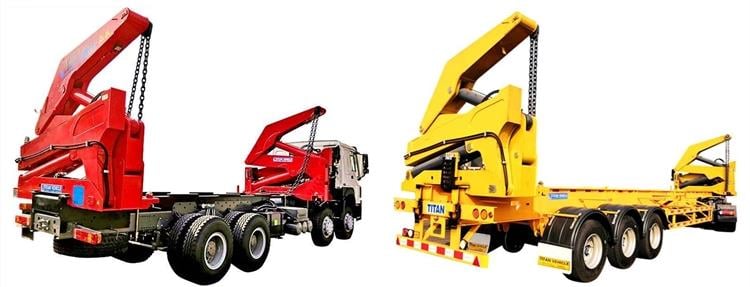

TITAN three best-selling feature container side lifter

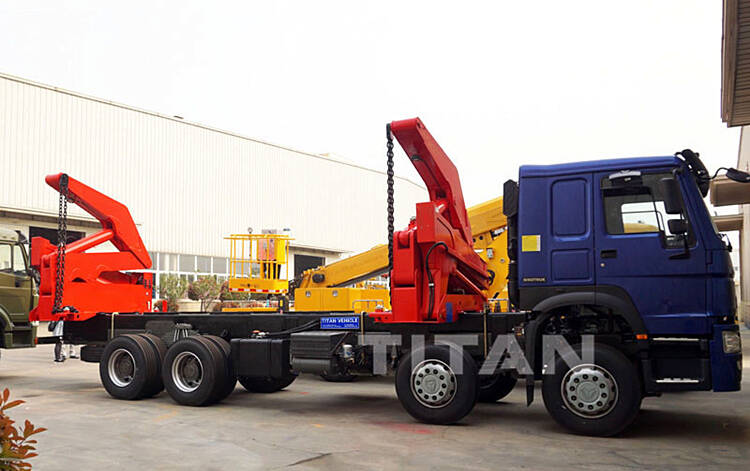

20ft self loader truck for sale



20ft sideloader

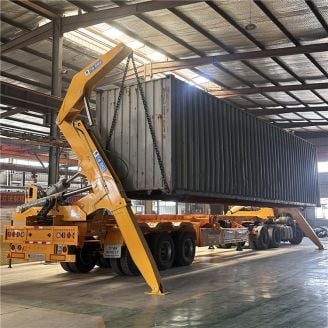

40ft side loader container

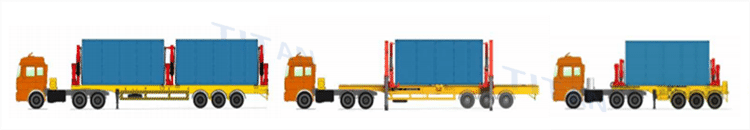

2. Types of TITAN Container Side Lifters

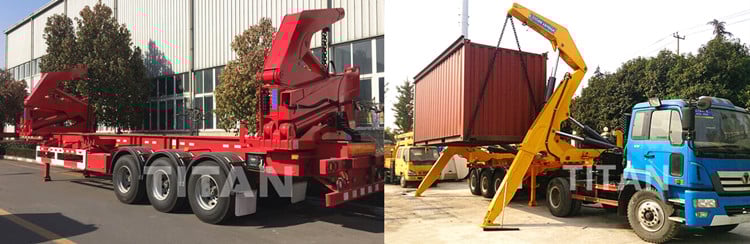

TITAN side lifter are becoming more and more popular. Side lift crane trailers are designed to increase various productivity. You will be able to reduce transportation costs, increase profits and have a competitive advantage.TITAN Sidelifter Trailer include 20ft self loader truck, 20ft and 40ft side lift crane. Shipping tonnage is 16tons self unloading container trailer, 21 tons self loading trailer for sale, 25tons self loading container truck, 37 tons self loading container trailer for sale, 40 tons container trailer with crane, 45 tons side loader for sale for your choice.

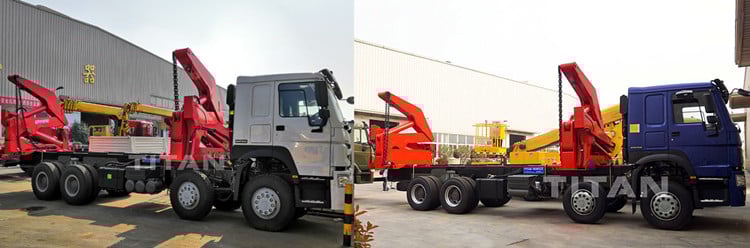

20ft self loader truck20ft self loader truck

TITAN 20ft Container side loader price equipped with Power take off (PTO) or Diesel APU, While typically the cranes are powered by a container trailer with crane mounted diesel engine, the cranes are sometimes powered via a PTO from the truck heador tractor.

20ft container side lifter20ft container side lifter for sale

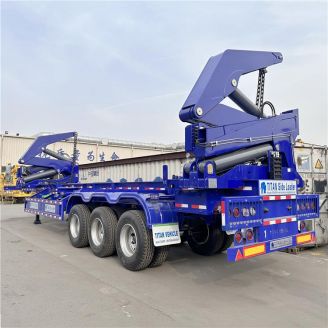

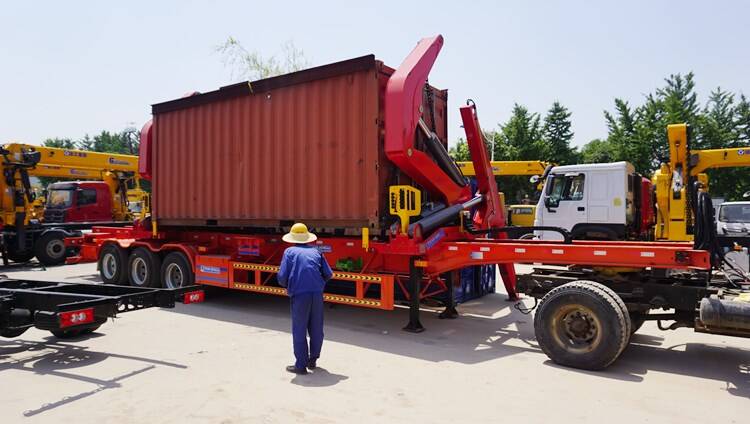

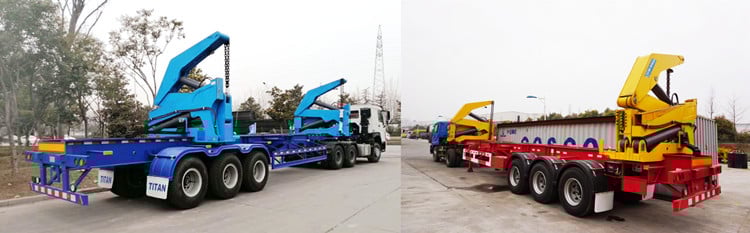

TITAN 40ft container self loading trailer is used for loading and unloading 20ft and 40ft containers.TITAN 40ft Container Self Loading Trailer adopts wireless remote control technology, loading container just takes 10 mins.

20/40ft container side loader for sale20/40ft container side loader for sale



3.Application of Titan side loading trailer

TITAN container side loader price easily adapts to your operations, making it safe and secure, even in rough operations. Side loader chassis can lift the heaviest containers, even badly positioned or with unevenly reparted load inside. The double extension stabilizers give it impressive stability, allowing you to work on soft or uneven ground. The multiple applications possible with the side lifter truck for sale makes it an indispensable tool for your organization, whether it is for transfers, grounding, lifting or double stacking.

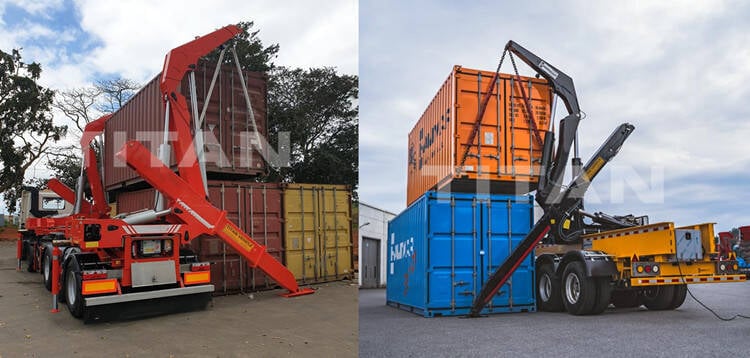

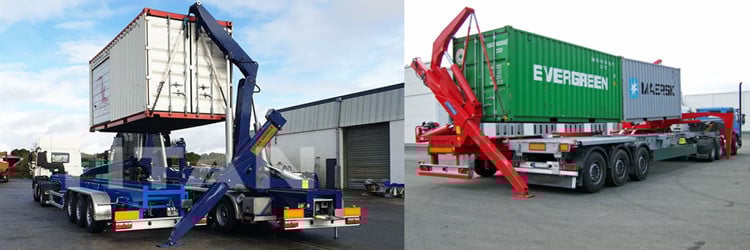

1)Double stacking of containers

Double stacking of containers can be a very useful and economic solution. TITAN side lifter truck for sale can double stack two high cube containers on the ground without chain shorteners. It avoids investing in a specific equipment.

self loader truck for sale for sale

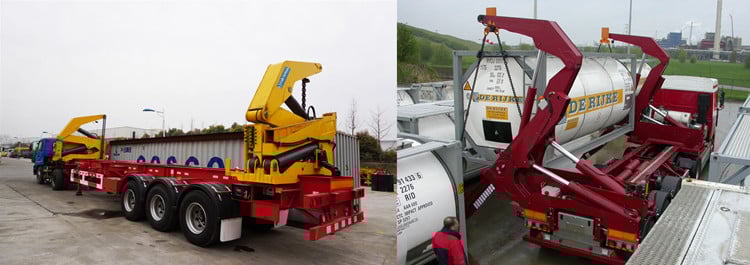

2)Transfer from/to other trailers

When several containers must be delivered in the same yard, Container side lifter can pick up the containers on the companion trailers to ground them. Waiting time for container trailer with crane and container side loader for sale is drastically reduced, thus improving the efficiency and profitability of each trip.

20ft container side lifter20ft container side lifter

3)Grounding and lifting of containers

Grounding and lifting represent 90% of a container loader for sale tasks. Once on the ground, the side loader truck for sale goes to another job, while the container can be stuffed or unstuffed more easily, without the need for specific infrastructures such as platforms or loading ramps.

Side loader trailer for saleSide loader trailer for sale

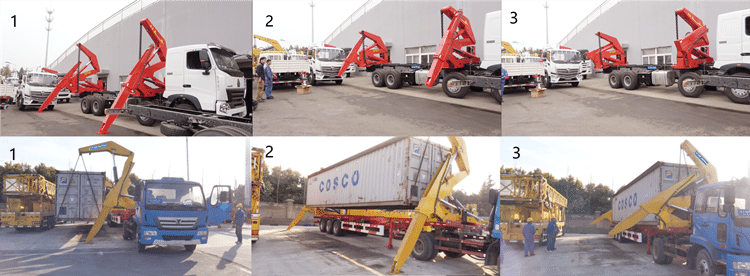

4.How to operate and use self loading trailer?

Titan side loader truck for sale adopt remote control which is made to order for the ambient environment, performance need, operation process and standard, What we used is wireless remote control, its receivesr need to fixed installation, The protection grade of the receiver is very high, it can be installed in the open air. but it may prolong the service life of the receicer if installe it in the electric control cabinet

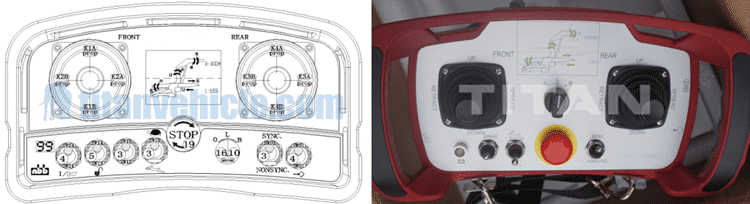

Operate control system of the self loader truck for sale



The welding structure of the crane is made of ultra-high-strength steel, which can ensure the highest possible strength while still reducing the load to increase the load. Each crane includes the main boom, which has a 2-step telescopic boom and is operated by a double-acting telescopic cylinder integrated in the arm gear. The following is the operation process display.

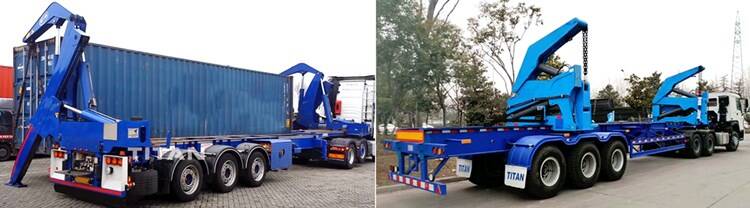

Operate and use sidelifter

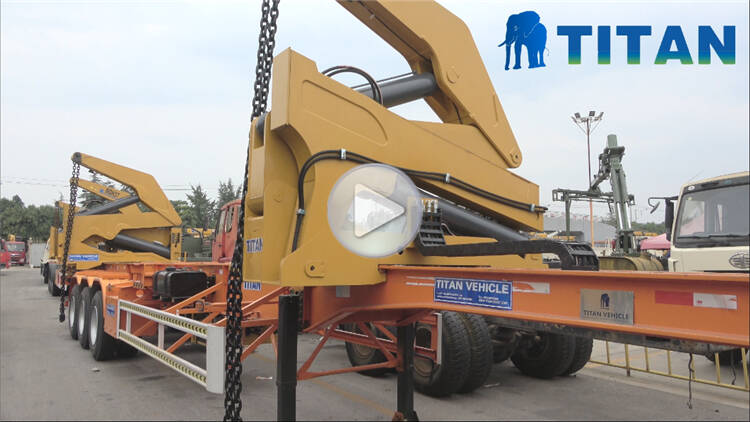

We also recorded a video of the operation of the container lifter trailer, please watch the video to understand the operation and use.



5.Container Sidelifter Design Features

There are dimensions and specs drawing of container side load trailers. The container side lifter trailers have 37T-45T capacity. You can learn more details in the pictures.



Outlines of vehicle and composition

Model: TITAN sideloader trailer

Maximum lift capacity: 37000kg

Maximum working range: 4000mm

Work recycle time: ≤10min

Maximum pressure of hydraulic system: 28MPa

Control Type: Wireless remote control/hand operate

Main function: Loading and unloading, vehicle transfer

Apply for: Standard 40ft(Type 1A),20ft t(Type1C)container,

Hight2438mm

Hydraulic oil tank capacity: 190L

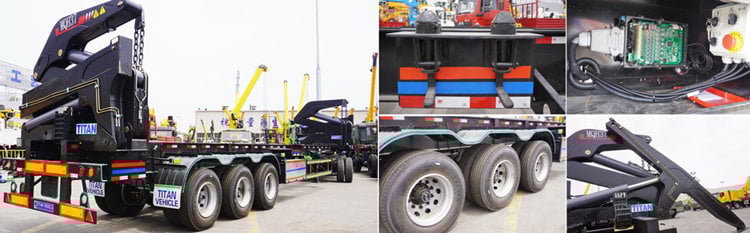

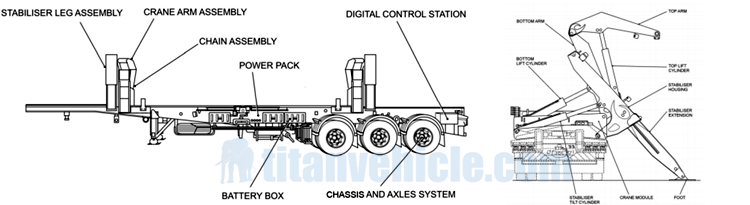

Important parts of side lifterImportant parts of side lifter

Specification

Model:TITAN 40ft Container lifter truck

Max.lifting capacity : 37 ton container loader for sale

Funtion: Load 20/40ft Container lifter truck

Trailer Chassis: 14100mm * 2500mm *4100mm

Axles: 3 axles

Tire: 12 units

King pin: 90#

Landing gear: JOST

Power source:Power take off/Diesel APU

Operation: Wireless remote control and Manual operation



More Technical Parameter Drawings

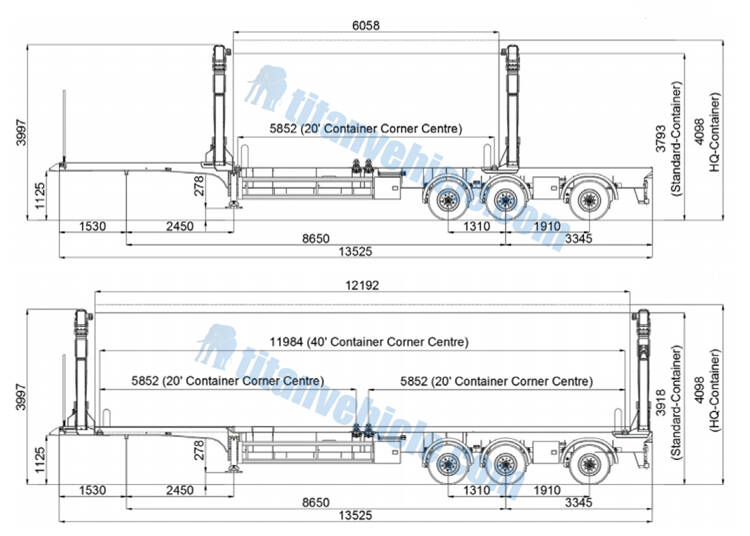

Container side loader dimension drawing

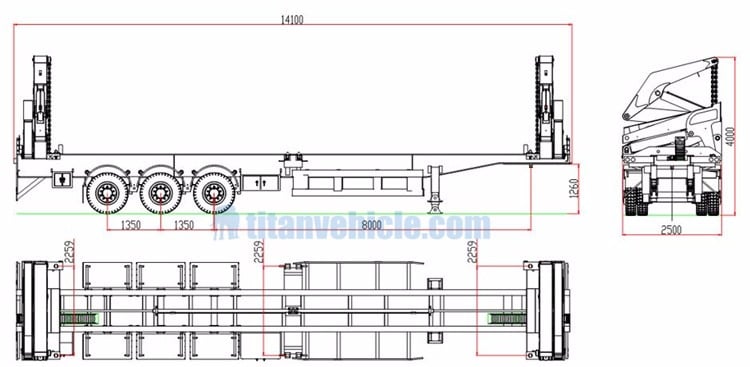

40ft container side loader trailer dimension drawing



20ft and 40ft container sidelifter trailer technical specification

20ft and 40ft container sidelifter trailer technical specification

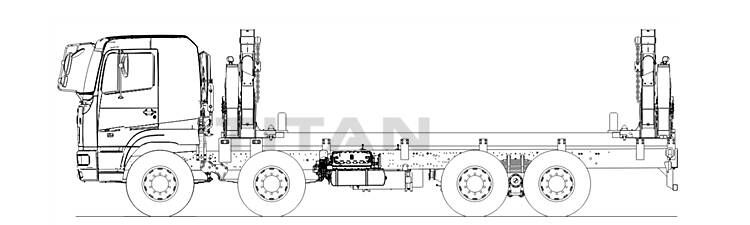

20ft container self loading side lifter truck parameter drawing

20ft container self loading side lifter truck parameter drawing



TITAN 20' container compact sidelifter technical department drawing

TITAN 20' container compact sidelifter technical department drawing

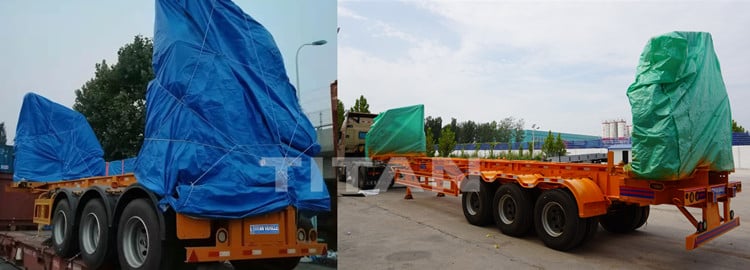

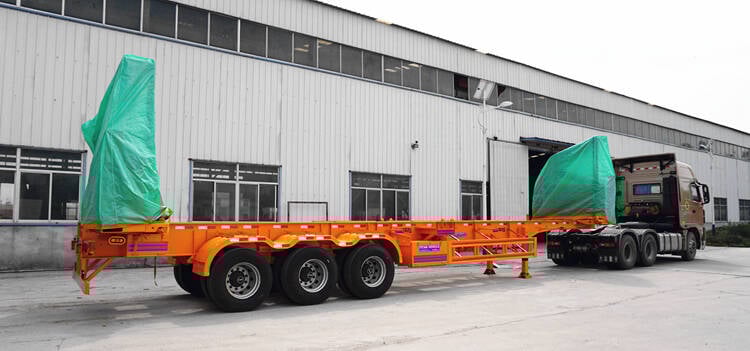

6.TITAN side loader of package and shipping

TITAN have to admit that the packaging and delivery are essential steps before container lifter were sent to the hand of our customers. We have professional staff to make packages. All of them were trained constantly. Please notice that the TITAN Container lifter truck covers poncho to prevent the damp condition.

Covers poncho of the container loading trailerCovers poncho of the container loading trailer

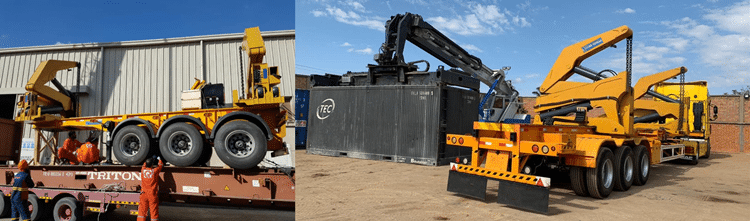

7.Container side loader feedback from Nigeria customers

Half a year ago, our Nigerian customer received a side crane. As he said, he is very satisfied with our side lift truck and plans to purchase another one from titan next year.

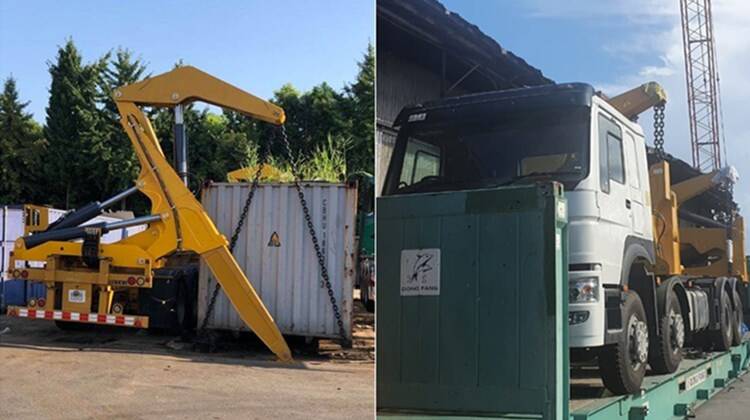

The customer received container side loader

8.How do you quickly unload a shipping container?

The side loader container truck is used for lifting and carrying two 20ft containers or one 40ft container in the port, station, and freight yard, the trailer’s hydraulic system power is from PTO in tractor truck, it can be operated both wireless remote control and manual operation.

Business success often depends on existing tools or technologies. In terms of container loading, several loaders and trucks do the job well. However, side loaders are not only competent but container loader for sale is also more efficient than other more traditional loaders. Saving time spent on loading containers can reduce the cost per trip. With the development of international trade, the use of containers is increasing, so the container shipping industry is also developing rapidly, and the methods of container shipping are also changing. This also makes the use of side cranes particularly important.

Side loader prices is a huge benefit for any business that uses its inherent design to completely eliminate the use of unloading equipment. Let's take a closer look at how you can benefit your transportation and boost your business on a sideloader trailer.

Side Lifter for SaleSide Lifter for Sale

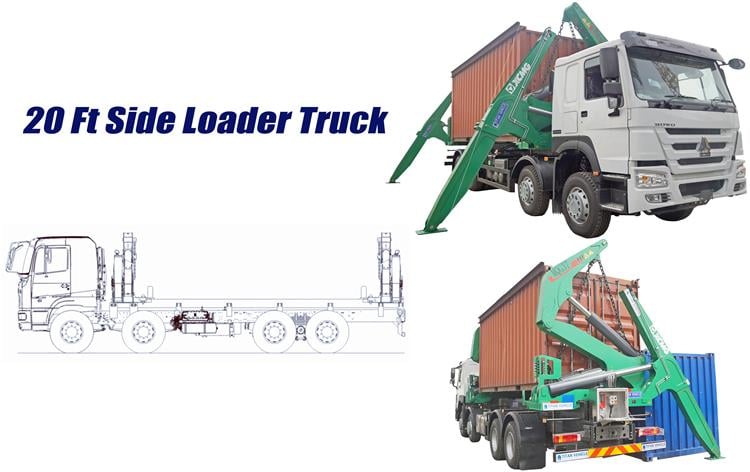

Side loader truck is a special vehicle specially used for side-lifting containers.

The headstock is used to tow semi-trailers and cranes for transportation. The crane is loaded on the semi-trailer for performing lifting operations. Semi-trailers are used to carry cranes and heavy objects.

The main features of the Side loader truck are:

Wide height for easy loading of large cranes and heavy loads.

Equipped with multiple sets of wheels, it has a large carrying capacity and is suitable for harsh road surfaces.

Equipped with an automatic balance system, it can automatically maintain the balance and stability of the car body during driving.

With powerful power and braking system, it has good driving and stopping performance.

A bogie is installed between the headstock and the Side loader truck, enabling the headstock and the semi-trailer to steer flexibly and improve maneuverability.

The side loader truck is equipped with a crane fixing device, and the crane is firmly fixed on the semi-trailer during transportation.

The control device of the crane is installed in the operating room, which is convenient for the driver to operate the crane.

The vehicle is mainly used for the transportation of cranes and lifting operations on construction sites, and is widely used in engineering construction and other fields. It integrates transportation and operation, is easy to use, and has high efficiency. It is a common side lifting device.

Side loader truck is a special semi-trailer, which is equipped with a side crane for carrying and loading and unloading goods. This type of semi-trailer is usually used to transport heavy and oversized goods, such as construction materials, large machinery and equipment, large industrial components and equipment, etc.

The side loader truck is characterized by strong handling capacity and loading and unloading capacity and can complete the loading and unloading of goods without the need for large lifting equipment. It also has better stability and safety, which can effectively reduce the damage rate of goods during transportation.

The structure of the side loader truck is generally composed of the front, cargo box, side crane, outriggers and other parts, among which the side crane is an important loading and unloading equipment. The semi-trailer needs a professional driver to drive, and the driver needs to have professional skills and experience.

side loader | 40ft sidelifter | sideloader | 20 ft 40 foot container side loader for sale | side loader container | side loader trailer for sale-TITAN SIDELIFTERside loader | 40ft sidelifter | sideloader | 20 ft 40 foot container side loader for sale | side loader container | side loader trailer for sale-TITAN SIDELIFTER


1. Move more every day

When moving any container, the first step is to estimate the weight of the box, including the box. After you perform this step, plan your equipment and staff so that you can unpack and remove all your cargo before driving. All of these factors can affect a company's precious time. With side loader container truck, containers can be lowered and unpacked, eliminating the need for any additional equipment or workers, speeding up the workflow.

2.Proven reliability

Durable side loaders truck are built for their industry. The sturdy, reliable, and minimal maintenance side loader can run on any terrain, making it a smart choice for container shipping needs. Depending on your usage, buying a container side loader from an experienced shipping company may be more economical and easier than buying the product, and you don't have to worry about maintenance.

3.Fast turnaround

For companies that rely heavily on container handling, side lifter container are the ideal choice. As mentioned above, the side loader specifications makes loading and unloading quick and easy. And there are multiple application methods that increase the number of deliveries and reduce downtime.

4.Functions in a limited space

Compared to forklifts, the TITAN side loader truck for sale offers a narrower, more practical design. Its increased versatility and ability to work in confined spaces mean that you can drive the side loader specifications directly next to the container for easy loading and unloading.

TITAN Self loader for sale work in multiple directions, allowing you to move containers up to 40 or 20 feet quickly and safely. You can also choose to stack them together to make the most of your space. Most importantly, they can be easily loaded and unloaded in narrow spaces, so they can achieve maximum value in busy warehouses and intercity locations.

5.Reduce demand for additional equipment and workers

Before using side lift container transport, loading and unloading containers requires more equipment, machinery and human resources. Now the Self loader for sale have integrated cranes and outriggers, allowing the driver to load containers in minutes. Simple and easy to operate.

Traditional vehicles still require additional equipment to ensure and ensure the safe delivery of goods. Compared with side lift truck, not only can reduce costs, but also eliminate other unloading equipment, including Self loader for sale and warehouse trolleys, pallet trucks and lifts. Instead, your delivery can reach your destination quickly.

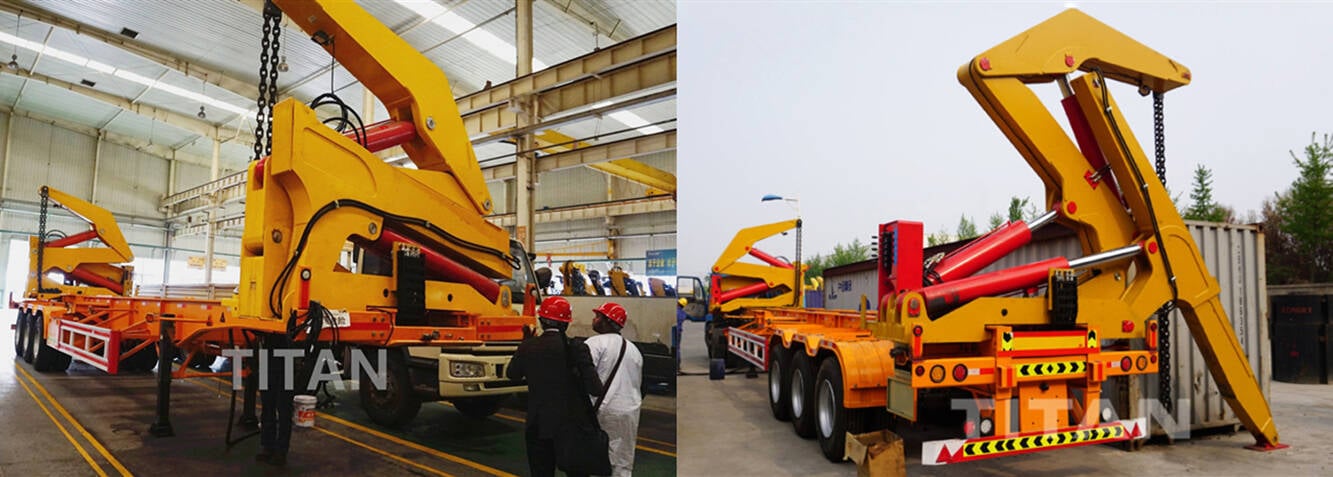

40Ft Container Side Lifter 40Ft Container Side Lifter

6.Easily handle sensitive, fragile and dangerous goods

Using a side loader specifications will not damage your fragile, fragile or dangerous goods. All goods are safely packed and intact.

If you are located in Africa, TITAN side lift truck is at the forefront of professional side lifter truck for sale manufacturers, suitable for all roads in Africa, and happy to help with all domestic and international transportation. Our container, truck, self load containers and side lift crane equipment are waiting for your business development.



9.How do you use a side loader?

This is a challenging task, because any small adjustment will have a significant impact on the final performance, and often a small adjustment to improve one function will have a greater negative impact on another function.

1.This large-scale expansion is also an important function when performing trailer-to-trailer transfers. The trailer-to-trailer transfer refers to the use of a container side loader to load or unload containers onto another trailer. During this process, the accompanying trailer is parked as close as possible to the forklift, and then the container is transferred. The larger outreach allows additional distance between the supporting side lifter for sale and the container side lifter, making alignment easier and avoiding collision damage.

2. Another feature is its low stowed position. The container loading is stored in a low-key manner, which can avoid damage from foreign obstacles during transportation, and also avoid damage and contact with the container when being loaded by straddle carriers.

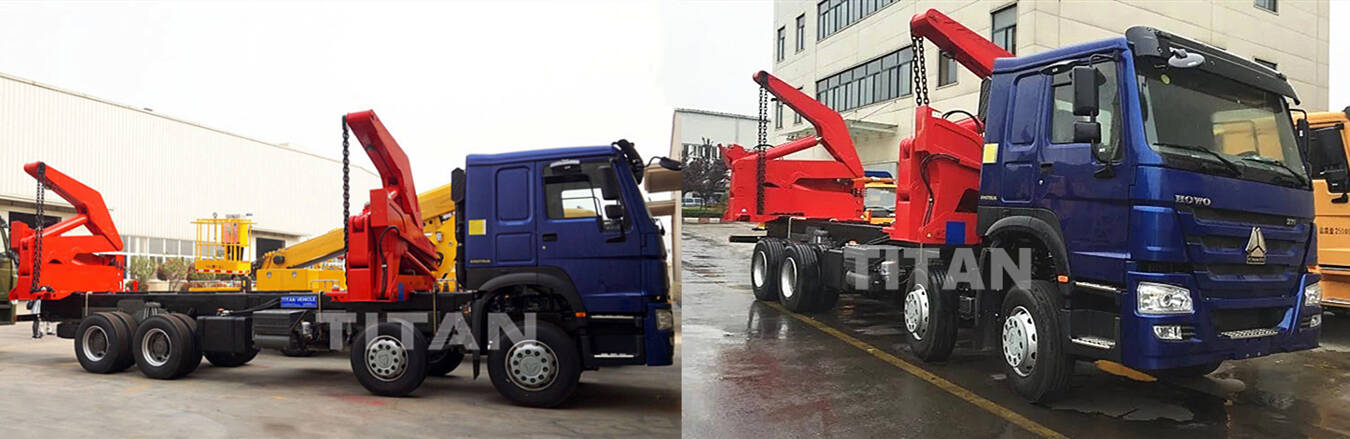

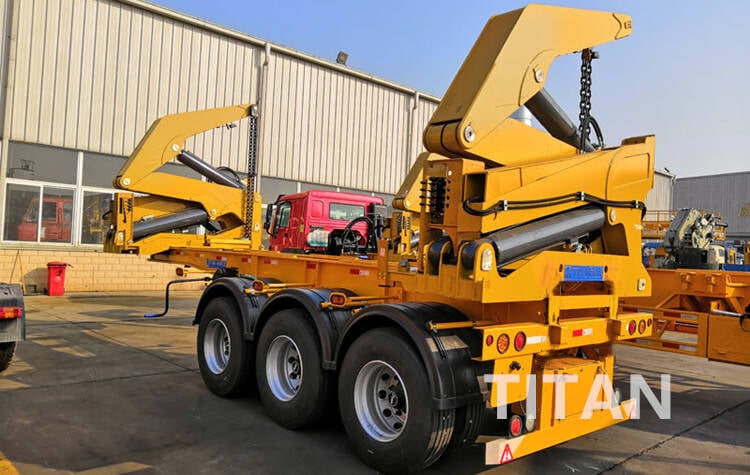

TITAN 20Ft Self Loader TruckTITAN 20Ft Self Loader Truck

3. With a 37ton lifting capacity, the self loading container truck for sale is quick and stable and boasts an outreach of more than four meters to provide ease of operation. The side lift container transport is available with a separate power pack system with the Kubota engine. This means that the self load containers can operate with any truck without any specific hydraulic fittings, and gives more flexibility for operators with a fleet of trucks.

The hydraulic system is fitted with pilot-operated over-center valves on the crane arm cylinders. These are factory pre-set to cope with unforeseen shock loads or attempts to lift more than the crane’s maximum lifting capacity.Prevent the arms from moving unless there is a pressure signal from the main hydraulic valve. Help keep the movement of the load controlled and constant when being lowered, regardless of the pressure that may be in the cylinder.Ensure that the cylinders are held in position, should the hydraulic system lose pressure. This stops the arms from dropping and prevents any runaway of the load in the event of a hose failure. The hydraulic system is also fitted with a High Speed/Load Sense Unloader Valve which limits working pressure when operating in high-speed mode. This prevents the engine from overload.

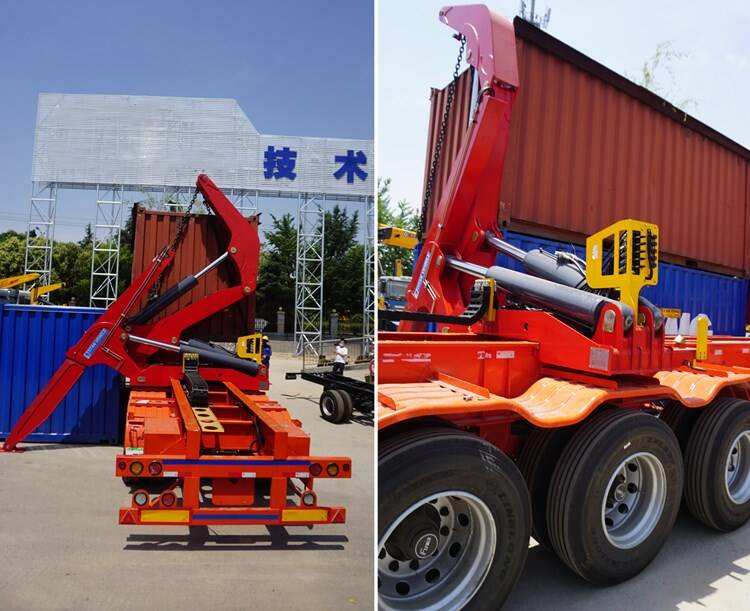

Details of sidelifterDetails of sidelifter

An emergency stop button is located on the remote control that will shut down the engine and stop all operations once the button is activated. The side lift container transport stabilizer legs are fitted with an interlock system that prevents lifts from being attempted without the stabilizer legs being deployed. A plunger switch is fitted to the stabilizer housing and is activated when the foot has positive downward pressure. Until that time, the lifting arms are disabled.



10.Technical characteristics of Container Side Loader

1. TITAN container side loader integrates the functions of loading, unloading and transporting containers, which is efficient and reliable; TITAN container side loader is equipped with imported centralized lubrication system, and the electric control is easy to operate;

2. The main supporting assembly uses well-known domestic brands with reliable quality and safe operation; The longitudinal beam of the container side loader trailer frame adopts a high-section variable-section design, and the crane structural parts are welded with high-strength steel plates.

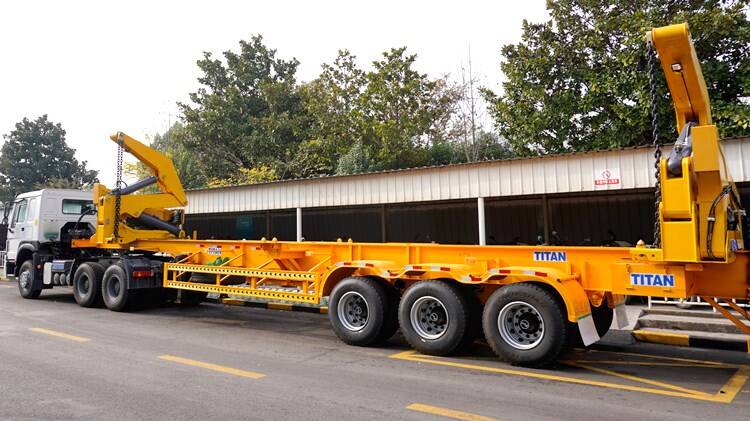

45T Container Side Loader for Sale Price45T Container Side Loader for Sale Price

3.TITAN container side loader can slide back and forth to adapt to the loading and unloading and transportation of standard 20-foot and 40-foot containers; The wireless remote control system is adopted for lifting operation, equipped with imported remote control, which is easy to operate and reliable in micro-movement;

4. Retain manual emergency operation mode and safety insurance; TITAN container side loader is equipped with imported electromagnetic proportional valves for precise control; No-load and heavy-load double-speed operation; The entire vehicle has undergone stress testing to meet the load-bearing requirements;

5.The crane adopts a dual-pump dual-circuit hydraulic system, which is not affected by unbalanced load and operates reliably;

6.Hoisting operation adopts intelligent safety protection system to intelligently lock dangerous operations. The vehicle safety control system is equipped with a one-key flameout switch;

45T Side Loader Trailer Manufacturer40Ft Side Loader Trailer Manufacturer



11. Container Side Loader for Sale Manufacturers and Suppliers

With a 37ton lifting capacity, the self loader truck is quick and stable and boasts an outreach of more than four meters to provide ease of operation. The self loader truck is available with a separate power pack system with Kubota engine. This means that the side loader truck can operate with any truck without any specific hydraulic fittings, and gives more flexibility for operators with a fleet of trucks. In addition, this model will handle 20 ft containers, 40ft containers as well as 2x20 ft containers side by side.

Another feature is its low stowed position. The container loading is stored in a low-key manner, which can avoid damage from foreign obstacles during transportation, and also avoid damage and contact with the container when being loaded by straddle carriers.

Container Side Loader Trailer for SaleContainer Side Loader Trailer for Sale

Operators wishing to transport and deliver lighter loads more economically may find this new model becomes their first choice. Simply put, the design seamlessly combines the very best of both worlds – low tare weight and proven strength and durability in one unit. Faced with two competing yet important design objectives, side loader truck set out to produce a sidelifter that met the optimum needs of low tare weight, while at the same time delivering proven strength and durability.

The hydraulic system is fitted with pilot-operated over-center valves on the crane arm cylinders. These are factory pre-set to cope with unforeseen shock loads or attempts to lift more than the crane’s maximum lifting capacity. Prevent the arms from moving unless there is a pressure signal from the main hydraulic valve.

Designers at TITAN are constantly improving their rugged container side loader without compromising on ‘safety’ which continues to be their number one focus. Throughout the design process, a constant eye is kept on safety. Although the side loader truck was built to work under the most extreme of conditions, transfers of containers weighing up to 45 tons can still be made easily within a “safe” working envelope.

Testing and package of Side Loader TruckTesting and package of Side Loader Truck

Help keep the movement of the load controlled and constant when being lowered, regardless of the pressure that may be in the cylinder. Ensure that the cylinders are held in position, should the hydraulic system lose pressure. This stops the arms from dropping and prevents any runaway of the load in the event of a hose failure. The hydraulic system is also fitted with a High Speed/Load Sense Unloader Valve which limits working pressure when operating in high-speed mode. This prevents the engine from overload.

An emergency stop button is located on the remote control that will shut down the engine and stop all operations once the button is activated. The side loader truck stabilizer legs are fitted with an interlock system that prevents lifts from being attempted without the stabilizer legs being deployed. A plunger switch is fitted to the stabilizer housing and is activated when the foot has positive downward pressure. Until that time, the lifting arms are disabled.



12. What is a side loader truck for a container?

Container loader for sale is a self-loading trailer, typically skeletal, with two hydraulic lifting cranes to lift a container onto it. It can be operated by the driver using controls on the side of the trailer or remote control.

Empty 40ft container loader for sale. Each 40ft container loader has two chains to connect to the corners of the container. The cranes sit on a rail and can be moved to position the container in the right location for the iso locks and for weight distribution.

Sideloader Container Loading Applications

1. Container side loader can transfer containers to other trailers, trucks and trains, or onto the ground, where they can also double-stack containers.

2. Container loading and unloading can take place on the ground, reducing the risk of injury. Waiting time for other lifting type machinery to become available is eliminated, as is the need for expensive ground preparation. This not only saves money for the transport operator; it also saves time for importers, manufacturers and distributors.

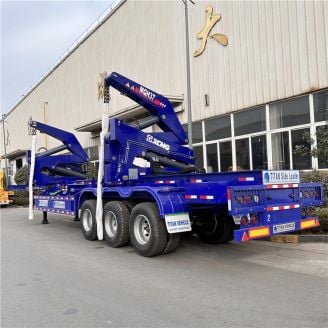

side loader trailer for saleSide Loader Trailer for Sale

3. The container side loader is the most versatile and cost-effective piece of equipment for loading containers on the ground. Container transfers can now take place anywhere that is safe and convenient. This can be at rail yards, transportation depots or any suitable rail siding.

Side Loader Container Advantages

40Ft Sideloaders container enables easier and efficient handling of 20-40 foot containers. The first stage of handling involves the grounding of your container.

This is done with a 20/40Ft container loader for sale which is a side loader truck fitted with cranes at both ends. This arrangement allows for loading and unloading containers to or from the ground.

The actual time taken by the 20/40Ft container loader for sale to load or offload the container is only a few minutes and it eliminates the lengthy time and effort needed to coordinate between the trailer driver and the container side loader operator to get the job done. The main advantage of using this system is that the whole procedure is carried out at a ground level where it is both faster and safer. This also reduces the potential for accidents to workers and damage to goods.

container lifter truckCustomers feedback of container lifter truck

1. For the container side loader can move forwards and backward, so it can lift both 20’ and 40’ container

2. With a wireless remote control system, the controller is imported from a famous brand, simple operation and reliable slightly movement

The manual operation is still kept for the emergency situation; The solenoid proportional value is imported, operated accurately

3. With dual-speed for idle loading and heavy loading; Dual pumps and dual circuits, not influenced by unbalancing loading

4. With intelligent safety protection system, the dangerous operation will be cut off intelligently; With a safety control device for whole side loader container, with a key switch

5. Installed imported central lubrication system, electric control is simple; the structure parts are made of high strength steel and parts stress test.



13. 20Ft side loader truck development characteristics and trends

1. Product serialization

With the rapid development of container transportation, the number is increasing, and the scope of application is getting wider and wider. In order to meet the needs of different regions and different environments and different users, major companies have successively developed serialized products.

2. Lightweight structure

Choose high-light materials, optimize the structural parts to increase the force and bearing capacity, and reduce the size of the structural parts as much as possible without affecting the performance. Lightweight will help increase the load of the 20Ft side loader truck and improve the fuel economy of the vehicle.

20Ft Side Loader Truck for Sale Price20Ft Side Loader Truck for Sale Price

3. Vehicle automation

Reducing costs, reducing personnel on board and improving work safety are inevitable requirements for the development of logistics and transportation. Remote control realizes remote control, saving time and manpower, and avoiding blind spots;

The swingarm and telescopic arm of the air conditioning mechanism adopt hydraulic synchronous or asynchronous control to ensure the stability of the lifting process; the electric control system of the lifting mechanism, the programmable controller adopts an interlocking design for the lifting mechanism and the hydraulic outrigger to reduce operating errors;

In terms of anti-overloading, the hydraulic outriggers are equipped with pressure sensors, which can alert when the system load reaches a critical value to prevent rollovers during lifting



14. Container Handling Applications - STEELBRO Sidelifter

Sidelifter will pick up your loaded or empty ISO container, transport it on our air-ride tractor and trailer to where you want it to go, then set it down exactly where you want it set down, all without tilting or dropping your container, and with minimal shifting of the contents.

With our side lifting method of ISO sea shipping container moving, we avoid the traditional method of sliding a connex container off the end of a trailer and then dropping the shipping container on the ground. With Sidelifter, there will be little opportunity for damage to the contents of your ISO container, since your container is not being tilted or dropped during a pick-up, transport, and delivery.

We will double-stack containers on the ground, and/or place your container on top of another container to be transported to another part of the state or country. We will also deliver your container to any port for shipment to another state or country.

Quality, durability and reliability are hallmarks of the side lifter brand. This would not be possible without the strong partnerships that have developed. International diesel engine manufacturer Kubota is one of these partners.

The innovation journey for any Sidelifter design starts by listening to the needs of customers and identifying the product attributes that will help solve the problems or issues that customers are facing.

40Ft Container Side Loader Trailer Price40Ft Container Side Loader Trailer Price


1. What is side loader?

side loader trailer for sale is a container-specific loading and unloading vehicle, which is used in container terminals and transfer yards. The role of side loader container trailer is to realize container handling, such as loading and unloading of container flatbed trailer.

Sidelifter trailer technology can effectively solve the problem of no loading and unloading machinery. The military of many countries have been equipped with container loading trailer. As a convenient and efficient container loading and unloading vehicle, the container lift trailer can load containers by itself, and it can also load and unload containers for other container carriers (such as flatbed trailer and skeletal trailer). As you can see, self load containers for sale is very suitable for areas where there is no container loading and unloading equipment.

side lifter for sale



2. What are the different types of self load containers?

The container loading trailer integrates the functions of container lifting, container unloading, and container transportation.

According to the type of transportation container, it is divided into 20ft and 40ft container side lifter.

According to different transport chassis, it can be divided into self loader truck and sideloader trailer.

According to the different tonnage of lifting, it can be divided into 16 tons side lfter truck, 25 tons side lfter trailer for sale, 37 tons side lfter trailer, 45 tons self loading trailer for sale, of which 37 tons self loading container truck and 45 tons self loading container trailer for sale are the best sales.

side lfter trailer for sale



3. Parameters of side loader crane:



Hot selling 40ft side lifer trailer parameters:

Max.lifting capacity: 37 Ton

Dimension(L*W*H): 14100*2500*4100mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Axle: 3 axle

Tire: 12 pcs, 12R22.5

Suspension: Heavy duty type mechanical spring suspension

Tow Chain: Igus (imported)

Power source: PTO and Japenese Kubota diesel engine




Hot selling 20ft side lifter truck parameters:

Max.lifting capacity: 37 Ton side lfter truck

Dimension(L*W*H): 12000*2500*4000mm

Axle: 2 axle

Tire: 8 pcs, 12R22.5

Tow Chain: Igus (imported)

Truck head: HOWO 371 A7,Optional




4. Sidelifter package and shipping

The side lift container transport trailer is generally delivered by bulk carriers or ro-ro ships. Before delivery, we spray the entire vehicle with wax, and important parts such as the boom are covered with a layer of rain cloth.

If ports without bulk carriers, we will ship by container.



5. What are the important parts of a self loading container trailer?

1. Wireless remote control, equipped with imported remote control, easy to operate.

2. Boom slide system. The 20ft or 40ft container can be loaded and unloaded through the sliding of the front and rear cranes, which has a wide range of applications and good versatility, greatly expanding the use of the equipment.

3. WABCO braking system reduces the best sidelifter truck Sacramento braking distance.



6. What are the technical characteristics of the container side loader trailer for sale?

1. The side lifter container can be moved back and forth and can be used for both standard 20 and 40 foot containers.

2. It adopts a wireless remote control system, equipped with imported remote control, which is easy to operate and reliable in micro movement.

3. It reserve manual operation mode.

4. It is equipped with imported solenoid valve, and the control is accurate.

5. The side loader crane structural parts are welded from high-strength imported steel plates, and the entire vehicle has undergone stress tests.



7. How to operate and use self loading trailer?

We recorded a video of the operation of the container lifter trailer, please watch the video to understand the operation and use.



Welcome to leave your inquiry!



We will meet the acme of perfection to serve and provide more details, price, catalog, drawing, videos for you!


Top Content

What is a side loader trailer and what can it be used for? How to operate control system about the side loader trailer?
Sidelifter Buying Guide - What are the parts of side loader? Advantages of using sidelifter transport containers
What are the main parts for container sidelifter? Customer feedback for 20ft container side loader in Guyana
20/40Ft side lifter trailer for sale In Papua New Guinea 20/40 Foot Side Loader Trailer Manual
How the Hammar 37 ton side lifter is transported? What is contaienr side loader for a container?
Can you put a shipping container on the sidelifter? Learn the design and specs of 37 ton container side loader


Review

William Nazario from Burundi - 2022-03-03T10:03:24+0800
We've been using the container side loader trailer for two years now and it's working fine except a little dirty. This is something we are very happy about, his quality is very good. I will recommend to my friends.
John Otieno from Rwanda - 2022-02-08T09:02:33+0800
The remote control of the side loader trailer made my work a lot more efficient, and Annie also provided a how-to video, if you don't know how to do it, they'll help.
Stalin chabala mulenga from Malawi - 2022-01-04T10:01:12+0800
I ordered 3 units of sidelifter last year. My friend also needs a sidelifter, and I plan to buy a sidelifter for him. Because TITANsidelifter is very effective. The wireless remote control is very convenient and easy to operate. So recommend a friend to buy TITAN's sidelifter.
Anwar Okbay from Burkina Faso - 2021-12-18T10:12:25+0800
TITAN container side loader made my eyes bright. The frame longitudinal beam of the 40ft container side loader adopts a high-section variable-section design, and the crane structural parts are welded with high-strength steel plates. Of course it is well-deserved.
Mandla Gcaba from Senegal - 2021-12-02T11:12:59+0800
I used a sidelifter to load and unload containers, and everything was as expected. If you are new to sidelifter, if you need help, you can use the manual and set up a video.
Derick chanda from Guyana - 2021-11-29T14:11:44+0800
I use a TITAN wireless remote control machine, which is very flexible and very suitable for my novice operation. I will give feedback after using the Container side loader for a period of time.
Paul Posing from Papua New Guinea - 2021-11-25T10:11:51+0800
If a friend wants to buy a side lifter. I suggest buying a 40ft sidelifter. It can transport 40ft containers and 20ft containers.
Sidagna SALI from Gabon - 2021-11-04T15:11:16+0800
Our container side loader is used to load containers, and it can be used to transport containers very conveniently. The operation is also very simple. Thanks Jacky for the guidance
Philip Hook from Papua New Guinea - 2021-11-02T11:11:38+0800
It's a pity that I didn't cooperate with TITAN earlier. Because their side loader trailer amazes me. Although I have used side loader trailer before. But they will still send me detailed operation videos and instructions. To be honest, this is also the most durable side loader trailer I have ever used.
Maxwell from Congo - 2021-10-29T11:10:22+0800
Special thanks to Sunny for her patient explanation, because it is the first time to use the side lifter. Sunny's explanation is very comprehensive. Tell me how to do it. And sent a detailed operation video. I learned it in 1 hour. It is worth mentioning that I can load and unload containers in narrow spaces. Very satisfied.
George Chipeta from Malawi - 2021-10-27T11:10:42+0800
Our company is mainly responsible for container logistics at the terminal. So the side lifter is very suitable for us. It integrates container handling and transportation functions. When arriving at the port, it is wrapped with rain cloth to prevent seawater erosion. Very professional manufacturer.
Check More Customer Reviews

Feedback

whatsapp
chat
