Skeleton Semi Trailer

40ft Container Chassis Trailer for Sale has a key role to play in the multimodal transport system. Various shipment options, require the use of a 40ft Container Chassis Trailer.
40 Foot Tri Axle Chassis for Sale is specially designed to carry various cargo containers. Tri Axle Chassis can transport one 20/40/45ft container, or two 20 foot containers at one time.
TITAN Container Chassis can be customized to 20/40/45/53 feet. We also provide customers with different options.

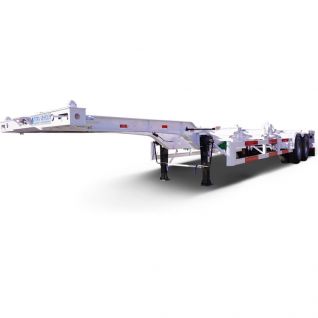

Each 40ft Gooseneck Skeleton Trailer can be custom designed to fit your individual needs. Different Gooseneck Skeleton Trailer models will be recommended according to the market demand.
The 2 Axle Tipping Chassis Trailer for Sale could be used for nearly 10 years. The 2 Axle Tipping Chassis Trailer could bear the bad road conditions.
The Bomb Cart Trailer for sale is an economically feasible and practical trailer to use. 40ft Bomb Cart is mainly used in ships, ports,matching multimodal logistics system.
  • 1/1

Skeleton semi trailer spot promotion, Welcome to send inquiry to get 10% discount!

inquiry

Skeleton semi trailer, also called skeletal trailers, are lightweight semitrailers usually designed for transporting containers. Skeleton Semi Trailer can be specified in a large number of size configurations, such as: 20-foot container, 40-foot container, 45-foot container, ISO intermodal container.

There are different types of skeleton semi trailer: 20 ft skeleton trailer for sale, 40ft skeleton trailer, 45ft container skeleton trailer, terminal trailer. TITAN can customize container chassis trailer dimensions and height from the ground, just need to tell us your requirements.

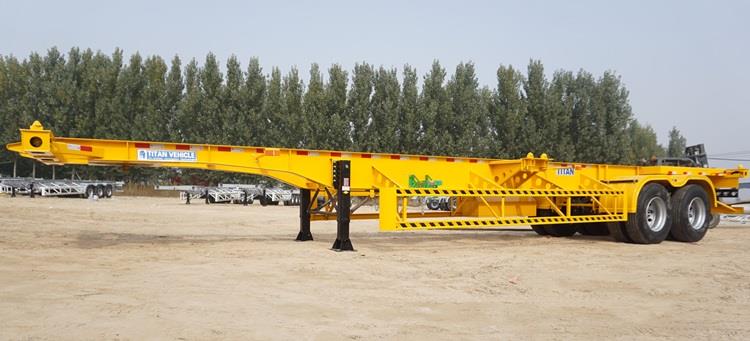

2 axle 40ft skeleton trailer2 axle 40ft skeleton trailer for sale

Skeleton semi trailer Specifications:

Tare Weight: About 7.1T

Dimension(mm): 12400x2500x1500mm(3 or 2 axles) 40ft/ 6200x2500x1500mm(2 axles)20ft

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

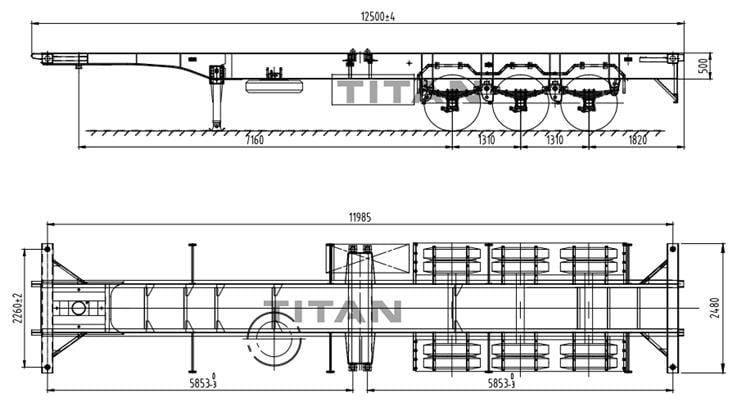

skeleton semi trailer drawing3 axle 40ft skeleton semi trailer drawing

Skeleton trailer Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the skeleton semi trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2.The 40ft skeleton trailer has multiple transport functions and can load containers of different feet, with a loading capacity between 40 tons and 60 tons.

3. TITAN Skeleton trailer uses factory-made, wear-resistant tires. On highways, Skeleton semi trailer tires can reach more than 300,000 kilometers.

4. Skeleton semi trailer is one kind which is specifically worked in terminal port for load and lifting containers precisely and quickly by welded the guide block, bottom block and indicated bar.

5. The transport 40ft skeleton trailer for sale are specially designed, and their special functions help to easily load containers and maximize the efficiency of terminal operations.
