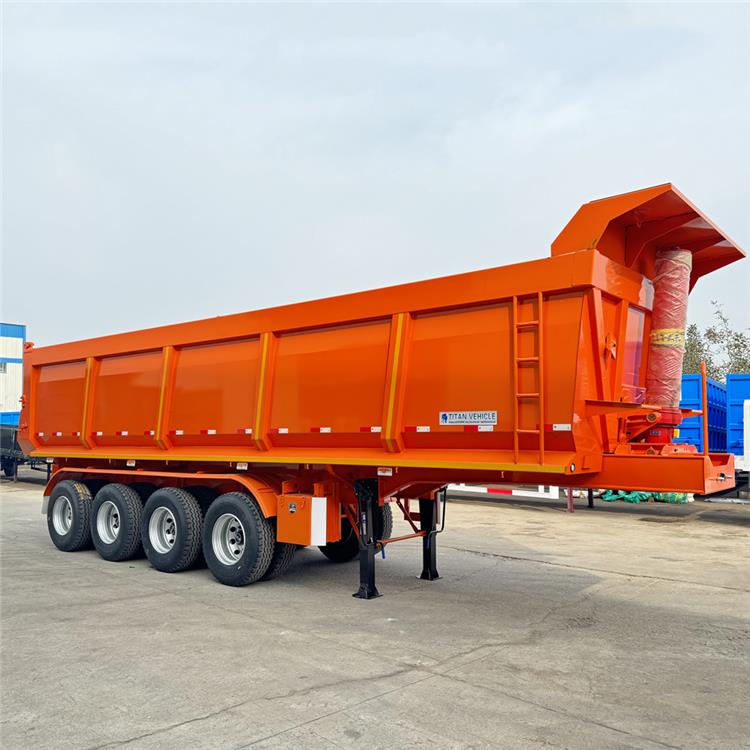

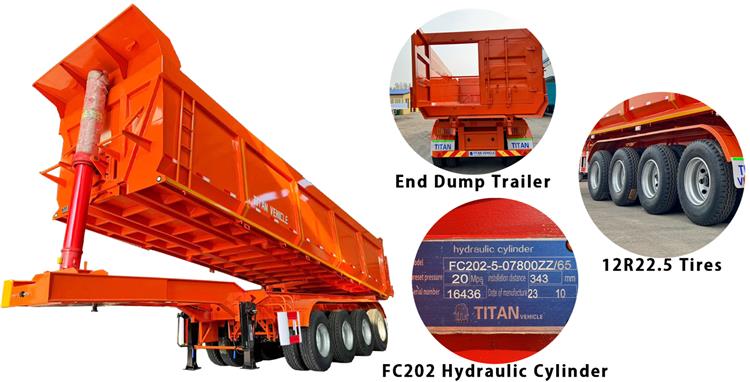

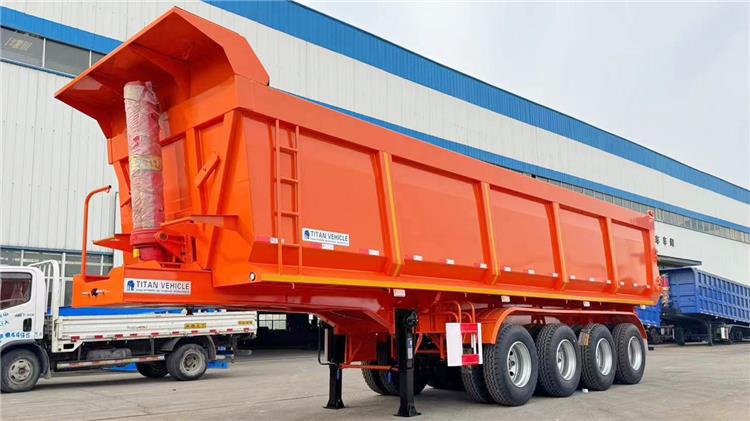

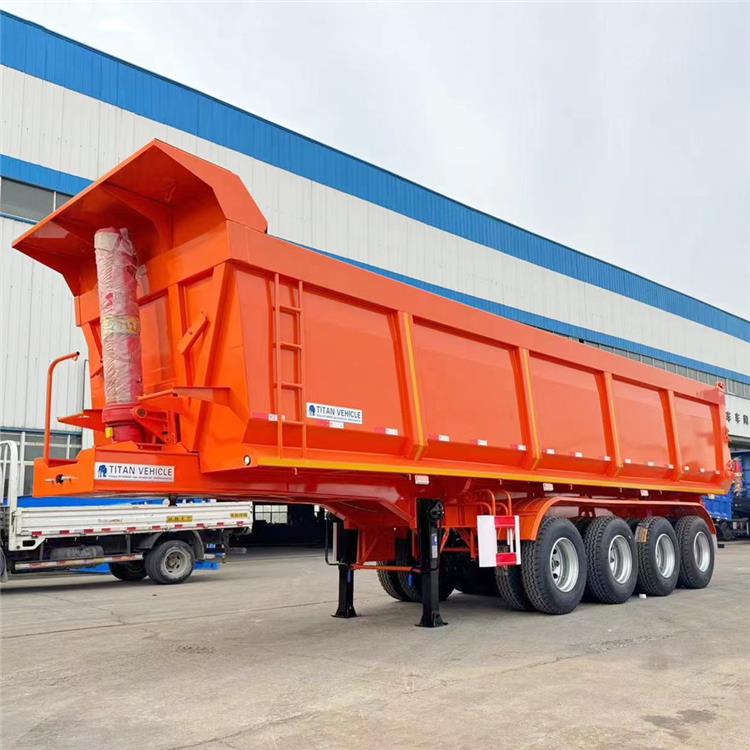

40cbm 4 axle dump trailer 40t use FC 202 Hydraulic Cylinders, heavy-duty cylinder with a wider diameter, 4 and 5 axles dumper trailers stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

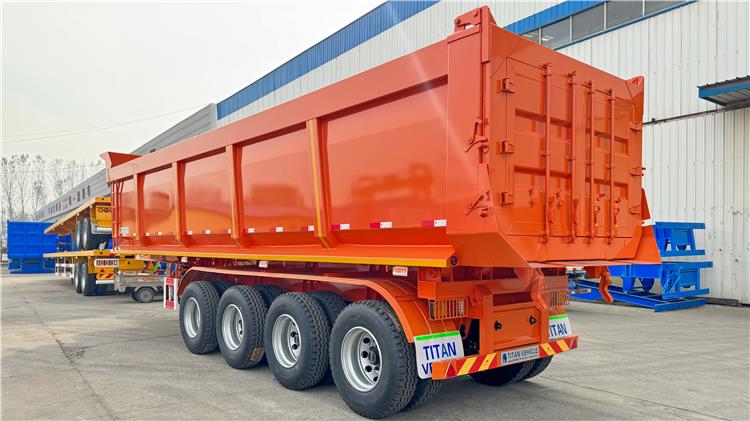

40CBM 4 Axle Dump Truck Trailer In Trinidad | Dumper Tipper Trailers - At the back door, 4 and 5 axles dumper trailers uses 5 reinforcement on it, which promise the cargo will never deform.
40CBM 4 Axle Dump Truck Trailer In Trinidad | Dumper Tipper Trailers - U shape dumper traillers also uses the best material to produce the chassis of the trailer, which is made of T700 high-strength steel.
40CBM 4 Axle Dump Truck Trailer In Trinidad | Dumper Tipper Trailers -Dump tipper trailer adopts high density supports,the distance between every two supports is only 50 cm. And the 40cbm 4 axle dump trailer 40t bottom also adopts high-strength reinforcement.

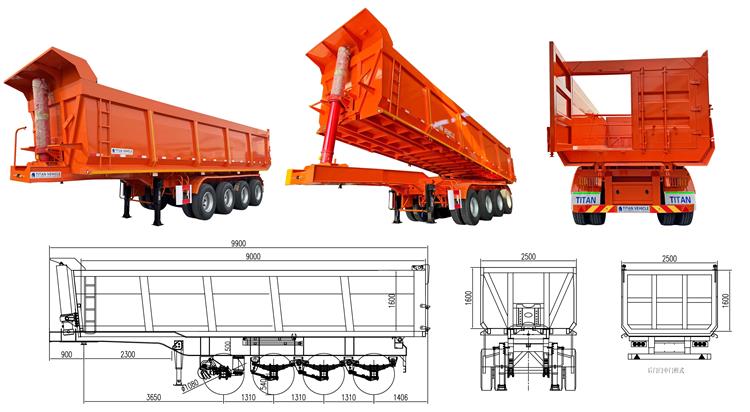

Overall dimension: 9900mm * 2500mm *3700mm
Volume: 35CBM
Axles: 4 axles
Suspension: Heavy duty mechanical suspension
Tipping system: FC202 hydraulic cylinder
Tire: 16 units
King pin: 90#
Landing gear: JOST
Brake system: WABCO
Electrical system: 24V, LED lights
