Sideboard Trailer

3 Axle Sideboard Trailer is used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.

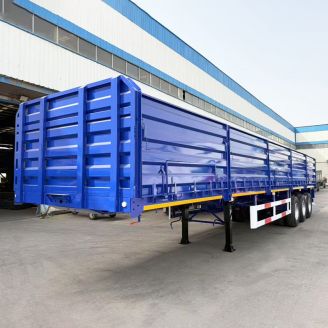

This China side wall trailer has 1200mm high sideboard. Hight quality side wall, make sure the stable and safety of the loads.
TITAN VEHICLE are mainly production truck and trailer,truck and trailer,truck trailer,etc.Has become China's best manufacturer and exporter of special trailers and semi-trailers.

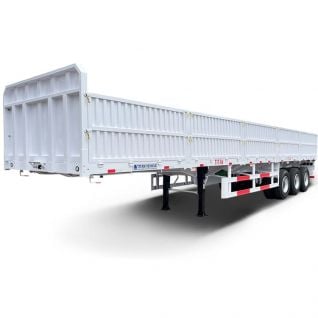

This open top trailer have 3 axles, and it can carry 60 tons cargo. Open top trailer has a sidewall structure design. Customizable side wall height.

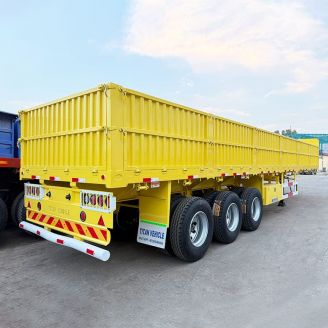

This 3 axle sidewall cargo semi trailer has 1200mm sideboard. Hight quality side wall, make sure the stable and safety of the loads.
4 axle side wall truck trailer has a sidewall structure design. Customizable side wall height.
The side wall of the 3 axle sidewall truck trailer is 600mm high. And the load capacity is 40 ton.
A grain transport semi trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain.
  • 1/1

What is a sideboard trailer ?

Sideboard trailer is a heavy-duty transport vehicle that is connected to a tractor head by means of a tractor pin.

This truck trailer with side board is widely used in the logistics. It could be used to carry the bagged grain, cement, steel or other kinds of bulk goods. Sideboard trailer can improve the overall economic benefits of road transport.

Sideboard Trailer for Sale | Truck Trailer with Side Board - TITAN Vehicle

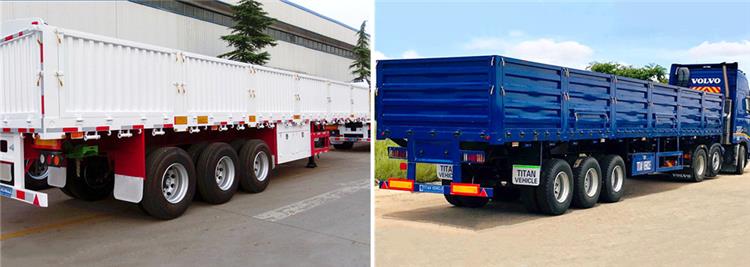

TITAN sideboard trailer for sale



How much is sideboard trailer in Nigeria?

The prices of sideboard trailers for sale with different configurations are different. You can click the link to download our quotation for side board semi trailer with conventional configurations.



Side Wall Semi Trailer Specifications:

Tare Weight: About 7.6T

Dimension(mm): 12500x2500x3350mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Trailer Sides: 600-2000mm, or box type sides

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Sideboard Trailer for Sale | Truck Trailer with Side Board - TITAN Vehicle

TITAN 3 axle sideboard trailer drawing





Who makes the best sideboard semi trailer?

1. TITAN Vehicle adopts high strength steel material to manufacture the side board semi trailer, it can make the sideboard trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.

4. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.

5. Hight quality side wall, make sure the stable and safety of the loads.

Sideboard Trailer for Sale | Truck Trailer with Side Board - TITAN Vehicle

TITAN truck trailer with side board in factory



6. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

7. To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.

8. Durable mechanical widened spring suspension, make sure the stable and safety. Also we can offer you the air bag suspensions, The airbag suspension can provide a good shock absorption effect for the vehicle and more fuel-efficient.

9. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.

10. Polyurethane paint, the vehicle is more beautiful, has a strong adhesion, long-term use of non-fading, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle.



TITAN sideboard trailer for sale in Sudan:

TITAN ship nearly 150 units sideboard trailers and fence semi trailers to Sudan every year. Our side board trailer is very popular in Sudan.

This customer has been working with us in 2018, and it has been almost three years. In 2018, he visited China, looking for suppliers for his own business. Customers visited 6 factories including us. After a series of comparisons and discussions with customers. Finally, TITAN was chosen as a long-term partner.

The latest batch of 12 units 2 axle sideboard trailer will be sent to Sudan.
