Table of Contents
Chapter 1. Tipper Trailer Price | What is The Price of Tipper Trailer for Sale Nigeria
Chapter 1. 1 Different Types of Tipper Trailer Price
Chapter 1. 2 Tipper Trailer Specification
Chapter 1. 3 Tipper Trailer Advantage
Chapter 2. How many Tons Can You Put in a Tipper Trailer Price?
Chapter 3. How To Choose Semi Side Tipper Trailer Price for Sale Nigeria?
Chapter 4. Tips for Tipper Trailer Price Hoisting Operation
Tipper trailer price is suitable for the transportation of bulk goods such as coal, ore, building materials, etc. tipper semi trailer price can be divided into two categories according to the purpose. One is the large and super-large tipper semi trailer price, which is mainly used for off-road transportation for large-scale mining, engineering and other transportation tasks.
The carriage adopts dumping or dumping method, which can effectively improve the transportation efficiency of loading bulk loader.
The frame and vertical beam of the trolley are welded with high-quality manganese steel, and the cargo box has two types: dustpan and rectangle. It has the characteristics of high strength, strong lifting force, excellent rigidity and toughness, strong bearing capacity and no permanent deformation.
The main components are processed with advanced equipment, the vertical beams are fully automatic submerged arc welding, and the axles and leaf springs are precisely assembled by assemblers.
Another light and medium-duty regular tipper semi trailer price for road transport is mainly responsible for transporting incoherent cargo such as sand, soil and coal, usually in conjunction with loaders.

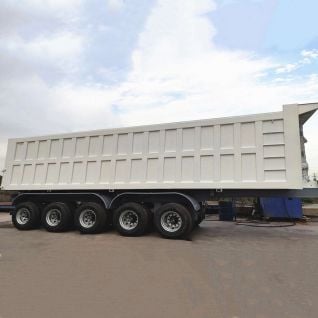

Tri Axle 60 Ton Tipper Trailer Price: 17500USD
Tri Axle 80 Ton Tipping Trailer Price: 20500USD
100 Ton Tipper Semi Trailer Price: 21500USD

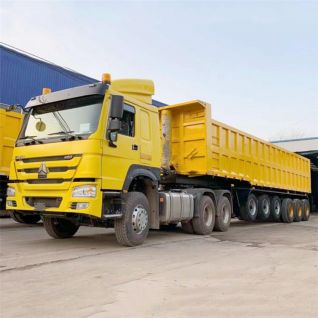

150 Ton Tipper Truck Price in Nigeria: 23500USD
40 Ton U Shape Tipper Trailer Price: 18000USD
Tipper Trailer Price | What is The Price of Tipper Trailer for Sale Nigeria
Dimension: 11280mmx2495mm x3970mm ( inside dimension )
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Tare Weight (semi trailer): About 15600kg
Total volume(m³): 30-40m³ or less than 100tons
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

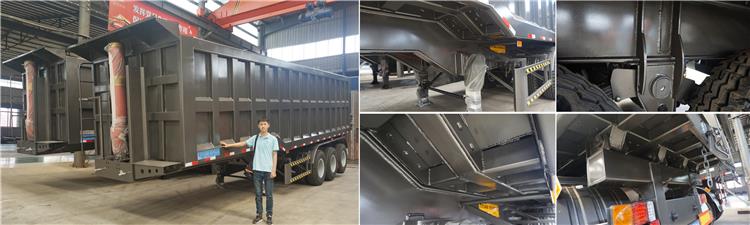

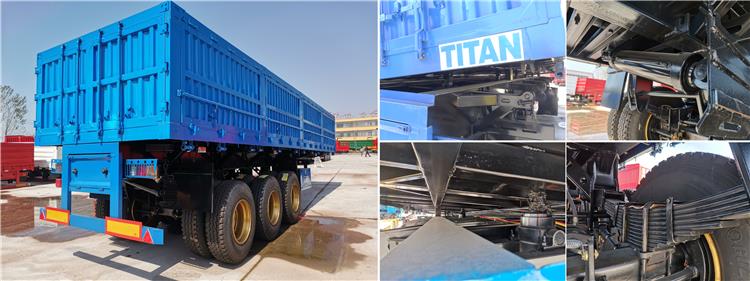

Girders
The heavy-duty model is a double vertical plate beam - stronger bearing capacity, the beam is not easy to break, and the material and size of the beam are determined according to the specific product.
Auxiliary beam
4 sub-beams (some heavy-duty vehicles will use 6 sub-beams), anti-distortion and stronger sub-beams cross. Use triangular plates to lock and reinforce to prevent deformation and cracking. It can make the bearing capacity of the bottom plate better and not easily deformed
Cross balance beam
There is a balance beam at the front and rear of the frame. Prevent the vehicle from rolling over and increase the stability of the body
Flip stand
4 heavy-duty flip brackets, more stable and firm. The brackets are independent. The rear door adopts a double snap design, which is more secure. Polyurethane paint
Advanced Full-automatic Submerged arc welding process. Formed by one time. More sturdy, also bending and bump resistance. Improving the loading capacity and the service life by 50%.
Tipper Trailer Price | What is The Price of Tipper Trailer for Sale Nigeria

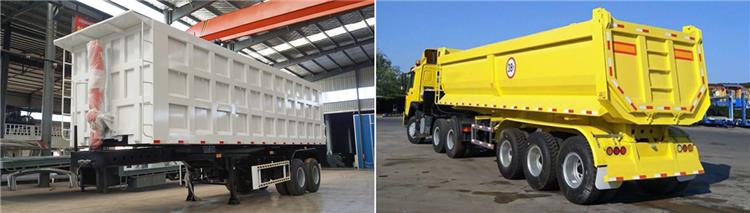

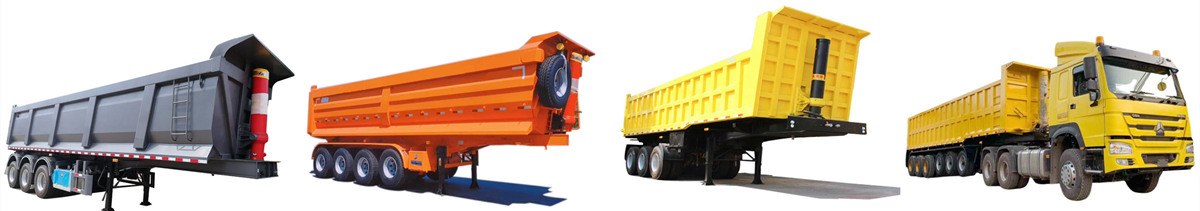

Tipper trailer prices come in many capacities. The maximum load can reach 150 tons. Thicker plates mean higher loading capacity for tipper trailers. Tipper semi trailer prices can also be sorted by van body type
Rectangular price of tipper in Nigeria
The carriages are rectangular and designed with less complicated functions at your disposal. The drawbar is strong enough to withstand the traction required during towing.
In addition, it is designed to be very strong to counteract the thrust of the trailer during tipping. This is cheap and easy to produce.
It is a widely used option worldwide. The drawbar has a standard fastening at the front and a coupling at the rear. At a minimum, there are two fixing points available along the length of the tow bar.
They are used to secure the bottom plate of the trailer. One of the points is used to lock the price of the tipper in Nigeria at the running position and the other is used to lock the trailer at the table position.

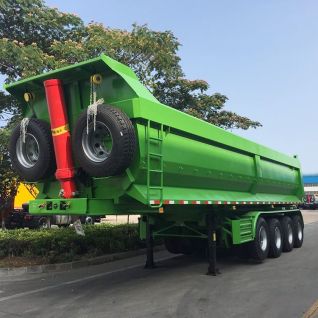

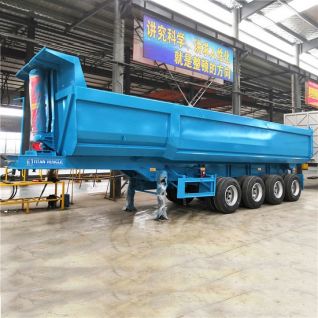

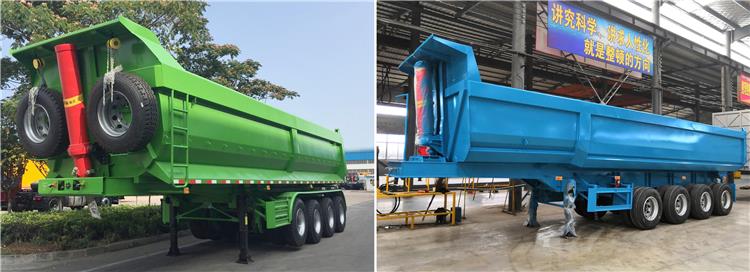

U-tipper trailer price
Made of the high-strength wear-resistant plate. The U-shape is streamlined, so unloading is faster and more thorough than other options on the industry market.
This is a whole board without stitching. This is to give you a good wear price of tipper in Nigeria. Most importantly, it is a lightweight price of tipper in Nigeria that gives you a large load capacity. The low center of gravity of the tipper truck price in Nigeria ensures stability. Essentially, the center of gravity has been reduced by 120mm. Therefore, it helps to keep your operation safe
We can customize tipper trailers with different loads, including 3 axle 60 ton tipper trailer, 3 axle 80 ton tipper trailer , 3 axle 100 ton tipper trailer, 3 axle 150 ton tipper trailer, 3 axle 40 ton u shape tipper trailer, 3 axle 60 ton u shape tipper trailer, 3 axle 80 ton u shape tipper trailer.
Tipper Trailer Price | What is The Price of Tipper Trailer for Sale Nigeria

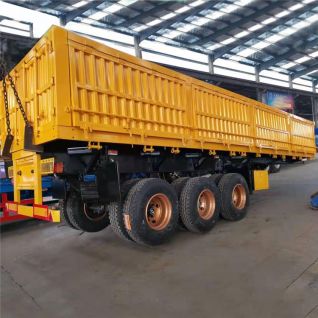

The most important part of the side tipper trailer price for sale Nigeria is the specifications of the frame, hydraulic system and diagonal brace. When purchasing the 3 axle semi side tipper trailer, users must pay attention to the load-bearing capacity of the beam. Try to choose famous brands for the hydraulic jack and pay attention to the diagonal brace. Factory welder and reinforcement.
1. The specifications of the girders
Due to the uneven forces on the side tipper trailer price for sale Nigeria, the higher requirements for the load-carrying capacity of the beam are self-evident. The beam is self-evident for a trailer. For a side tipper trailer price for sale Nigeria, the beam is generally higher than that of a van of the same load. The girders should be larger in size.
On flat roads, there is a subframe, and the force on the girder is the same as that of an ordinary van, but when it rolls over, the force on the girder is uneven.
The cargo that side tipper trailer price for sale Nigeria pulls is generally heavy cargo such as steel, stones, coal, etc., which also requires the high load-bearing capacity of the girders.
2. Diagonal bracing reinforcement is very important and the more fulcrums, the higher the reliability
The number of diagonal braces should be reasonable. Of course, the more the better, the more rollover braces, the smaller the force that each pivot can bear, and the higher the reliability. Generally, there are 5 pivots for 13m rollover and 6 for 15m. individual. Pay attention to the rotating bracket at the top of the diagonal brace. The pin should be pulled out when it rolls over. If the design here is unreasonable, it will be easy to pull out if it is bent a little, which will affect the unloading.
Diagonal bracing, when it rolls over, most of the weight of the cargo is borne by diagonal bracing. Therefore, the firmness of diagonal bracing is very important. Once the diagonal brace has a problem, it will easily cause a rollover accident. Therefore, the reinforcement of the diagonal brace is very important.
3. The number of hydraulic jacks depends on the tonnage and the support must be firm
The hydraulic roof support carries a large part of the weight of the cargo when it is lifted, and the firmness of the support is very important. The shaft at the joint of the hydraulic jack and the sub-frame should be well protected, otherwise, it is easy to bend.
The hydraulic jack is an important part of the 34 ton semi side tipper trailer. According to the different deadweight tonnage, there are generally several diameters such as 110, 125, 130, 150, etc. The general standard load is not more than 60 tons. 110 5+1 (5 lifts) Lifting cylinder, a displacement cylinder) or 130 5+1; heavy load 80 tons-120 tons generally use 6+1 or 7+1 150 cylinder. The displacement top generally uses 160 or 180 cylinders.
The brand that is used more is Hyva, and the quality and service are better.
Tipper Trailer Price | What is The Price of Tipper Trailer for Sale Nigeria
Price of tipper in Nigeria hydraulic cylinder is a special cylinder for lifting. It is strictly forbidden to use the oil cylinder as a stable support for the body; the cylinder should not be exposed to the air for more than 2 hours in a lifted state, otherwise it will cause oxidation and corrosion of the cylinder.
It is strictly forbidden to disassemble and adjust the relief valve on the poppet valve, otherwise the hydraulic system will lose its safety protection function and cause an accident. price of tipper in Nigeria ensures that the goods are loaded evenly from front to back, left and right.
Loading cargo too far forward can overload the hydraulic system. Loading too far back will cause the vehicle to overturn when unloading, and the eccentric load on the left and right of the goods will easily strain the oil cylinder and overturn the vehicle.
When unloading the goods when the temperature is lower than 0 degrees, be sure to pay attention to whether the goods are frozen, otherwise the tipper for sale in Nigeria will overturn due to the imbalance between the left and right when unloading the goods.
Do not move the vehicle when lifting the carriage, and do not brake suddenly. Remove sticky cargo, otherwise it will cause the vehicle to overturn or damage the cylinder.
If you feel that it may tip over when lifting, be sure to stop lifting and lower the body slowly; after the body is completely lowered for about 30 seconds, be sure to put the air control valve handle in the middle stop position, and do not start the car in the lowered position to prevent hydraulic pressure All the oil enters the hydraulic cylinder from recovery to the hydraulic tank, causing tank cavitation and fuel injection in the tank.
The cargo carried by the tipper for sale in Nigeria should not be higher than the rear door as much as possible (unless it can be guaranteed not to block the rear door). The rear door locking device must be opened before lifting and unloading.
When the tipper for sale in Nigeria needs to be lifted during repair or maintenance, please ensure that the tipper trailer price is securely supported. Working under an unsupported vehicle can be life-threatening.
During the lifting operation, the operator shall not leave the working position, and it is strictly forbidden for anyone to stand or walk in the working area; the operator must pay attention to the influence of the crosswind, because the longer sidewind of the tipper truck price in Nigeria acts on the surface of the vehicle body, which will cause side effects. turn.
