Low Loader

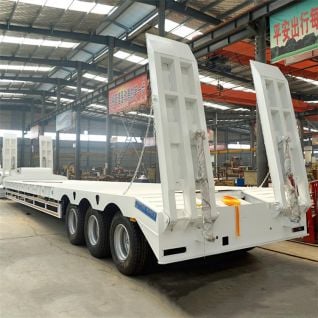

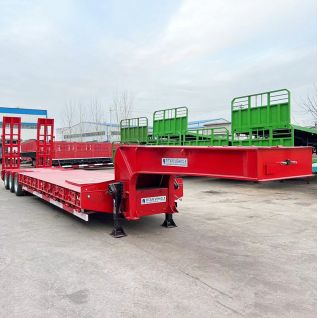

3 Axle Low Bed Trailer for Sale with Hydraulic Ramp, three styles of low loader trailer ramps, the most common is spring ramp. There are also ordinary hydraulic ramps and folding hydraulic ladders.

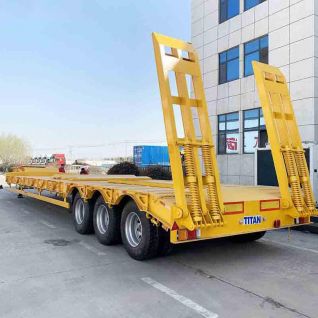

50 Ton Low Loader Trailer for Sale are widely used in heavy machine transportation. the low loader trailer load can be up to 60 to 150 ton payload.
Low bed trailers are widely used in crawler cranes and other heavy machinery transportation, Low Bed Trailer 80 Tons use high strength steel material to ensure capacity.

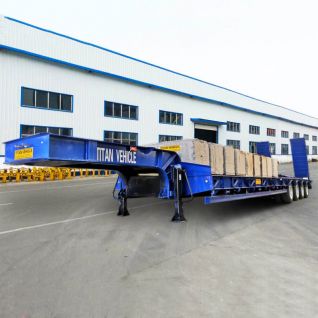

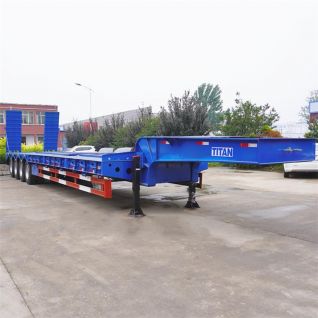

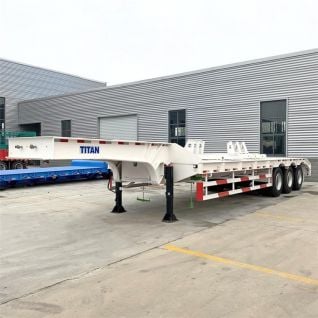

The 4 Axle Low Loader bottom plate is strong and durable, Low Loader is widely used in crawler cranes, excavators, etc. 4 Axle 100 Ton Low Loader for Sale at cost price.

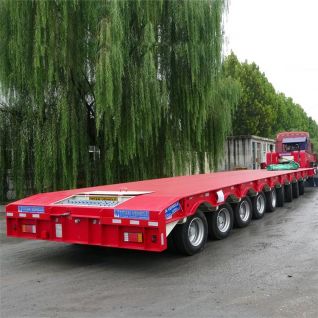

120 Ton Lowbed Trailer with 4 Line 8 Axle is widely used to transport heavy vehicles, mining machinery, forestry machinery, agricultural machinery. Lowbed Trailer suspension is reinforced at the front and rear, left and right.
Lowbed Truck for Sale with Dolly Trailer is tested for carrying capacity after production is finished, That durable and stronger construction ensure the Lowbed Truck loading capacity.
  • 1/1

Low loader trailer stock sale, send inquiry to get $500 discount!

inquiry

Low loader trailers are usually used to carry construction and engineering plant or wide and high loads. They come in a number of configurations and some low-loaders can be extended to accommodate especially long loads.  The loading capacity can customize according to your requirement.

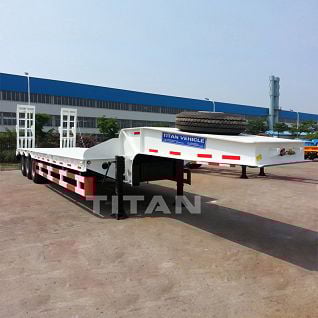

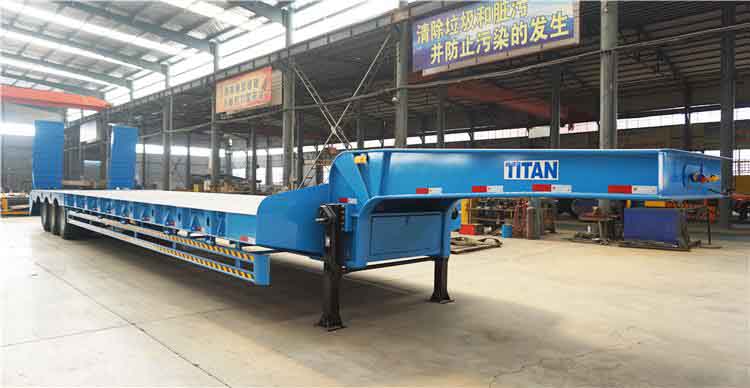

3 axle low bed trailer

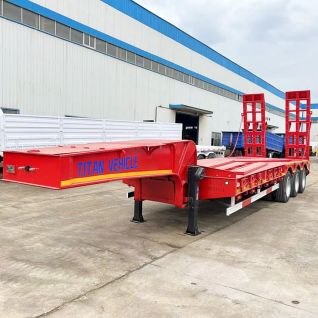

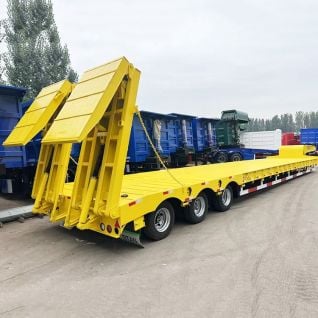

3 axle low loader trailer for sale

Low loader Specifications:

Tare weight: About 8.5-13T

Dimension: 13000mm x 3000mm x 3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm-550mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: Q345B steel.

Bottom Platform: 4-6mm thick checkered plate

Ramp: spring or hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

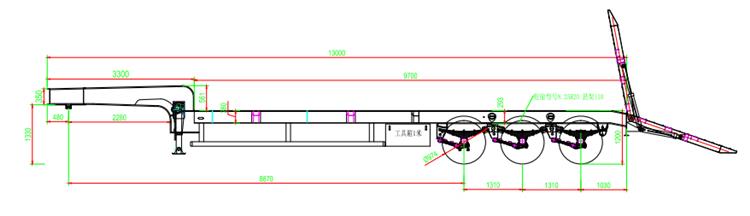

low loader dimension

Low loader dimension

Low Loader Trailer Advantage:

TITAN Low loader Trailer main beam adopts Q460C High Strength Steel Material
- Q460C steel has high yield strength, more durable and stronger than ordinary steel, and its loading capacity is 5 times more than the low loader which is built by Q345 steel. - Each ton of Q460C high strength steel costs double the price of ordinary Q345 steel material, ensuring that our TITAN low loader trailer will have a long service life and to avoid unnecessary maintenance costs.
Other factories low loader trailer
- The yield strength of Q345 steel is just 345Mpa, so it can not meet the high loading capacity requirements and the main beam of the heavy haul trailer would be broken when the excavator trailer is overloading.
- Q345 steel is low-cost steel, with short service life, increase maintenance costs and also can not meet load requirements on different kinds of roads.
Low Bed Trailer factory

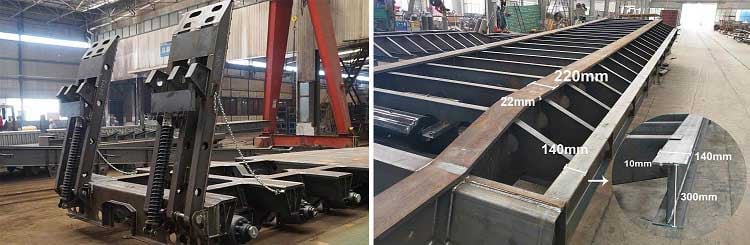

Low Loader Trailer ramp & main beam

1. Main beam
500mm thickened Main Beam (Q460C high strenght steel)
TITAN heavy haul trailer adopts 500mm main beam, effectively increase 10% loading capacity than the normal excavator trailer which uses 450mm main beam, and ensure the main beam resistance to twisting forces, shock and bump, meet load requirements on bad road, even no road.
300mm width Main Beam
TITAN low loader trailer adopts 300mm width main beam, increase 20% loading capacity than the normal low loader trailer which uses 140mm width main beam, ensure driving smoothly.
2. Side beam
300mm Height 'I' Steel Side Beam
The side beam of TITAN low loader trailer adopts 300mm "I beam" design, and its loading capacity is 2 times more than the normal heavy haul trailer which uses 250mm side beam.
10mm thickness Side Beam
TITAN low loader truck is produced by 10mm thickness side beam, its loading capacity is much higher than the normal low loader trailer which uses 4.5mm thickness
3. Strong ramp
The loading ramps are made of T700 high strength steel, with high loading capacity, will not happen to the deformation when carrying heavy equipment.
