Extendable Trailer for Sale

Price: 21800 USD   TITAN 3 axles 24m used extendable flatbed trailers are divided into extendable flatbed trailer,  extendable low bed trailer. The flatbed trailers extension length of trailer from 12.5 meters extends to 25 meters, 18 meters extend to 34 meters, 21 meters extend to 55 meters.
Price: 45000 USD   TITAN produces 4 axles 50m extendable windmill blade trailer for Carrying 45 meters to 80 meters Wind Blade
Price: 63000 USD   6 Axles extendable wind blade trailer is specially designed for transporting windmill turbine blades on ordinary roads. The telescopic blade trailer transporter can extend and retract more than 3 times on its working platform to adapt to the transportation of blades of different lengths.
Price: 95000 USD     TITAN 10 axle extendable trailer have proven to be the most efficient, lightest-weight option for customers. It can transport heavy loads and wind tower.
Price: 45000 USD   TITAN produces 4 axles 58m extendable wind turbine blade transport trailer for Carrying 80 meters Wind Blade.
Price: 63000 USD   TITAN 6 axles 62m extendable wind turbine trailer cen be widely used to transport heavy loads and wind turbine blades.
Price: 65000 USD   8 Axles extendable wind tower trailer for sale from China TITAN VEHICLE are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine.
Price: 96000 USD   12 axles extendable low bed trailer mainly used to transport 30 meters to 35 meter wind tower. TITAN 12 axles extendable low bed trailer have proven to be the most efficient, lightest-weight option for customers.
  • 1/1

Table of Contents

Chapter 1. Extendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In Kazakhstan

   Chapter 1. 1 The Price of Extendable Trailer for Sale

   Chapter 1. 2 Different Types of Extendable Trailer for Sale

   Chapter 1. 3 Extendable Trailer for Sale Specification

   Chapter 1. 4 Features of Extendable Trailer

Chapter 2. How to Operate Extendable Trailer

Chapter 3. Advantages of Extendable Windmill Blade Trailer for Sale in In Kazakhstan


Chapter 1. Extendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In Kazakhstan

Chapter 1. 1 The Price of Extendable Trailer for Sale

3 Axle 24M Extendable Trailer Price: 21800 USD

4 Axle 56M Extendable Trailer Price: 45000 USD

6 Axle 62M Extendable Windmill Blade Trailer Price: 63000 USD

8 Axle Extendable Windmill Blade Trailer Price: 65000 USD

10 Axle Extendable Trailer Price: 95000 USD

12 Axle Extendable Trailer Price: 96000 USD

Extendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In KazakhstanExtendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In Kazakhstan

Chapter 1. 2 Different Types of Extendable Trailer for Sale

Extendable Flatbed Trailer

TITAN manufactures extendable flatbed trailers for transporting long rails, pipelines, 40ft containers, 20ft containers or other bulk cargo, extendable flatbed trailers extend from 12.5m to 24m, the trailer can carry 40ft containers or 20ft when closed container. Extends from 12.5 meters to 24 meters, and can also customize the extension length to meet different transportation requirements.

Fits almost all long cargo, pipe rails and other equipment. It is in a closed state after carrying 2X20ft and 1X40ft containers.

Extendable Low Bed Trailer

18m extendable low bed trailer specialization and customization: loading capacity from 100 tons.

Extended Length: Customized extended length to meet different shipping requirements. High-strength steel structure: The extendable low bed trailer adopts high-strength HG60 steel, the main components such as longitudinal beams are automatically welded, and the side beams are durable "I"-shaped steel.

Rigid Suspension: The low bed trailer with a trolley is installed with the rigid suspension to meet the requirements of different road conditions.

The height of the Extendable low bed trailer platform is adjustable to increase the capacity of ultra-high cargo.

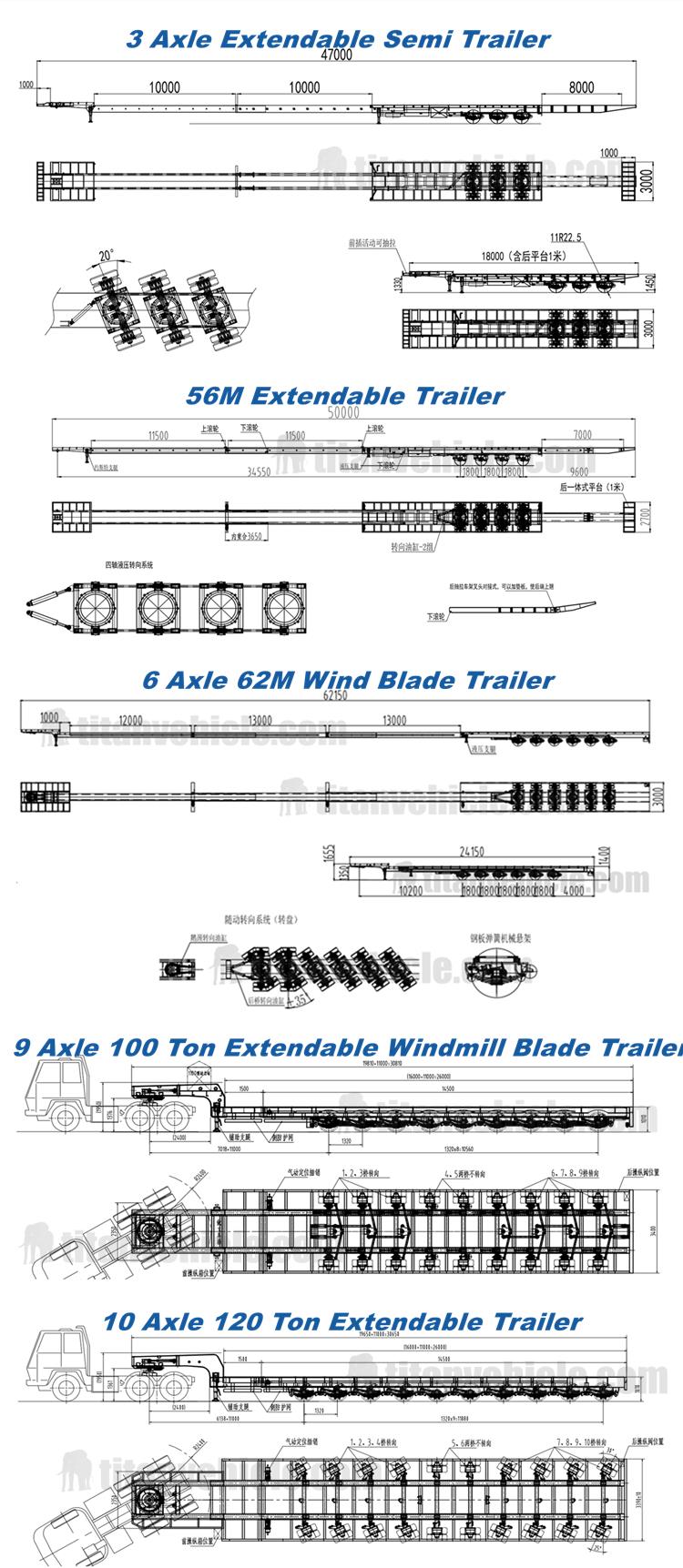

Chapter 1. 3 Extendable Trailer for Sale Specification

Brand: Extendable Wind Blade Transport Trailer for Sale

Closed length: 24150mmX3000mmX 1650mm(Customize)

Total length: 54/56/62m after extension

Transport: 80m windmill blade

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 3/4/6/8/10/12 axle

Suspension: Hydraulic suspension

Tire: 12/16/24/32/40/48 units

Braking system: WABCO emergency valve

Kingpin: 3.5 inch

Landing gear: JOST C200

Extendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In KazakhstanExtendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In Kazakhstan

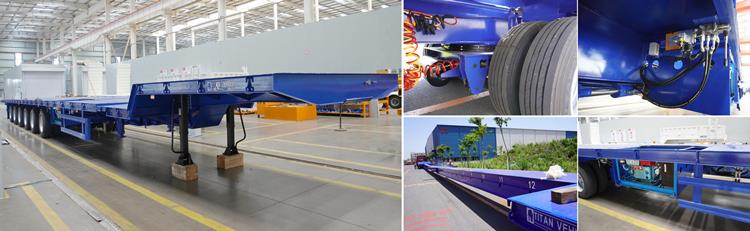

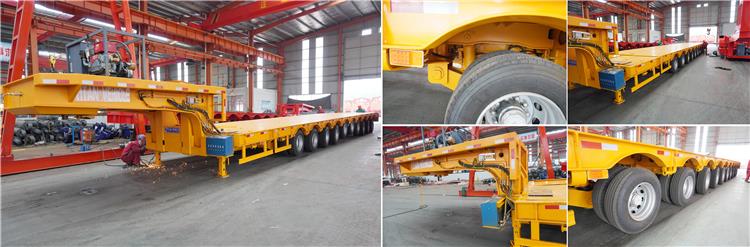

Chapter 1. 4 Features of Extendable Trailer

The Extendable Trailer is elongated with a traction structure, and the fan blades are placed flat on the top of the trailer.

The distinguishing feature of the Extendable Trailer is that it is extra long and has vertical stretchability. As the model is super long, the turning difficulty is significantly increased. In order to overcome the curve driving, the extendable Trailer is generally equipped with a hydraulic steering system, and the rear axle is equipped with a power station.

Taking into account the stability and length of the windmill blades, the rear axle adopts its air suspension system, and the longitudinal beams can be drawn freely and have good passability.

The Extendable Trailer can be over 60 meters long. It has a three-axis or four-axis balance type, remote control power steering, and a mass balance block is installed between the front and rear leaf springs, which can uniformly change the deflection of the front and rear leaf springs and balance the front and rear stressed rear axles. We can also customize 8 bridge extendable Trailer, 10 bridge extendable Trailer and 12 bridge extendable Trailer

The bearing capacity is designed to be more than 60 tons, the mainframe is 550mm high and 300mm wide, the frame is buckle box type, the side beam is 250mm I-beam, and the minimum cargo capacity surface is 850mm.

According to different road conditions and specific project requirements, hydraulic, air and mechanical suspensions can be selected. Suspension for the Extendable Trailer can be mechanical spring suspension, hydraulic suspension or airbag suspension. The air suspension best protects the windmill blades from possible shocks during transport.

The Extendable Trailer is an extendable telescopic beam attached to a hydraulic modular trailer with three or more axles to accommodate blades of different weights. In this case, hydraulic vane trailers have a larger steering angle than airbag telescopic trailers.

Hydraulic-suspension vane trailers have a lower cargo platform height than air-suspension trailers and have a wider lift travel. Hydraulic hitches have advantages and therefore cost more than air and mechanically hitched blade trailers. The mechanical suspension has high strength and low cost, and the hydraulic suspension is suitable for heavier cargo. The wire reel is the air brake hose and wire, which ensures that the braking system and lighting system work when the telescopic beam is extended.

Extendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In KazakhstanExtendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In Kazakhstan

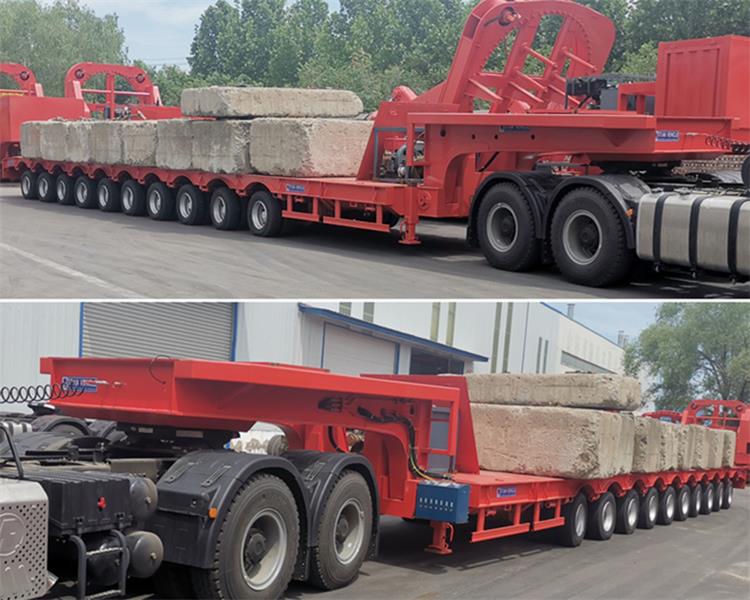

Chapter 2. How to Operate Extendable Trailer

Gooseneck provides the connection point for the extendable windmill blade trailer for sale in In Kazakhstan to the truck. Designed to lift up and down to meet different heights of trucks. When the truck turns, the gooseneck can pass the signal, extendable windmill blade trailer for sale in In Kazakhstan to start turning.

As the length of the extendable windmill blade trailer for sale in In Kazakhstan is 62 m, the steering system includes a steering function for the rear axle to help the extendable windmill blade trailer for sale in In Kazakhstan through curvy roads.

The steering structure is configured with three types: hydraulic bogie, turntable steering and axle steering. The extendable beam feature is designed to allow elongation to meet different transportation needs. Due to the overall length of the extendable windmill blade trailer for sale in Kazakhstan, tough and strong materials with a yield strength of at least 460 MPa are used.

This ensures that the beam does not sag during operation. In this section, the extendable windmill blade trailer for sale in Kazakhstan can be adjusted to the desired length to complete the mission.

The tail platform forms the rear of the extendable windmill blade trailer for sale in Kazakhstan. It can be a folding or pulling platform configuration. Therefore, users can choose extendable windmill blade trailer for sale in In Kazakhstan according to these tail platform configurations.

The Extendable windmill blade trailer for sale in Kazakhstan configuration is a trailer mechanism designed and adapted to be towed through for use when a tow truck is traveling along a road.

Extensions on the trailer can effectively take loads that may be of varying lengths depending on the needs of the job.

Can include a front chassis and a rear chassis arranged in a telescopic connection, wherein each chassis can be supported by a separate axle assembly. These can be connected side-by-side tilted in the retracted state of the mechanism. In the extended format of the organization, the configuration can be a spaced relationship.

When the mechanism of the extendable windmill blade trailer for sale in Kazakhstan is retracted, the chassis frame is allowed to hinge around the horizontal axis after the trailer mechanism is extended.

The purpose of providing the means forming the locking mechanism is to secure the rear chassis frame and the front chassis frame in the assembly in the extended and retracted states of the transport mechanism.

Extendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In KazakhstanExtendable Trailer for Sale - Extendable 56m 62m Windmill Blade Trailer for Sale in In Kazakhstan


Chapter 3. Advantages of Extendable Windmill Blade Trailer for Sale in In Kazakhstan

Easy to use. With a simple design, it is easy to operate and operate manually or remotely. Loading and unloading cargo becomes safe and simple, and operators can easily manage operations.

It can transport other types of oversized cargo, not just blades and towers. Therefore, users can use the extendable windmill blade trailer for sale in In Kazakhstan for many other purposes than transporting wind turbine blades.

Reliable and efficient. The extendable windmill blade trailer for sale in In Kazakhstan is made of high yield strength material and is reliable for safety and general transportation needs. Due to its ability to carry both wind turbine blades and windmill tower loads, it provides users with an efficient transportation option.

It is more suitable for towers of different sizes. Therefore, users are not limited by a particular type and size of the tower.
