100 Ton semi tipper trailer is a semi-trailer suitable for the transportation of bulk and scattered goods such as sands and stones and coal, ore, earthwork, and construction materials.
TITAN have many types of semi tipper trailer, such as 30tons-60tons tipper semi trailers, 60-80tons rear tipper semi trailer, and 80-120tons end dump trailers,120-180tons multiple axles semi tipper trailer. We can customize the bucket Volume from 20-80cubic meters
We have professional engineers team, they know the African bad road conditions very well, they will design the semi tipper trailer to meet your actual transport demand.‹Get Quotation›

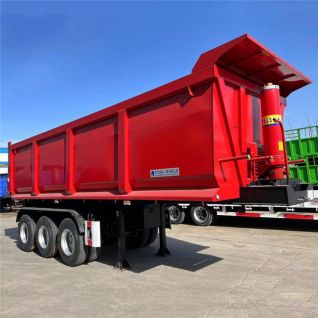

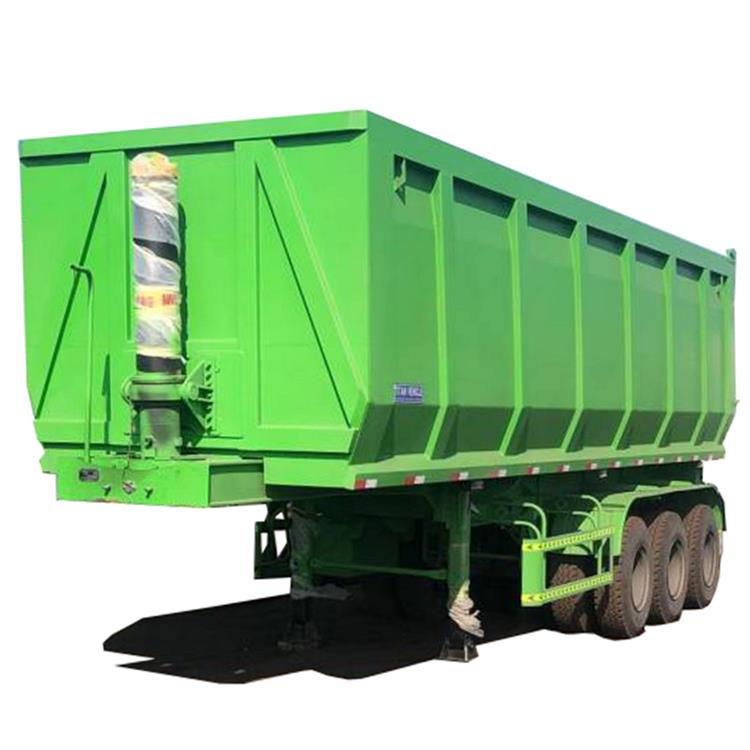

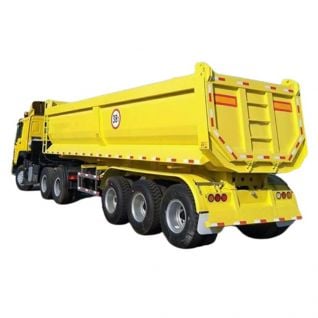

New Tri Axle 100 Ton Semi Tipper Trailer for Sale In Congo
100 Ton Semi Tipper Trailer Price for Sale
Details of New Tri Axle 100 Ton Semi Tipper Trailer for Sale
Dimension: 10200mmx2500mm x3700mm ( inside dimension )
Total volume(ton): 100Ton
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 3 Axle, 13T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Advanced Full-automatic Submerged arc welding process.TITAN 100 Ton semi tipper trailer adopts double main design, ensures the smooth, sturdy welding seams and improve its resistance to twisting forces, shock and bump, and meets loading requirements on different kinds of roads.
1. Formed by one time.
2. More sturdy, also bending and bump resistance.
3. Improving the loading capacity and the service life by 50%
Customer Feedback of 100 Ton Semi Tipper Trailer
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
