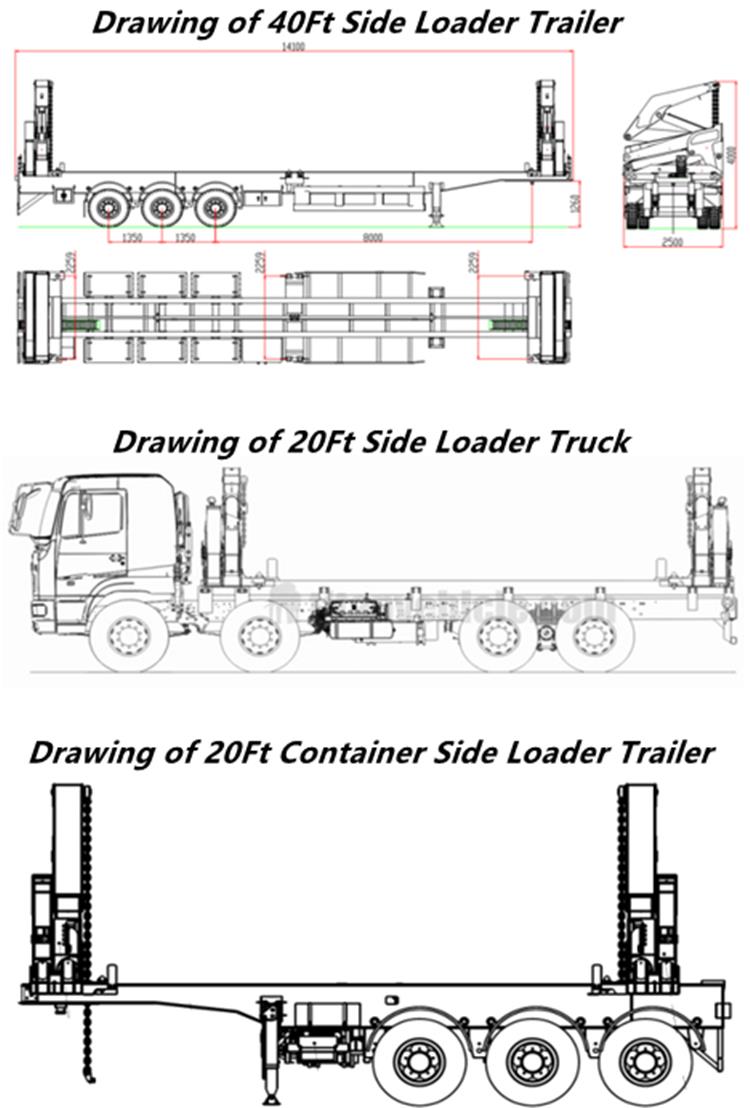

Chapter 1.3 Side Loader for Sale Drawing
Chapter 2. Different Types of Side Loader Trailer for Sale.
Chapter 3. How to Operate Side Loader for Sale
Chapter 4. How does Side Loader for Sale work?
Side loader for sale is designed to lift 20ft 40ft 45ft containers from the side. The lifting capacity can reach 45 tons.
Side loader for sale is the most versatile and cost-effective equipment for loading containers on the ground. No other method can match the accuracy and precision of container loader for sale container loading technology.
Container transfers can now take place anywhere that is safe and convenient. This can be at a railway yard, transport station or any suitable railway siding.

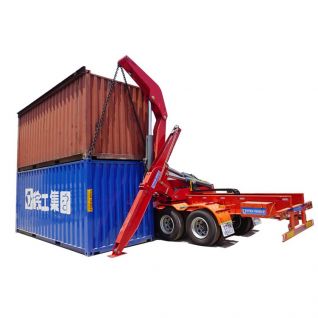

Containers can be transferred to other trailers, trucks and trains, or to the ground, whether loaded or empty, our container loader for sale makes it quick and easy to stack containers. Containers can be stacked 2 layers high, saving space and time. Nothing is more cost effective or efficient than a container loader for sale.
The TITAN 20/40ft container side loader truck allows quick and easy transfer of shipping containers to or from a trailer or chassis for easy loading/unloading of transported contents. This is useful for businesses that require logistics to quickly and carefully load and unload containers from one mode of transport to another.
TITAN provides two models of side loader truck and side loader trailer for sale for you to choose from, there are 20 feet and 40 feet of different types of container load for you to choose. The semi-trailer is tested before leaving the factory, container side loader truck is arranged for trailer delivery to the port.
Side Loader for Sale | 20/40Ft Container Side Loader Price
20Ft Side Loader Truck Price: 85000 USD
40Ft Side Loader Trailer Price: 72500 USD
20Ft Container Side Loader Trailer Price: 63500 USD
Max. lifting capacity: 37/40/45Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max. the pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm/7500*2500*4200mm
Axle: 3/2axle* 13 ton (220mm brake pads)
Tire: 12/8pcs, 12R22.5
Suspension: Heavy duty type mechanical spring suspension
Kingpin: 3.5 inches bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lugs (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
Side Loader for Sale | 20/40Ft Container Side Loader Price
Many customers ask us how to choose the right side loader price for them. It is suggested that you can purchase the side loader price according to your actual needs, your own budget and local regulations. But the most important thing is to buy the side loader price from a reliable manufacturer because once there is a problem with the side loader price, the manufacturer has a professional after-sales team to help you deal with any problems in time. TITAN has 20 years of experience inside loader price.
We have handled a lot of problems for customers, we have detailed side loader price operation videos and maintenance manuals, and we have 24-hour online customer service to answer your questions. Now introduce TITAN's side loader prices, you can choose which one is more preferable.

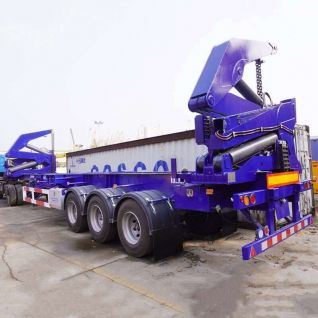

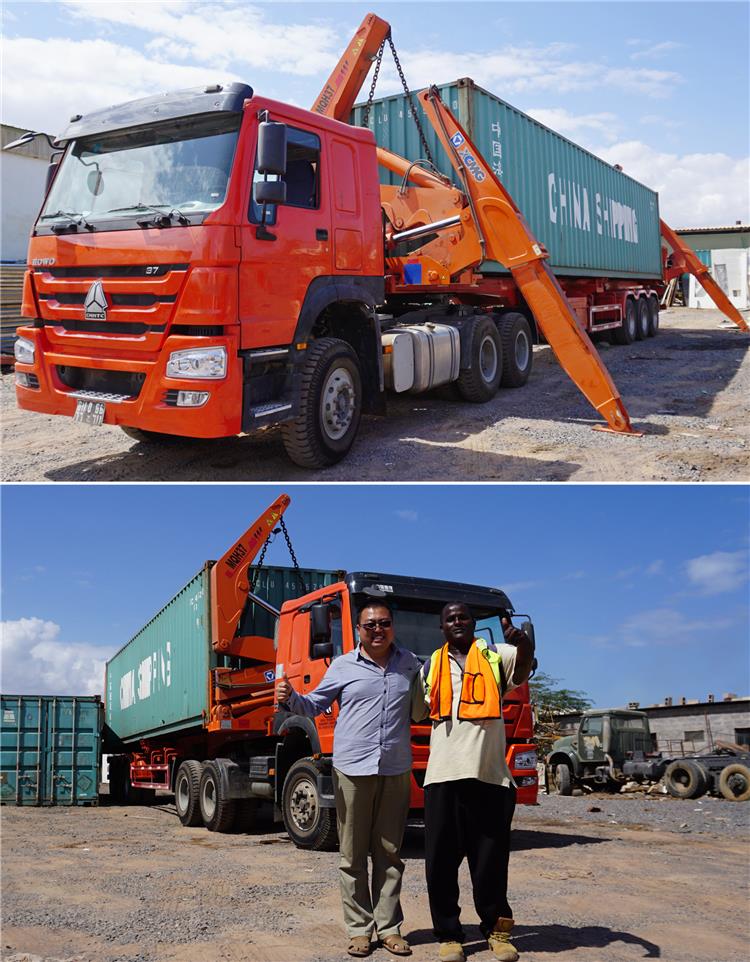

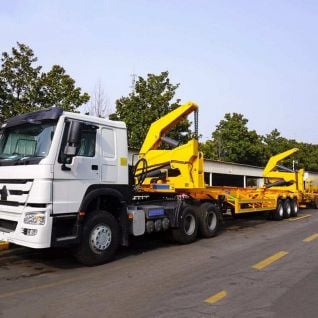

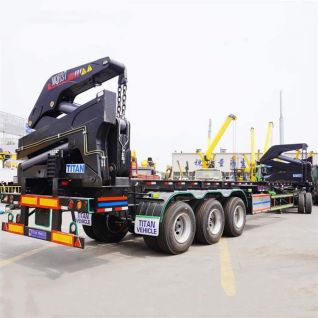

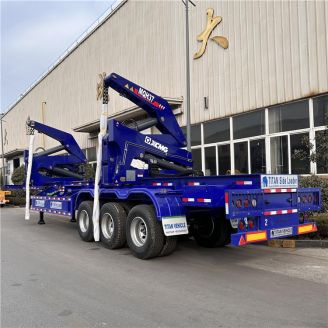

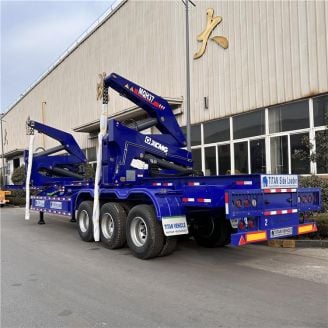

The first model is Sinotruk 40ft side loader trailer for sale + Sinotruk Howo 6×4 371HP Tractor Truck.
Our 40ft side loader trailer for sale is mainly used to load 40ft containers, 20ft containers, and can also transfer containers to other trailers, trucks and trains or off the ground. And with a high lifting capacity of 45 tons, it can satisfy you to handle different types of heavy loads.
Our 40ft side loader trailer for sale includes 2 cranes mounted on the trailer chassis and two wide and strong outriggers. 2 cranes can work together and apart and slide smoothly in or out 20ft, 40ft positions.
Usually, the power of our loader comes from the PTO (Power Take-Off) of the tractor, we recommend customers to buy our Sinotruk Howo 6×4 371HP Tractor Truck to match the loader, because the howo 371 truck head has excellent performance and affordable s price. But of course, if you prefer, our side loader can also be powered by a diesel engine APU mounted on the side loader trailer for sale.

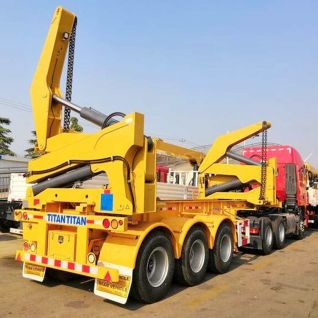

The second model is 20ft side loader trailer for sale
The 20Ft side loader trailer for sale is only used to load 20ft containers, also can transfer containers to other trailers, trucks and trains or load other construction machinery. And with a high lifting capacity of 37 tons, it can satisfy you to handle different types of heavy loads. Since the 20-foot side lift trailer is only 8 meters long, it is suitable for narrow road conditions.

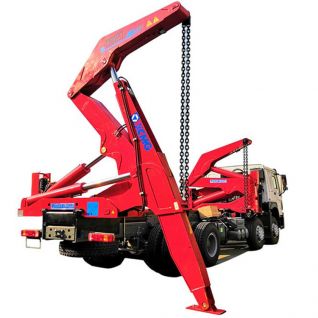

The third model is 20ft side loader truck for sale

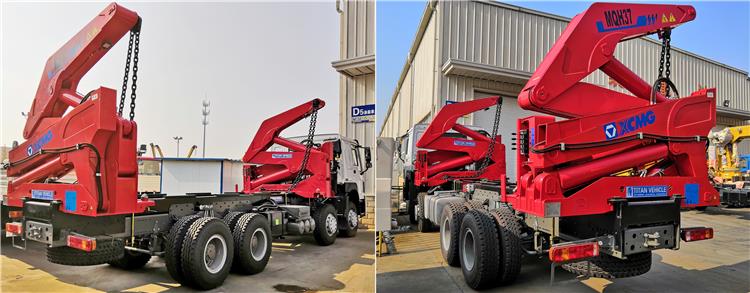

The 20ft side loader truck for sale consists of 2 cranes mounted on an 8×4 truck chassis with two wide and strong outriggers. The biggest advantage of our 20-foot sideshifter is that it is super maneuverable and can meet a variety of different working conditions, from arctic cold to desert heat.
Most island countries like 20ft side loader truck for sale, such as Madagascar, Mauritius, Fiji, Papua New Guinea, Tonga, Nauru, East Timor, etc. Because the roads in these countries are not wide enough for a 40ft container side loader.
Side Loader for Sale | 20/40Ft Container Side Loader Price
Side Loader for Sale can be operated by wireless remote control or manual operation.
Also known as a side lift, self-loading trailer or swing lift trailer, the container side loader truck provides a versatile and cost-effective way to load, transport and unload containers and other cargo.
1. To ensure safety, check whether the container side loader truck works normally and meets the requirements of the lifted goods before operation. Make sure the side lift is not overloaded. Refer to the working range of the side lifter to ensure that the front and rear unbalanced load does not exceed 10% of the corresponding working range, and try to keep the container and the chassis at an appropriate distance of 300mm~500mm.
2. Open the engine control box, start the engine, let the engine run at idle speed for about 10s, and then adjust the adjustment handle to 1600 rpm ~ 2600 rpm, and turn on the power of the remote control and the electrical system control box.

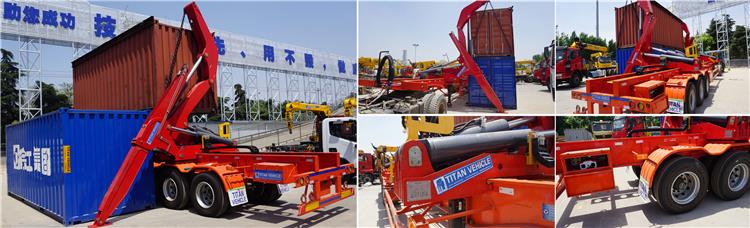

Two hydraulic arms, mounted on attached vehicles, truck trailers, standard 2- or 3-axle trucks or rail vehicles, allow access to loads and can load or unload standard containers from the maximum weight. This process is carried out by a radio control system located in the truck.
3. Extend the inclined stabilizer legs (note: do not operate the boom until the stabilizer legs are fully supported) lock the four locks of the chain to the bottom of the container, and turn the swivel lock to unlock the container.
When the load just leaves the ground, make sure that there are no obstacles in the direction of travel of the load. Do not let the center of the container exceed the limit of the stabilizer, otherwise, it may cause a tripping accident. When extending the stabilizer, make sure all wheels are in contact with the ground. During operation, do not retract the stabilizer.
4. Use the remote control to control the boom to unload the container from the semi-trailer without interference. It is best to keep the distance between the semi-trailer and the container between 300mm and 500mm, remove the hoisting chain, retract the boom and stabilizer in sequence, adjust the engine speed to idle speed, and turn off the engine and turn off all power.
All the side loaders for sale are equipped with greasing points on each pin. Greasing is the basic servicing to be done to maintain a high level of performance for a side loader for sale. A centralized greasing kit can be set up (1 greasing point per crane linked to all pins) in order to facilitate the greasing process.
Side Loader for Sale | 20/40Ft Container Side Loader Price
20/40Ft container side loader price is mainly used for loading 20ft and 40ft containers, especially in the port of shipment, using side loading, the work efficiency will be very fast. Side loading trailers are dedicated container loading and unloading vehicles used in container terminals and transfer yards.
The function of the side-loading container trailer is to realize the loading and unloading of containers, such as the loading and unloading of container flatbed trailers. 20/40ft container side loader price with wireless remote and manual operation. The rear boom can be adjusted to fit 20ft and 40ft containers for container handling.
At the same time, the power of the rear arm is provided by the tractor head, and a power take-off can be installed at the front of the head to provide power for the loading and unloading of the rear arm. Container loading trailers make work flexible, saving time and increasing productivity for satisfied customers around the world.
Its main structure is the chassis and the rear cantilever, the rear cantilever is the most important and complex. And the chassis and rear arm can be separated. As for its shipping, we separate it for you to ship. This delivery method requires the customer to have a certain assembly ability.
