Skeletal Trailer

The 40ft 2 axle gooseneck skeletal trailer presents an economically viable and highly practical transportation solution. This innovative invention provides a truck chassis capable of effortlessly loading and offloading heavy containers, streamlining the logistics process with ease.
The 40ft shipping container trailer also features twist locks that secure the corners of the container to prevent it from shifting during transport.

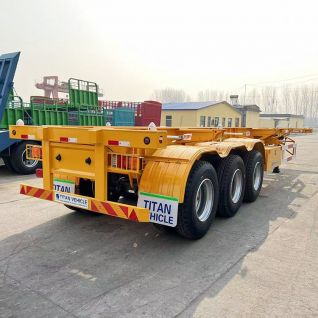

TITAN 40ft tri axle container skeletal trailer is the best option for buyers to transport standard containers(20,40ft), and other goods.
TITAN 12m skeletal trailer for sale could be used for transporting 20ft or 40ft standard container, and the 12m skeletal trailer for sale adopt the jost landing gear and Wabco valve, world famous brand

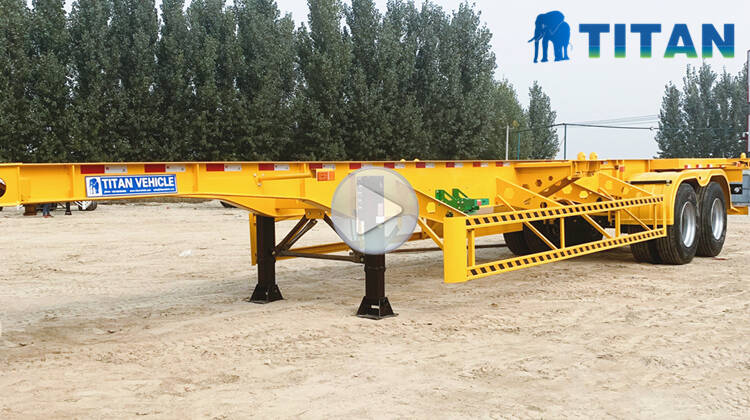

The 2 axle 20ft skeleton trailer is the best trailer for people to transporting 20ft containers, its selfweight is very low, and the cost is lower than the other container carriers, like flatbed semi trailer, side loader trailer etc.

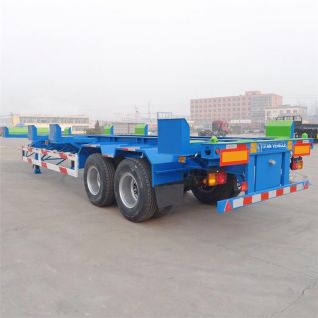

TITAN 8 bomb carts terminal trailers is designed and manufactured to transport 1x20ft , 2x20ft , 1x40ft ,1x45ft container within port terminal areas.
  • 1/1

New container chassis 丨trailer chassis for sale丨container trailers for sale 丨 container trailer丨skeletal trailers - 20ft & 40ft from china



Table of Contents

Chapter 1: How to choose a 20ft container trailer

1.1 What are the different models of sea 20ft container trailers?

1.2 Application of skeleton trailer

1.3 TITAN container moving trailer Spec, dimension and drawing

1.4 What is the difference between Shipping container trailer and flatbed trailer?

1.5  Shipment of container chassis semi trailer

1.6 Different type of container semi trailer

1.7 Points to note when buying skeleton semi trailer

1.8 How to Choose the right container hauling trailer?

1.9 What is a chassis for containers?

1.10 How much does a container chassis cost?



Chapter 2: What is 20ft container trailer(20ft skeletal trailers/the terminal trailer/skeletal trailer chassis)?

2.1 What is container semi trailer?

2.2 What are the types of container trailer chassis

2.3 How to choose a good multi function china skeletal trailer?

2.4 Intermodal trailers for sale package and transportation.

2.5 Uses and characteristics of skeletal trailers

2.6 Container Chassis Loading


What are the different models of 20ft container trailers?

TITAN Container chassis trailer is used to transport containers, and container chassis trailers have different shapes and sizes. sea container trailer can be divided into two types: common 40ft skeleton trailer and special container transport trailer. TITAN common container skeletal trailers can be customized to 20 ft container chassis for sale near me, 40 foot shipping container trailer for sale, 45ft tractor trailer container, 53 feet container hauling trailer. We also provide customers with different options: 2 axles gooseneck container trailers, 3 axles shipping container delivery trailer, 4 axles intermodal container chassis, airbag suspension, spring steel suspension

Special models used container chassis for sale near me: shipping container delivery trailer, trailer container, the terminal trailer, china skeletal trailer, 40ft skeletal container trailer chassis, tipper chassis trailer, 40ft skeleton semi trailer and interlink trailer.

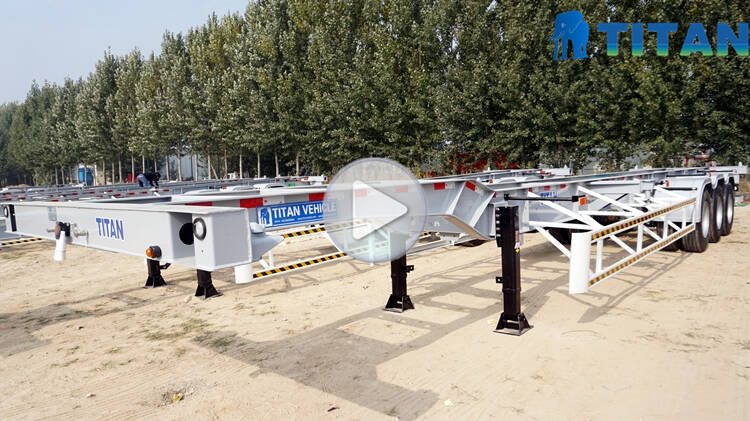

Through these videos, you can learn about different types of container chassis trailers, like 2 skeletal trailer chassis, 3 axle 40ft skeleton semi trailer, 4 axle skeleton chassis for sale, 20 ft container chassis for sale, 40feet container trailer, superlink trailer, the terminal trailer, and the process, testing, packaging and customer feedback, etc.

how much is a trailer container for sale

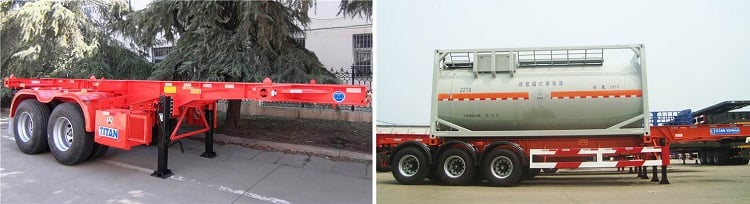

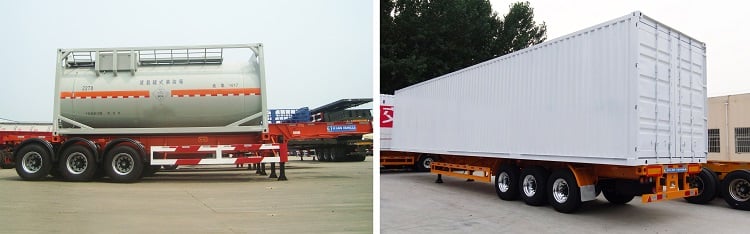

TITAN Feature container chassis trailer

What are the different models of TITAN container trailers40 ft container chassis for sale

terminal shipping container trailer

TITAN terminal shipping 20 ft container trailer for sale



2. Application of skeleton trailer

1. Especially used for transportation of various containers. 40 feet container trailer can be used repeatedly for a long time, with sufficient strength.

2. Use containers to transfer goods, which can be loaded directly in the consignor’s warehouse and shipped to the consignee’s warehouse for unloading. When replacing the tri axle chassis for sale or ship midway, there is no need to take the goods out of the box and replace them.

3. Superlink trailer can be quickly loaded and unloaded, and gooseneck container can be directly and conveniently changed from one transportation tool to another transportation tool.

4.The terminal trailer is easy to load and unload the goods to meet the individual needs of customers.

 What is a container chassis trailer?-TITAN terminal trailer for sale near me

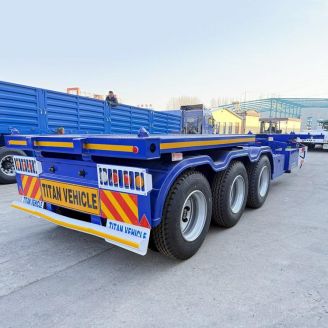

40 foot shipping container trailer application

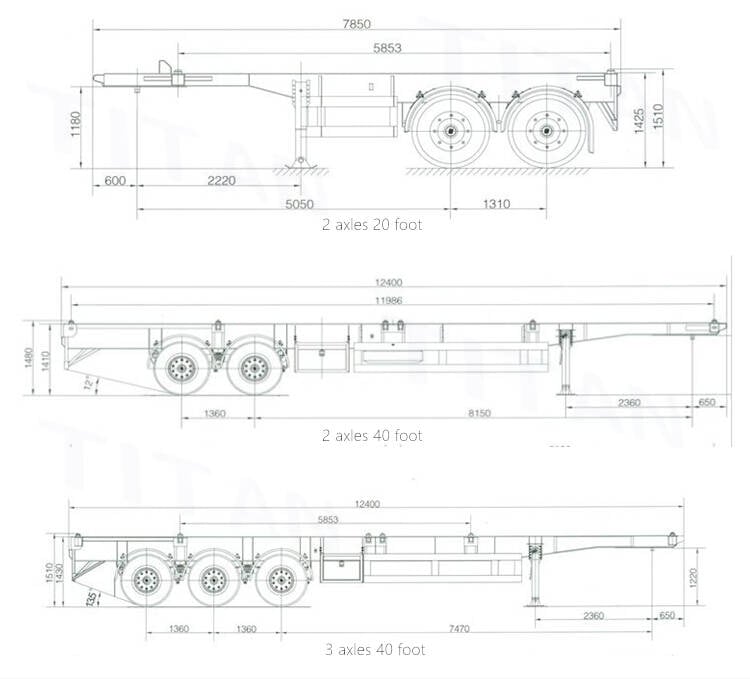

3. TITAN container moving trailer Spec, dimension and drawing

Model: 40ft container trailer chassis/skeletal trailer chassis

Overall dimension:12400*2500*1550

Transport: 20/40ft containers

Axles:3 axles

Suspension:Heavy duty mechanical suspension

Tire:12 units

King pin:90#

Landing gear:JOST

Brake system: WABCO

Electical system:24V, LED lights

combo chassis Spec, dimension and drawing

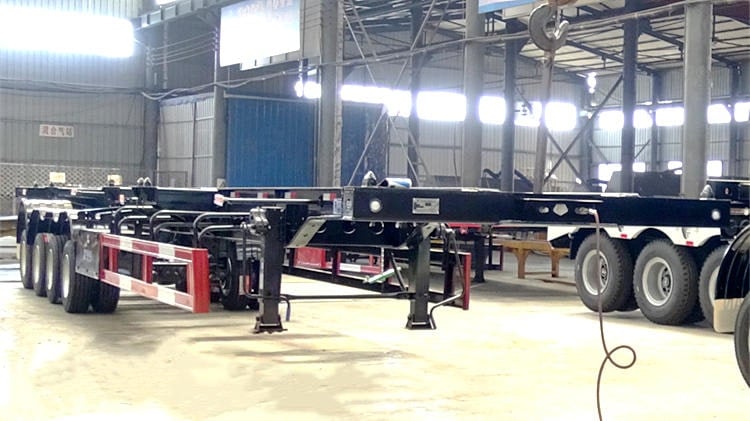

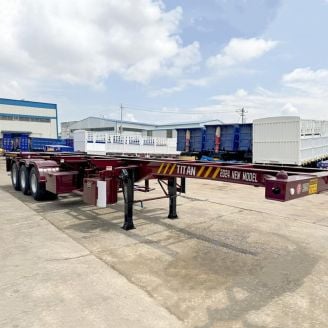

40 ft container trailer for sale

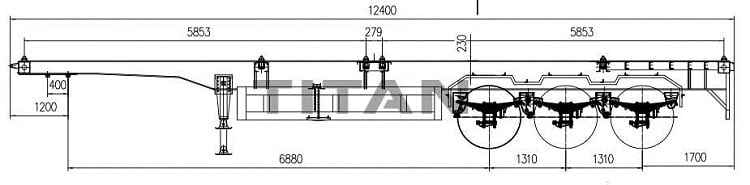

More Technical Parameter Drawings

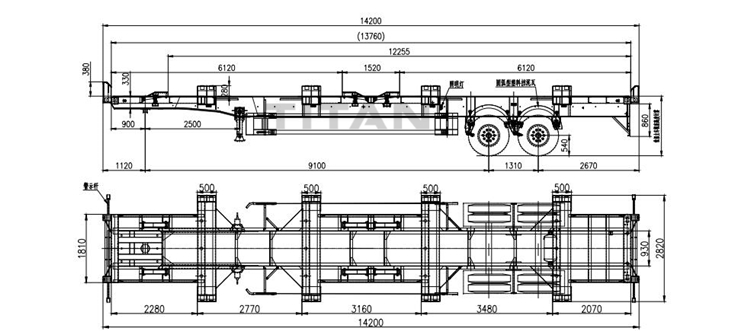

45ft 2 axles yard terminal trailer drawing

45ft container 2 axles yard terminal trailer drawing

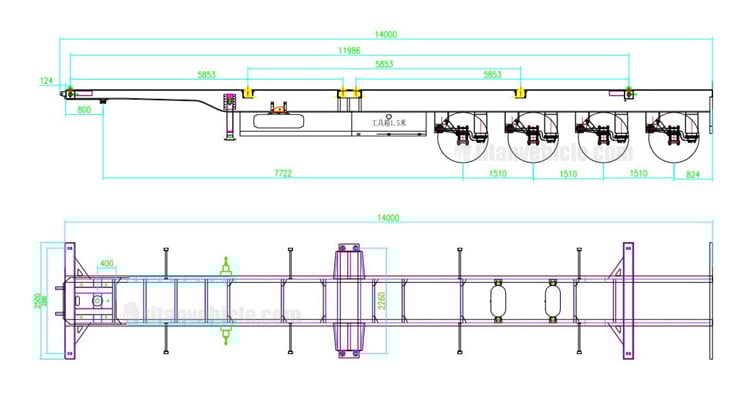

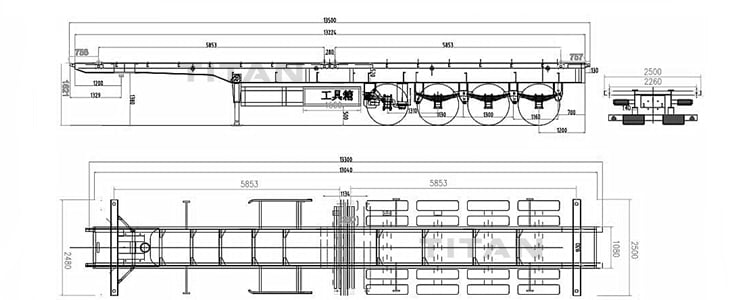

4 axle skeleton trailer drawing

4 axle skeleton trailer technical specification drawing

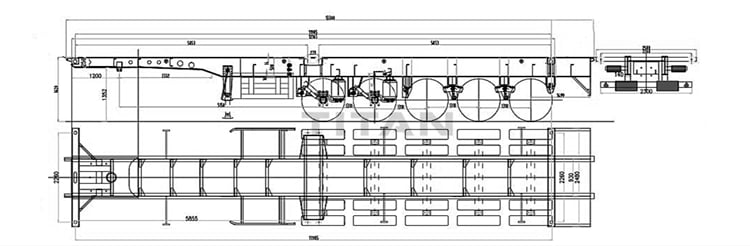

5 axle container chassis trailer drawing

5 axle tractor trailer container technical drawing



4. What is the difference between shipping container trailer and flatbed trailer?

Shipping container trailers are designed for maritime container and sea freight transport tasks and combine both safe and rapid container handling. TITAN container chassis for sale possesses a long service life even under the tough conditions which a 20ft shipping container trailer for sale has to face on a daily basis

Container moving trailer is mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

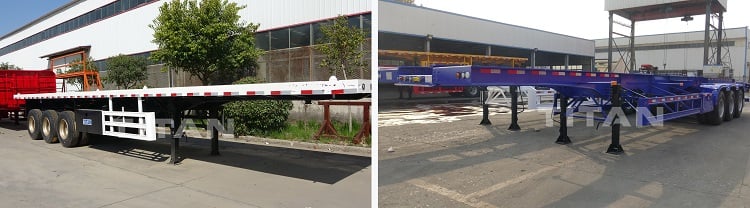

40 ft container trailer for sale Flatbed semi trailer VS tractor trailer container

5. Shipment of container chassis semi trailer

Many customers use the method of container transportation, which has low transportation costs and short transportation time.

Some customers choose bulk carriers or ro-ro ships. Before the TITAN skeleton trailer for sale is shipped, the 40 feet container trailer is sprayed with wax and covered with a tarpaulin.

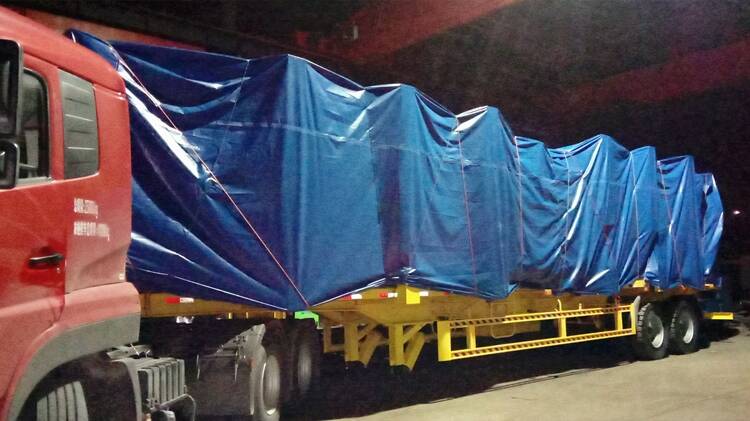

Shipment of container chassis semi trailer

shipping container delivery trailer Package

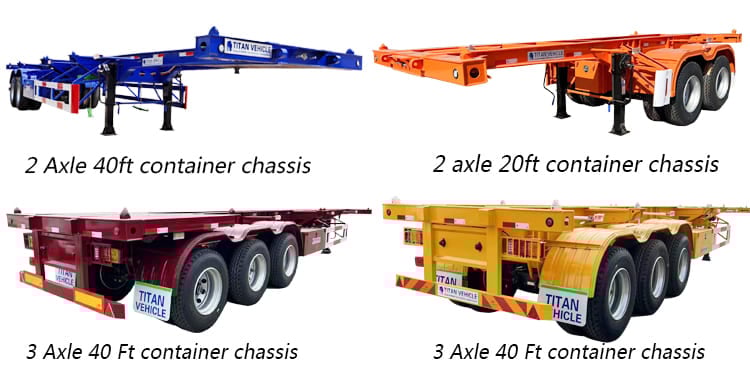

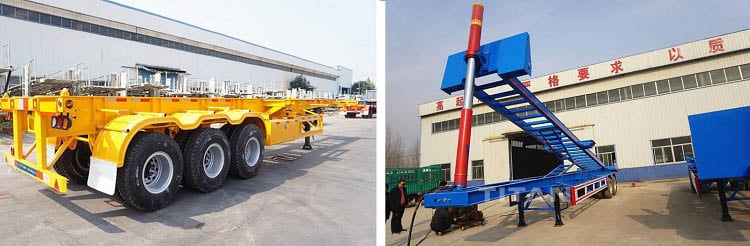

6. Different type of container semi trailer:

1. Common cargo container trailers:

40ft container trailers are normally a simple fixed structure without much sophistication used to carry and transport containers from one point to another.

The container trailers framework is usually made of steel. This is where the containers get loaded and offloaded through the use of overhead cranes. 40 feet container trailer can be used for the transportation of containers of various lengths: 20ft or 40ft.

The common 40ft container trailer is easy to use and affordable. However, you will need auxiliary equipment such as the overhead cranes for loading and offloading the containers from the chassis.

2. Container tipper chassis

The striking feature with the 40ft container tipper chassis trailer is a mechanism that makes it easy to unload the container. That means it comes with a somewhat different structure from other types of tipping chassis trailer.

The tipping chassis trailer hydraulic system mounted on the upper platform facilitates the offloading process causing the container to tilt upwards to offload cargo. In such an arrangement, no external equipment will be required for offloading cargo from the container.

Obviously, the features of the container tipper chassis come at an additional cost. However, it presents a very convenient option for use in the transportation of cargo using containers. container tipper chassis is definitely one of the safest means of offloading shipping containers.

 What is a Shipping Container Chassis Trailer?-Terminal Skeleton Trailer for Sale Near Me shipping container trailers & tipping chassis trailer

3. 40ft side loader container chassis

TITAN side loader container chassis is a type of specialized semi-trailer that is used to hoist and transport standard containers over long distances.

Also known as a container side lifter, this trailer is basically used for container transfer. It comprises of lift modules or cranes that are installed to the trailer chassis for sale. These lifting components can also be fitted onto a sub-frame usually mounted on a truck.

4. Extendable cargo container trailer

This type of 40ft container chassis can adapt to the different size of containers. The extendable sea container trailer can either be long or short based on the prevailing operations need. This is the typical container chassis trailer to go for varying container lengths in your operations.

With this type of structure, you can transport a sealed container across different countries and states because of the ability to make adjustments to meet the local standards set for it.

While making the adjustments to the sea container trailer, 40ft skel trailer is always advisable to remember the need to have a greater chassis length than the size of the container or load. Loading on the frame must be placed at the bed center to keep the entire 40ft skel trailer in a stable and balanced position.

 What is a Shipping Container Chassis Trailer?-Terminal Skeleton Trailer for Sale Near Me

20 ft container chassis for sale&multi function 20ft skeletal trailers for sale

7. Points to note when buying skeleton semi trailer

1. Frame of container transport trailer

TITAN intermodal container chassis main beam made of Q345 high strength steel has higher bearing capacity and service life of more than 10 years, TITAN interlink trailer uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate,it can ensure the integrated main beam, so the 40ft skeleton trailer for sale main beam is more stronger and more durable.

2. Axle

The axles of the 40ft skeleton trailer for sale are 13 ton container moving trailer axles + 16 ton intermodal container chassis brake system axles, the axle of TITAN has 9 years of experience in producing quality, with better bearing capacity and good braking effect Other plants use axles with 13 ton brake systems.

3. Braking system

Multi function 20ft skeletal trailers for sale braking system, effective braking, fast braking response, braking distance reduced by more than 5m, The 40ft skel trailer brake system of Wabco can also be selected.

 What is a Shipping Container Chassis Trailer?-Terminal Skeleton Trailer for Sale Near Me

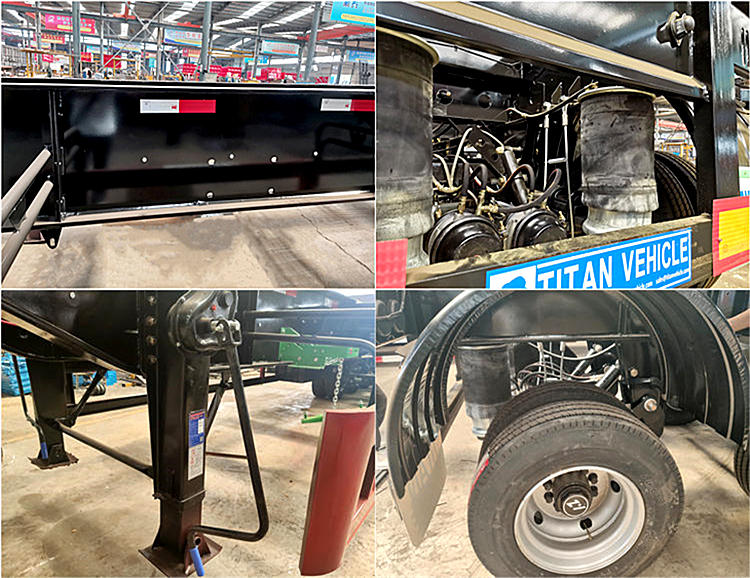

Details of 40ft container trailer or 40ft skeleton semi trailer

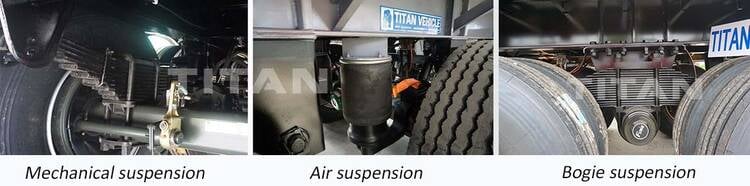

4. Suspension of 40ft skeleton semi trailer

The suspension of the 40ft skeleton trailer for sale is made of special high-strength rigid steel, 70mm center balance pin, Other factories use light suspension, the pin is only 45mm, the service life is short, it will cause abnormal wear.

The container moving trailer suspension is reinforced at the front and rear, left and right. The separate road conditions for Africa are to meet the requirements of the dirt road surface and poor road conditions.

5. Design

Due to 20ft skeletal trailer for sale application and use, container chassis trailers are made of high-strength materials. It is a rugged structure designed to provide you with the services you need without having to do a lot of manufacturing work through high-quality welding techniques that have been tried and tested to ensure that the 20ft skeletal trailer for sale meets high quality standards.

TITAN interlink trailer uses polyurethane paint, high adhesion, high chroma, beautiful color.

 What is a Shipping Container Chassis Trailer?-Terminal Skeleton Trailer for Sale Near Me

40 foot shipping container trailer suspension

8. How to Choose the right container hauling trailer?

Your choice first depends on your preference for the type 20ft skeletal trailer for sale of work you need to accomplish. Usually, the selection is based on the following conditions:

1. Application
If you use a used Intermodal Container Chassis trailer to transport not only containers but also some other goods, it is best to choose the type of flatbed trailer. Choose according to your needs, you can let professionals provide you with buying advice.

2. Price

Cost is also an important factor to consider in your choice of a 12m skeletal trailer for sale. If all you need is a simple skeleton trailer for a simple application, it wouldn’t be wise to choose the container chassis trailer. The intermodal container chassis has a higher price than the rest. This is primarily due to its advanced lifting system. A flatbed or a container chassis will do.

Container chassis trailer suspension

Details of 40ft skeleton trailer for sale

3.Weight Capacity Requirements

All these container chassis trailers can carry a considerable amount of weight. However, the 2 axles 20ft shipping container trailer for sale, 3 axles used container chassis trailer is of much help when weight considerations are to be made. Its construction has primarily been made to provide a chassis that can help you carry high weight containers. Most importantly, this can be adjusted to meet your desired conditions of maneuverability, loading, offloading and axle spacing.

4. Number of gooseneck container Axles

Based on the amount of cargo to carry, container skeletal trailer considerations can be made looking at the number of 20ft skeletal trailer for sale axles for each container trailer chassis for sale. They could be 2 axles intermodal chassis for sale or 3 axles shipping container trailer for sale. Don’t expect one with more than 3 axles because a container’s max weight capacity is 30 tons. For instance, the container trailer chassis for salestructure has the capability of supporting a number of wheel axle assemblies at different positions along the trailer length.

how much is a trailer containerhow much is a trailer container



9. What is a chassis for containers?

Container trailers for sale is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system.

This trailer is adjustable to meet your desired maneuverability conditions for loading and offloading. Adjustments to axle spacing can also be made based on your needs.It has a simple structure. It comprises a simple truck chassis but of rugged construction.

Specifically for a variety of container transport, customers can choose according to their own needs to change how many locks that may, all the accessories have been 20 years of experience in the use supplier of choice, long-term repeated use, with sufficient strength.

container trailers for sale container trailers for sale

The 20 ft container trailer for sale is an economically feasible and practical trailer to use. This is an invention that offers a truck chassis for loading and offloading high weight containers without much effort.

Container trailers for sale are welded by longitudinal beams, cross beams, and front and rear beams. The longitudinal beams are welded into an I-shape (the main dimensions are 450 and 500) using steel plate 16Mn submerged arc welding. It is a welded rectangular section. The middle container locking device is equipped with an integral long beam to improve the carrying capacity of the container locking device.

The difference between the flat type and the frame type is that the flat type has an additional frame and a patterned floor. The frame of the wooden container transport semi-trailer is shot blasted. The entire frame is assembled and welded on a special positioning table. It has a reasonable structure, high strength and beautiful appearance.

A container compaction device is installed on the frame, which can load two standard containers of 40 feet and 20 feet. The four container shrinking devices at the front and rear ends are of a fixed structure, and the middle container shrinking device is a concealable structure.

how much is a trailer containerhow much is a trailer container

When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required. Its function is to support the ground and bear the front load of the skel trailer when the traction device is disengaged from the trailer. There are two types of supporting devices, single-acting type and linkage type.

They are mainly composed of a supporting plate, a screw drive mechanism, a reduction box and a joystick. There are three types of suspension devices: single-axle suspension and double-axle suspension and three-axle suspension. The semi-trailer is equipped with two spare tire frames, which are installed on the left and right sides of the trailer frame, and are equipped with spare tire lifters.

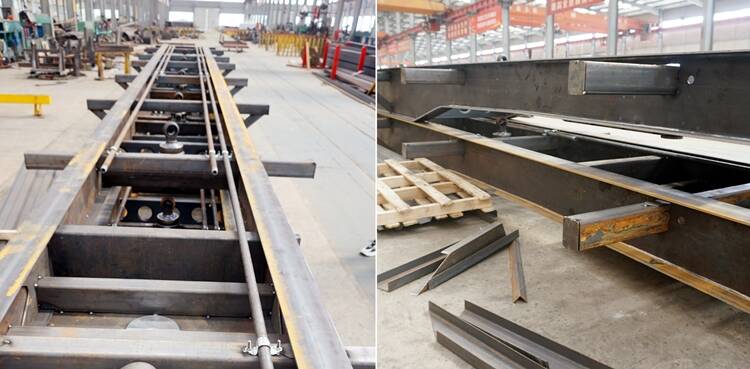

Production Process of 20 ft container trailer for saleProduction Process of 20 ft container trailer for sale

The TITAN range of 20 ft container trailer for sale has been specifically designed for rigorous wharf work throughout Africa. We offer our customers many different options to suit their needs and our range varies from single container carrying combinations to units that have the ability to carry containers in four different locations, from single trailers to B-Double combinations, two, three or four way skills, even custom built trailers. Whatever your requirement TITAN 20ft container trailer can meet all your loading needs.

We also offer a large range of 40ft skeletal container trailer chassis specification options, from different types of suspension to axles sizes, aluminum to steel wheels, lengths and widths to bare bone main rail trailers, the options are endless.



1.10 How much does a container chassis cost?

The cost of a container chassis can vary depending on several factors such as its size, brand, condition (new or used), and any additional features or specifications. In general, a new container chassis can range from around $7,000 to $15,000 or more.

Several factors can determine the price of a container chassis, including:

1. Size: The size of the container chassis, whether it's designed for 20-foot or 40-foot containers, can impact the price.

2. Brand: Different brands have varying levels of reputation, quality, and market demand, which can influence pricing.

3. Condition: New or used chassis will have different price ranges. Used chassis tend to be more affordable, but their price can vary based on factors such as age, wear and tear, and maintenance history.

4. Features: Additional features or specifications, such as suspension type, braking system, weight capacity, tire condition, twist locks, and sliding axles, can affect the price. Chassis with more advanced or specialized features may be priced higher.

5. Market Demand: Factors like supply and demand, regional market conditions, and industry trends can impact the price of container chassis. Prices can fluctuate based on market dynamics.

6. Customization: If the chassis has been customized or modified to meet specific requirements or applications, the price may be adjusted accordingly.

It's worth noting that prices can also be subject to currency exchange rates, inflation, and other economic factors. Please contact us for an accurate quote.


1. What is container semi trailer?

Container skeletal trailer is specially designed to carry various cargo containers.

Intermodal chassis for sale includes 20ft cargo container trailer, 40 feet container trailer, 45 foot container trailer chassis for sale and other types intermodal container chassis. It is dedicated to transporting containers. It contains two kinds of Container skeletal trailer for long distance transportation and the terminal trailer for port transportation.



2. What are the types of container trailer chassis?

There are five common types of combo chassis trailer: 20 ft container trailer for sale, tri axle 40ft skeletal trailers meaning, 45ft container chassis, terminal trailer and superlink trailer.

TITAN can customize trailer skeleton dimensions and height from ground, just need tell us your requirements: used container chassis for sale near me specs, tires, parts.

Locks, 40 foot container trailer is equipped with 12 sets of locks, which can be used to transport a 40 foot container or two 20 foot containers, or a 20 foot container alone.

used container chassis for sale near me

3. How to choose a good multi function china skeletal trailerss?

How to judge the quality of a skeleton container trailer? The easiest way is to look at the weight of the used container chassis for sale near me. The heavier a cargo container trailer, the better the quality. The tri axle chassis for sale purchased by African customers weighs 7 tons. If the weight is only 6.3 tons, the cost of this trailer skeleton can save more than $ 800.

Here are a few more important points below:

(1) Frame of container transport trailer.

The container trailer chassis frame part is the main load bearing part, which is composed of beam, side beam and floor.

The thickness of the 20 ft container chassis for sale beam part depends on whether the thickness is an international standard. The international standard for the frame of the skeleton car is 14/8/16 mm. The intermodal trailers material of the steel plate in the middle of the trailer skeleton beam is Q345B or manganese steel with a thickness of 8mm. Many unreliable suppliers will use 6mm Thickness beam slabs to save costs, but the carrying capacity was reduced by 26%. The international standard thickness of the middle part of the beam must be 8mm.

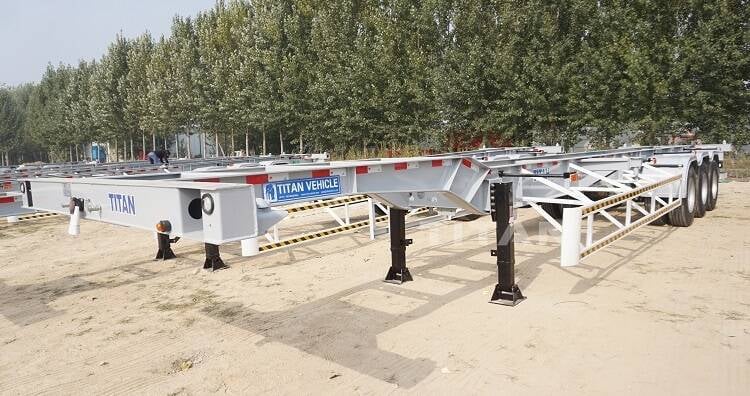

40ft skeletal container trailer chassis

(2) Axle of the skel trailer.

The axles of the 12m multi function china skeletal trailer for sale are divided into three types: 13 ton coil carrier trailer axles, 13 ton axles + 16 ton container skeletal trailer brake system axles, 16 ton axles.

The axles of the skeleton trailer for sale are 13 ton container skeletal trailer axles + 16 ton brake system axles. The braking performance is better, and the braking distance is shortened by more than 5 meters.

(3) Tire of the skeleton container chassis.

The intermodal chassis for sale uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.

The TITAN skeleton trailer for sale uses factory-made, wear-resistant tires. On Chinese highways, TITAN intermodal chassis for sale tires can reach more than 300,000 kilometers.

(4) Suspension of skeleton trailer.

The suspension of the TITAN combo chassis is made of special high-strength rigid steel, with a thickness of 6mm. The middle pin is 70mm in diameter. Stronger than suspensions in many factories.



4. Intermodal trailers for sale package and transportation.

Many customers use the method of container transportation, which has low transportation cost and short transportation time.

Some customers choose bulk carriers or ro-ro ships. Before the TITAN superlink trailer is shipped, the vehicle is sprayed with wax and covered with a tarpaulin.

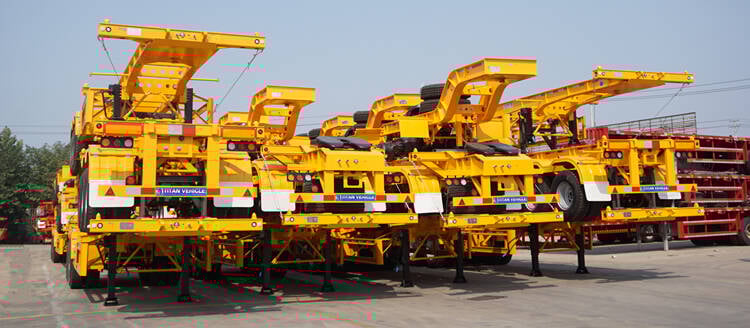

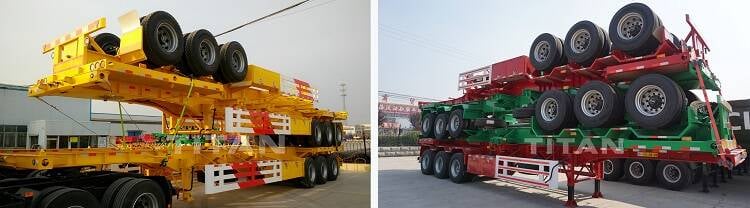

Package of superlink trailer

5. Uses and characteristics of skeletal trailers

  Container chassis trailer is currently the more commonly used type of semi trailer, but many friends do not know it well. What is the purpose of the container? When the container is in the transportation process, it only needs to be reloaded instead of inverted. This simplifies the loading, unloading and handling operations to a large extent, and facilitates the realization of mechanized loading, unloading and loading and unloading. It usually only takes a few minutes to replace a container, which reduces the waiting time for loading and unloading, improves labor productivity, speeds up the turnover of goods and transportation, and reduces cargo damage and cargo balance.

4 axle skeletal trailer4 Axle Skeletal Trailer with Air Suspension

4 axle skeletal trailer details4 Axle Skeletal Trailer Details

  The container skeletal trailer is a semi trailer that can transport containers and non-dangerous goods tank containers. The subjective structure of this vehicle is straight beam type or front neck small gooseneck type. It is mainly used in the logistics system of ships and multimodal transportation to support ports, routes, highways, transfer stations, bridges and tunnels. The container skeletal trailer has reasonable structure, high strength and beautiful appearance design. A container compaction device is installed on the frame, which can load two 40ft and 20ft standard containers. The four container shrinking devices at the front and rear are fixed structures, while the middle container shrinking device is a concealable structure. The container semi trailer has stable quality and reliable performance. Specially used for the transportation of various containers, it can be reused for a long time, and has sufficient strength, it can be quickly loaded, unloaded and transported, and it can be directly and conveniently changed from one transportation method to another transportation method.

4 Axle skeletal trailer4 Axle Skeletal Trailer Drawing

  Container skeleton trailer is a special transport semi trailer used to transport containers. In the early stage of the development of container transportation, due to the small load and the small number of containers, ordinary trucks were used to carry them. With the rapid development of container transportation, many countries have successively developed vehicles specially used for transporting containers. The container semi trailer determines the size of the loading position according to the size of the standard container, and is set at the position relative to the four corners of the bottom end of the container. Twisting and locking device for fixing containers, specially used for transport semi trailers for transporting containers.

  The four corners of the loading position are equipped with twist-lock devices to fix the container. Generally, semi-suspension, full-suspension and double-suspension styles are used, and most of them use semi-suspension styles. The characteristics of the container semi trailer should have the following conditions: it can be quickly loaded and unloaded, and it can be directly and easily changed from one mode of transportation to another. This kind of transportation method can directly replace the goods during the intermediate transportation process without moving the goods in the packing box, which is conducive to the loading and unloading of the goods, can be reused for a long period of time, and has sufficient strength.



6. Container Chassis Loading

40Ft Container chassis loading refers to the process of loading cargo containers onto a chassis, which is a specialized trailer used for transporting containers over the road.

The following are the general steps involved in 40ft Container chassis loading:

1. Position the container chassis: The chassis is positioned in a suitable location, usually at the loading dock of a warehouse or terminal.

2. Inspect the 20ft container chassis: The chassis is inspected for any damage or defects that may affect its safe operation.

3. Align the container: The container is aligned with the 40ft container chassis and positioned over the locking pins.

4. Lower the container: The container is lowered onto the 20ft container chassis and the locking pins are engaged to secure it in place.

5. Secure the container: The container is secured to the chassis using twist locks, which are devices that lock the container to the chassis and prevent it from shifting during transport.

container chassis loading

Container Chassis Loading



6. Check the load: The load is checked to ensure that it is properly distributed and balanced on the container chassis for sale.

7. Verify safety: The safety of the load is verified by checking the weight and height of the container to ensure that it does not exceed the legal limits for transport on the road.

8. Complete documentation: The necessary paperwork, such as bills of lading and shipping manifests, are completed to document the shipment and ensure proper tracking and delivery.

Overall, 40ft container chassis for sale loading is a crucial part of the logistics chain for transporting goods and requires careful attention to detail to ensure safe and efficient transport of cargo containers.



Welcome to leave your inquiry!

We will meet the acme of perfection to serve and provide more details, price, catalog, drawing, videos for you!

Review

Amos Adjah Tetteh from Ghana - 2021-12-08T14:12:33+0800
I am very satisfied with this skeletal trailer. The price-performance ratio is relatively high. The merchant also gave away rain cloths. Thank you very much. I am very lucky to be able to buy such a good trailer.
Richard Majosan from Zambia - 2021-12-02T19:12:25+0800
Recommended by my friend, I buy a skeletal trailer, I made a correct choice and all aspects of the trailer met my requirements.
Wayne from Mauritania - 2021-11-23T17:11:57+0800
I used it skeletal trailer for half a year after I bought it, and then I recommended it to a friend, and I look forward to receiving the trailer in a while.
Ollie from Maritania - 2021-11-22T16:11:03+0800
If you are looking for a good skeletal trailer, I really think you'll be happy. If anything, you can be assured it'll be a quality product.
Alfonso Cabezas from Ecuador - 2021-11-17T11:11:48+0800
I bought a 40ft skeletal trailer last year. Not as big as I expected, but more convenient, easy to use. The seller is very responsive. Recommended.
Anyi from Nigeria - 2021-11-04T17:11:28+0800
At first I felt that the price of this skeletal trailer was a bit high, but the sales service attitude was very sincere. And I also felt that he was not bragging about the quality of the semi-trailer. I received this skeletal trailer and found that it was covered with rain cloth. I feel The intention of the company is great!
Mutasa from Mauritius - 2021-10-28T17:10:27+0800
Fast Delivery. Well packed. Everything perfect so far. I will update more for skeletal trailer.
Check More Customer Reviews

Feedback

whatsapp
chat
