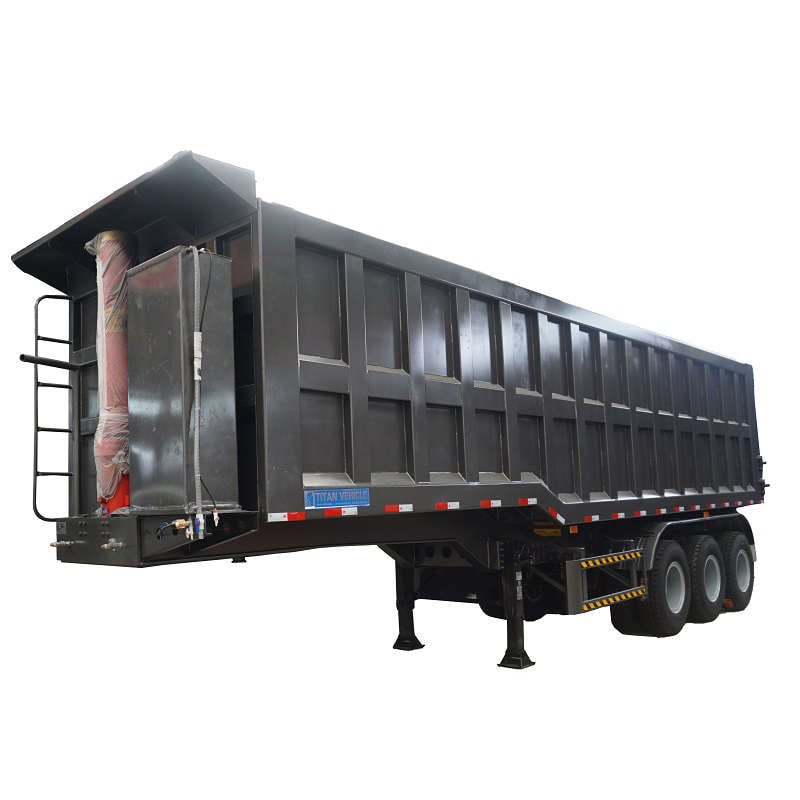

35cbm End Dump Trailer
35cbm End Dump Trailer

35cbm End Dump Trailer

35cbm End Dump Trailer for Sale adopts high strength steel T700, TITAN provides different types of End Dump Trailers.

Product description:

35cbm End Dump Trailer for sale adopts high strength steel T700, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability.

End Dump Trailer for sale adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

35cbm End Dump Trailer for Sale in Zimbabwe

35cbm End Dump Trailer for Sale in Zimbabwe

35cbm End Dump Trailer for Sale in Zimbabwe

Details of end dump trailer

35cbm End Dump Trailer for Sale in Zimbabwe



End dump trailer Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
