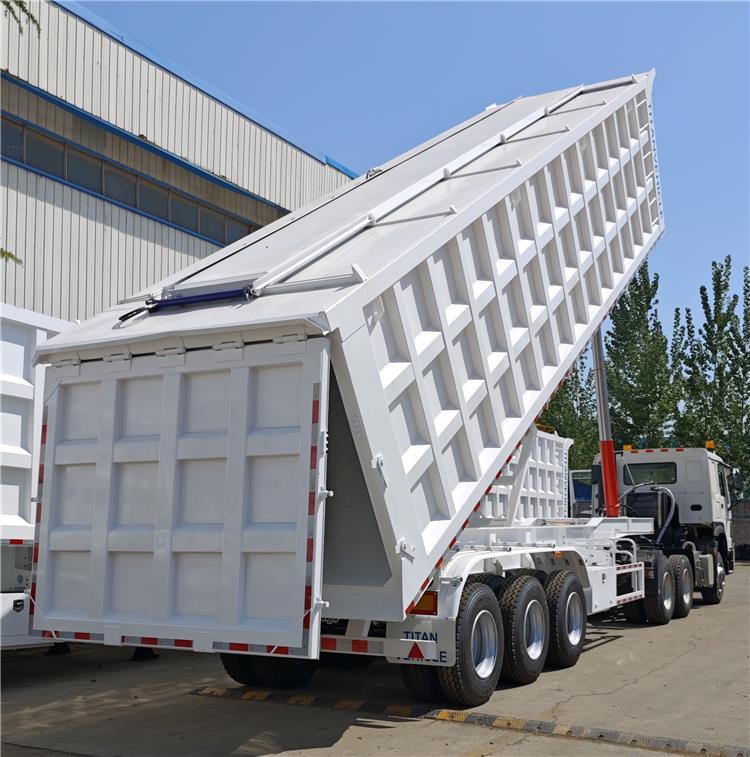

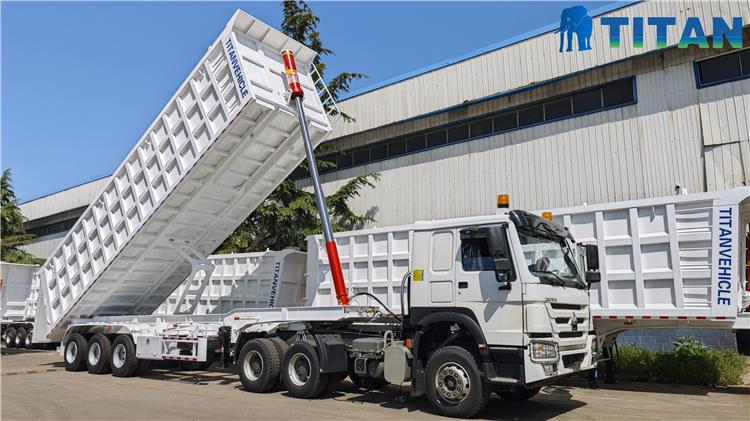

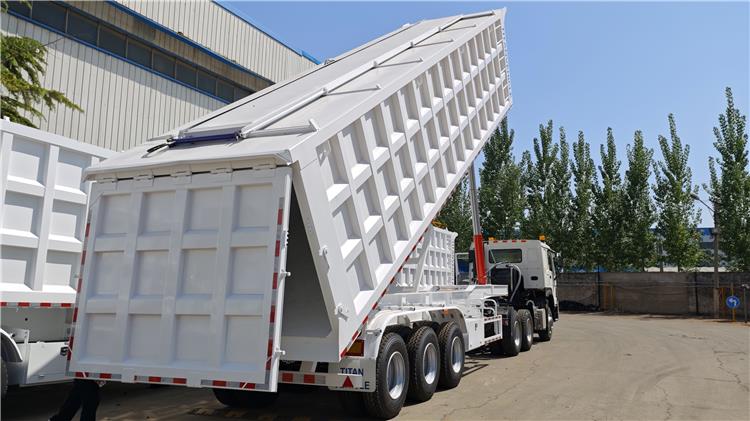

Dump Truck Trailer

Video of Dumper Trailer



2025 New Model Dumper Truck Trailer In Stock

Dump Truck Trailer Price: 15000 USD

TITAN factory's dumper trailer for sale Angola, backed by strong technical expertise, superior craftsmanship, and outstanding design philosophy, hold a prominent position in the powder transportation industry.

TITAN can customize according to your request 100%. TITAN dump truck trailer Angola produced by advanced industry design concepts and strong technical support.

The dump trailer for semi truck Angola appearance aligns with modern aesthetics, and the design is well-structured, ensuring a high customer repurchase rate.

Dump Truck Trailer | Dumper Trailer for Sale In Angola

Dump Truck Trailer | Dumper Trailer for Sale In Angola

Dump Truck Trailer | Dumper Trailer for Sale In Angola

2025 New Model Dumper Truck Trailer In Stock

Specification of Dumper Trailer

Dimension: 9000*2500*3950mm

Cargo body size: 8300 mm*2370 mm*1800 mm

Cargo body volume: 35m³ Loading Capacity 60 Ton

Material: Q345 high strength steel

Axle: 3 Axles, 13ton; 16 ton braking pad

Hydraulic system: Heavy-duty hydraulic cylinder

Tires: 12R22.5, 12 units TITAN Brand

Suspension: mechanical suspensions

Leaf Spring: 10 pcs

Brake System: WABCO brake system

Landing Gear:  JOST 100 (optional)

Light: LED light

Surface Coating Sandblast, anti-rust chassis surface, primer application and top-coat painting

2025 New Model Dumper Truck Trailer In Stock

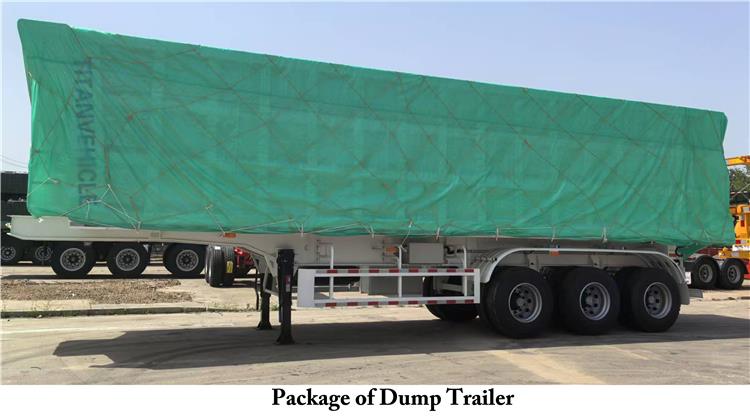

Package of Dump Truck Trailer

Dumper trailer for sale angola are usually shipped in bulk. Titan would first spray the dump truck trailer angola with a thick layer of wax and then cover the body with a rain cloth to reduce seawater corrosion to the dump trailer for semi truck angola.

2025 New Model Dumper Truck Trailer In Stock

Advantage of Dumper Trailer

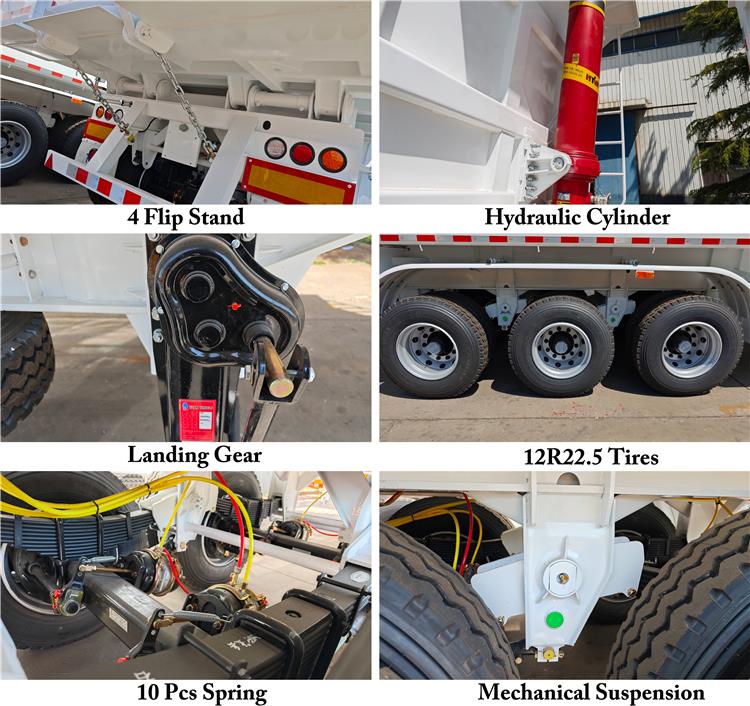

The dumper trailer for sale Angola main beam features a double-plate design, which increases the load-bearing capacity, enhances structural stability, and reduces the risk of damage, making it ideal for heavy-duty transport.

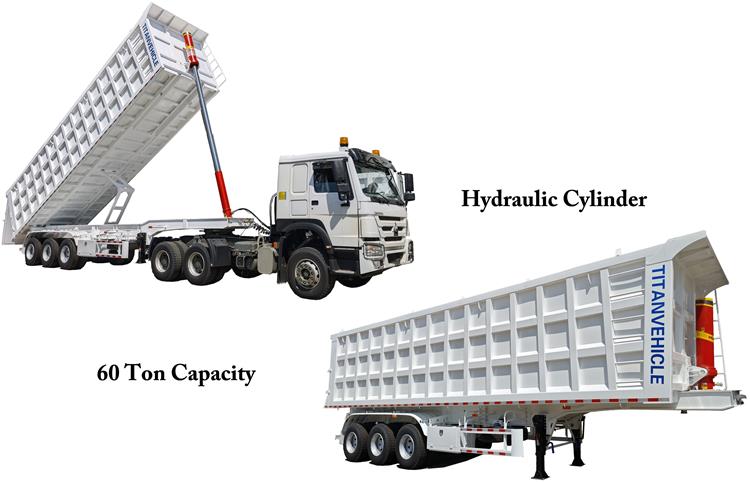

Equipped with a larger diameter heavy-duty hydraulic cylinder, it offers stronger lifting capacity and higher lifting height, ensuring a smoother unloading process and reducing the risk of rollover. The HYVAL hydraulic cylinder is your optional choice.

Dump truck trailer Angola made of HG60 high-strength steel, the material has high hardness, effectively preventing collisions and avoiding deformation of the cargo box, ensuring long-term durability. Four vice beams enhance the bottom's load-bearing capacity, preventing deformation.

The dump trailer for semi truck Angola cross balance beams at the front and rear of the main beam increase support strength and prevent deformation.

Four flip brackets ensure the load is distributed evenly at the rear during unloading, reducing the risk of damage and improving the dumper trailer for sale Angola stability and service life.

The widened and thickened leaf springs provide excellent shock absorption. The wider suspension system and larger center pin design improve driving stability, making the trailer suitable for more complex road conditions.

The supports are spaced only 50 cm apart, and the bottom is additionally reinforced to provide superior load-bearing strength, ensuring the dumper trailer for sale Angola maintains its structural integrity over long-term use.

The supports are spaced only 50 cm apart, and the bottom is additionally reinforced to provide superior load-bearing strength, ensuring the dump truck trailer Angola maintains its structural integrity over long-term use.

The dump trailer for semi truck Angola rear door is equipped with double locks and reinforced at five points, preventing deformation during transport and ensuring the safety of the cargo.
