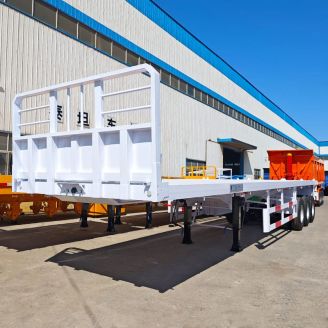

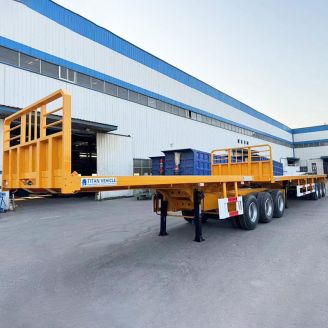

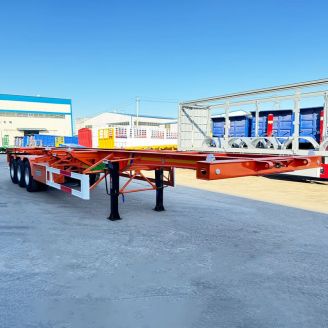

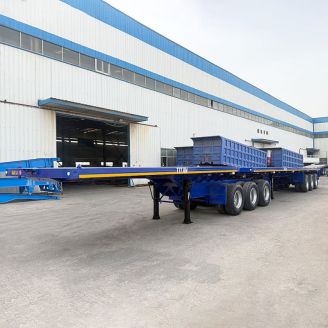

Flatbed trailers are special trailers for transporting containers. The size of the flatbed trailer loading area is determined according to the standard container size, usually 20 ft and 40 foot container. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.
The function of a 40 ft flatbed trailer is made possible through its structure’s design and manufacture. Basically, it is a transport equipment mainly of a steel construction defining its frame. It also comprises a lighting system, brakes and tires. It is carefully designed to desired heights and weight capacity to safely load and transport containers from one location to another. Use flatbed container trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing trailer or boat on the way, there is no need to take the goods out of the box and change them.
What size does the flatbed trailer have?

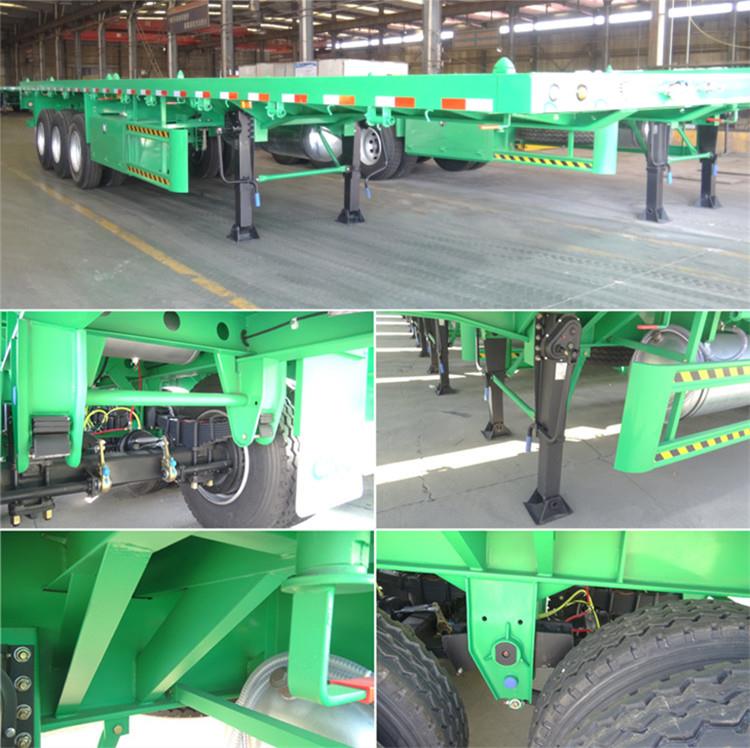

TITAN flatbed trailer for sale in Ghana, 40ft is the most popular model.

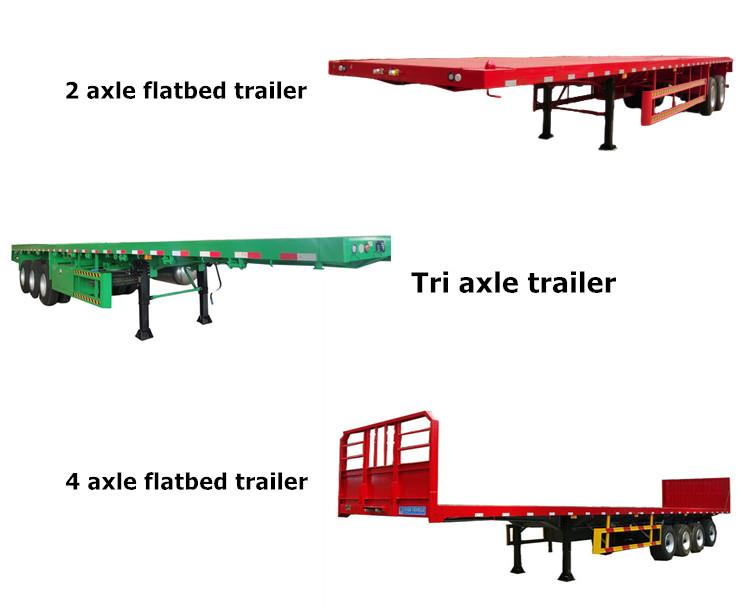

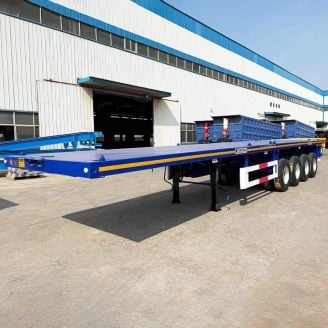

40 ft flatbed semi trailer has 3 types according to the number of axles, which are the 2 axle 20 foot flatbed trailer, tri axle 40 ft flatbed semi trailer and 4 axle 45 ft flatbed trailer. Depending on the number of axles, the weight that the flatbed semi trailer can carry is different.

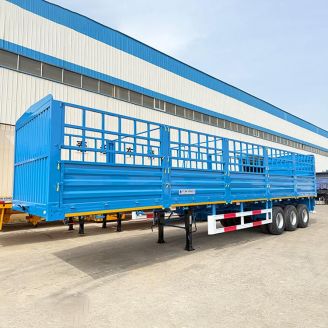

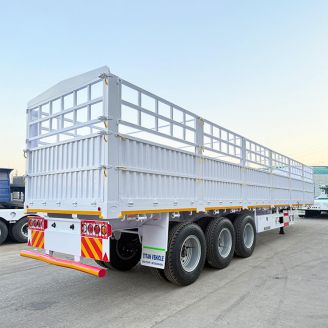

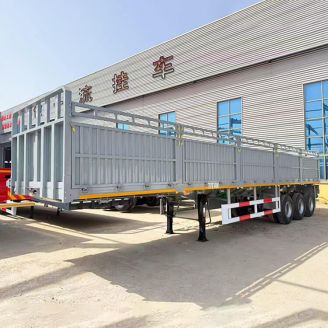

For the types, we can also make the flatbed with side wall, side panel with fence, or with front board, or with columns to load the logs.
TITAN flatbed trailer can be customized according to customer requirements.

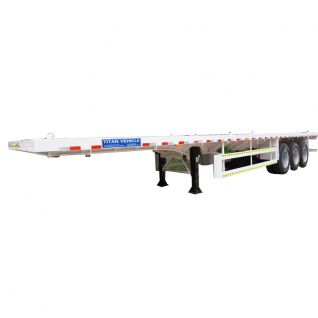

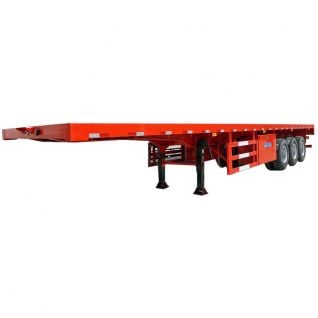

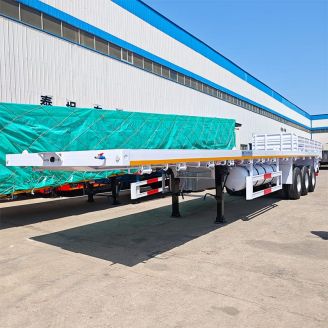

Details of tri axle flatbed trailer for sale in Ghana

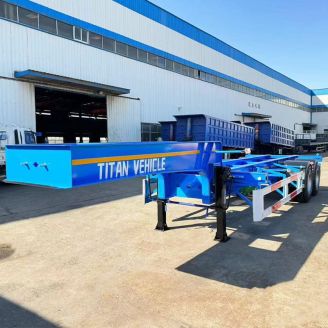

20 foot flatbed trailer dimensions: 7000*2500*1550 mm
40 ft flatbed trailer dimensions: 12500*2500*1530 mm
45 ft flat semi trailer dimensions: 13800*2500*1530 mm
48 ft flatbed trailer dimensions: 14900*2500*1530 mm
53 ft flatbed trailer dimensions: 16200*2500*1530 mm
TITAN's standard 3 axle 40 ft flatbed trailer price is 12,000 USD.
Of course, we will change or add some configurations according to the customer's situation and needs, so the final price may be different. Here are some points to pay attention to when purchasing a flatbed container trailer.
1. Transport: We generally use flatbed semi trailers to transport containers or other cargo. We need to determine whether flatbed semi trailers can do your job. You can tell us the goods you need to transport. We will provide you with professional advice.
2. Long-term use: Some customers tell us in the communication that the work may only last for a while, then we will relatively recommend the use of some cost-effective configuration, if some need to be used for a long time, we will relatively recommend some better quality configuration, to ensure that the flatbed semi trailers life longer.
3. Roads: How are the roads in your country? For many inexperienced people who may not know, if the country’s road conditions are not good, we need to make adjustments to ensure that the flatbed semi trailers can work better.

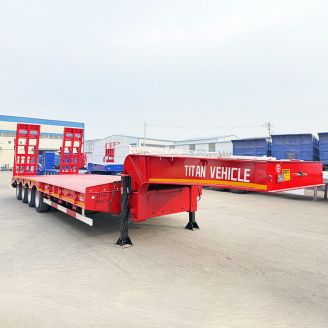

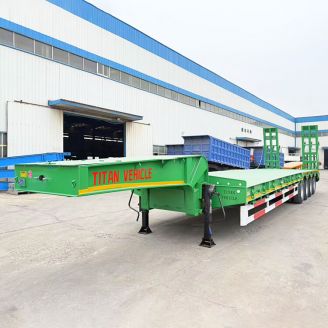

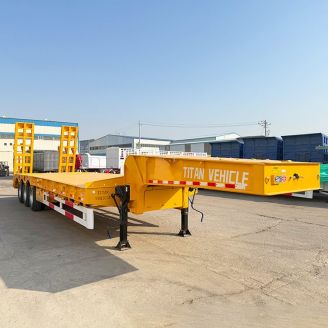

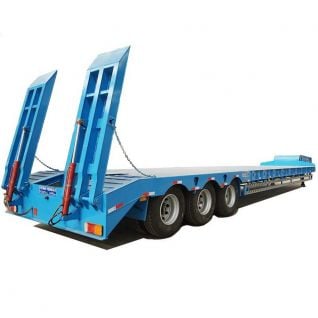

Low bed trailer are usually used to transport a variety of machinery and equipment, heavy equipment, highway construction equipment, large tank body, power station equipment, and various excavators, and are used to transport heavy vehicles (such as tractors, coaches, Subway truck head, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy-duty cargo.
The lower the platform height of the low bed trailers, the better the stability and safety. Our low bed trailer for sale has a large carrying capacity when transporting extra high and medium cargo. TITAN semi low bed trailer height from ground is usually 1300mm. If you have special needs, we can also customize it for you.

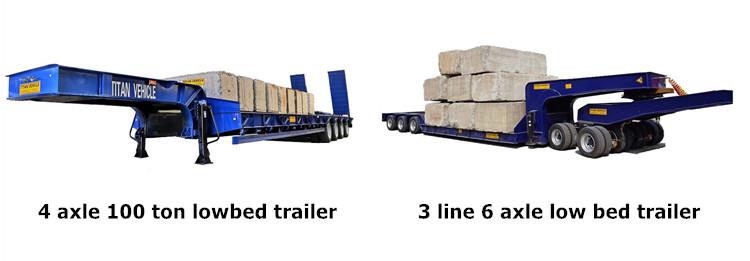

Different types of low bed trailer for sale in Ghana:
1. Common low bed trailer
This normal-type low bed trailer is the most popular type low bed trailer with a loading capacity from 40-80 tons, like 3 axle low bed trailer, 4 axle lowbed trailer, 2 axle low bed trailer, model for 13-20 ton axles. Usually equipped with the spring ladders for the machines such as the wheel loaders, excavators, or some different types of wheeled machines transportation. The high of the working platform is various from 1000mm to 1200mm.

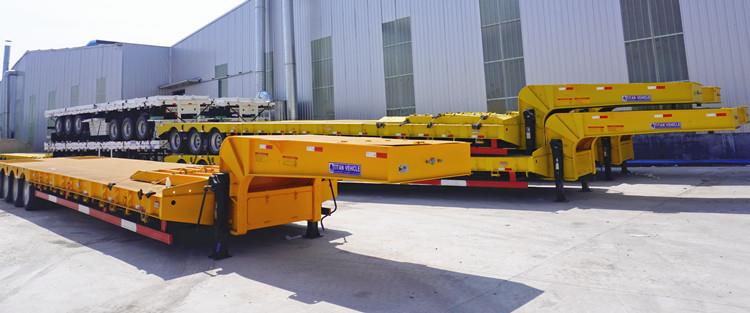

Low bed trailers for sale in Ghana
2. Heavy load semi low bed trailer
Heavy load low bed trailer is almost the same as the common low bed trailers, only comes with a higher loading capacity normally from 80 tons to 120 tons. This type of low bed trailer is a cost-effective type, usually used for those countries which don't have the special requirements on the axles load and the off-road working environment.
3. Dual lane axles low bed trailers
The main specification for the dual-lane low bed trailer is its axles. The dual-lane axle low bed trailer equipped with the short axles, each line has two short axles with 8 sets of tires and rims. This type of low bed trailer is usually used for super heavy equipment transportation.
The working platform length will be designed according to the machines that will be transported, tire covered, or exposed types. The entire cargo platform is straight and above the wheels. The upper space of the overlapping part of the tractor and the excavator trailer is fully utilized so that it has a large cargo platform area.
2 axle low bed trailer price dimensions: 11500*2500*2900mm
3 axle low bed semi trailer dimensions: 13000*3000*3400mm

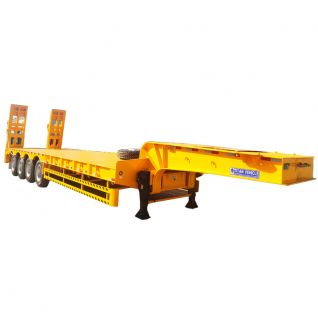

4 axle lowbed trailer for sale dimensions: 15800*3000*3400mm
The 2 axle low bed trailer length: 11500mm
The 3 axle low bed trailer for sale length: 13000mm
The 4 axle low bed trailer price length: 15800mm
2 axle low bed trailer capacity: 30-40 ton
3 axle low bed trailer price capacity: 50-80 ton
4 axle lowbed trailer loading capacity: 90-120 ton

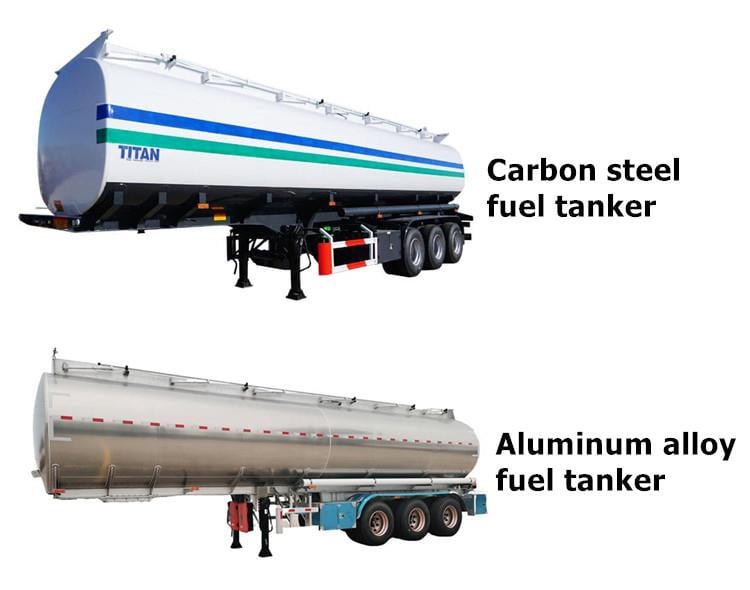

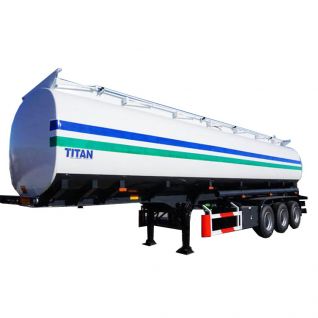

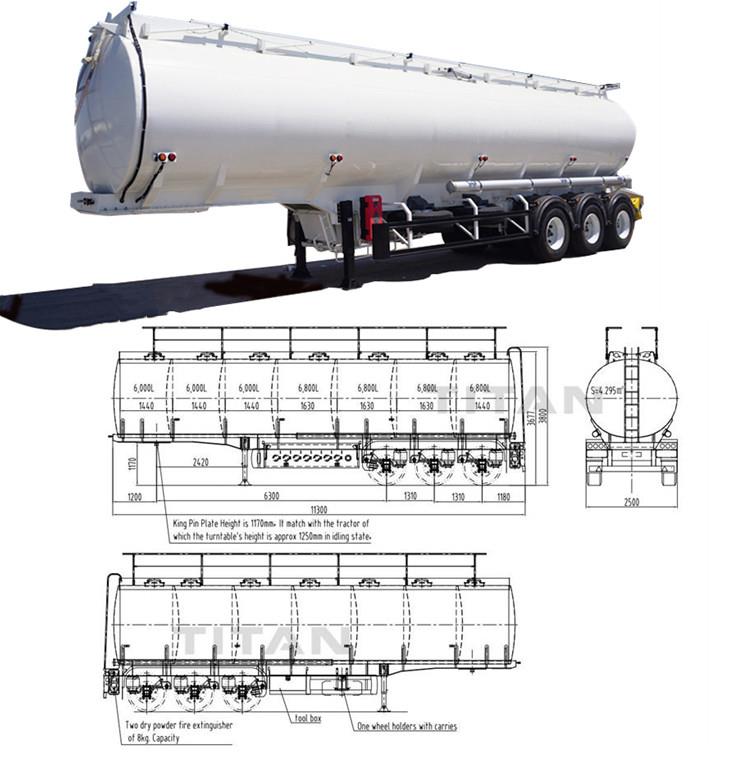

Fuel tanker trailers are specialized vehicles that transport liquid fuels. The tank body is generally made of carbon steel sheet, and it can also be made of aluminum alloy fuel semi trailer, stainless steel tanker for sale, polyethylene and other materials. These fuel tankers are designed specifically to contain and safely transport fuels like petrol, diesel, and even heavy fuel oil (HFO).
Many fuel tanker can be capable of transporting various liquids simultaneously with multiple compartments. These tankers could use typically two, three, four, five, and sometimes six compartments and are capable of transporting a variety of liquids, including fuels such as different gasoline grades, diesel, and industrial chemicals. Each product has a different density, which alters the tanker's maximum carrying capacity.
Whether it is a steel fuel tanker or aluminum, When it comes to the amount of fuel to be transported, the thickness of the fuel tanker trailer is the next factor to consider. If you want to transport big amount of fuel, then remember that fuel tanker with a large capacity need thicker material plates to work under pressure and most importantly, keep the fuel tanker trailer safer.
More fuel exerts more pressure and therefore, you need to compensate that with the right wall thickness of your fuel tanker. This is especially in the event of an accident occurring on the large capacity tank.
Fuel tanker trailer uses Q235 low carbon alloy steel to make the tanker, the thickness of the tank is 5mm thick, which is very strong. Fuel tank trailer thickness is typically around 0.195 inches. These are ISO-compliant dimensions. Equipped with a thickened wave-proof board to reduce the impact force of the liquid on the tank.
A fuel tanker trailer height: 1450-1800mm, 4.7-5.9 feet. A typical oil tanker semi-trailer has a length of 42.64 feet, a width of 8.2 feet and a depth of 12.14 feet.
The length of the fuel tanker trailer is between 11000mm and 15000mm, and the life of the fuel tank trailer is about 6 years, so it needs to be replaced. If the maintenance is better, it can be used for a longer time. Fuel tank trailers come in a wide range of shapes and sizes. While there are many sizes, some adhere to standards set by the International Organization for Standardization (ISO), which supplies typical tanker sizes that are considered safe. We provide various fuel tank trailers for sale. According to your different use, we can provide you with suggestions based on your different user needs.
According to clients' requirements, we can customize different volumes and compartments. Fuel tanker for sale in Ghana size can be designed as 2 compartment, 3 compartments, 4 compartment etc and fuel tanker truck dimensions and size is optional.
Our fuel tanker trailer price is really good with high quality ensured. TITAN fuel tanker size, volume and compartment optional.

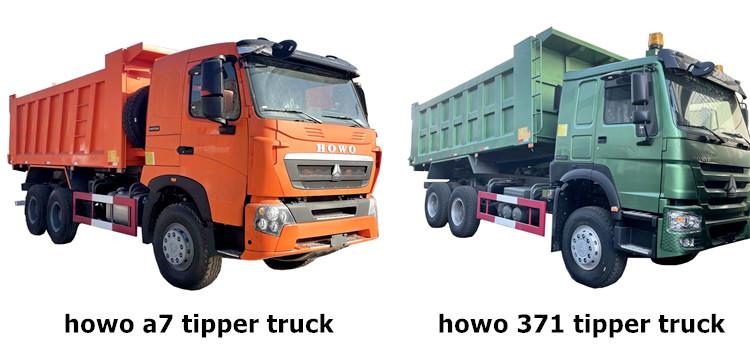

Sinotruk howo tipper truck own the elegant appearance, strong operation system and excellent safety. Howo tipper truck price has won the hearts of so many African customers due to its power, stability, and low cost of maintenance.
Sinotruk howo tipper truck is suitable for in harsh environments, unloading and transport ore and others. Since the Sinotruk howo tipper truck can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.
You can choose howo truck cargo body with front lifting type or middle lifting type which you prefered. The hydraulic sytem using HYVA brand or Domestic famouse brand. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
According to clients' requirements, we can customize different loading capacity and volume. We garrantee that everytruck is from sinotruk original factory with high quality and good after sale service.
Sinotruk howo 6x4 tipper truck:
Overall dimension: 9745*2496*3550mm
Cargo body: 5600*2300*1500mm
Sinotruk howo 8x4 tipper truck:
Overall dimension: 11745*2496*3550mm
Cargo body: 7300*2300*1500mm

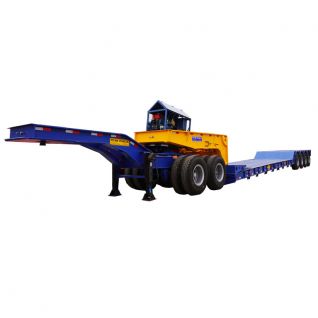

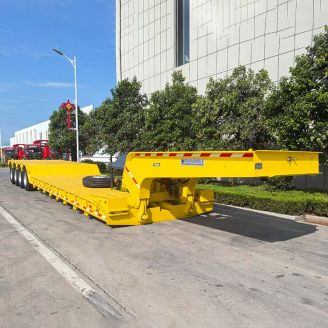

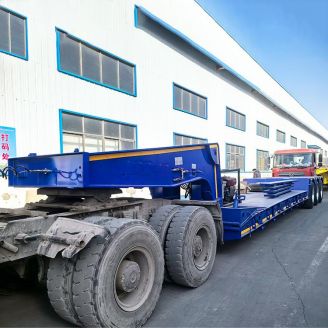

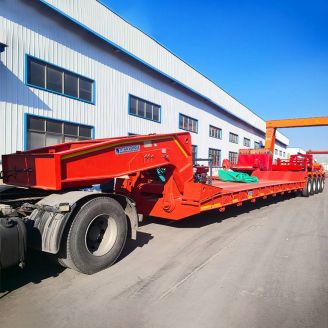

The detachable gooseneck trailer uses a concave beam type. Detachable gooseneck lowboy trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the lowboy trailer is restored to the original transportation state in time for transportation.
Common low bed trailer, should use the ramp behind the trailer for cargo loading. Yet, some large machinery and equipment, such as pile drivers, large rotary drills, large excavators, and large bulldozers, have very high centers of gravity due to their very high height. There is a great risk of later loading.
Loading method for gooseneck lowboy trailer: cargo is loaded from the front. Detachable gooseneck cargo table is very low, so the stability and security are very good. As you can see, the lowboy trailer for sale in ghana can transport ultra-high and ultra-large equipment and machine.
Cargo weight: Please select the correct model to transport your cargo. If you plan to transport more than 60 tons of cargo, please consider buying a gooseneck lowboy trailer.
The gooseneck lowboy trailer has a high load capacity and can transport heavy objects. In addition, the lower deck ensures that heavy objects remain stable during transportation.
Cargo dimension: It is important to consider the dimensions of your cargo when choosing a detachable gooseneck trailer model. Consider the width and height, especially if your country has height limitations for transportation vehicles.
When you need to remove the gooseneck from the tractor so that the gooseneck remains attached to the lowboy trailer frame. Secure the safety hook with a pin to fix the gooseneck in place and prevent the gooseneck from tipping forward.
1. Remove the positioning pin and the air pipe and wire connection.
2. As the gooseneck height decreases, the bottom angle of the front end of the gooseneck trailer lowers to the ground and rests on the ground. Once all the linkages have been safely removed, lower the cargo platform.
3. Drive the gooseneck with the truck and drive the tractor far enough away.
4. After driving off the truck, you can now load comfortably from the front of the detachable lowboy trailer platform.
Loading capacity(T): 60-80T
Axle: 3 axle
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
