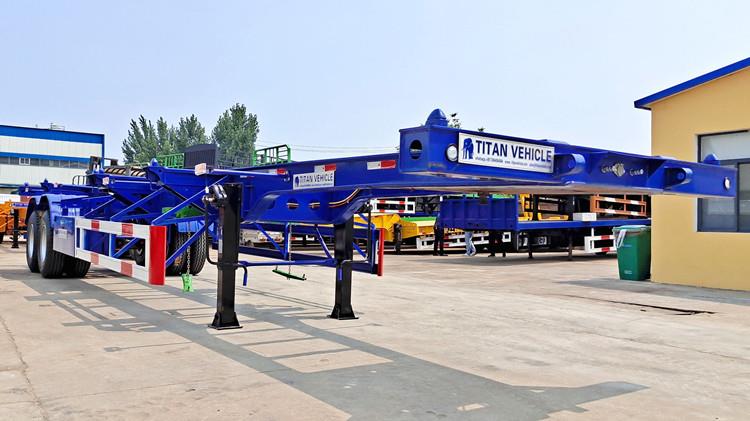

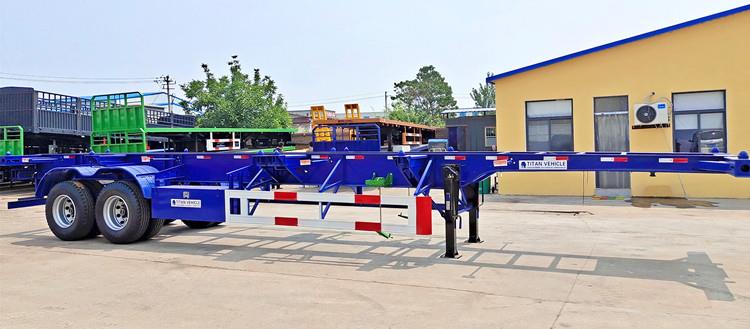

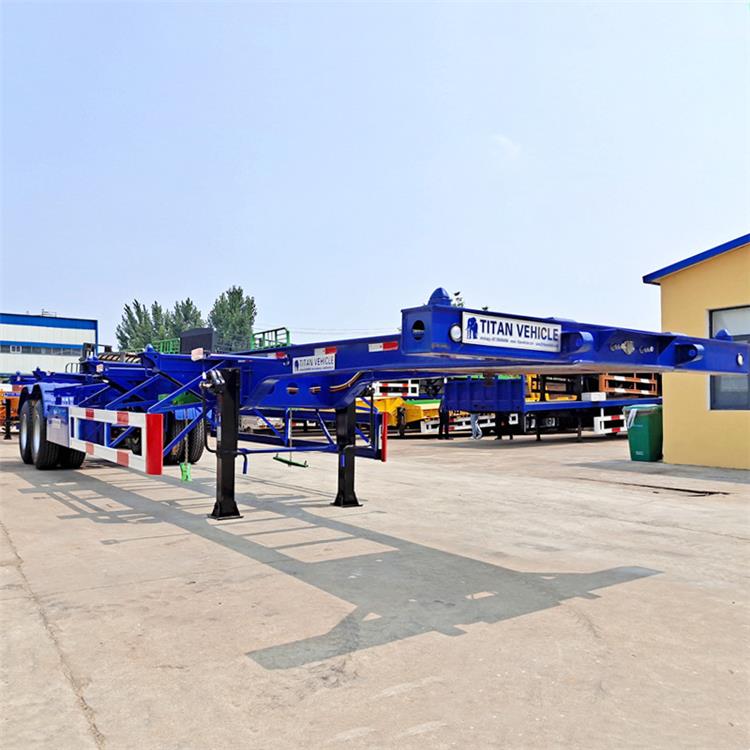

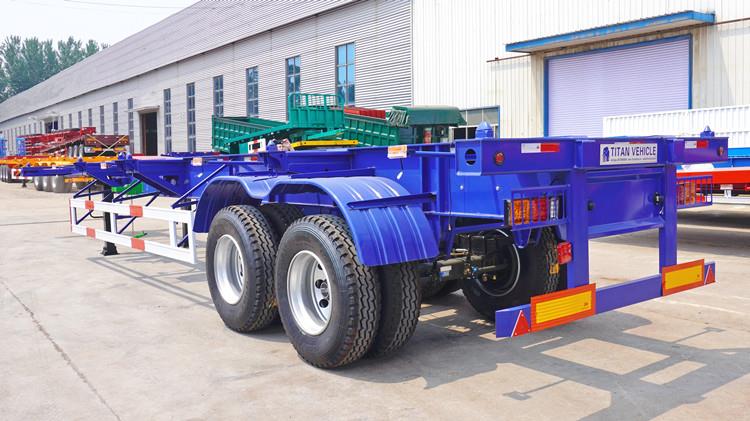

2 Axle Shipping Container Trailer

Shipping container transport trailer description:

Due to 40ft container trailer price application and use, TITAN shipping container trailer for sale is made of high-strength materials. It is a rugged structure designed to provide you with the services you need.

TITAN container semi trailer uses polyurethane paint, high adhesion, high chroma, beautiful color.

40ft Shipping Container Transport Semi Trailer for Sale Price

40ft Shipping Container Transport Semi Trailer for Sale Price

Details of 40ft shipping container trailer:

40ft Shipping Container Transport Semi Trailer for Sale Price

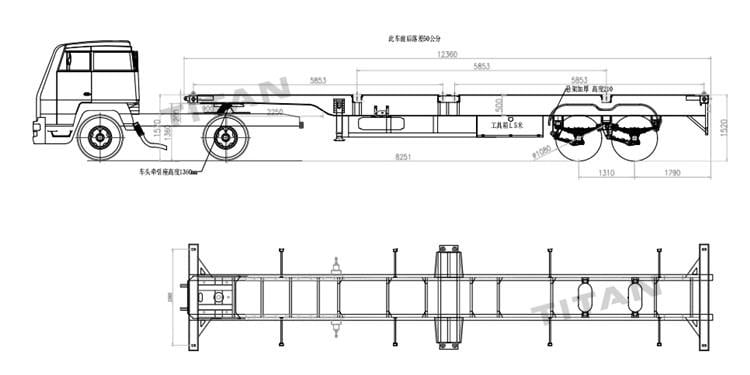

Specification of container transport trailer:

Dimension(mm): 12300x2500x1520mm

Loading capacity(ton): ≤60T

Axles: 2 axle

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

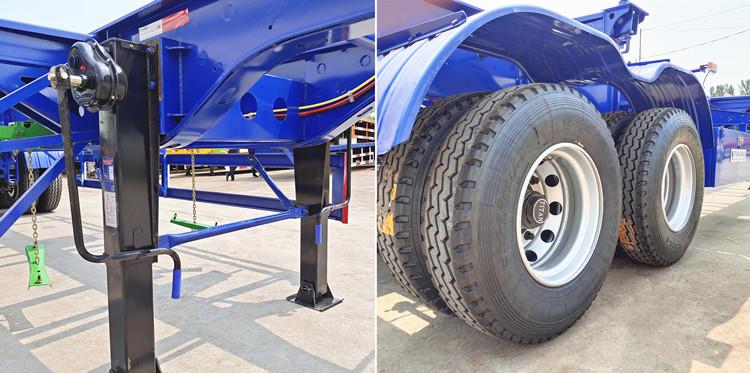

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

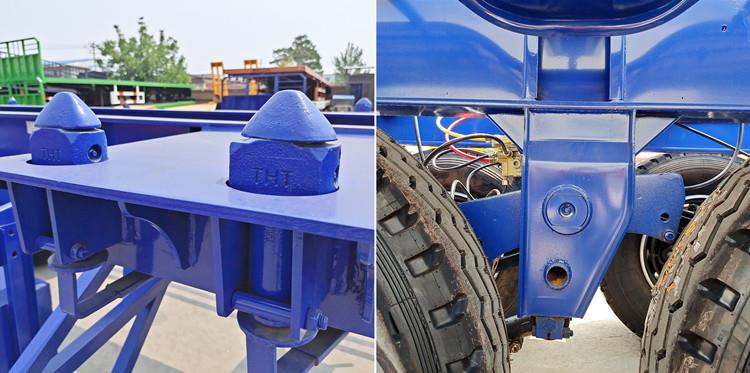

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

Shipment of shipping container trailer for sale:

Many customers use the method of container transportation, which has low transportation costs and short transportation time.

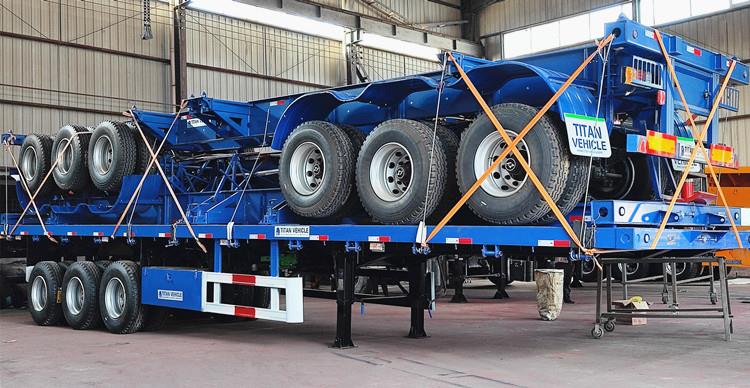

Some customers choose bulk carriers or ro-ro ships. Before the TITAN 40 ft container trailer for sale is shipped, the container semi trailer is sprayed with wax and covered with a tarpaulin.

Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Container Skeleton Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
