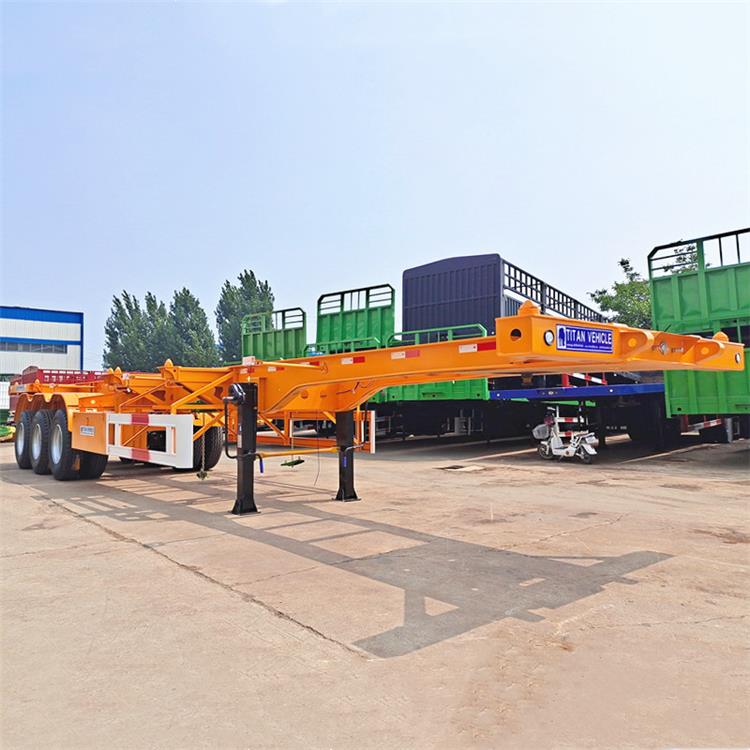

40 FT Intermodal Container Chassis

Tri axle chassis for sale description:

The TITAN range of 40 ft container chassis for sale near me has been specifically designed for rigorous wharf work throughout Africa. We offer our customers many different options to suit their needs.

40 ft chassis for sale is equipped with 12 sets of locks, which can be used to transport a 40 ft container or two 20 ft containers, or a 20 ft container alone.

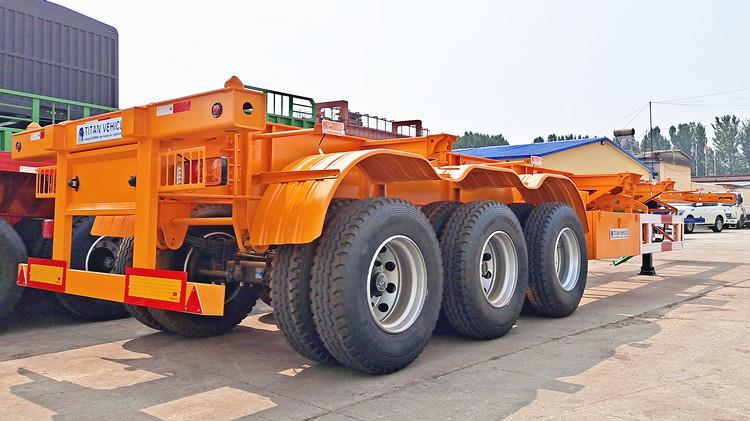

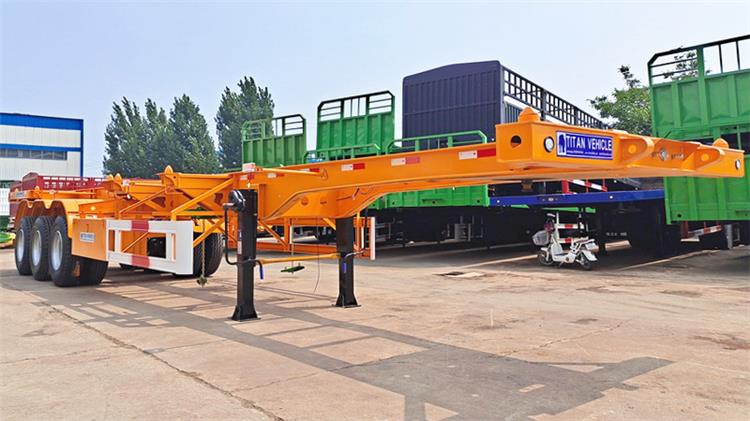

Tri Axle 40 ft Intermodal Container Chassis for Sale Near Me

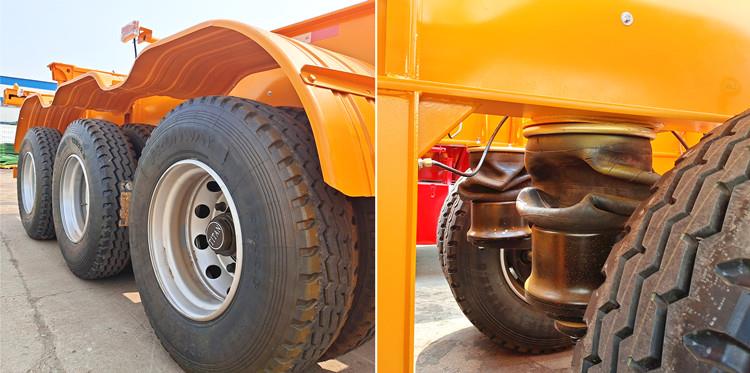

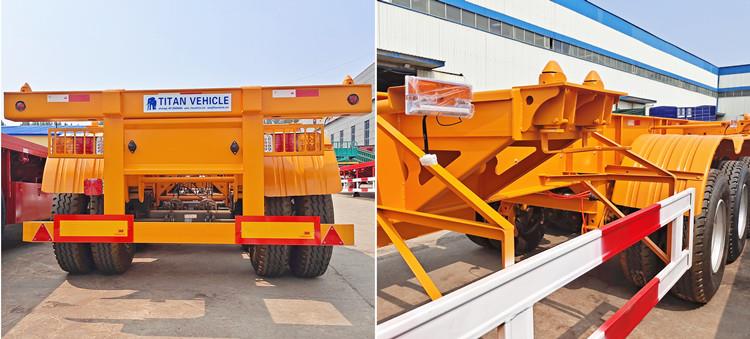

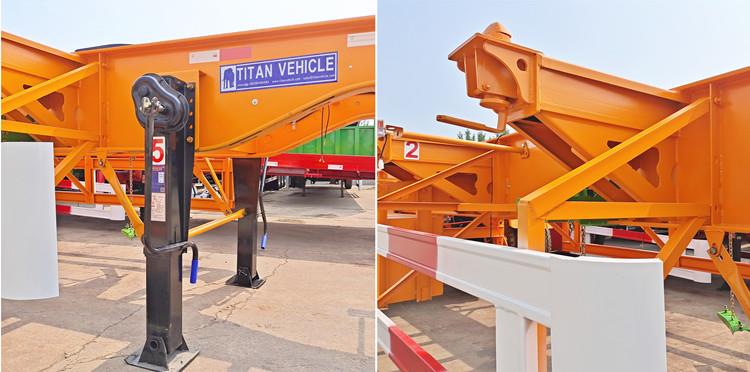

Details of tri axle chassis for sale:

Tri Axle 40 ft Intermodal Container Chassis for Sale Near Me

Tri Axle 40 ft Intermodal Container Chassis for Sale Near Me

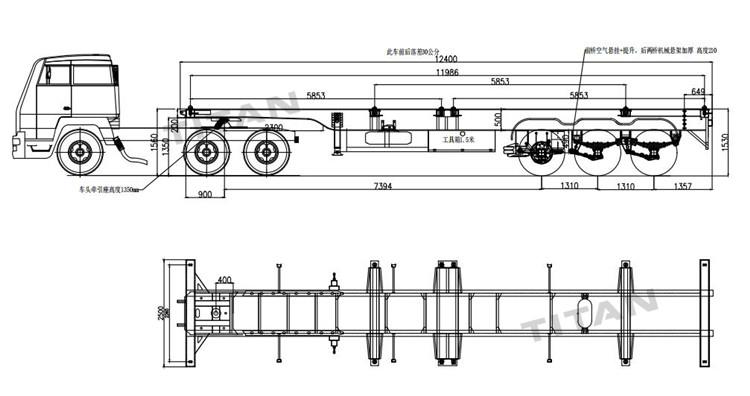

Specification of 40 ft container chassis for sale:

Dimension(mm): 12400x2500x1530mm

Loading capacity(ton): ≤60T

Axles: Tri axle container chassis price

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Air suspension and Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

Shipment of intermodal trailers:

Many customers use the method of container transportation, which has low transportation costs and short transportation time.

Some customers choose bulk carriers or ro-ro ships. Before the TITAN intermodal chassis for sale is shipped, the intermodal trailers are sprayed with wax and covered with a tarpaulin.

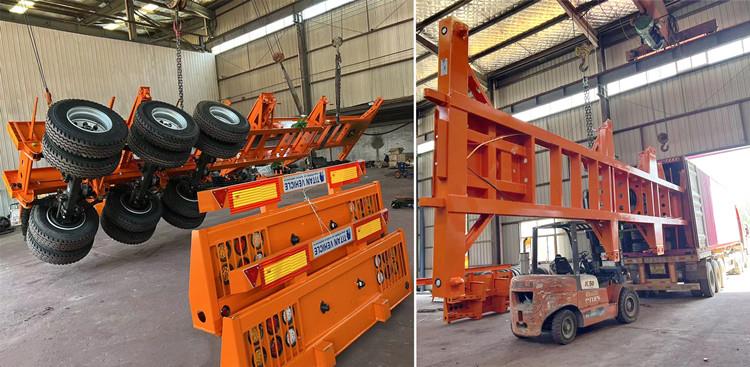

Package of tri axle container chassis price

Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Container Skeleton Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
