40ft Container Chassis Trailer
40ft Container Chassis Trailer

40ft Container Chassis Trailer

6700 USD

Different Parameters, Different Price. Price Reference Only.



40ft Container Chassis Trailer for Sale has a key role to play in the multimodal transport system. Various shipment options, require the use of a 40ft Container Chassis Trailer.

SKU: 40ft Container Chassis Trailer
GTIN: 06975766112530
MPN: TITAN9401040
Brand: TITAN

Product description:

40ft Container Chassis Trailer has a key role to play in the multimodal transport system. Various shipment options, including sea, air, road, and rail transportations, require the use as a 40ft Container Chassis Trailer. The vehicle is also commonly seen in the ports and tunnels, on the bridges, and at the interchange stations.

Goods are loaded into a container and leave the warehouse by way of a Container Chassis Trailer. When arriving at the interchange station, you can unload the whole container without the need to take out the goods from container.

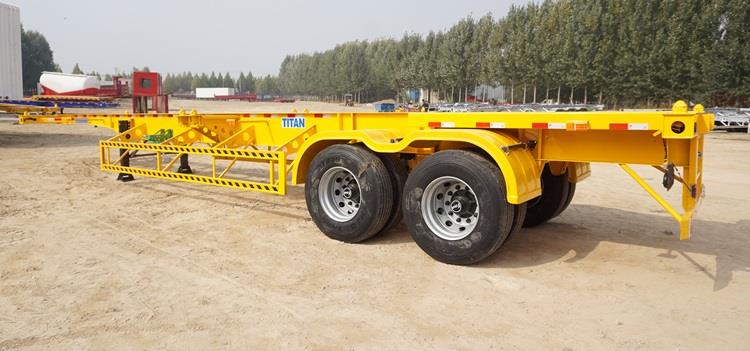

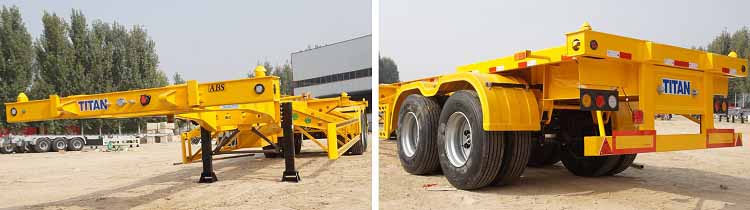

40ft Container Chassis Trailer for Sale

40ft Container Chassis Trailer for Sale

40ft Container Chassis Trailer for Sale



Container chassis trailer Specifications:

Dimension(mm): 12400x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
