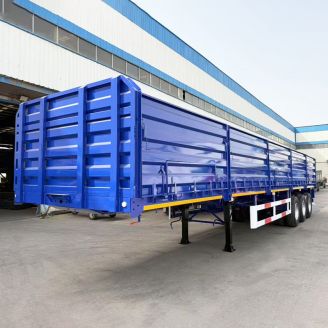

Tri Axle Sidewall Semi Trailer

Video of Side Wall Semi Trailer



Limited Time Discount on Sidewall Semi Trailer. Don't Miss the Opportunity!

Cargo Semi Trailer Price: 10500USD

Tri axle sidewall semi trailer for sale in Angola is a common freight vehicle with removable flatbeds around the body to facilitate loading and unloading of goods. Cargo semi trailer has a simple structure and strong load bearing capacity, and is widely used in medium and short distance bulk and irregular cargo transportation.

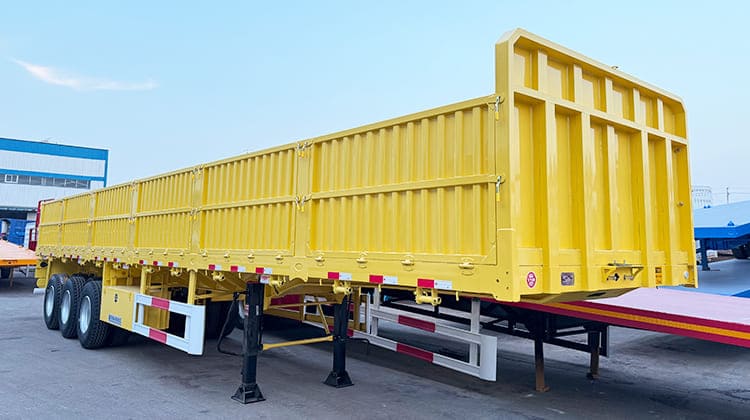

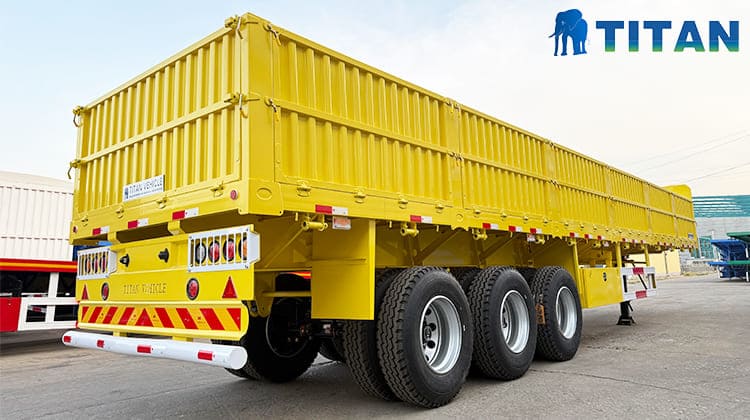

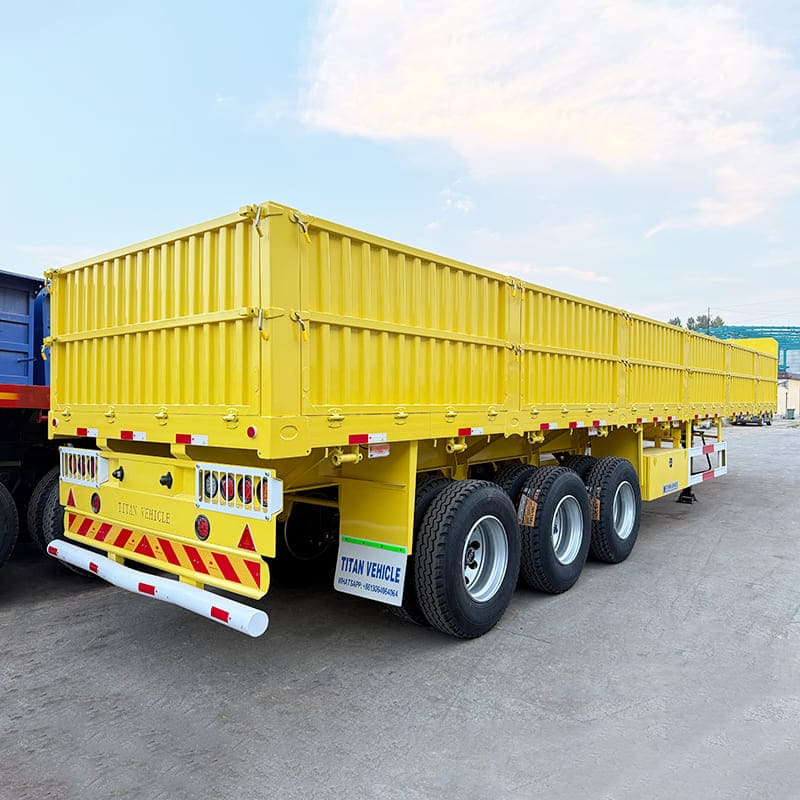

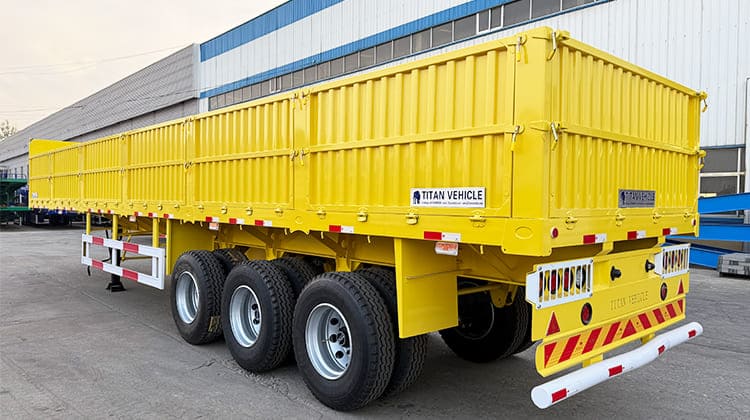

Tri Axle Cargo Sidewall Semi Trailer for Sale in Angola

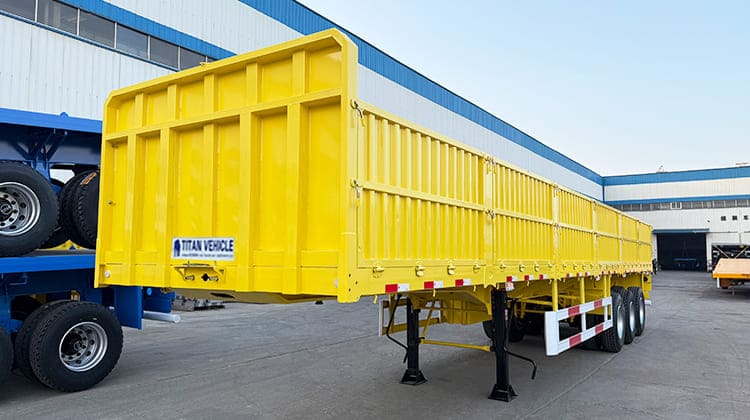

Tri Axle Cargo Sidewall Semi Trailer for Sale in Angola

Tri Axle Cargo Sidewall Semi Trailer for Sale in Angola

Tri Axle Cargo Sidewall Semi Trailer for Sale in Angola

Tri Axle Cargo Sidewall Semi Trailer for Sale in Angola

Limited Time Discount on Sidewall Semi Trailer. Don't Miss the Opportunity!

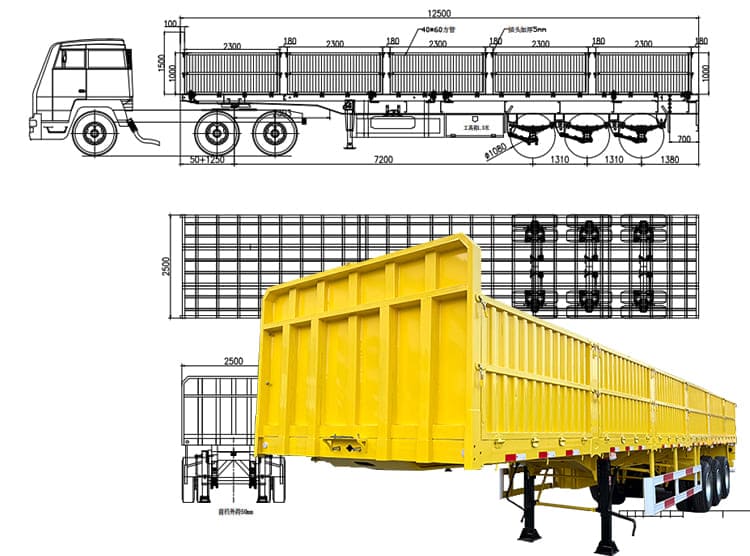

Specification of Sidewall Semi Trailer

Dimension(mm): 12500x2800x3260mm

Trailer Sides: 1250mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T, TITAN Brand

Tire: 12 units, 12R22.5

Rim: 9.00-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Valve: WABCO valve

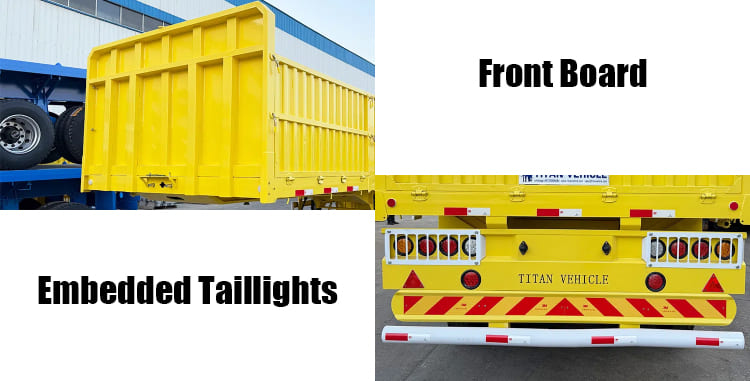

Light: LED light

Limited Time Discount on Sidewall Semi Trailer. Don't Miss the Opportunity!

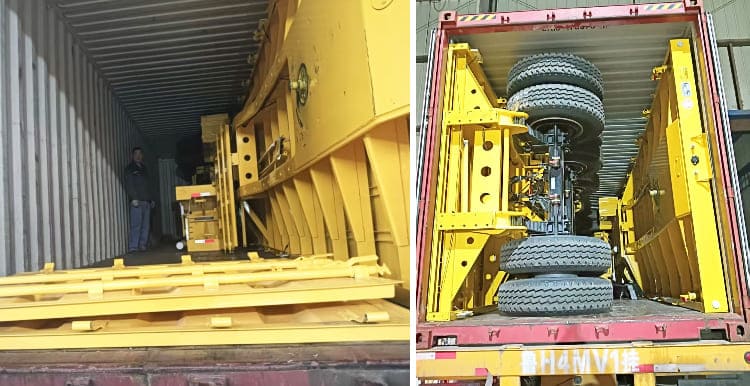

Package of Sidewall Semi Trailer

The cargo semi trailer adopts the container packaging method in sea transportation, which can effectively improve the safety and stability of transportation. By disassembling the side wall semi trailer and loading it into a container, it not only saves space but also avoids damage caused by bad weather or bumps during sea transportation, ensuring that the equipment arrives at the destination intact.

Limited Time Discount on Sidewall Semi Trailer. Don't Miss the Opportunity!

Advantages of Side Wall Semi Trailer

The tri axle cargo semi trailer for sale in Angola is an efficient vehicle widely used in logistics transportation and engineering construction. Its overall design takes into account the load-bearing capacity, loading and unloading convenience, and driving stability. Overall, tri axle side wall semi trailer adopts a high strength steel welded frame with excellent torsion resistance and load-bearing capacity, which can adapt to long distance transportation of heavy goods.

The frame part of the sidewall semi trailer for sale in Angola adopts a high strength beam structure. The main beam is usually made of high quality manganese steel or lightweight aluminum alloy. After advanced welding technology and heat treatment technology, the overall rigidity and torsion resistance are ensured. The surface of the cargo semi trailer frame is treated with multiple anti-rust treatments such as sandblasting and electrophoresis, which effectively prolongs the service life and adapts to various harsh transportation environments.

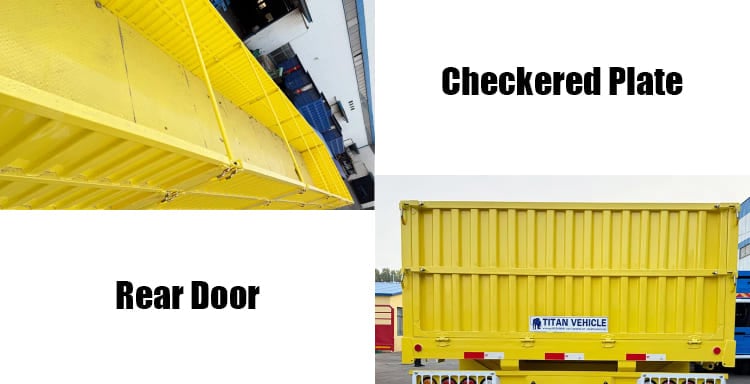

The sidewall part is the core feature of the tri axle side wall semi trailer for sale in Angola. It usually adopts a detachable or foldable metal baffle design, and the baffle height can be flexibly adjusted according to cargo needs. The internal reinforcement structure of the sidewall is installed to prevent deformation. At the same time, it is equipped with multiple sets of reinforced hooks and rope rings, which are convenient for fixing various types of goods with ropes, chains, etc.

The suspension system of the sidewall semi trailer for sale in Angola is configured with different schemes according to the load requirements. Ordinary models mostly use multi leaf spring suspension, with a balance shaft design to ensure load balance and driving stability. High end models are equipped with an air suspension system, which can automatically adjust the height of the cargo semi trailer body, effectively filter road bumps, protect the safety of goods, and reduce tire wear.

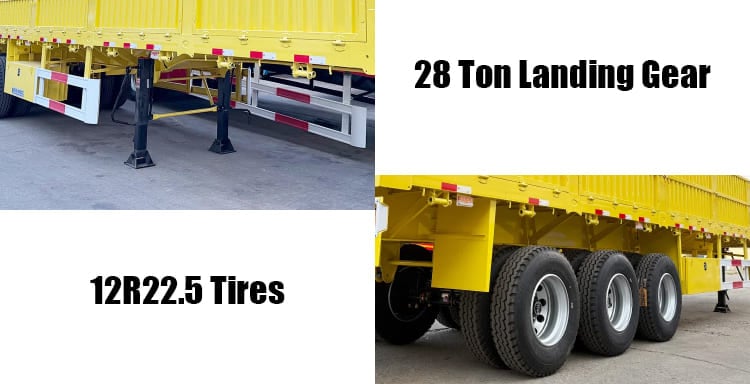

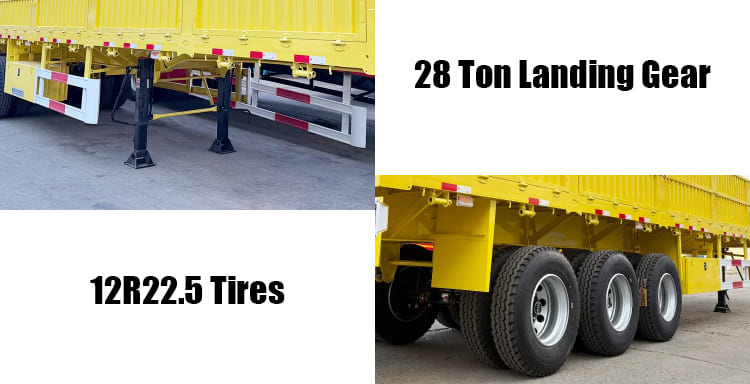

The landing gear and king pins of the tri axle side wall semi trailer are forged with high strength alloy steel, and are precision machined and heat treated to ensure durability under heavy load conditions. The landing gear adopt a two speed gear transmission structure, which can be quickly raised and lowered and finely adjusted, so that the sidewall semi trailer can be parked stably after leaving the tractor. The traction pin strictly complies with the international standard size, the surface is hardened, and it cooperates closely with the traction seat to reduce impact and wear during driving and improve connection reliability.
