Half Body Trailer
Half Body Trailer

Half Body Trailer

10000 USD

Different Parameters, Different Price. Price Reference Only.



This 3 axle half body trailer has 1200mm sideboard. Hight quality drop side, make sure the stable and safety of the loads.

SKU: Half Body Trailer
GTIN: 06975766110260
MPN: TITAN9404024
Brand: TITAN

Product Description:

Half body trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

TITAN Vehicle adopts high strength steel material to manufacture the side wall trailer, it can make the trailer have a higher loading capacity and a longer service life. And trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

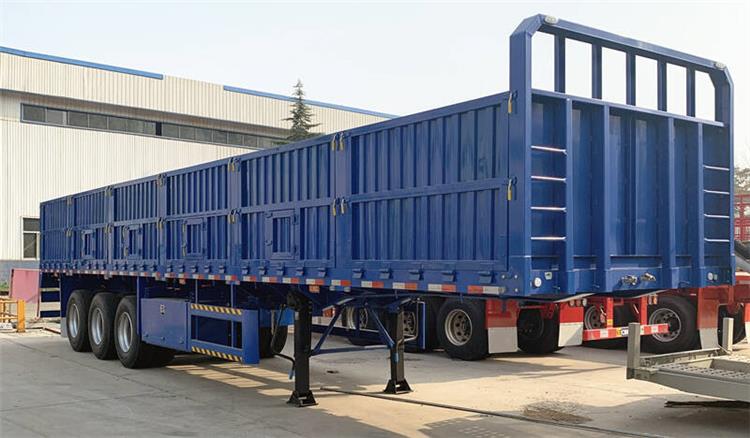

Half Body Trailer with Dropside for Sale - TITAN Vehicle

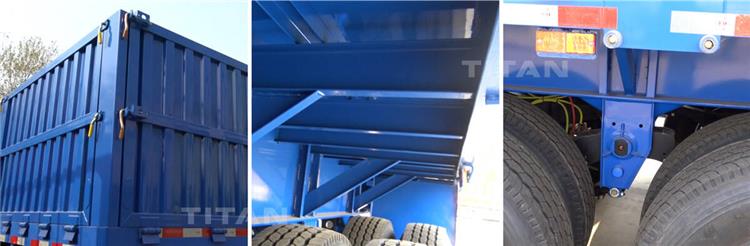

Half Body Trailer with Dropside for Sale - TITAN Vehicle

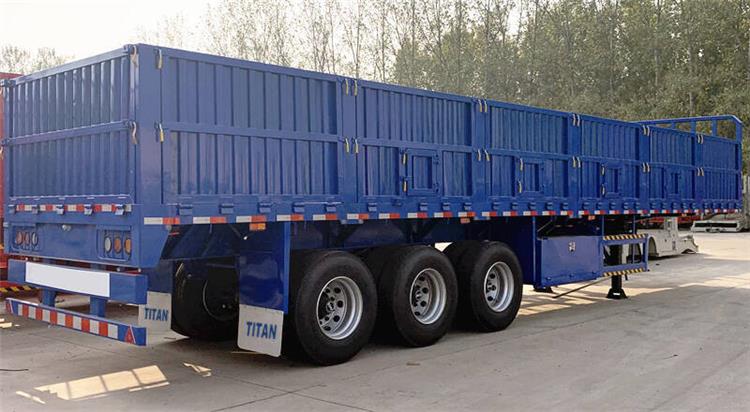

Half Body Trailer with Dropside for Sale - TITAN Vehicle

Half Body Trailer with Dropside for Sale - TITAN Vehicle

Half Body Trailer with Dropside for Sale - TITAN Vehicle



Specification:

Dimension(mm): 12500mm*2500mm*2750mm

Trailer Sides: 1200mm, or box type sides

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Sidewall Semi Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
