60 Ton Removable Side Wall Trailer

Side wall trailer description:

Side wall semi trailer developed on the basis of a container flatbed trailer, the side wall cargo semi trailer has a side wall structure design and wide range of uses. The cargo semi trailer can be added with a container turn lock to transport the container.

TITAN removable side wall trailer is your ideal partner for multipurpose solution catering to vast range of applications including Cement Bags, Agri bags, Tiles, Jumbo bags, steel coils, etc.

60 Ton Removable Side Wall Cargo Semi Trailer Price

60 Ton Removable Side Wall Cargo Semi Trailer Price

Specification of cargo semi trailer:

Tare Weight: About 7.6T

Dimension(mm): 12500x2490x3260mm

Trailer Sides: 1200mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package of removable side wall trailer:

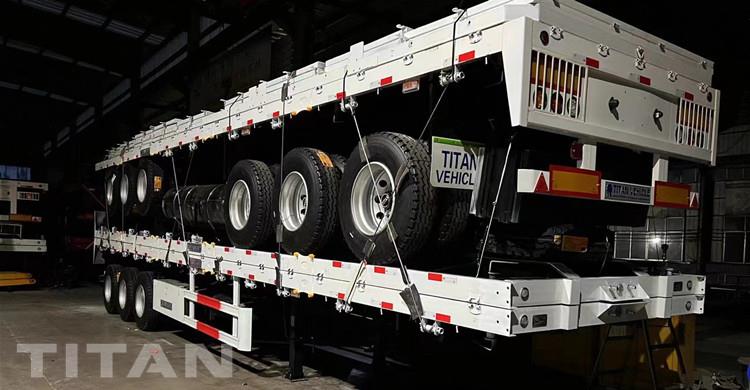

Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the side wall semi trailer needs to be composed.

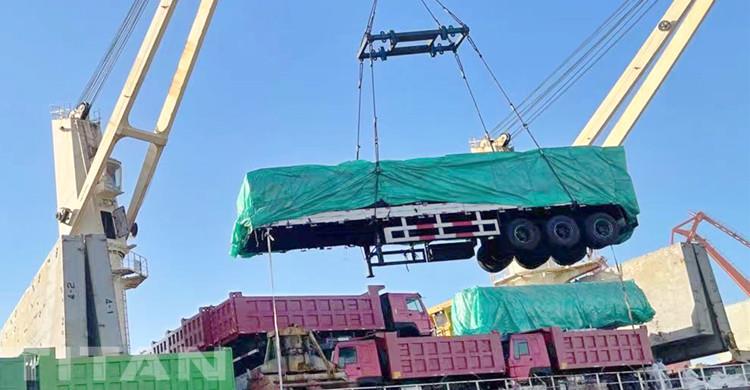

Some customers are bulk freighter or ro-ro ships. Cargo semi trailer will spray wax and cover the tarpaulin when the removable side wall trailer use bulk freighter.

Through this video, you can learn about different types of dropside trailers, as well as the process, testing, packaging and customer feedback, etc.
