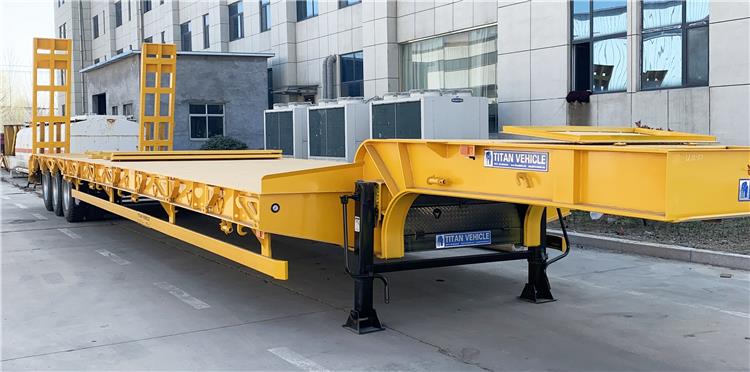

Low Bed Trailer 80 Tons

Product description:

Low bed trailers are widely used in crawler cranes and other heavy machinery transportation. Low Bed Trailer 80 Tons use high strength steel material to ensure capacity. We produce very durable ones with high strength to meet the transport needs.

Strong and durable ladder, our ladder is made of high-strength steel plate H60, welded with strong bearing capacity, effectively ensuring that the weight of excavator or other heavy equipment can pass through the spring ramp without deformation or damage.

Specification：

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

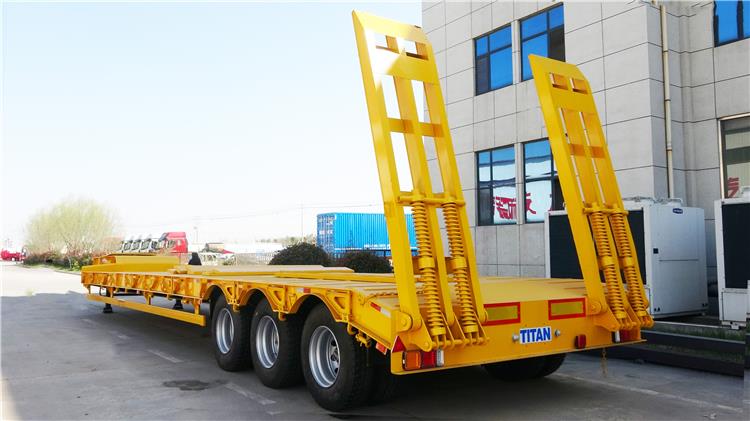

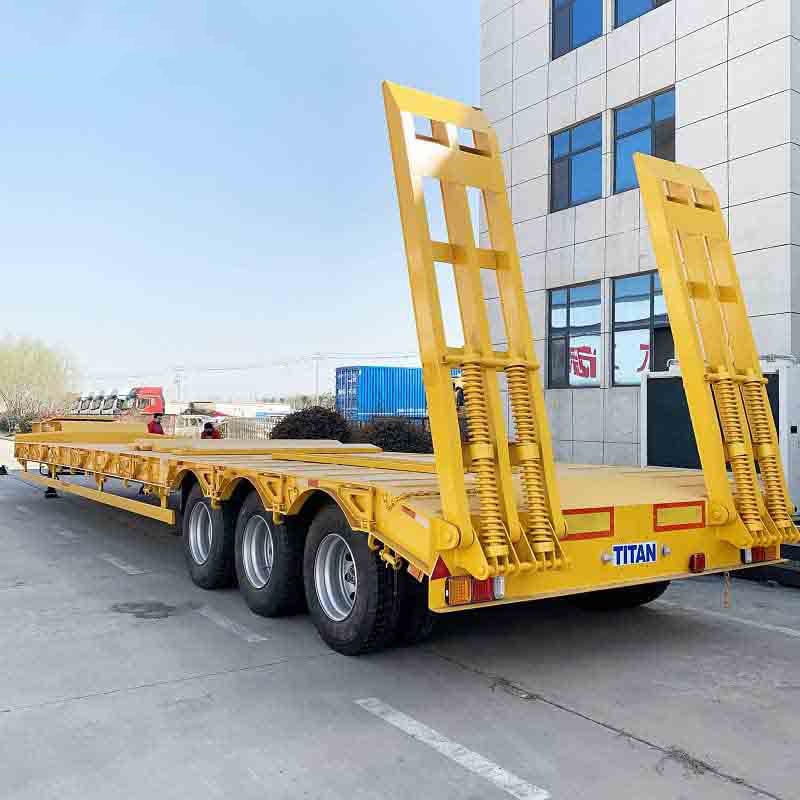

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)
