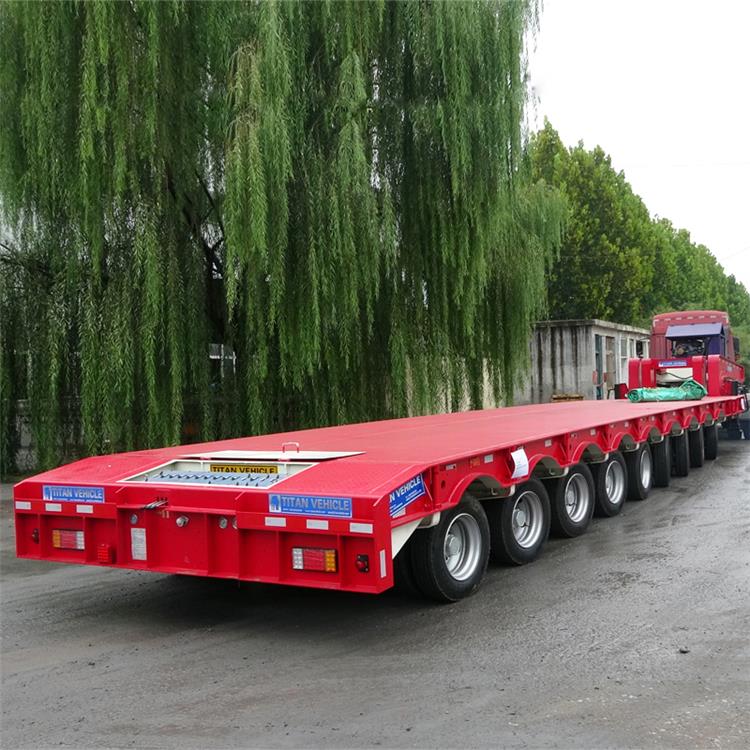

9 Axle Low Bed Semi Trailer

 9 Axle Low Bed Semi Trailer Description：

TITAN 9 axles lowbed trailer use high strength steel material to ensure the capacity, the load can be up to 60 to 150 ton payload.

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.

Specification：

Loading capacity ：120 ton

Overall dimension：18000mm * 3000mm *3400mm

Steel : HG60 high strength steel

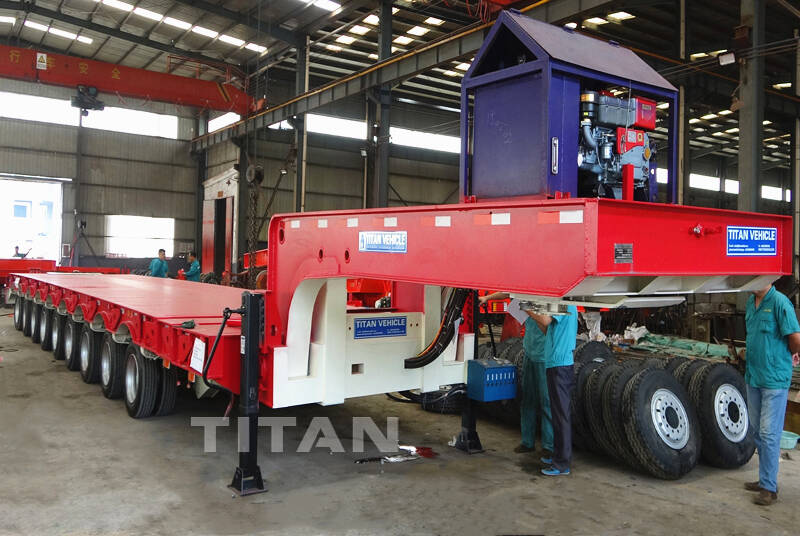

Hydraulic power station : Diesel engine

Axles：9 axles totally, with 8 unit steering axles

Suspension：Heavy duty hydraulic lifting suspension

Tire：36 units

King pin：3.5 inch high tensile steel bolted type

Langing gear：JOST

Brake system : WABCO

Electical system：24V, LED lights

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

9 Axle Low Bed Semi Trailer details display video

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
