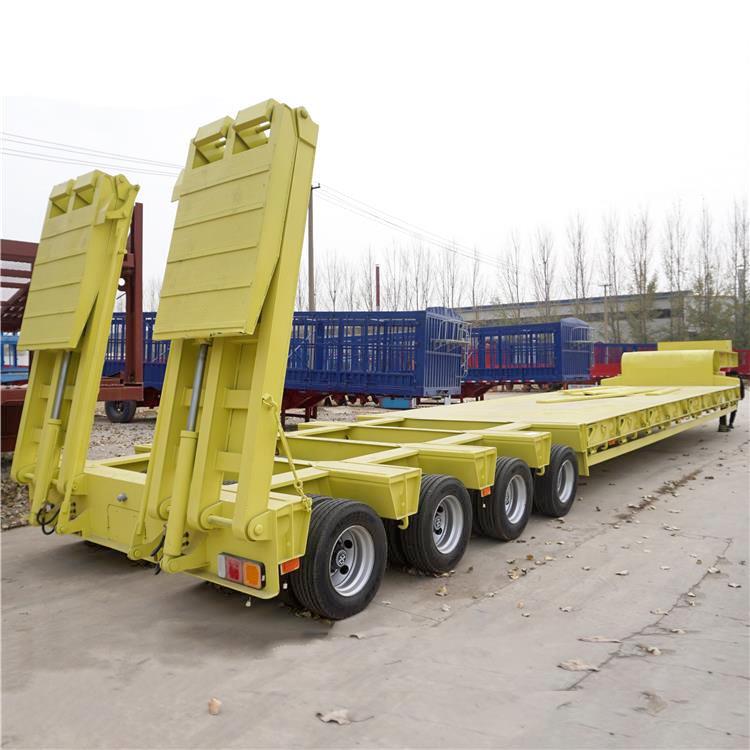

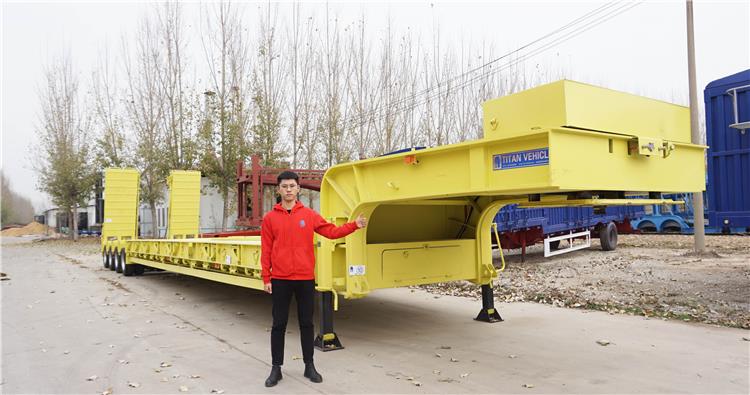

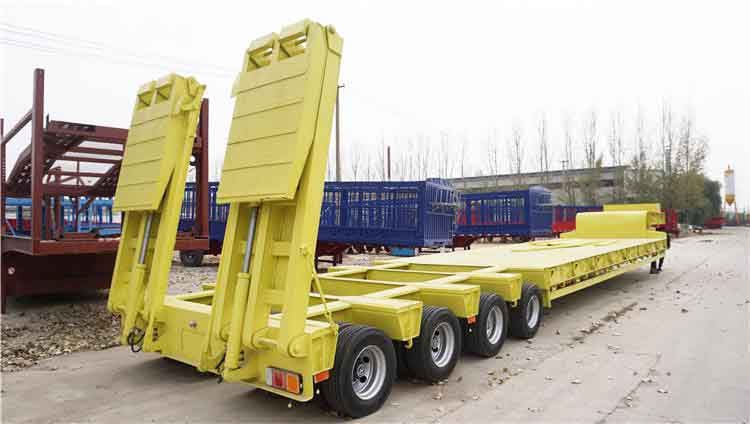

120 Ton Lowbed Trailer with 4 Line 8 Axle is widely used to transport heavy vehicles, mining machinery, forestry machinery, agricultural machinery. Lowbed Trailer suspension is reinforced at the front and rear, left and right.
The 120 Ton Lowbed Trailer suspension is reinforced at the front and rear, left and right. The separate road conditions for Africa are to meet the requirements of the dirt road surface and poor road conditions.

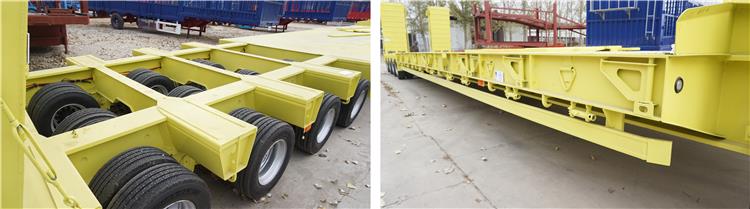

The 120 Ton Lowbed Trailer side beam is designed with "H" shape and welded with HG 60 steel. The side beam is designed with "H" shape with the height of 300 mm, the width of 140 mm and the thickness of 8 mm. The 120 Ton Lowbed Trailer bearing capacity is twice that of other steel and will not deform in ten years.
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 40-120T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 295/75R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 550mm, Upper plate: 20mm, Middle plate: 20mm, Lower plate: 25mm, Material: T700 steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
