TITAN used detachable lowboy trailer for sale for transport excavator and construction equipment, large machinery transportation. With our increased cylinder stroke you can raise the used gooseneck lowboy trailer for sale chassis as high as possible off the ground depending on the truck fifth wheel height.

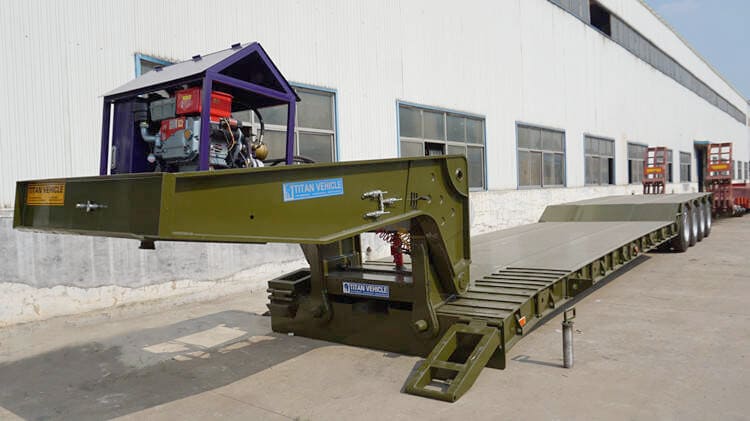

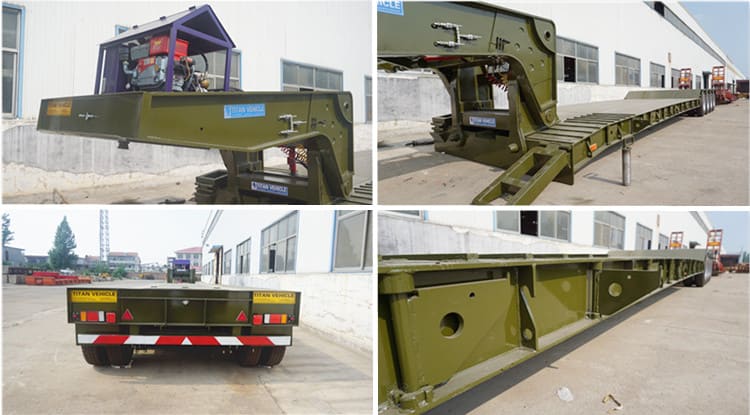

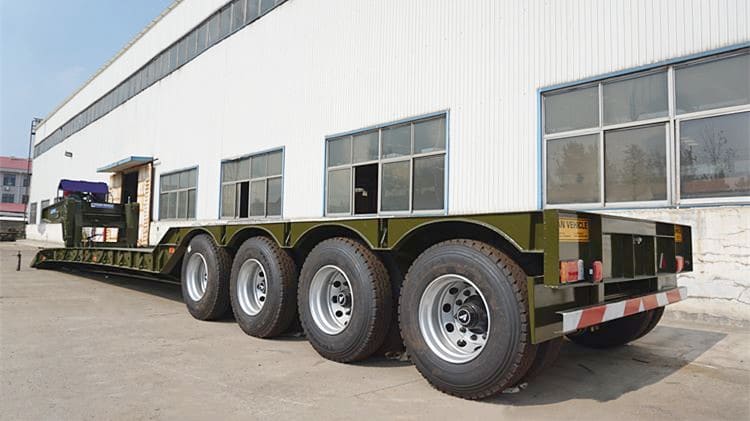

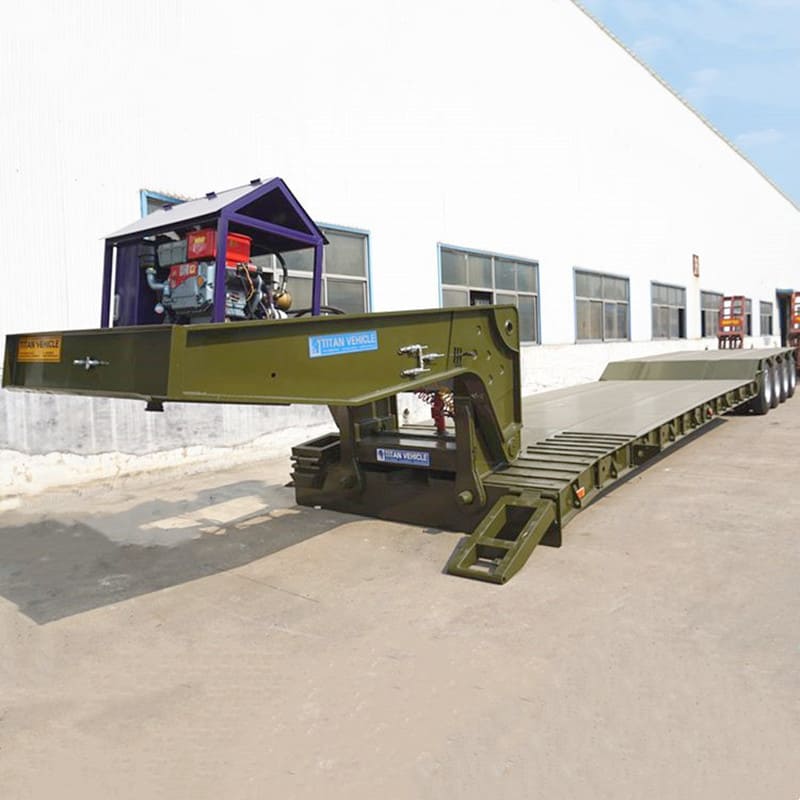

Used 4 Axle Detachable Gooseneck Lowboy Trailer for Sale
Used 4 Axle Detachable Gooseneck Lowboy Trailer for Sale
Used 4 Axle Detachable Gooseneck Lowboy Trailer for Sale
Dimension: 16500mm*3000mm*2500mm
Loading capacity(T): 50-150T
Axle: 4 axle; 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Used gooseneck lowboy trailer for sale tire weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Used detachable lowboy trailer for sale ABS: Optional
Used gooseneck lowboy trailer for sale valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Used detachable lowboy trailer for sale voltage: 24V
Used gooseneck lowboy trailer for sale tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. Strong carrying capacity
Most of this type of used gooseneck lowboy trailer for sale has large tonnage, so the body is mostly designed with an arched cargo bed, and the longitudinal beams are mostly multi-longitudinal high-strength steel structures, which reduces the weight and improves the carrying capacity.
Used gooseneck lowboy trailer for sale's main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability.
Due to the low ground clearance and low longitudinal beam height of this kind of used detachable lowboy trailer for sale, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable lowboy semi-trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
Oilfield trailers bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
3. Good performance
The cargo bed load-bearing surface of the used detachable lowboy trailer for sale can be adjusted to the ground height by a hydraulic device as needed, and when it passes through culverts or bumpy roads, the cargo bed load-bearing surface can be lowered or raised to improve its passing performance.
4. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
5. Easy maintenance
Because the bearing surface can be raised and lowered, the tires on a bridge can be grounded, and other tires can be safely and conveniently replaced or other maintenance work without detaching.
Through the video, you can know different types of used gooseneck lowboy trailer for sale, used detachable lowboy trailer for sale, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
