150 Ton 3 Line 6 Axle Lowboy Trailer

Lowboy Trailer for Sale:

TITAN lowboy trailer for sale for transport excavator and construction equipment, large machinery transportation. We can make the 2/3/4 axles used detache trailer for sale, with the capacity of 60/80/100/120 ton.

To meet your transport needs and your local regulations, we can customize different configuration lowboy trailer for sale for you.

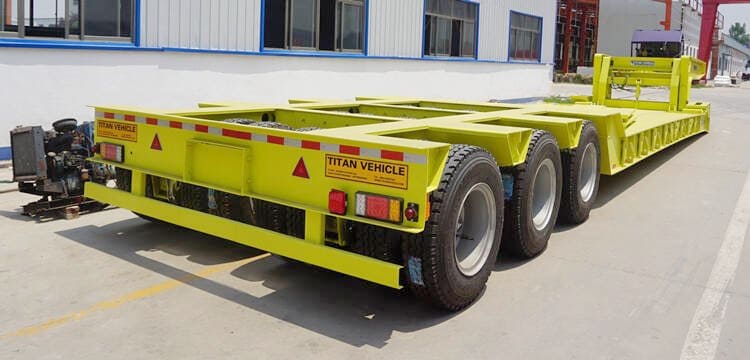

Lowboy Trailer for Sale | Used Detach Trailer for Sale

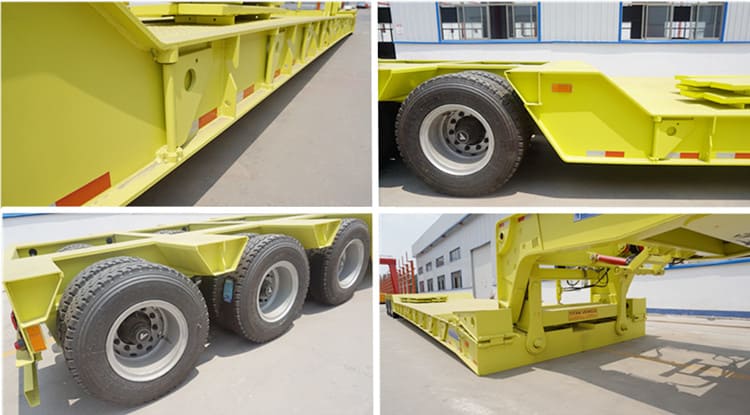

Lowboy Trailer for Sale | Used Detach Trailer for Sale

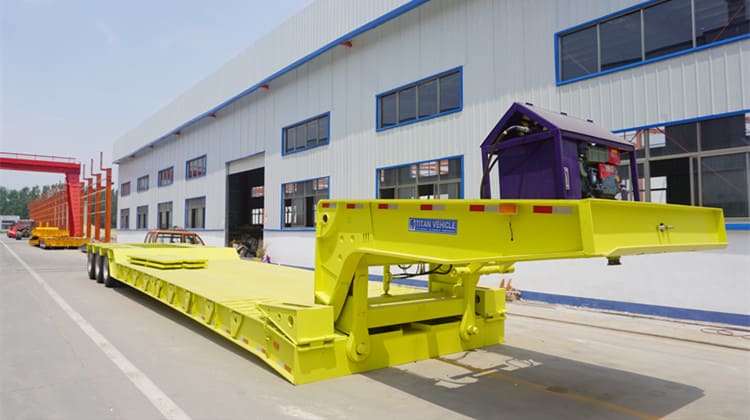

Lowboy Trailer for Sale | Used Detach Trailer for Sale

Lowboy Trailer for Sale | Used Detach Trailer for Sale

Specification of Lowboy Trailer for Sale:

Overall dimension：17000mm * 3000mm *2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Advantages of detach trailer for sale:

1. The detach trailer for sale has lower working platform height for the transport of high and voluminous loads.

2. TITAN lowboy trailer for sale is with high tensile structure steel with tensile and durable construction.

3. Used detach trailer for sale main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when used detach trailer for sale carry heavy equipment.

5. The suspension ensure its have high loading capacity, and increase our used detach trailer for sale capacity to twisting forces, shock, bump.

6. World famous brand spare part, ensure used detach trailer for sale high quality and save costs.

3 Line 6 Axle 150 Ton Lowboy Trailer for sale details display video

Through this video, you can learn about different types of lowboy trailer for sale, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Lowboy Trailer" to get the detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
