10 Axles Windmill Blades Trailer
10 Axles Windmill Blades Trailer

10 Axles Windmill Blades Trailer

70000 USD

Price: 70000 USD



TITAN produces 10 axles windmill blades trailer for Carrying 30 meters to 35 meter wind tower.TITAN 10 axles windmill blades trailer have proven to be the most efficient, lightest-weight option for customers.

SKU: 10 Axles Windmill Blades Trailer
GTIN: 6975766112110
MPN: TITAN9432010
Brand: TITAN

10 Axles Windmill Blades Trailer Description:

TITAN 10 axles windmill blades trailer for Carrying Tower.TITAN Extendable Trailer is noted for their highly robust frames and outstanding stability of the extension beam.

TITAN  10 axles windmill blades trailer use high strength steel material to ensure the capacity, the load can be up to 60 to 150 ton payload.TITAN designs and produces Tower Section Semi Trailer for hauling 30 meters to 35 meter wind tower.

After the mounting process, the wind tower mounting plate holes are precision machines to fit perfectly no matter what band or size, greatly reducing damage to the paint on the tower section.

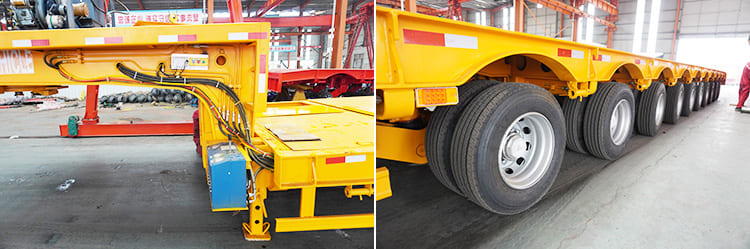

10 axles windmill blades trailer

Types of Windmill Blades Trailer for Sale | Windmill Blade Transport Manufacturer

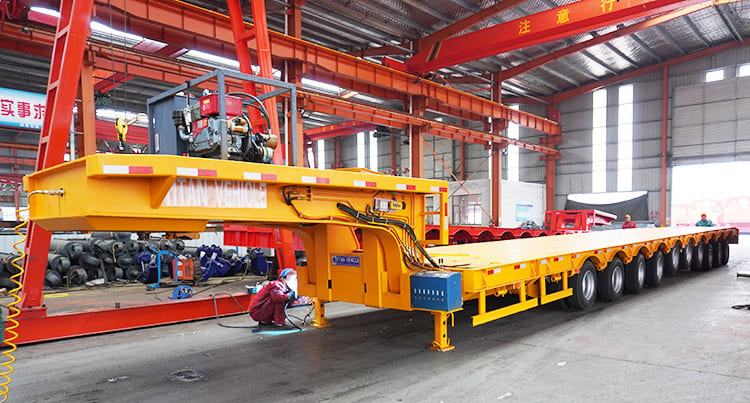

10 axles windmill blades trailer

Types of Windmill Blades Trailer for Sale | Windmill Blade Transport Manufacturer

10 axles windmill blades trailer

Types of Windmill Blades Trailer for Sale | Windmill Blade Transport Manufacturer

10 axles windmill blades trailer

Types of Windmill Blades Trailer for Sale | Windmill Blade Transport Manufacturer



10 Axles Windmill Blades Trailer Specification:

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)

33,500mm X 2,990mm X 950mm ( extension state)

Deadweight without ramps: 28.5 Ton

Deadweight with ramps: 29.5 Ton

Frame: HG60 high strength steel frame

Loading capacity: 90 Ton

Length: 18,500mm at closed state; 33,500mm after total extended

Width: 2,990mm + 2 X 250mm side swing bracket

Height: 200mm+/-90mm

Axle: 10 Axles

Maximum steering angle: +/-25°

Tyre: 40 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Loading Ramps: 1 set, detachable ramps

Landing gear: JOST C200

Operation 2 wireless remote control: + 1 control valve panel



10 Axles Windmill Blades Trailer Advantage:

1. 250mm wideners are equipped on both sides of the load-bearing platform; the length of the load-bearing platform is 14.5m, with a 2-level tensile structure, which can stretch 7500x2 to meet the requirements of 29m after the freight platform is stretched;

2. The gooseneck is a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle;

3. The suspension is hydraulic suspension, with lifting function, the force between the axles is balanced by the suspension cylinder, and it has the function of lifting the axle independently;

4. This car has 10 axles, and the axles include 8 active steering axles, 4 in the front and 4 axles in the back; The tires are 235/75R17.5;

5. The active steering axle is controlled by hydraulic cylinders.



Drawing of 10-Axle Extendable Trailer

Drawing of 10 axles windmill blades trailer



10 axles windmill blades trailer details display video

Please click "TITAN Wind Blade Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
