4 Line 8 Axle Wind Turbine Blade Transport Trailer
4 Line 8 Axle Wind Turbine Blade Transport Trailer

4 Line 8 Axle Wind Turbine Blade Transport Trailer

110000 USD

Price: 110000 USD



4 line 8 axle wind turbine blade transport trailer, during transportation in mountain roads, the adaptor can avoid the cliff, woods, and electric wire via operations of the incline the blade to extent degrees, or rotate and swing the blade.

SKU: 4 Line 8 Axle Wind Turbine Blade Transport Trailer
GTIN: 6975766110970
MPN: TITAN9432009
Brand: TITAN

4 Line 8 Axle Wind Turbine Blade Transport Trailer Product Description:

On steep hills or narrow winding mountainous roads, the position of the rotor blade can be adapted to the route without any time loss. At the same time, a wind sensor warns against exceeding a parameterizable wind speed. The new rotor blade adapter can be mounted and transported on both on a pulled platform trailer combination as well as self propelled modules, and guarantees flexible transportation of rotor blades from different manufacturers through the quick release plate and thus maximum efficiency and cost-effectiveness in daily.

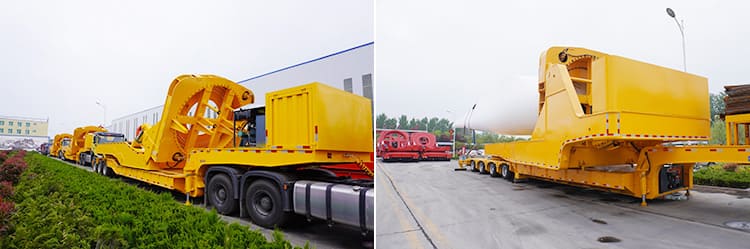

4 line 8 axle wind turbine blade transport trailer

4 Line 8 Axle Wind Turbine Blade Transport Trailer for Sale In Kazakhstan Kzshu

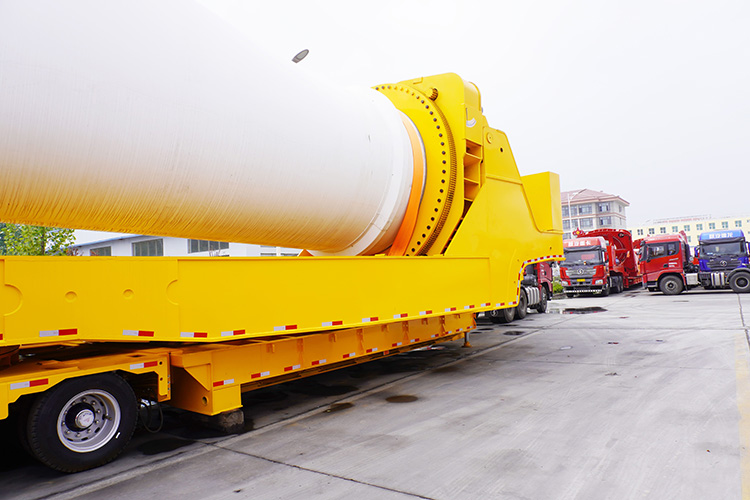

4 line 8 axle wind turbine blade transport trailer

4 Line 8 Axle Wind Turbine Blade Transport Trailer for Sale In Kazakhstan Kzshu

4 line 8 axle wind turbine blade transport trailer

4 Line 8 Axle Wind Turbine Blade Transport Trailer for Sale In Kazakhstan Kzshu



4 Line 8 Axle Wind Turbine Blade Transport Trailer Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 19500mm*3400mm*4650mm

Applicable blade: 56.5m-76m

Axle: 4 lines 8 axles

Tires: 32 units

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16



4 Line 8 Axle Wind Turbine Blade Transport Trailer Advantage:

1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.

2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.



Through this video, you can learn more details about 4 line 8 axle wind turbine blade transport trailer , windmill rotor blade trailer , etc.

Wind Blade Adaptor for Sale in Vietnam



If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
