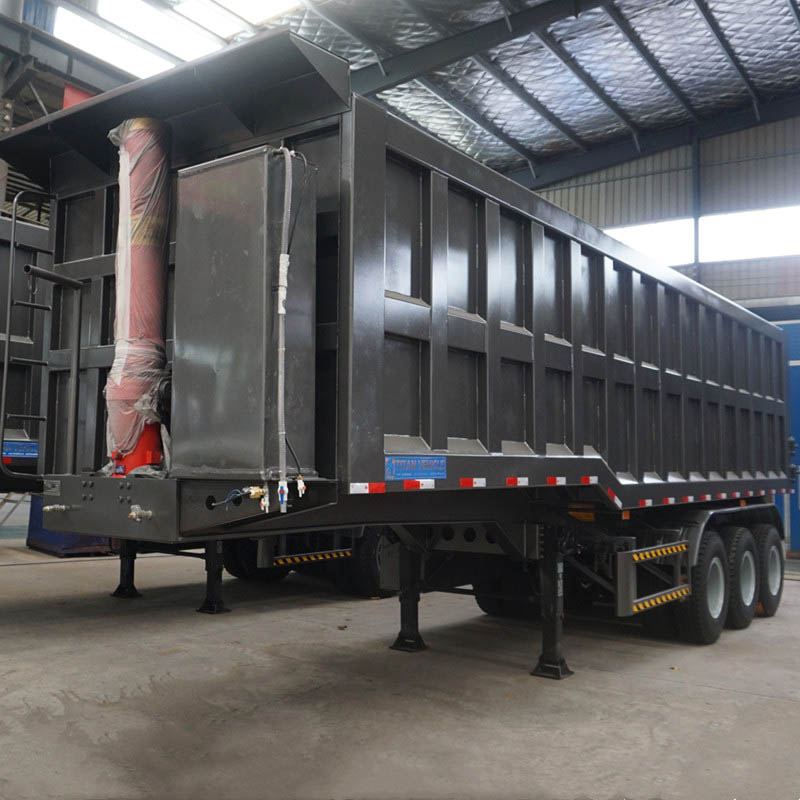

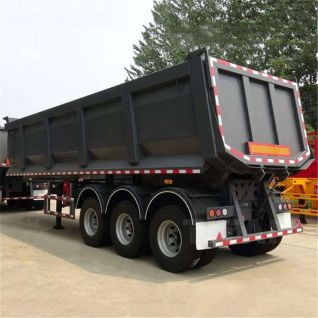

Tri Axles End Tippers Trailer

Tri Axles End Tippers Trailer Description:

Tri axles end tippers trailer is a big trailer that usually lifts when dumping its hall in a chosen location. Tri axles end tippers trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

TITAN tri axles end tippers trailer adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

Tipper Price in Nigeria | Tri Axles End Tippers Trailer Price for Sale

Tipper Price in Nigeria | Tri Axles End Tippers Trailer Price for Sale

Tipper Price in Nigeria | Tri Axles End Tippers Trailer Price for Sale

Tri Axles End Tippers Trailer Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Tri Axles End Tippers Trailer details video

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
