3 Axle Side Tipper Trailer
3 Axle Side Tipper Trailer

3 Axle Side Tipper Trailer

17500 USD

Different Parameters, Different Price. Price Reference Only.

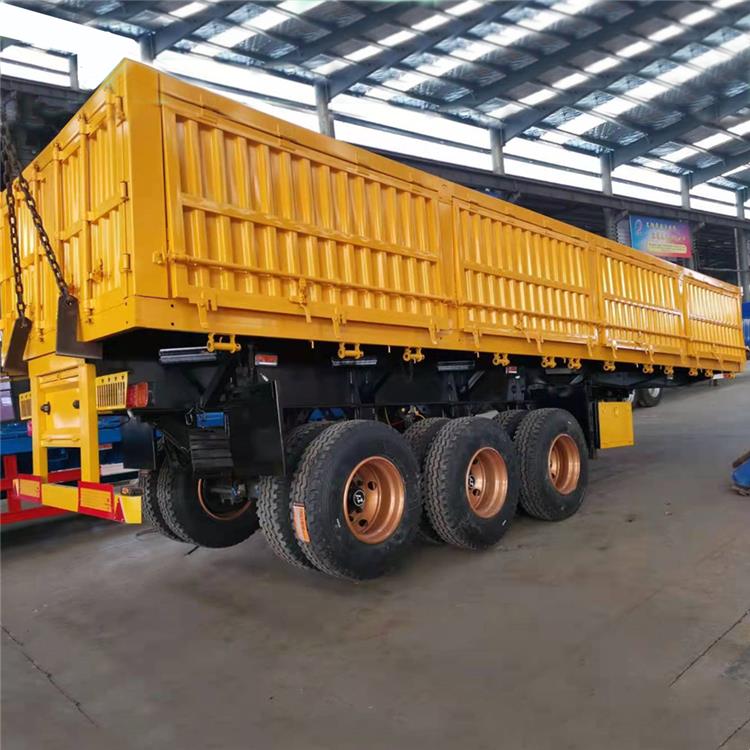

Side tipper trailer is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

SKU: 3 Axles Side Tipper Trailer
GTIN: 6975766114893
MPN: TITAN9407101
Brand: TITAN

Product description:

Side tipper trailer for sale suitable for large workplaces, Side Tipper Trailer maximum carrying capacity can reach 80-100tons. You can use side tipper trailer to help save space. The load capacity of the side dump trailer may be greater than that of the rear tractor tipper trailer.

The user must pay attention to the side tipper trailer when purchasing the side tipper trailer. Try to choose a famous brand for the hydraulic top, and the diagonal brace should pay attention to the manufacturer's welder and reinforcement.

3 Axle Side Tipper Trailer for Sale In Nigeria

3 Axle Side Tipper Trailer for Sale In Nigeria

34 Ton Side Tipper Trailer for Sale Price

34 Ton Side Tipper Trailer for Sale Price

Semi Side Tipper Trailer for Sale Price

Semi Side Tipper Trailer for Sale Price



Specification:

Dimension: 11000mmx2500mmx3200mm

Lifting System: Lifting cylinder 5x130 bore, a shift cylinder

Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for overseas markets)

Voltage: 24V

Toolbox: 1 set

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.



Advantage

1. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

2. Well-known brand axles, suspension systems, high performance, and reliability to use, to ensure the good performance of the vehicle.

3. TITAN 34 ton side tipper trailer is equipped with HYVA cylinder, which is more reliable and safer. We supply 34 ton 3 axle side tipper trailer with multiple customization options.



Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.

tipper trailer



Please click " TITAN Tipper Semi Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
