The 20 ft side loader truck has a long average trouble-free working time, stable and reliable performance, compact and reasonable layout, beautiful and stylish, easy to use and easy to maintain.
The side loader truck can be moved back and forth and can be used for both standard 20 and 40 foot containers.
It adopts a wireless remote control system, equipped with imported remote control, which is easy to operate and reliable in micro movement. It reserves manual operation mode. It is equipped with an imported solenoid valve, and the control is accurate.
The side loader truck crane structural parts are welded from high-strength imported steel plates, and the entire trailer has undergone stress tests.‹Get Quotation›
Hammar 20 ft Side Loader Truck Trailer for Sale in Djibouti

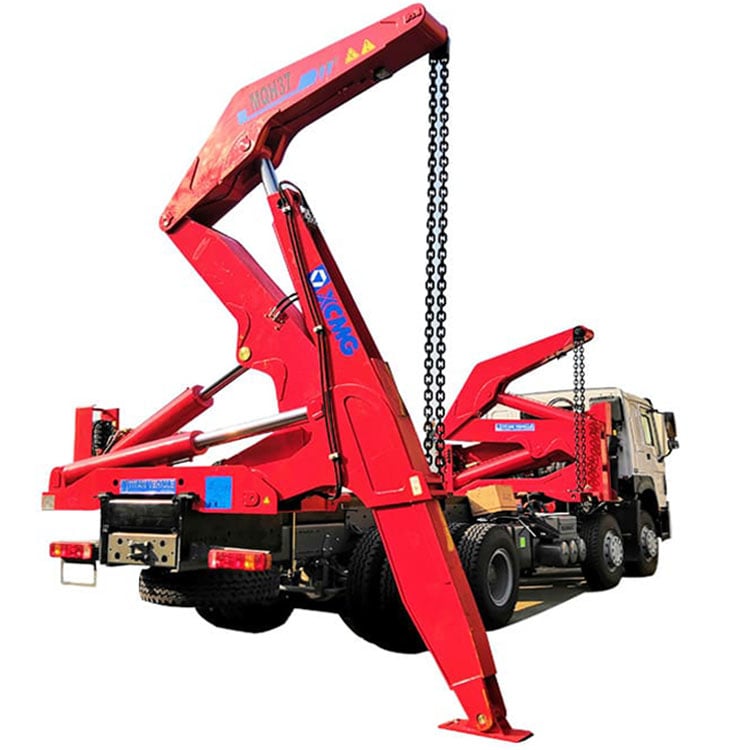

20 ft Side Loader Truck for Sale
Video of 20 ft Side Loader Truck
Max. lifting capacity: 37Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max. pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 7500*2500*4200mm
Axle: 2axle* 13 ton (220mm brake pads)
Tire: 8pcs, 12R22.5
Suspension: Heavy duty type mechanical spring suspension
Kingpin: 3.5 inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany

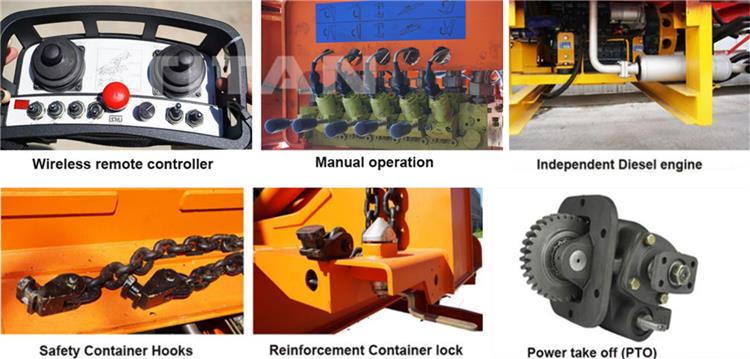

1. Wireless remote control. equipped with imported remote control, easy to operate.
2. Chassis. It supports the weight of the container when it is loaded, it also supports the cranes.
3. Chains. They are attached from the top of the cranes to the corner corners at the base of the container (s) during lifting operations.
4. Boom slide system. The 20ft or 40ft container can be loaded and unloaded through the sliding of the front and rear cranes, which has a wide range of applications and good versatility, greatly expanding the use of the equipment.
5. Trailer Stabilizer Legs. These are equipped with hydraulic legs that are necessary to allow the lifting of loads of up to 44 tons without tilting the side loader truck.
6. Crane Lift. Hydraulically powered cranes lift the container into and out of the chassis. It can usually be moved along the chassis moving with hydraulic cylinders or hydraulic motors to load different lengths of containers.
Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
