3 Axle Low Bed Truck Trailer

Product description:

TITAN 3 Axle Low Bed Truck Trailer's main beam adopts HG60 high strength steel, with high loading capacity.

TITAN low bed semi trailer for sale can satisfy the concentrated force, the loading ramps is made by high strength steel. We use it to make sure that our TITAN Excavator Trailer is with a long service life and to avoid unnecessary maintenance.

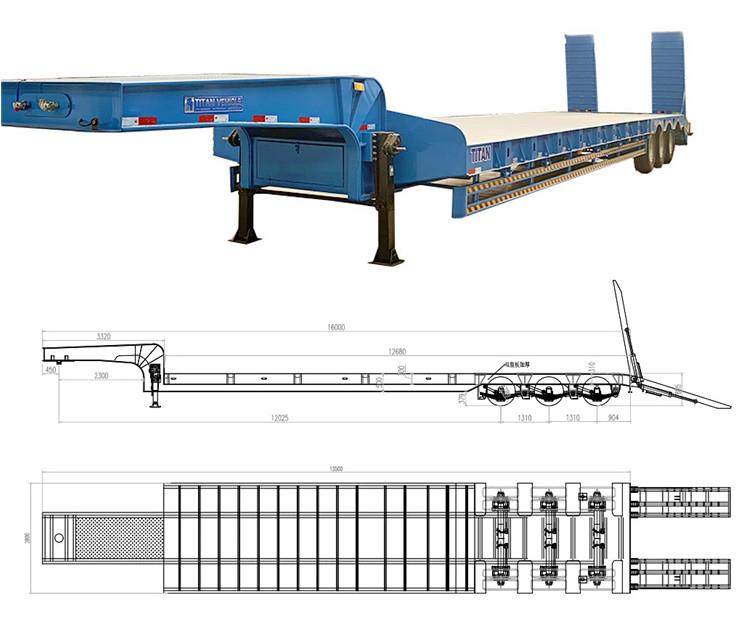

3 Axle 40Ft Low Bed Truck Trailer Dimensions for Sale in Namibia

3 Axle 40Ft Low Bed Truck Trailer Dimensions for Sale in Namibia

Advantage:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” shape design, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, the deformation will not happen when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

Specification：

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 80 Ton

Axle: 16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand landing gear

Main beam: Height: 550mm, Upper plate: 20mm, Middle plate: 14mm, Lower plate: 20mm, Material: HG60 steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

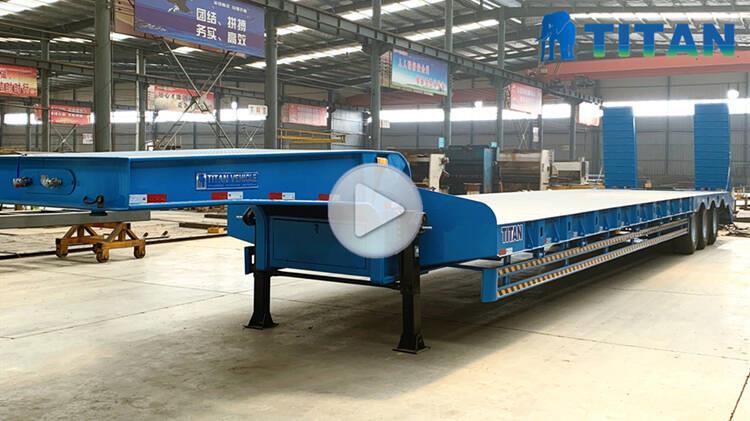

3 Axle Lowbed trailer details display video

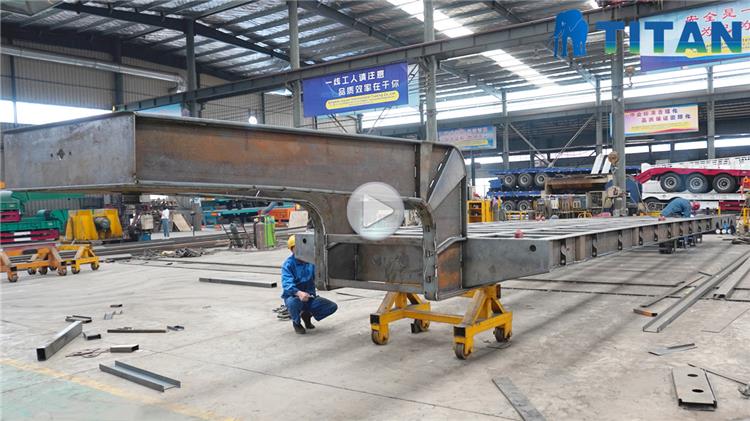

Lowbed trailer in production

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
