50 Ton Tri Axle Dropside Trailer

50 ton tri axle dropside trailer for sale give customer longer tire life, better fuel efficiency and lower maintenance costs, resulting in higher revenue and lower operating costs, greatly improving your overall profit.

The tri axle dropside trailer has lightweight design, durable. The body is light in weight and has a strong load capacity 50ton.

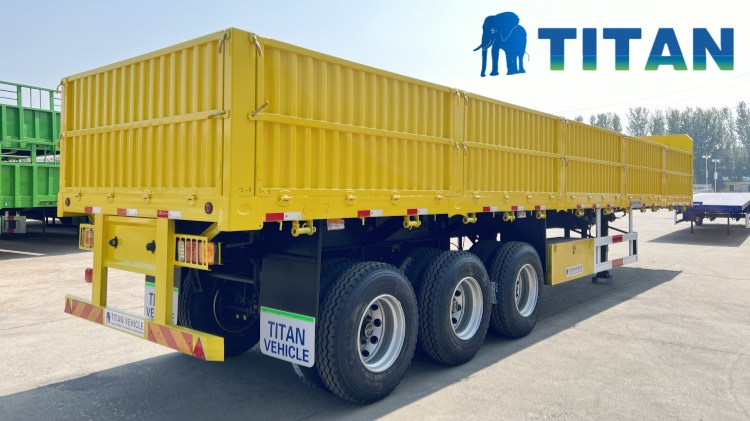

50 Ton Tri Axle Dropside Trailer for Sale in Tanzania

50 Ton Tri Axle Dropside Trailer for Sale in Tanzania

50 Ton Tri Axle Dropside Trailer for Sale in Tanzania

50 Ton Tri Axle Dropside Trailer for Sale in Tanzania

Specification of Tri Axle Dropside Trailer:

Tare Weight: About 7.6T

Dimension(mm): 12500x2800x3260mm

Trailer Sides: 1250mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Video of 50 ton tri axle dropside trailer

Through this video, you can learn about different types of dropside trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry!

We will provide quotation and more details, drawings, pictures, videos for you!
