21000Liters Sulfuric Acid Tanker Trailer

Product Description：

The acid tanker semi trailer is used for transporting different kinds of acids such as: sulfuric acid, hydrochloric acid, hydrofluoric acid, Nitric acid and Acetic acid among others as used for different industrial applications.

For the Hydrochloric Acid Tanker, TITAN produces the most strong acid tank body to make sure the safety. We adopt 5mm thick steel to weld the tankers, also use special design, like the 10 pcs strengthened steel ring to reinforce the Dilute Sulfuric Acid tanker trailer.

Chemical liquid transport semi trailer has different requirements for tank material depending on the characteristics of the medium being transported. Common sulfuric acid tank materials are stainless steel, carbon steel, aluminum, etc.

To keep the Nitric Acid tanker safety, we use the stainless steel emergency bottom valve also the discharge valves, this type is anti-corrosion, so it can make the chemical tanker trailers to have a long service life.

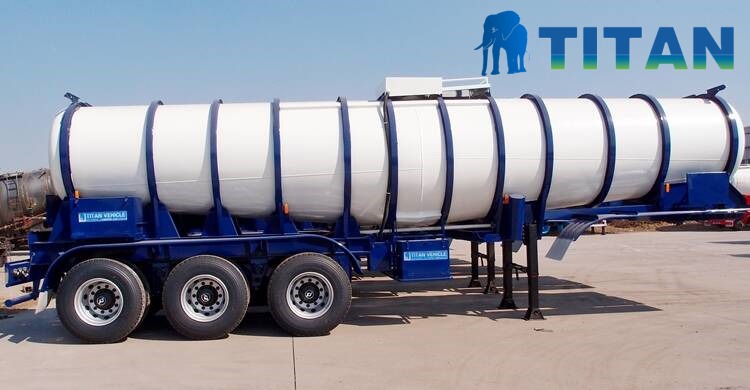

3 axle sulfuric acid tanker semi trailer

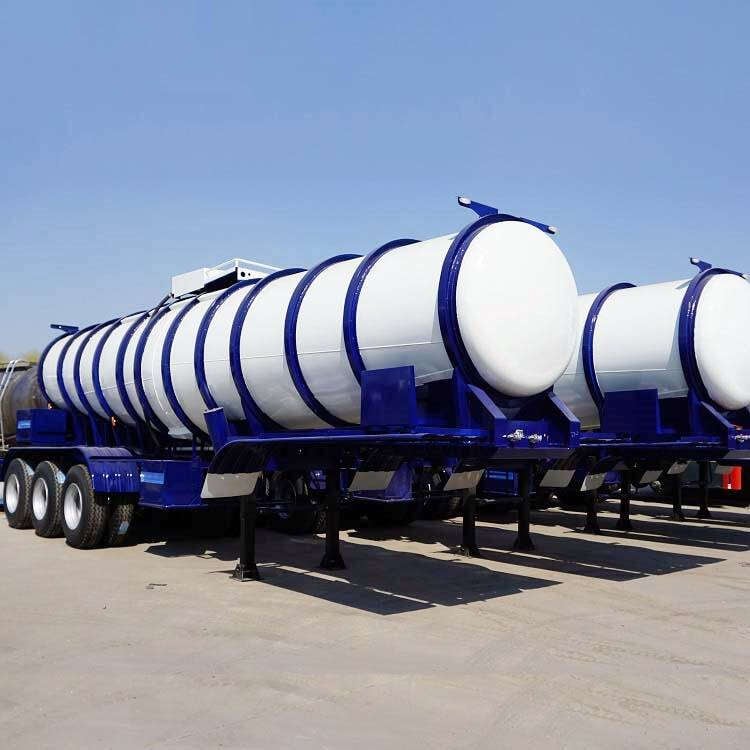

21000L chemical tanker semi trailer

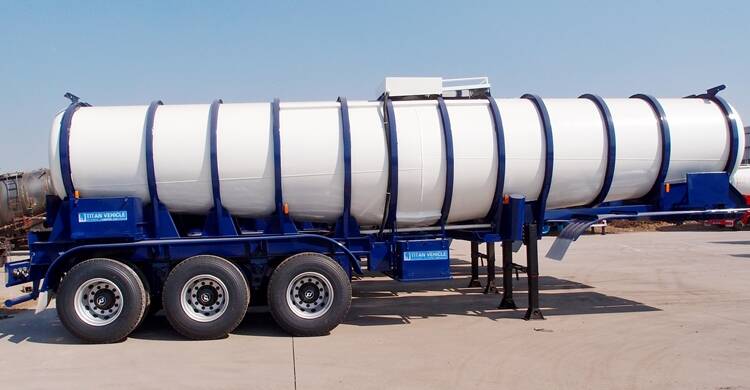

Details of hydrochloric acid tank trailer

Advantage:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.

6. The waved board reduces the impact of the liquid on the tanker.

7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.

Specification：

Overall dimension：11500mm * 2500mm *3700mm

Transport：sulfuric acid

Manhole cover: stainless steel manhole cover

Bottom valve: Aluminum API pneumatic bottom valve

Axles：3 axles

Suspension：Heavy duty mechanical suspension

Tire：12 units

Discharging Pipe: 4'' rubber pipe, 6m/piece, 2 pieces

King pin：2/3.5 inch

Landing gear：JOST

Brake system: 2 line pneumatic brake system

Electrical system: Chinese standard 24V; 7 ways receptacle; LED lamps

21000Liters Sulfuric Acid Tanker Trailer details display video

Please click " TITAN Fuel Tanker Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
