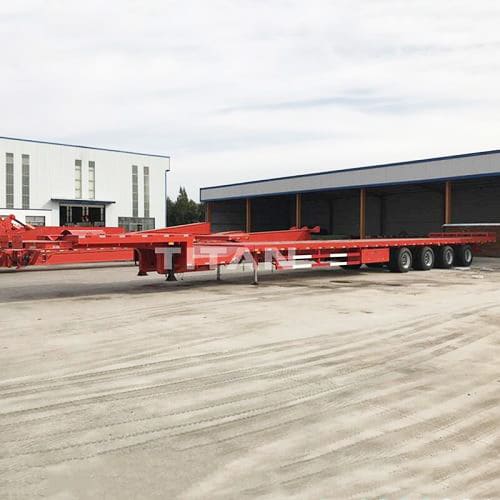

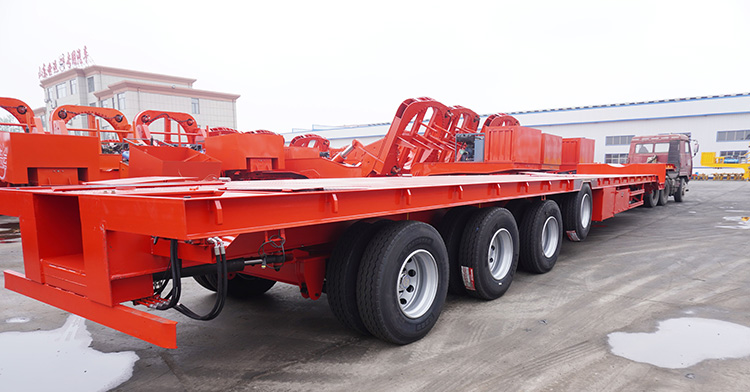

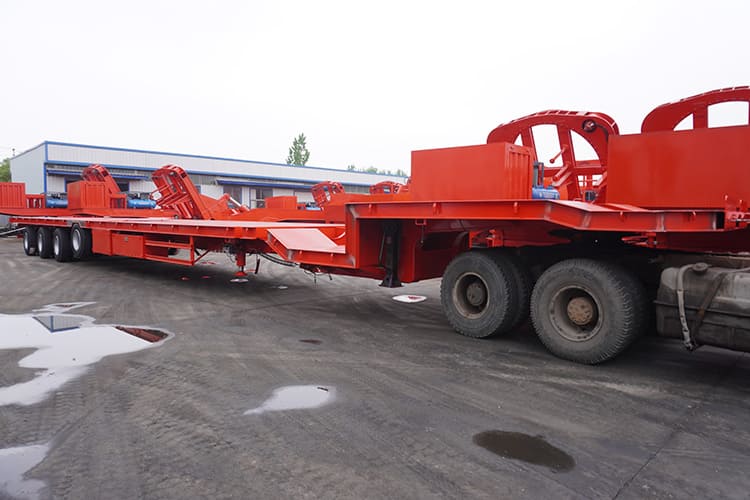

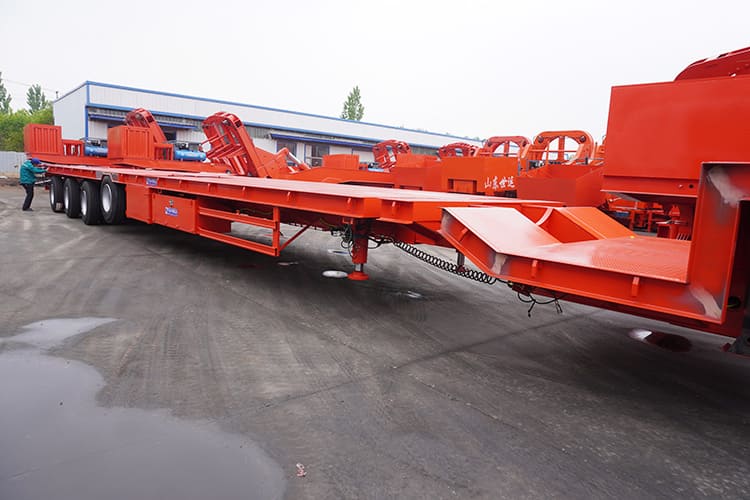

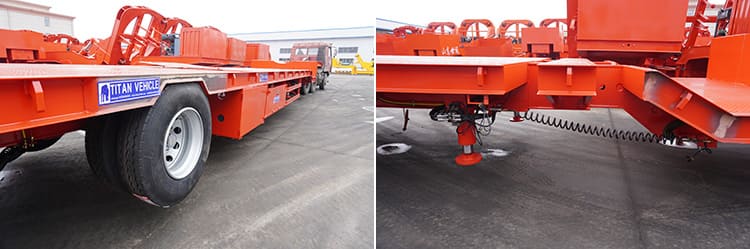

4 Axles 56M Extendable Windmill Blade Trailer

4 Axles 56M Extendable Windmill Blade Trailer Description：

TITAN 4 axles 56m extendable windmill blade trailer for Carrying Wind Blade.TITAN Extendable Modular Trailer is noted for their highly robust frames and outstanding stability of the extension beam.

TITAN 4 axles 56m extendable windmill blade trailer adapts perfectly to haul 45 meters to 80 meters long windmill turbine blade transportation and long bulky goods.the high standard of the workmanship and welding process ensures easy adjustment of the extension beams.

4 axles 56m extendable windmill blade trailer is used for transportation of Wind Turbine Blade with lengths up to 80m. The 56m extendable trailer is available in extension configurations. All our extendable trailers have the option of using the Air suspension system (for sensitive cargo like wind turbine blades) or Hydraulic suspension system (for heavier payload cargo like Wind Turbine Blade mold transportation).

The 56meter four-axis steering bracket lifts and lowers after the 22.25-meter pull-out gooseneck (four-axle hydraulic steering within 80 meters, or a long-distance blade transport vehicle with hydraulic lift with one bridge, suitable for land blade transportation within 80 meters).

4 Axles 56M Extendable Windmill Blade Trailer for Sale in Kazakhstan Aktau

4 Axles 56M Extendable Windmill Blade Trailer for Sale in Kazakhstan Aktau

4 Axles 56M Extendable Windmill Blade Trailer for Sale in Kazakhstan Aktau

4 Axles 56M Extendable Windmill Blade Trailer for Sale in Kazakhstan Aktau

4 Axles 56M Extendable Windmill Blade Trailer Advantage:

1.Trailer's length from 22.25 meters extend to 56 meters

2.Transport the 45 meters to 80 meters Windmill Turbine Blade.

3.Loading capacity is up to 90 ton

4.Steerable axles, all wheels steering.

5.Highly robust frames and outstanding stability of extension beam.

6.Mechanical spring suspension, air suspension or hydraulic suspension is an option

7.Manual valve operation and wireless remote control.

4 Axles 56M Extendable Windmill Blade Trailer Specification：

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer

Dimension: 22,456mmX3120mmX 1580mm

Total length: 61,000mm after extension

Loading capacity: 90 Ton

Hydraulic power station: Diesel engine

Axle: 4  axle

Suspension: Hydraulic suspension.

Tyre: 16 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200

4 axles 56m extendable windmill blade trailer details video display
