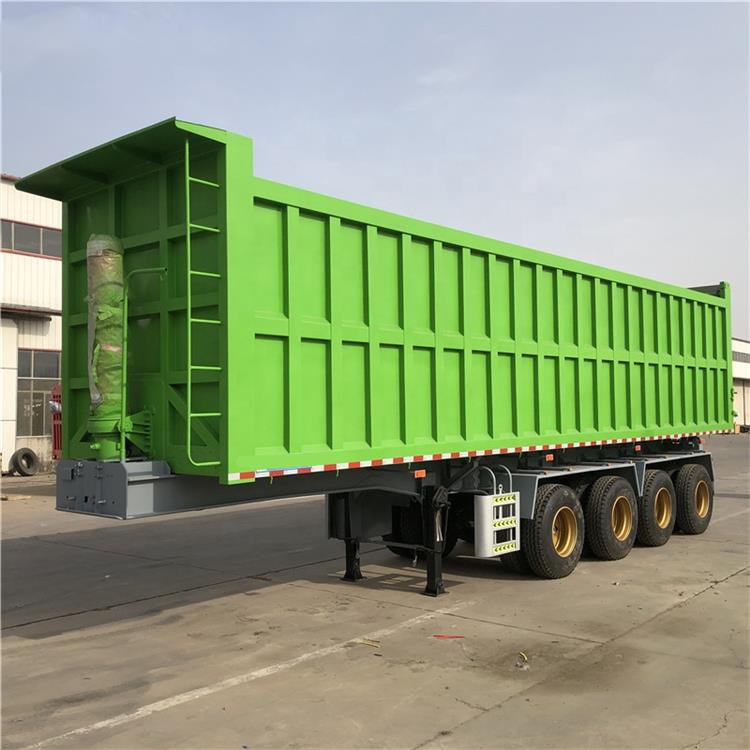

4 Axle 45CBM Semi Dump Trailer

Product Description：

TITAN 4 axle 45cbm semi dump trailer adopt high strength steel to make it durable when loading sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t.

TITAN Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the 4 axle 45cbm semi dump trailer according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

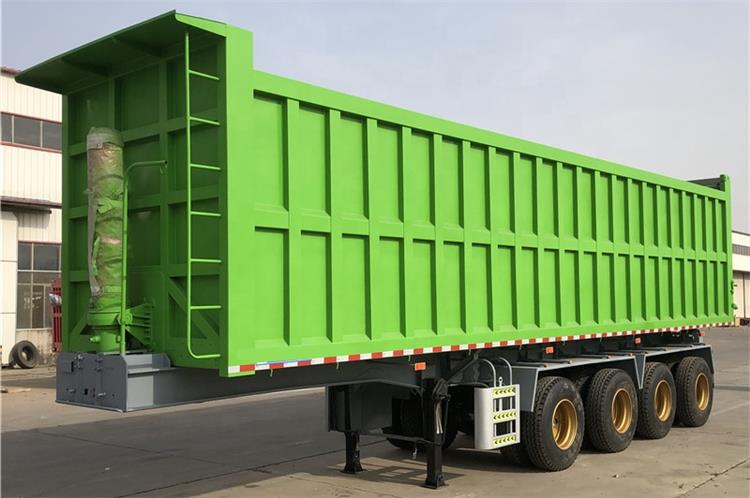

Dump Semi Trailer | 4 Axle 45CBM Semi Dump Trailer for Sale Price

Dump Semi Trailer | 4 Axle 45CBM Semi Dump Trailer for Sale Price

Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.

Specification：

Overall dimension：9300mm * 2500mm *3700mm

Volume :  45CBM

Axles：4 axles

Suspension：Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Tire：16 units

King pin：90#

Landing gear：JOST

Brake system: WABCO

Electrical system: 24V, LED lights
