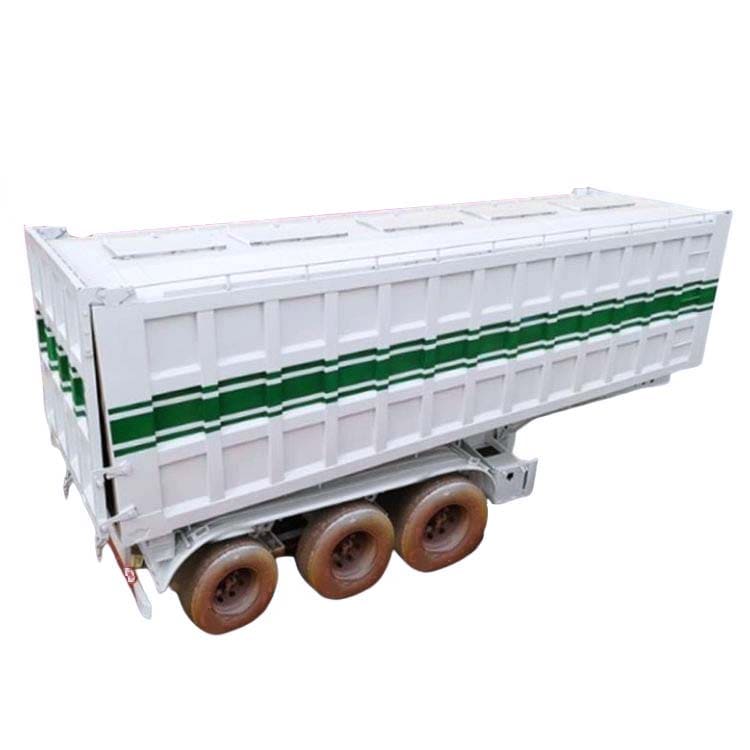

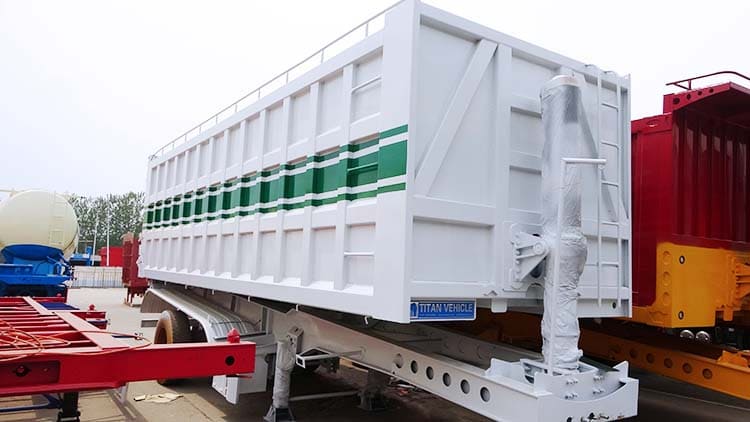

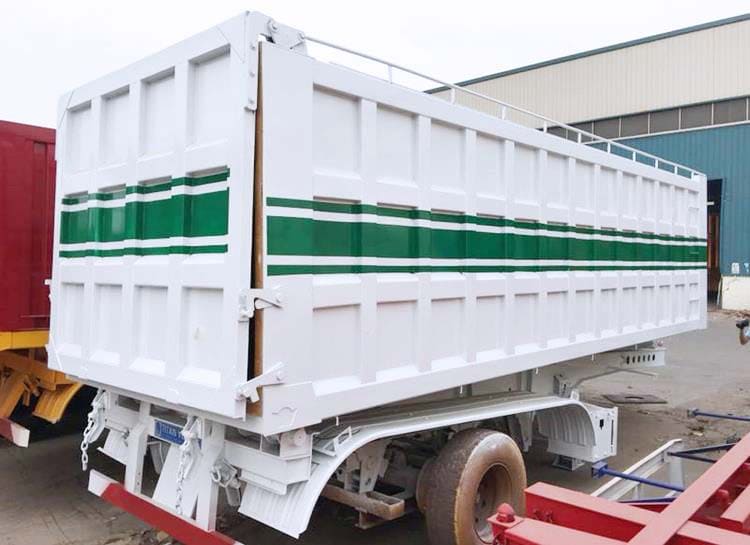

Tri Axles 30T Dump Truck Trailer

Product description:

TITAN Tri Axles 30T Dump Truck Trailer has better cargo capacity and can adapt to complicated bad road conditions. It has the characteristics of high lifting height and fast unloading, and has the characteristics of multi-pull and heavy load. It is easy to operate and effectively meets the diversified and personalized needs of users.

TITAN Tri Axles 30T Dump Truck Trailer adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years.

Specification:

Dimension: 9300mmx2500mm x3700mm (inside dimension)

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 30 ton

End plate: 8mm

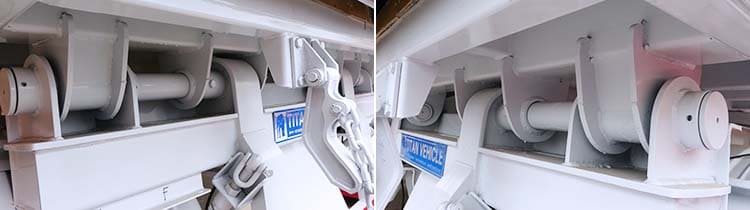

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi dump trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Dump Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
