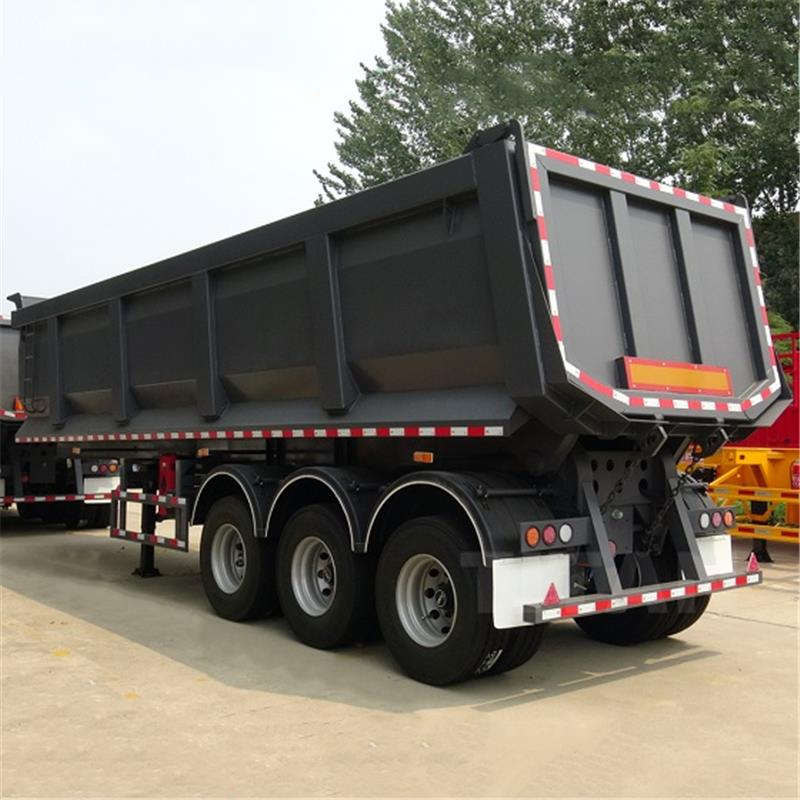

50 Ton Trailer Tipper
50 Ton Trailer Tipper

50 Ton Trailer Tipper

17500 USD

Different Parameters, Different Price. Price Reference Only.



TITAN 50 ton trailer tipper can be used in many other fields such as construction, agriculture, etc. And the loading capacity is 40t, 60t, 80t.

SKU: 50 Ton Trailer Tipper
GTIN: 6975766111212
MPN: TITAN9407041
Brand: TITAN

Product Description:

TITAN 50 Ton Trailer Tipper adopts high strength steel to make it durable when loading the sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t.

TITAN Trailer Tipper equipped with reliable hydraulic HYVA cylinder. We can customize the trailer tipper according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use the well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

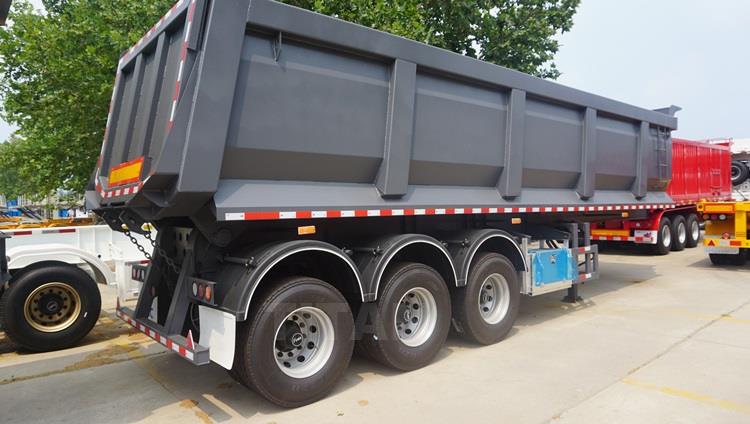

3 Axle 50 Ton Trailer Tipper for Sale near me

3 Axle 50 Ton Trailer Tipper for Sale near me

3 Axle 50 Ton Trailer Tipper for Sale near me

3 Axle Trailer Tipper for Sale near me

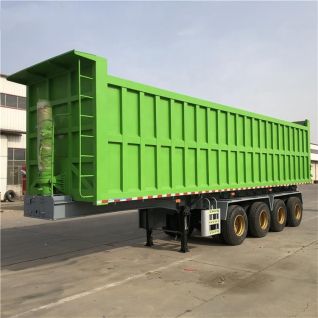

33 Cubic Meters Dumper Trailer



Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.



Specification:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 40m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set



Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.



Tipper semi trailer



Triple axle dump trailer detail show video



tipper trailer



Please click " TITAN Tipper Semi Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
