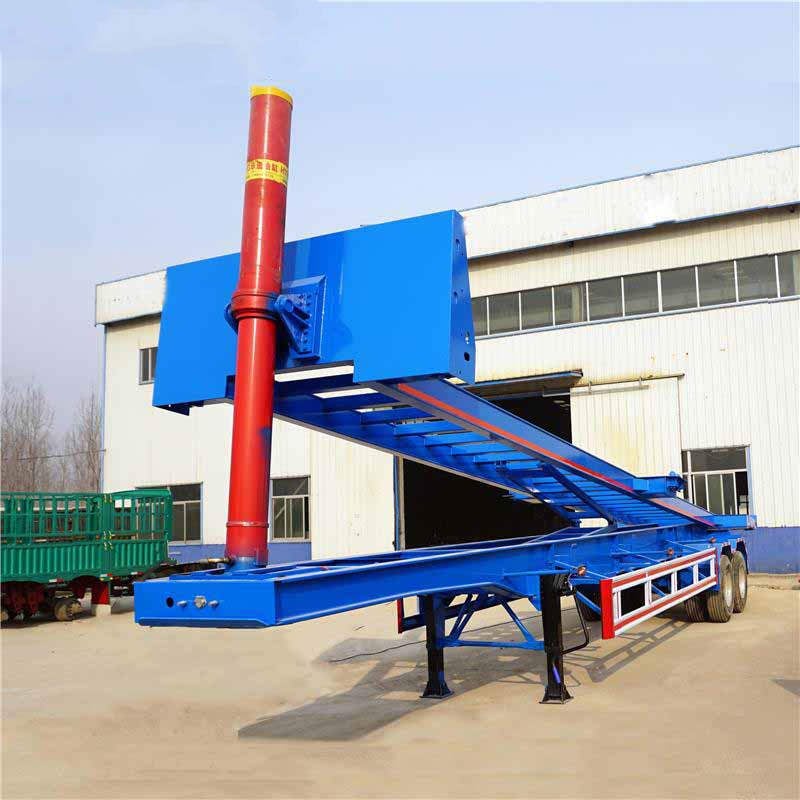

The 2 axle tipper chassis comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process.
The 40ft 2 Axle Tipper Chassis comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process.
TITAN adopts high strength steel, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. Main parts, especially the stress point, 40ft 2 Axle Tipper Chassis for Sale adopt the reinforced design.
The 40ft 2 Axle Tipper Chassis could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design. The sides are welding molding which increasing the loading capacity. This 2 Axle Tipper Chassis could be used for nearly 10 years.
Cost of 2 Axle Tipper Chassis for Sale in Malaysia
40ft Tipper Chassis for Sale
Overall dimension: 13000mm * 2500mm *2900mm
Loading capacity: 40T
Suspension：Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
