Different Parameters, Different Price. Price Reference Only.
30 tonne truck flat bed trailer is the most popular model. TITAN can also offer 2/3/4 axle, 20/40/45/48 ft flat bed trailer, the capacity from 40 to 80 tons.
30 tonne truck flat bed is commonly used to transport various bulk cargoes and containers, 40ft container flatbed semi trailer can transport 1×40ft or 2×20ft container.
Each 30 tonne flat bed for sale comes with its own load rating, size, other systems as would be needed for its use. These specifications are very useful in helping you buy the right 30 tonne flat bed trailer for your operations.

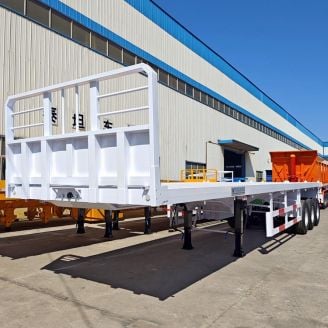

30 Tonne Truck Flat Bed Trailer for Sale in Botswana - TITAN Vehicle
Model: 30 tonne truck flat bed
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
Light: LED light (specially intended for oversea market)
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.
3. Durable mechanical widened spring suspension, make sure the stability and safety.
4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.
5. Hight Quality container locks, make sure the stable and safety of the loads.
Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Flatbed Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
