TITAN is a proffessional manufacturer for manufacturing flat body trailers in China. TITAN focus on the producing flat body trailer for decades. TITAN specially pay attention into the quality of the frame of flat body trailer.
TITAN using Q345 steel material to make the main beam, this material is extremly solid and strong, to make sure that the tri axle 40ft flat body trailer is more durable and have a longer service life.
In the other hand, TITAN using the world famous brand accessories, like BPW axle,jost landing gear

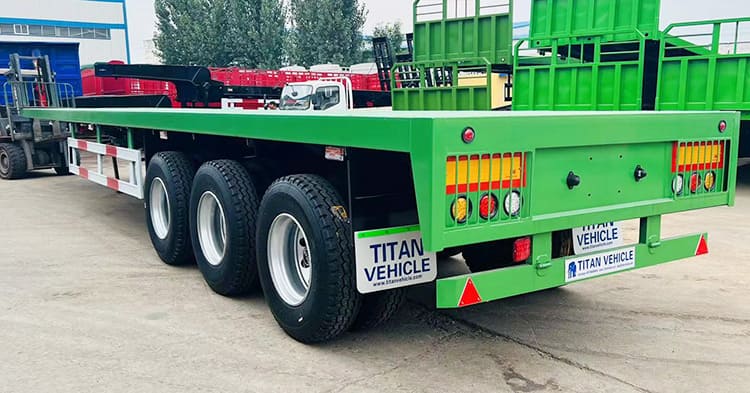

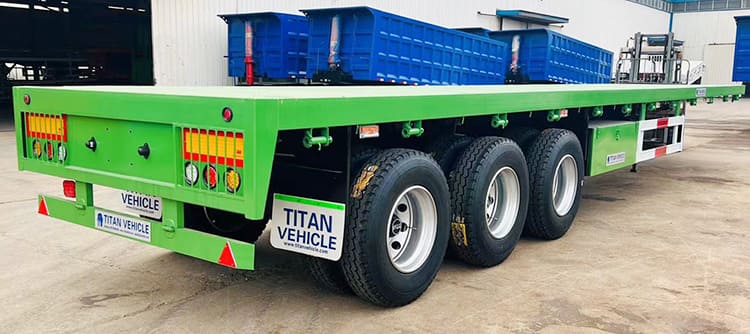

Tri Axle 40 Ft Flat Body Trailer for Sale Price

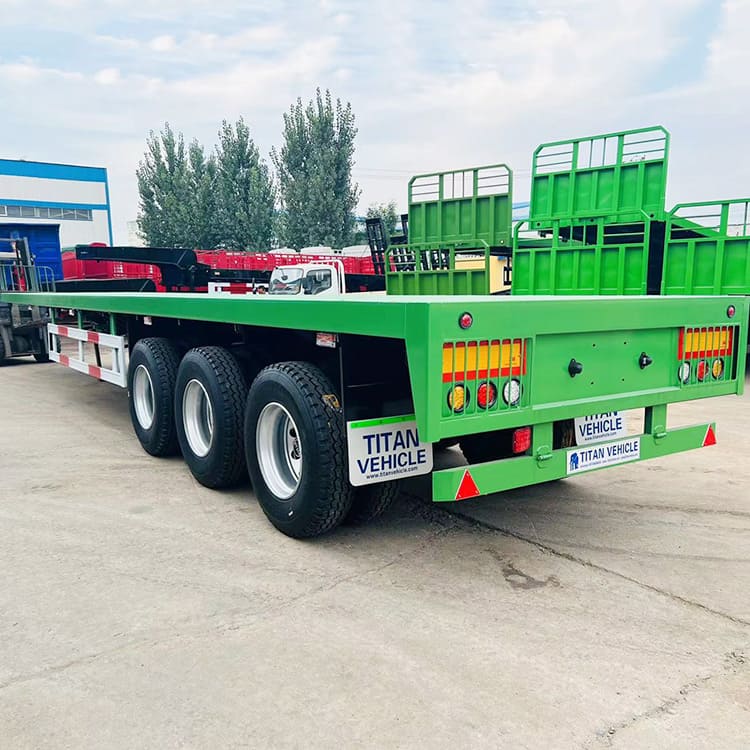

Tri Axle 40 Ft Flat Body Trailer for Sale Price

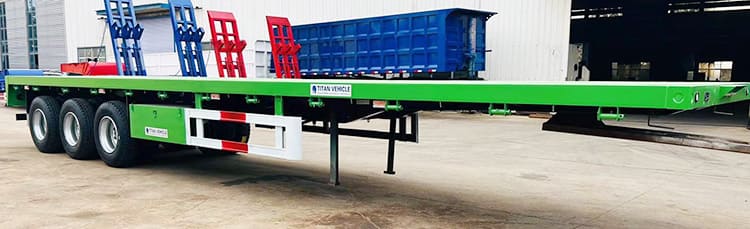

Tri Axle 40 Ft Flat Body Trailer for Sale Price

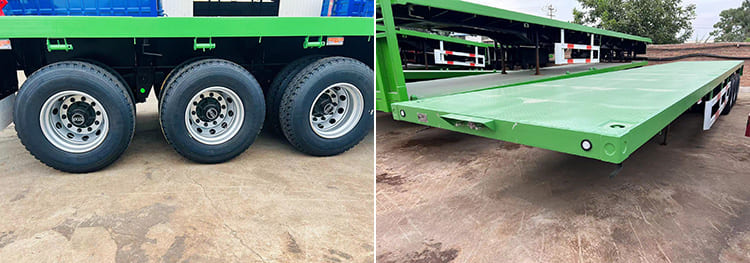

Tri Axle 40 Ft Flat Body Trailer for Sale Price
Model: tri axle 40ft flat body trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
Before the flat body trailer is packed, TITAN will use spray wax to waterproof the surface of the container flatbed, in order to prevent the container flatbed from rusting in water during transportation, which can well protect the container flatbed. There are mainly 3 ways to transport the container flatbed semi-trailer. Mainly By bulk cargo, RORO or 40HQ containers
