Multi Types of 3 Axle Trailer

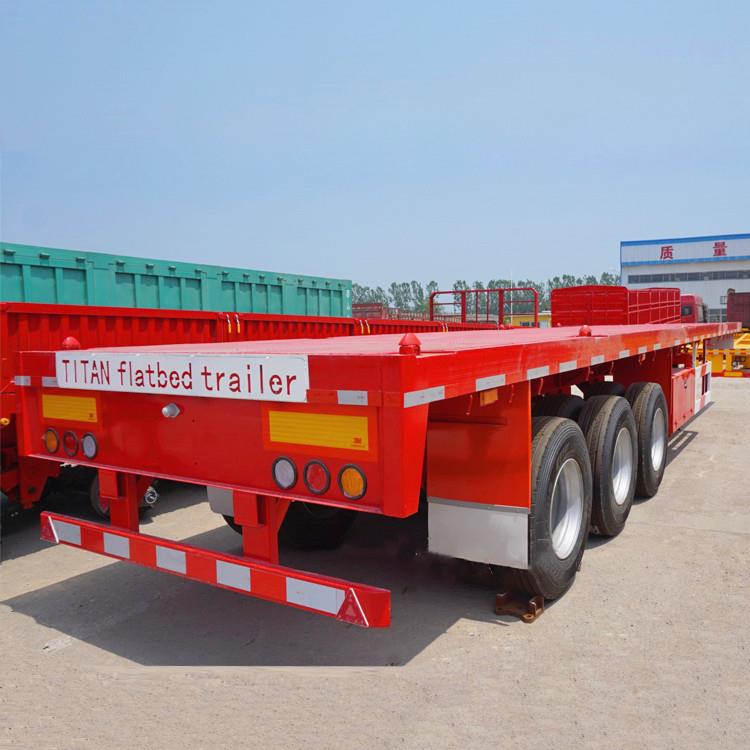

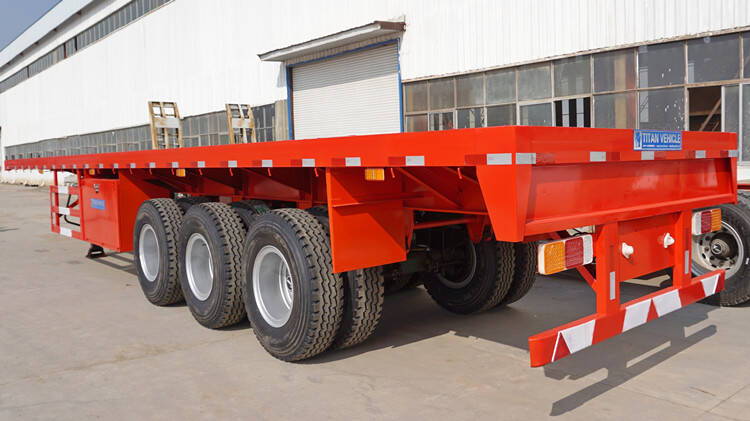

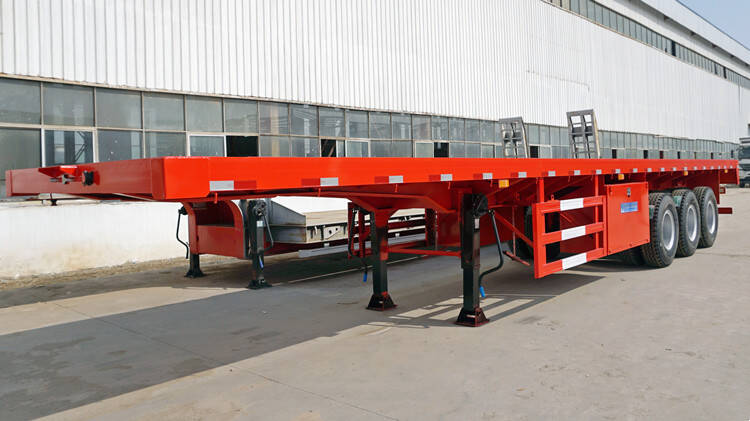

3 axle flatbed trailer:

3 axle flatbed trailer is commonly used to transport various bulk cargoes and containers, 40ft container flatbed semi trailer can transport 1×40ft or 2×20ft container.

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Suspension: Mechanical suspension

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Twist Locks: 4,8,12 sets (lifting or screw type)

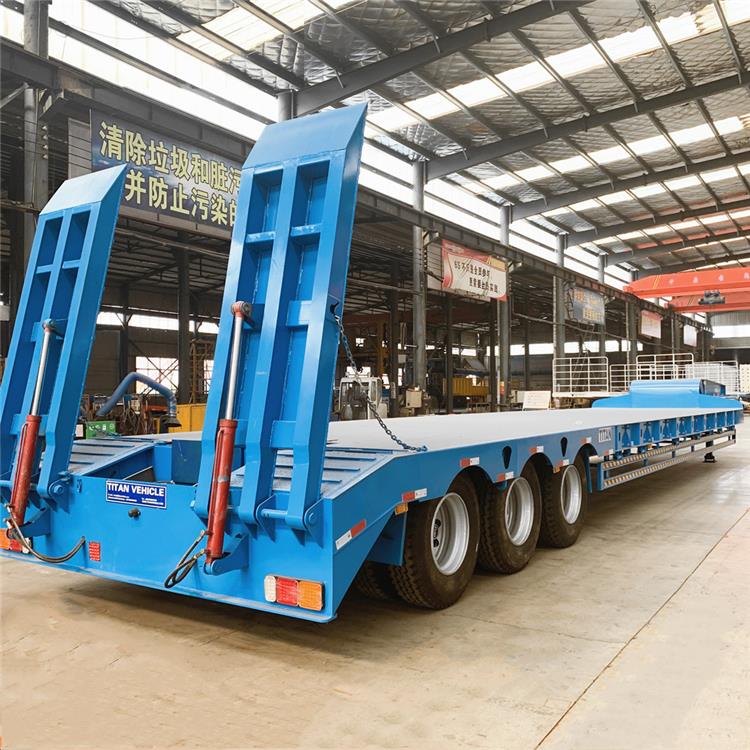

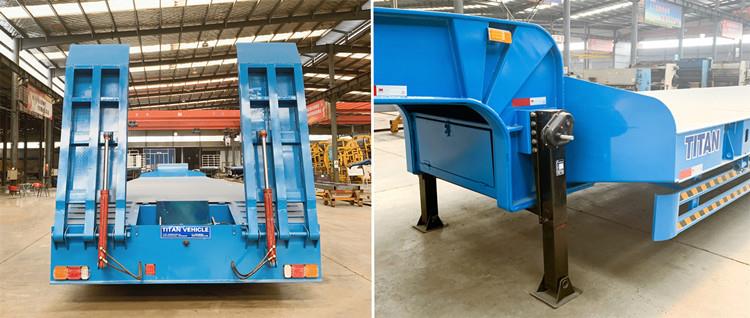

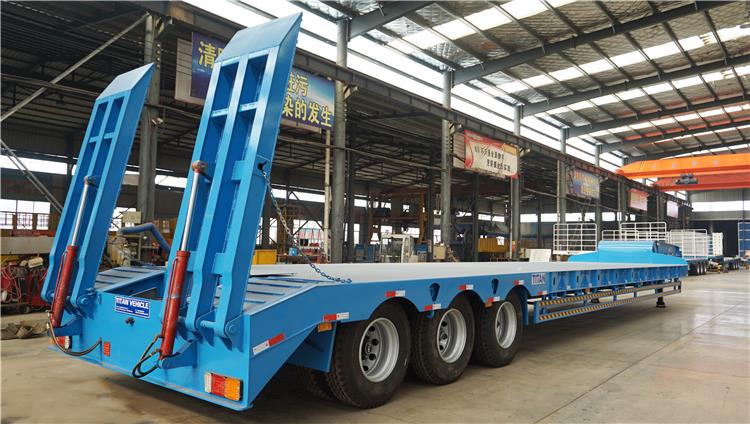

3 axle low bed truck:

TITAN 3 axle low bed truck trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. It is widely used in heavy machines transportation.

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 60-80 Ton

Axle: 3 axles, FUWA / BPW / TITAN Brand

Tire: 12 units, 11.00R20

Suspension: Mechanical suspension

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

3 axle fuel tanker:

TITAN offers carbon steel, stainless steel or aluminum material tanker trailers. The volume of the 3 axle fuel tanker can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters. With the different compartments, like two, three, four, or more compartments, to load different liquid.

Dimension: 11500mm*2500mm*3700mm (the exact size depends on the final design.)

Total volume: 42000 liters

Tank Body Material: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

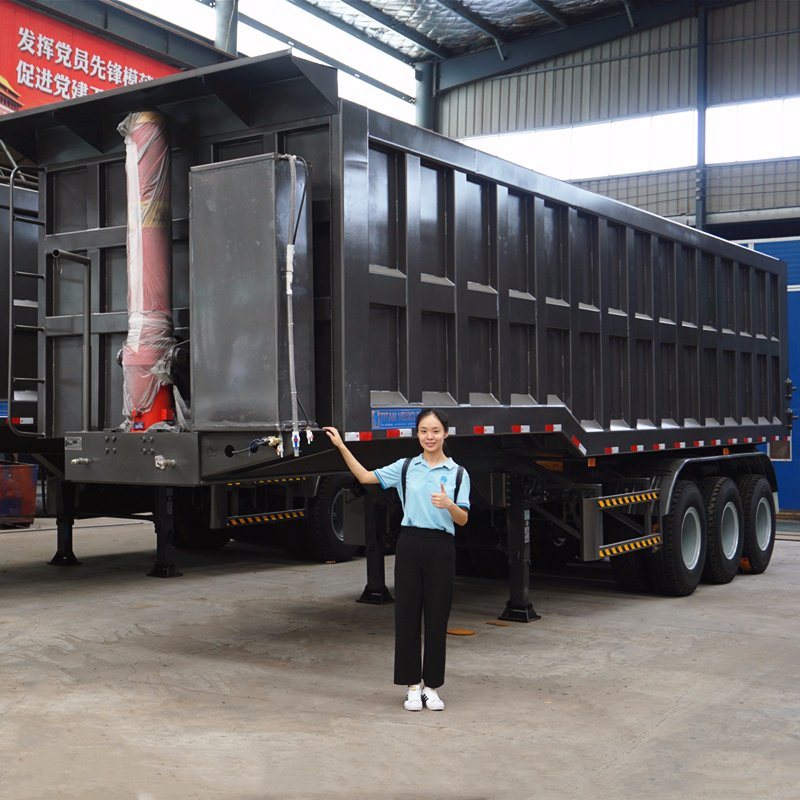

3 axle tipper semi trailer:

3 axle tipper trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Total volume(m³): 35m³

Lifting System: Full set of HYVA lifting cylinder

Axle: 3 axles, FUWA / BPW / TITAN Brand

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

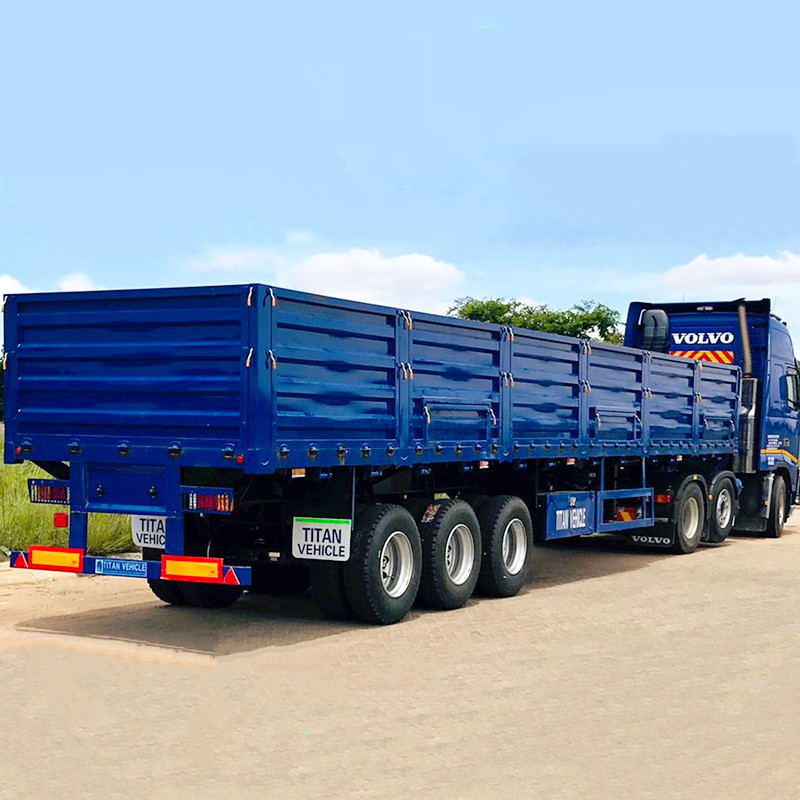

Triaxle trailer with boards:

Triaxle trailer with boards is used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Suspension: Mechanical suspension

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Bottom Platform: 3mm-thick checkered plate

3 axle side loader trailer:

TITAN 3 axle side loader trailer is used for loading and unloading 40ft container or 20ft container.

Max.lifting capacity: 45 ton

Trailer Chassis: 14100mm * 2500mm *4100mm

Axles: 3 axles

Tire: 12 units

Landing gear: JOST C200

Hydraulic pump: Gear type Casappa Italy

Hydraulic direction control valves: AMCA Holand

Motor: Japanese Kubota diesel engine

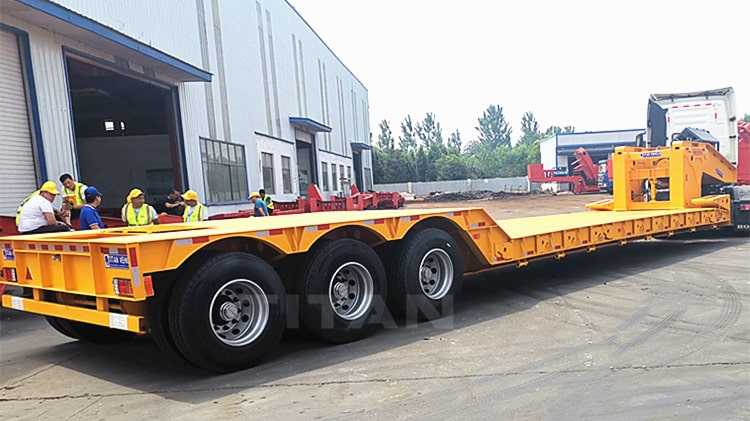

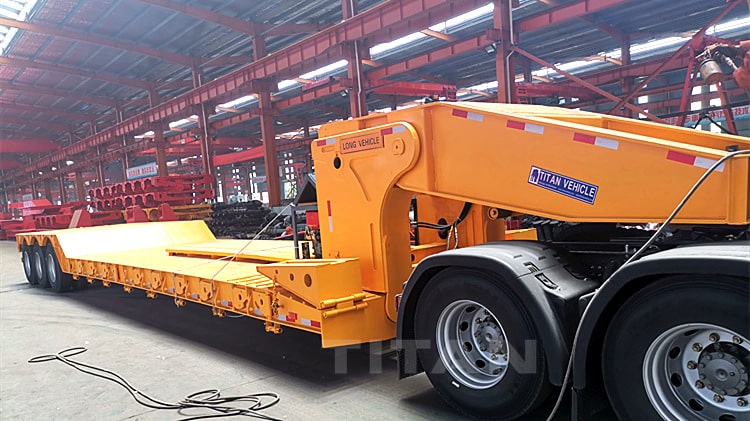

3 axle removable gooseneck trailer:

TITAN removable gooseneck trailers for transport excavator and construction equipment, large machinery transportation. To meet your transport needs and your local regulations, we can customize different configuration removabl gooseneck trailer for you.

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 60-100T

Axle: 3 axles

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Hydraulic cylinder: 12KW diesel engine with hydraulic station

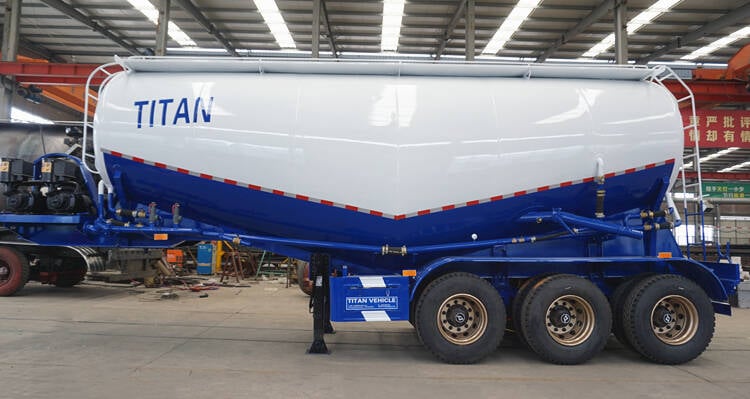

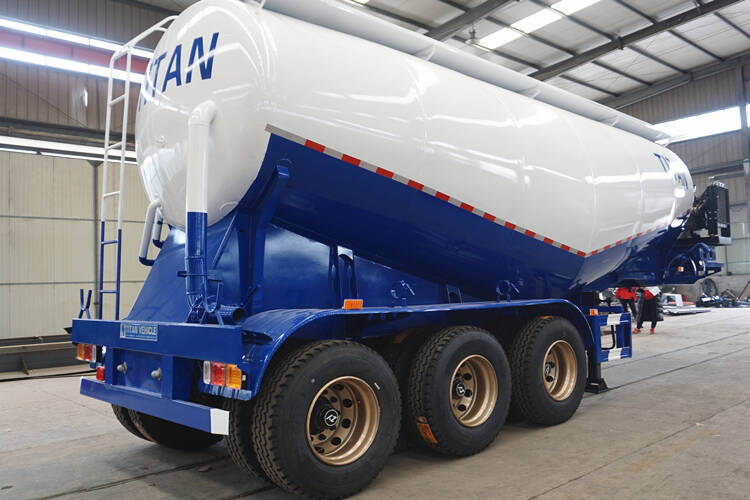

3 axle cement bulker:

TITAN 3 axle cement bulker for carrying different bulk items like cement, flour, powder, soda, ash, alumina. We offer a wide range of cement trailers with different specification and capacities with diesel engine and air compressor.

Payload: 36T-50T

Axles: 3 axles

Tire: 12 units

Tank body thickness: 3.5mm

Compressor: 12m³ double cylinder air compressor

Spare tire rack: 2 units

Sprinkler: one sprinkler; car waxing

Diesel Engine: WEICHAI Brand

Compressor: BOHAI
